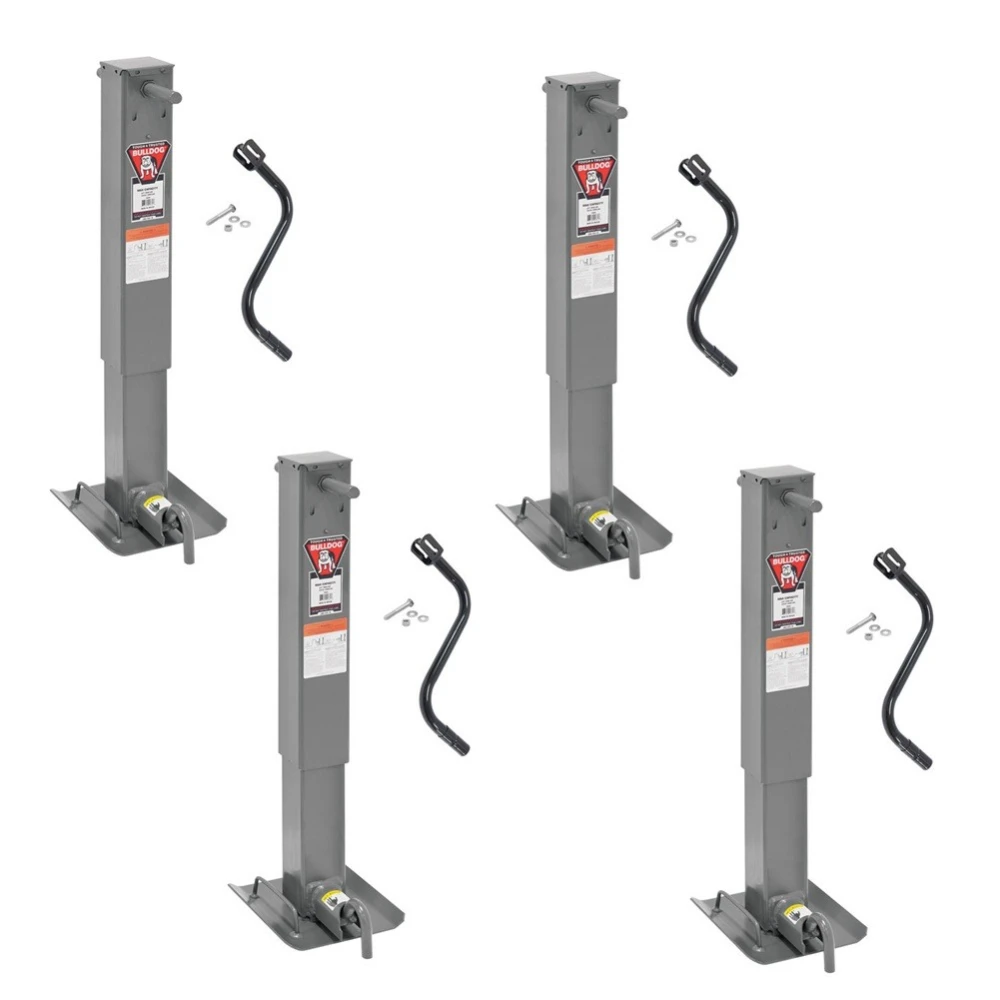

Bulldog 4x 12K Square Trailer Jack w/ 26" Lift Sidewind Non Spring Return
Model: BDTJ50Bulldog 12,000 lbs Square Sidewind Trailer Jack Bundle (4-Pack)
This bundle includes four heavy-duty Bulldog 12,000 lbs support-capacity square jacks with 26″ lift and a non-spring return drop leg. Designed for agricultural, construction, heavy-duty utility, and horse/livestock trailers, these sidewind jacks feature superior 7-gauge alloy steel construction and a gray powdercoat finish for lasting durability. Get all the stability and strength you need in one convenient set.
Bundle Contents:

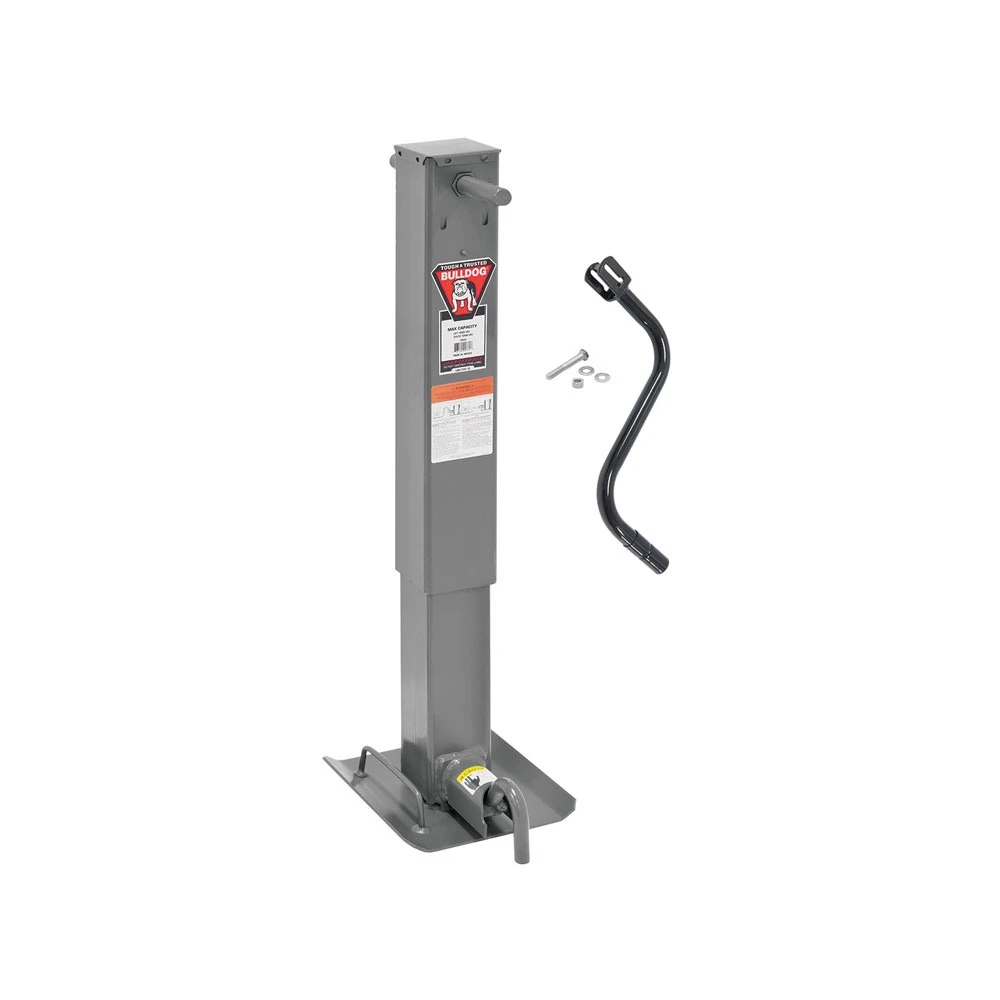

- QTY (4): HD Square Trailer Jack, 12,000 lbs. Support Capacity, Sidewind, 12-1/2″ Travel
- Strong, durable HD square jack with 12,000 lbs support capacity, proven since 1923
- 4″ square tubing constructed from 7-gauge superior alloy steel
- Gray powdercoat finish on outer tube and drop leg
- Non-spring return drop leg with 5 positioning holes
- Easy-access gear box with grease fitting for routine maintenance
- 12.5″ screw travel plus 13.5″ of additional adjustment when extended
- Front-facing or side-facing drop leg plunger pin options
- Sidewind handle crank with 1:1.5 gear ratio
Recommendation: Always verify compatibility with your trailer’s mounting configuration before installation. Perform regular inspections of the gear box, lubrication points, and drop leg hardware to ensure smooth operation and long service life.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 27 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 53 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 27.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 53.3 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
$1,045 99 $1,075.00 3% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,075.00 $1,045 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ50
- Includes: 12K Drop Leg Jack
