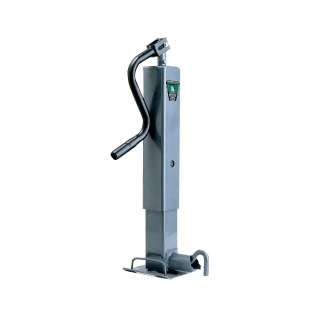

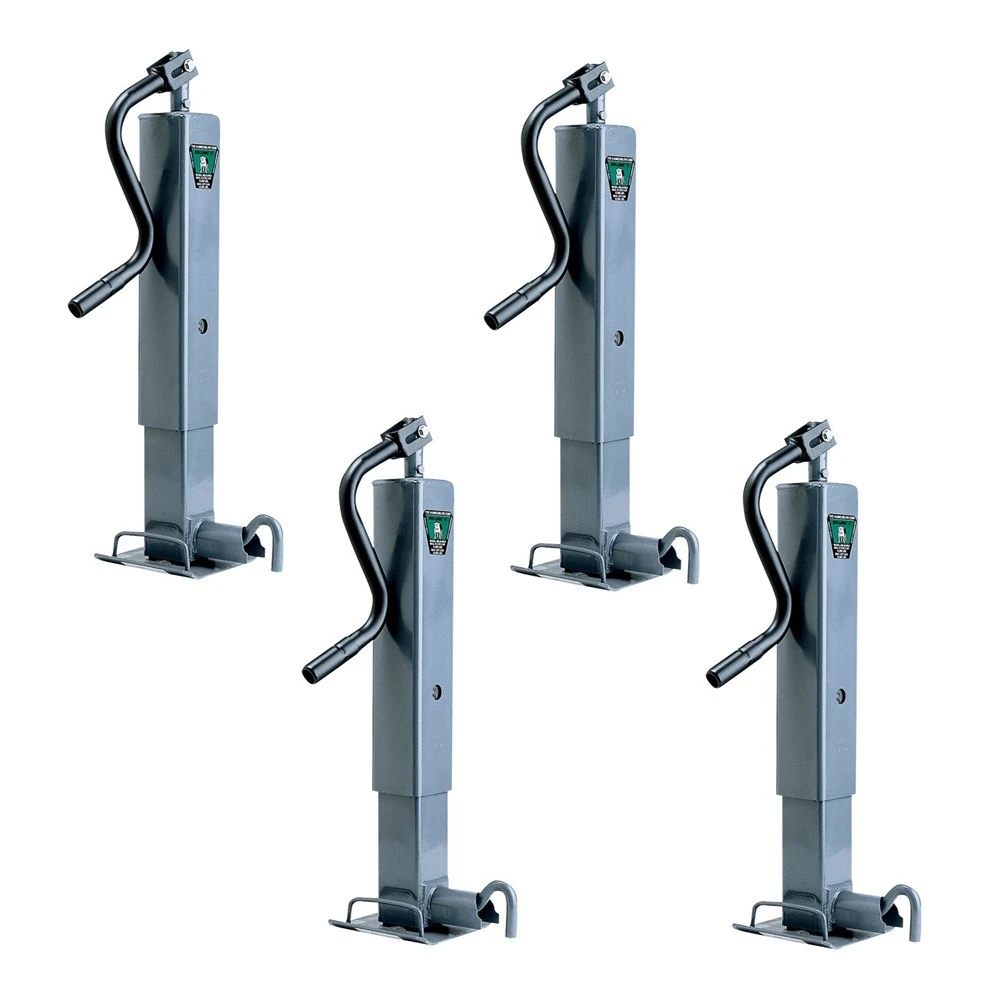

Bulldog 4x 12K Square Trailer Jack w/ 26" Lift Topwind Non Spring Return and Crank
Model: BDTJ82Bulldog 4-Pack 12K Topwind Square Trailer Jack Bundle
This bundle includes four heavy-duty Bulldog 12,000 lb support capacity square jacks, each featuring a 26″ lift and Topwind non spring return drop leg. Built from 7-gauge superior alloy steel with a durable powdercoat finish, these jacks provide reliable, smooth operation for a wide range of trailer applications—ideal for agricultural, construction, and utility use.
Bundle Contents:
- QTY (4): HD Square Trailer Jack, 12,000 lbs. Support Capacity, Topwind, 12-1/2″ Travel
- Strong, durable, and sturdy—Bulldog has delivered unrivaled performance since 1923.
- 4″ square tubing, 7-gauge superior alloy steel construction.
- Painted outer tube and drop leg with optional powdercoat.
- Drop leg non spring return design with 5 positioning holes for adjustable height.
- Easy-access gearbox with grease fitting for routine maintenance.
- 12.5″ screw travel plus 13.5″ additional adjustment via drop leg.
- Front-facing or side-facing drop leg plunger pin for secure engagement.
- Sidewind handle with 1:1.5 gear ratio for smooth cranking.
We recommend verifying your trailer’s original equipment requirements before installation and performing regular maintenance—lubricate gearbox fittings and inspect drop leg pins—to ensure long-lasting performance.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 23 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 49 Inch |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Exact Bracket-to-Bottom Clearance (Retracted) | 23.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 49.4 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
$961 99 $1,050.00 8% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,050.00 $961 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ82
- Includes: 12K Drop Leg Jack
