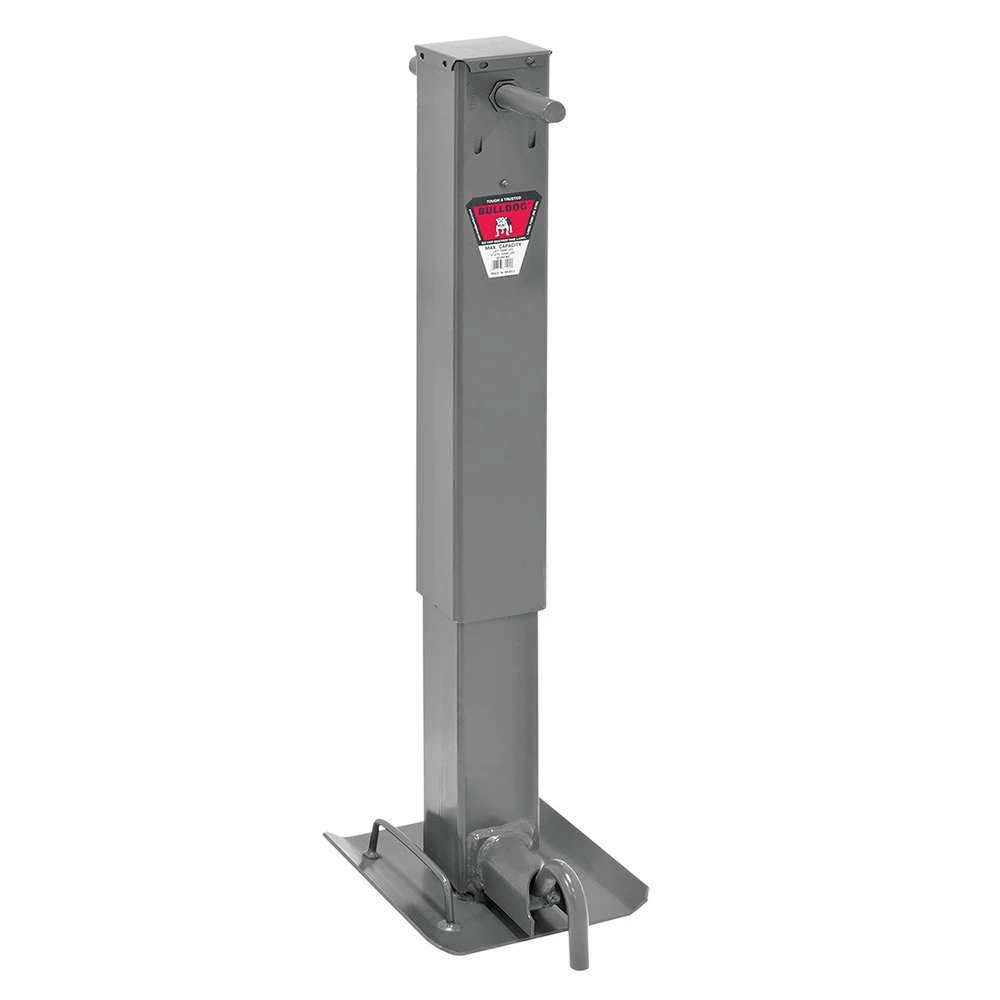

Bulldog 4x 12K Square Trailer Jack w/ Sidewind 26" Lift Drop Leg Non Spring Return
Model: BDTJ54Bulldog 4-Pack 12K Square Trailer Jacks with Sidewind 26″ Lift Drop Leg Non-Spring Return
Equip your fleet or spare parts inventory with this cost-effective bundle of four Bulldog 12,000 lb capacity square trailer jacks. Each jack features a sidewind handle crank for smooth 26″ lift travel, a durable gray powdercoat finish, and a non-spring return drop leg design. Built from 7-gauge alloy steel tubing and offering user-configurable clearance, these heavy-duty jacks ensure reliable support and easy maintenance for agricultural, construction, and utility trailers.
Bundle Contents:
- QTY (4): Bulldog HD Square Trailer Jack, 12,000 lbs Support Capacity, Sidewind 26″ Lift, Drop Leg Non Spring Return
- 4″ square tubing, 7-gauge superior alloy steel
- Painted outer tube and drop leg
- Drop leg with 5 positioning holes
- Easy-access gearbox with grease fitting for routine maintenance
- 12.5″ screw travel with 13.5″ of additional adjustment
- Front-facing or side-facing drop leg plunger pin
- Optional painted finish (with or without labels) or gray powdercoat
- Sidewind handle with 1:1.5 gear ratio
For optimal performance, verify compatibility with your trailer’s mounting bracket and follow the manufacturer’s guidelines for regular lubrication and inspection of the gearbox and plunger pin. Always ensure the drop leg is securely locked during use and stowed when towing.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 27 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 53 Inch |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Exact Bracket-to-Bottom Clearance (Retracted) | 27.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 53.3 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
| Custom Bundle | No |
