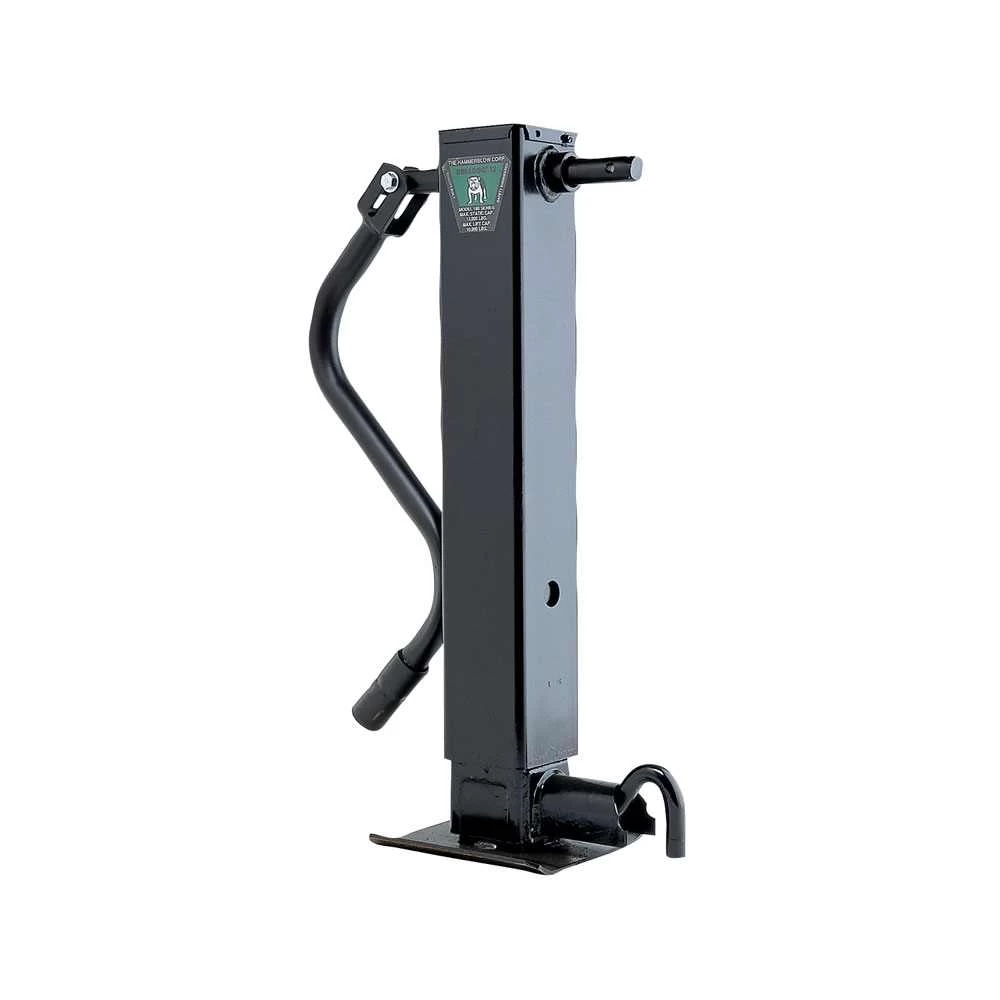

Bulldog 4x 12K Square Trailer Jack w/ Sidewind Handle Spring Return Drop Leg

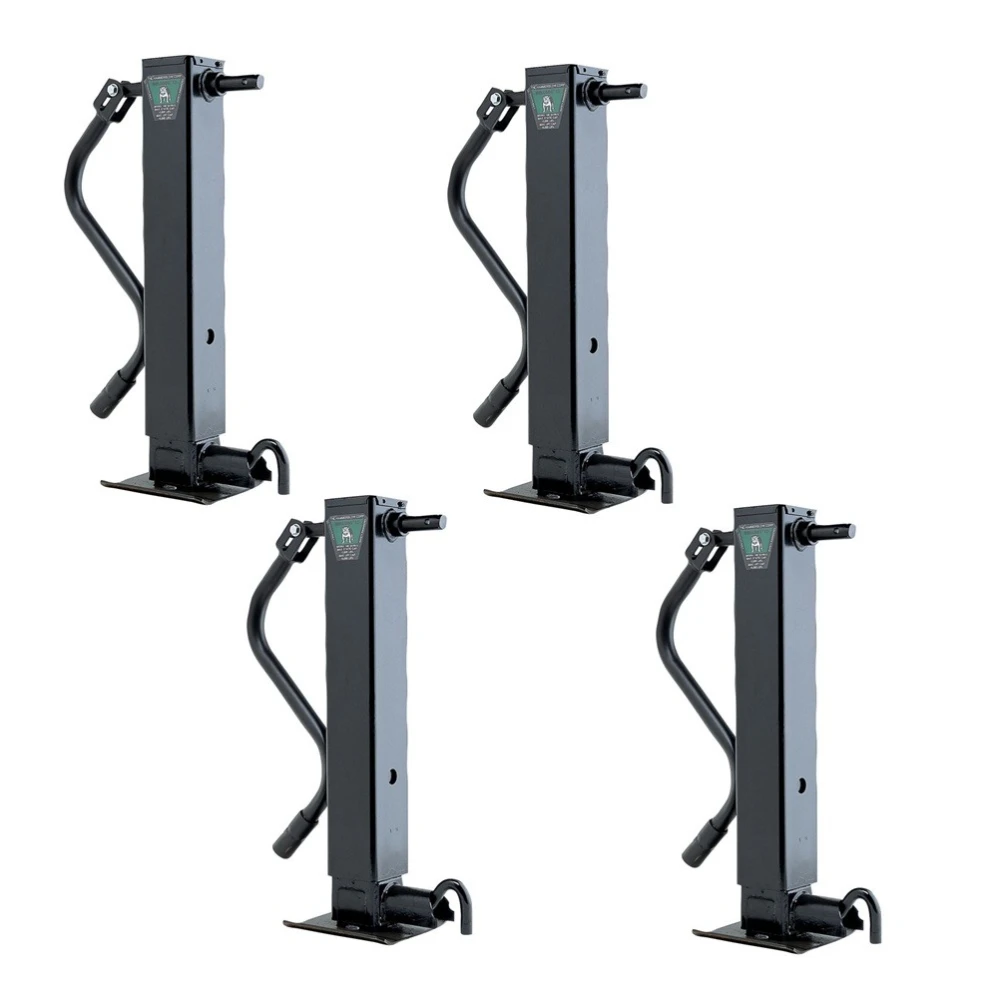

Model: BDTJ42Bulldog 12K Square Trailer Jack 4-Pack with Sidewind Handle & Spring Return Drop Leg
Ensure maximum support and smooth operation on heavy-duty trailers with this 4-pack of Bulldog 12,000 lb square jacks. Each jack features a spring-return drop leg and sidewind handle for effortless lifting, making them ideal for agricultural, construction, and utility trailers.
Bundle Contents:
- QTY (4): Bulldog 12K Square Trailer Jack w/ Sidewind Handle & Spring Return Drop Leg
- 4,000 lbs. support capacity per jack; 10,000 lbs. lift capacity
- 4″ square tubing, 7-gauge superior alloy steel construction
- Black powdercoat finish (painted outer tube & drop leg)
- Drop leg with 5 adjustable positioning holes and spring-return action
- Easy-access gearbox with grease fitting for routine maintenance
- Front-facing or side-facing drop leg plunger pin option
- Sidewind handle crank with 1:1.5 gear ratio
- 12.5″ screw travel; 13.5″ total adjustable height
Always verify your trailer’s original equipment specifications and perform regular lubrication and inspections to maintain smooth operation and prevent premature wear.
| Specifications: | |
|---|---|
| Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Travel Range | 12.5 Inch Lift |
| Finish | Black Powdercoat |
| Static Load Capacity | 12,000 LB Static Capacity |
| Lifting Load Capacity | 10,000 LB Lift Capacity |
| Foot Type | Footplate |
| Leg Style | Drop Leg Spring Return |
| Swivel Type | Non Swivel |
| Outer Tube Diameter | 4 Inch Outer Tube |
| Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 27 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 54 Inch |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Exact Bracket-to-Bottom Clearance (Retracted) | 27.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 53.6 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
