Bulldog 4x 12K Square Trailer Jack w/ Topwind 26" Lift Non Spring Return

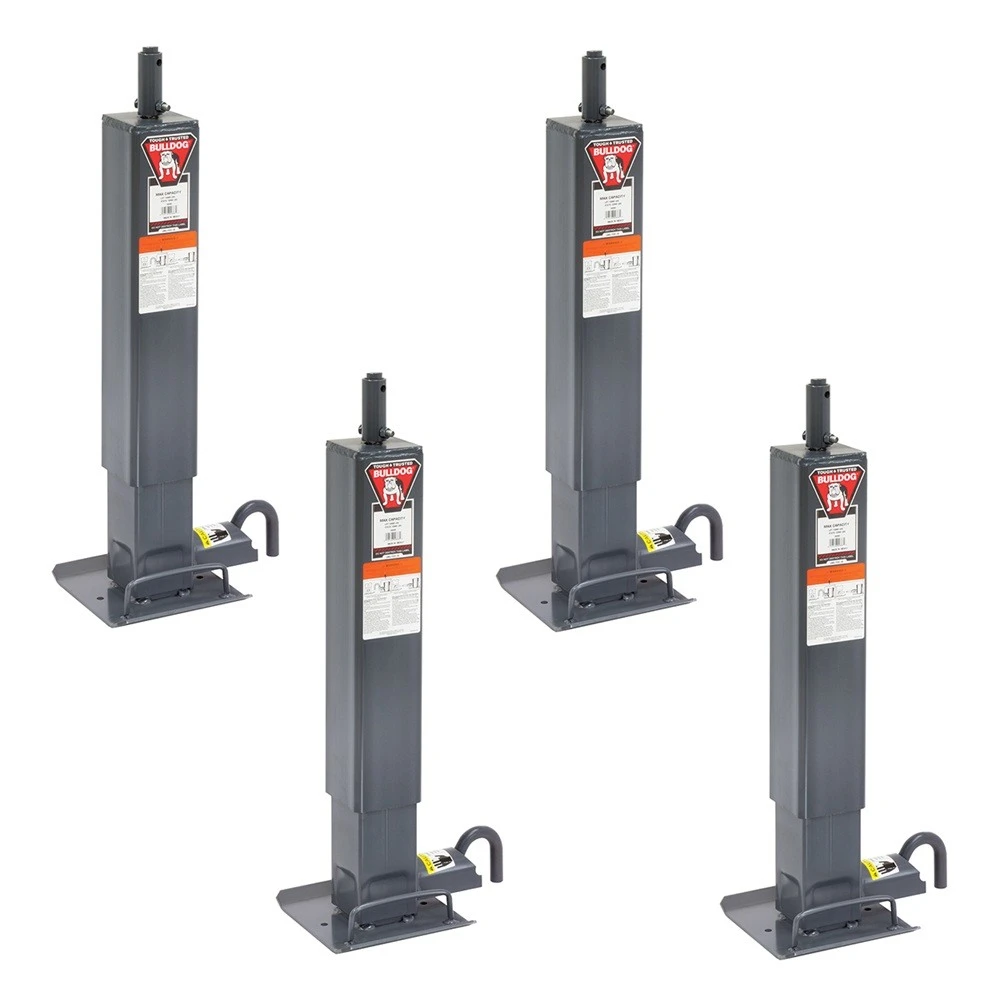

Model: BDTJ86Bulldog 4-Pack 12K Square Topwind Trailer Jacks w/ 26" Lift (Non-Spring Return)
This bundle gives you four heavy-duty Bulldog 12,000 lb support-capacity square jacks with a 26" topwind lift and non-spring return drop legs. Each jack is built from 7-gauge superior alloy steel and features a convenient drop-leg option with five positioning holes. Ideal for agricultural, construction, heavy-duty utility, and horse/livestock trailers, these jacks deliver reliable performance and robust durability.
Bundle Contents:

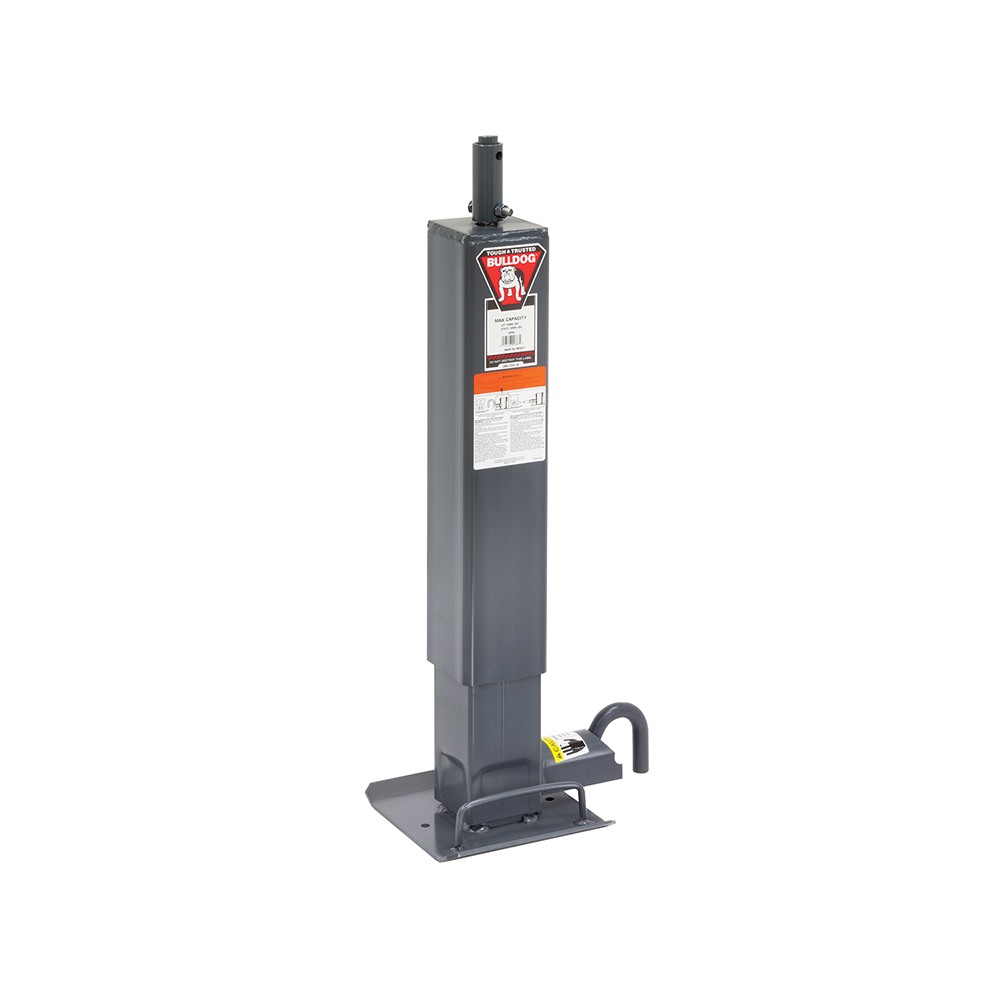

- QTY (4): HD Square Trailer Jack, 12,000 lb Support Capacity, Topwind, 12½" Travel, No Handle
- Strong, durable, and sturdy: Bulldog has carried the load in agricultural, construction, heavy-duty utility, and horse/livestock trailer industries since 1923. All 4" square jacks are rated for 12,000 lb support capacity and 10,000 lb lift capacity.
- 4" square tubing, 7-gauge superior alloy steel
- Painted outer tube and drop leg
- Drop leg option with 5 positioning holes
- Easy-access gearbox with grease fitting for routine maintenance
- Spring return drop leg or non-spring return drop leg
- 12.5" screw travel, plus 13.5" of additional adjustment with drop leg
- Front-facing or side-facing drop leg plunger pin
- Painted (with or without labels) or powder-coated finish options
- Sidewind models – 1:1.5 gear ratio
Before installing, verify compatibility with your trailer’s jack bracket and perform routine maintenance—grease fittings, check drop-leg pins, and ensure proper lubrication—for maximum service life.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 23 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 49 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 23.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 49.4 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
