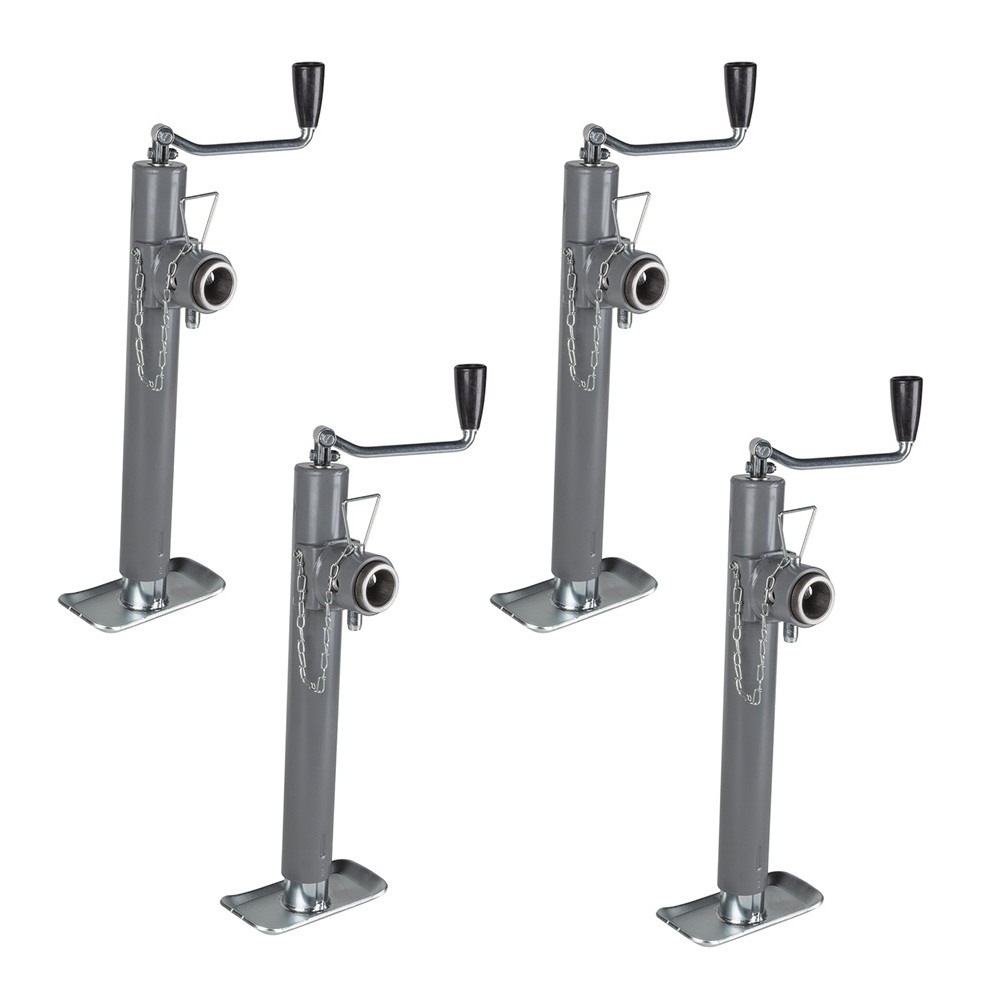

Bulldog 4x 5K Pipe Mount Swivel Trailer Jack w/ Topwind Handle and 10" Lift
Model: BDTJ323Bulldog 4x 5K Pipe Mount Swivel Trailer Jack w/ Topwind Handle and 10" Lift
This bundle includes 4 high-quality Bulldog 5,000 lb. pipe mount swivel trailer jacks, ideal for agricultural, commercial, and livestock trailers. With proven field reliability, a durable weld-on design, and ergonomic topwind handles, these jacks ensure safe, smooth operation and long-term performance under heavy loads.
Bundle Contents:

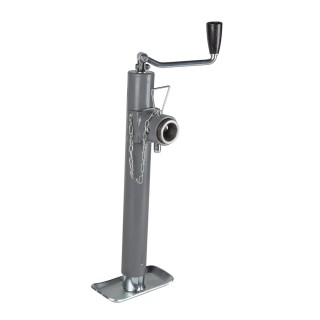

- QTY (4): Bulldog 5K Pipe Mount Swivel Trailer Jack, Topwind, 10" Lift
- 5,000 lbs. lift and static capacity
- Pipe mount with swivel mechanism
- Topwind handle for smooth cranking
- Weld-on installation
- 10-inch travel with fixed leg and footplate
- Powder-coated gray outer tube, zinc inner
- Durable round tubing with 2.25" OD outer, 2" ID inner
Always confirm compatibility with your trailer’s mounting style and weight requirements. Regular maintenance ensures safe and reliable jack operation for years to come.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Medium Duty Trailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 10 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 5000 LB |
| Lifting Load Capacity | 5000 LB |
| Jack Foot Type | Footplate |
| Leg Style | Fixed Leg |
| Swivel Type | Swivel |
| Outer Tube Diameter | 2.25 Inch |
| Shape | Round Jack |
| Bracket-to-Bottom (Retracted) | 6.8 Inch |
| Bracket-to-Bottom (Extended) | 16.8 Inch |
| Bracket-to-Top Clearance | 8.5 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Inner Tube Diameter | 2 Inch |
