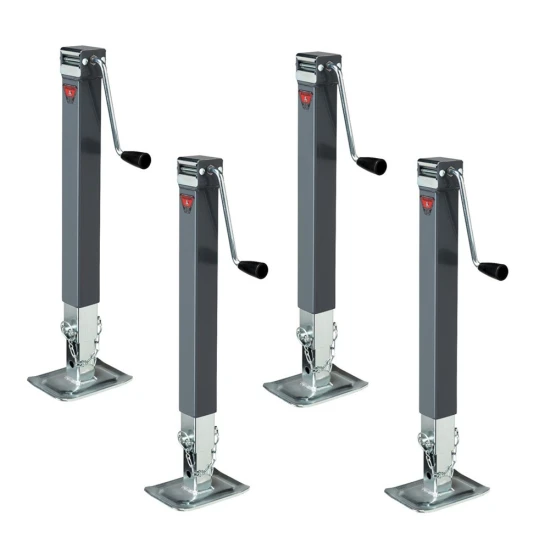

Bulldog 4x 8K Square Trailer Jack w/ 15" Lift Sidewind and Footplate
Model: BDTJ150Bulldog 8,000 lb Capacity Square Trailer Jack Bundle – 4-Pack
Equip your trailer with reliable support and effortless lift using this 4-pack of Bulldog 8,000 lb capacity square jacks. Each sidewind jack features a durable powdercoat finish, zinc-plated inner tube, and 15″ of smooth travel—perfect for agricultural, industrial, construction, horse/livestock, and utility applications where space is tight.
Bundle Contents:
- QTY (4): Square Trailer Jack, No Mount, 8,000 lbs. Support Capacity, Sidewind, Weld-On, 15″ Travel
- BULLOCK’s 8,000 lb support capacity serves agricultural, industrial, construction, horse/livestock, and utility/cargo trailers.
- Compact design ideal where 3″ and 4″ square tube jacks are too large.
- Painted outer tube doubles as final finish or primer.
- Zinc-plated inner tube and drop leg for corrosion resistance.
- 4.7″ overlap between outer and inner tubes for optimal side-load performance.
- 5/8″ screw stem prevents twisting under heavy loads.
- Patented screw nut stop protects components at full extension.
- Bushing in top cap provides Eagle Claw grip on sidewind models.
- 1/4″ cross pin guards against shearing of the jack pin.
- 1:1.33 gear ratio for smooth, efficient operation.
For optimal safety and performance, always verify compatibility with your trailer’s original equipment specifications and perform regular maintenance on all jacks.
| Specifications: | |
|---|---|
| Weight Capacity | 7001–8000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB Static Capacity |
| Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.5 Inch Outer Tube |
| Jack Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 25 Inch |
| Bracket-to-Bottom Clearance (Extended) | 54 Inch |
| Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Retracted Clearance | 25.06 Inch |
| Exact Extended Clearance | 53.56 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
