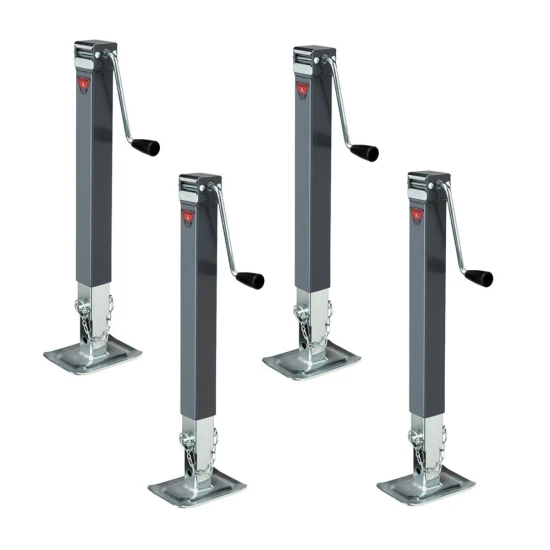

Bulldog 4x 8K Square Trailer Jack w/ Sidewind Handle and 15" Lift
Model: BDTJ1544-Pack Bulldog 8,000 lb Square Sidewind Trailer Jacks – 15″ Lift
Equip your trailers with reliable support and smooth operation using this Bulldog 4-pack of 8,000 lb capacity square sidewind jacks. With a sturdy welded footplate and 15″ of lift travel, these jacks are ideal for heavy-duty agricultural, construction, horse/livestock, and utility trailers.
Bundle Contents:
- QTY (4): Bulldog Square Trailer Jack, 8,000 lb, Sidewind
- 15″ lift travel; weld-on mounting (no bracket included)
- Durable gray powdercoat finish with zinc-plated inner tube
- 4.7″ overlap for optimal side-load performance
- 5/8″ screw stem with patented nut stop to prevent damage
- Sidewind handle with 1:1.33 gear ratio for easy cranking
- Footplate base and non-spring drop leg for stable support
- 2.5″ outer tube diameter; square profile for maximum strength
Always verify your trailer’s bracket dimensions and perform regular maintenance—lubricate moving parts and inspect hardware—to ensure dependable operation.
| Specifications: | |
|---|---|
| Weight Capacity | 7,001–8,000 lb |
| Static Load Capacity | 8,000 lb |
| Lift Capacity | 5,000 lb |
| Lift Mechanism | Sidewind Handle Crank (1:1.33 ratio) |
| Travel Range | 15″ Lift |
| Mounting Style | Direct Weld HD Jack |
| Foot Type | Footplate |
| Leg Style | Drop Leg, Non-Spring Return |
| Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.5″ |
| Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 25.06″ |
| Bracket-to-Bottom Clearance (Extended) | 53.56″ |
| Bracket-to-Top Clearance | User-Configurable |
| Finish | Gray Powdercoat |
$651 96 $800.56 19% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$800.56 $651 96
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: BDTJ154
- Includes: 8K Drop Leg Jack
