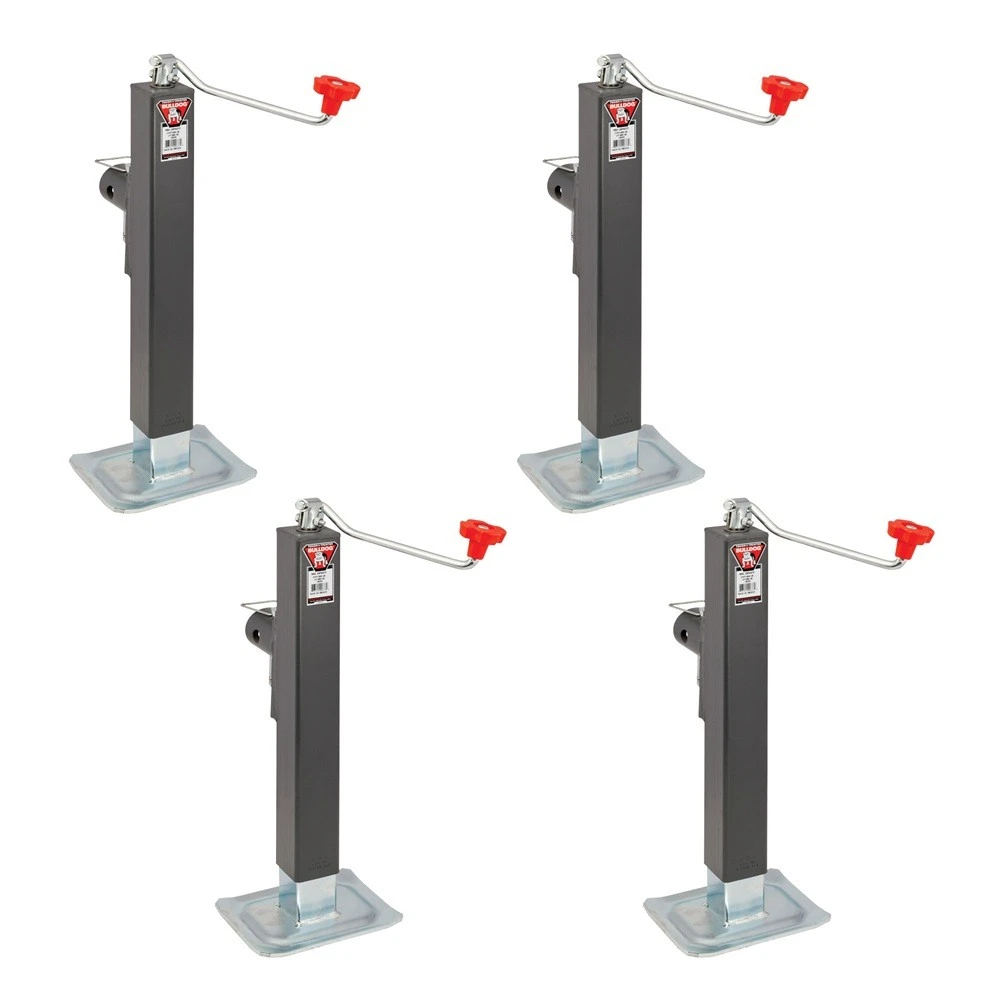

Bulldog 4x 8K Square Trailer Jack w/ Tubular Swivel Mount 15" Lift w/o Mating Mount
Model: BDTJ130Bulldog 4-Pack 8,000 lb Square Swivel Trailer Jack – 15″ Lift
Get reliable, heavy-duty support for your agricultural, industrial, or utility trailers with this bundle of four Bulldog square swivel-mount jacks. Each jack delivers 8,000 lb static capacity and 15″ of smooth, topwind lift—ideal for tight applications where space is at a premium.
Bundle Contents:
- QTY (4): Square Trailer Jack, Side Mount, 8,000 lbs. Support Capacity, Topwind, Weld-On, 15 Inch Travel
- Painted outer tube for use as final finish or primer
- Zinc-plated inner tube and drop leg
- 4.7″ outer/inner tube overlap for optimal side-load performance
- 5/8″ screw stem to prevent twisting under load
- Patented screw-nut stop to prevent damage when fully extended
- Topwind handle with bushing in top cap and eagle-claw grip
- 1:1.33 gear ratio for smooth operation
Before installation, verify compatibility with your trailer’s OEM mounting brackets and perform regular maintenance to ensure long-lasting performance.
| Specifications: | |
|---|---|
| Weight Capacity | 7,001–8,000 lb |
| Mounting Style | Pipe Mount Swivel Jack |
| Jack Style | Square, Side Mount |
| Lift Mechanism | Topwind Handle Crank |
| Travel Range | 15 Inch Lift |
| Finish | Gray Powdercoat |
| Static Load Capacity | 8,000 lb |
| Lifting Load Capacity | 5,000 lb |
| Foot Type | Footplate |
| Outer Tube Diameter | 2.5 Inch |
| Bracket-to-Bottom Clearance | 15.10 In (Retracted) / 30.10 In (Extended) |
| Bracket-to-Top Clearance | 7 Inch |
| Electric Lift | Non-Electric |
$513 99 $700.32 27% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$700.32 $513 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ130
- Includes: 8K Square Jack
