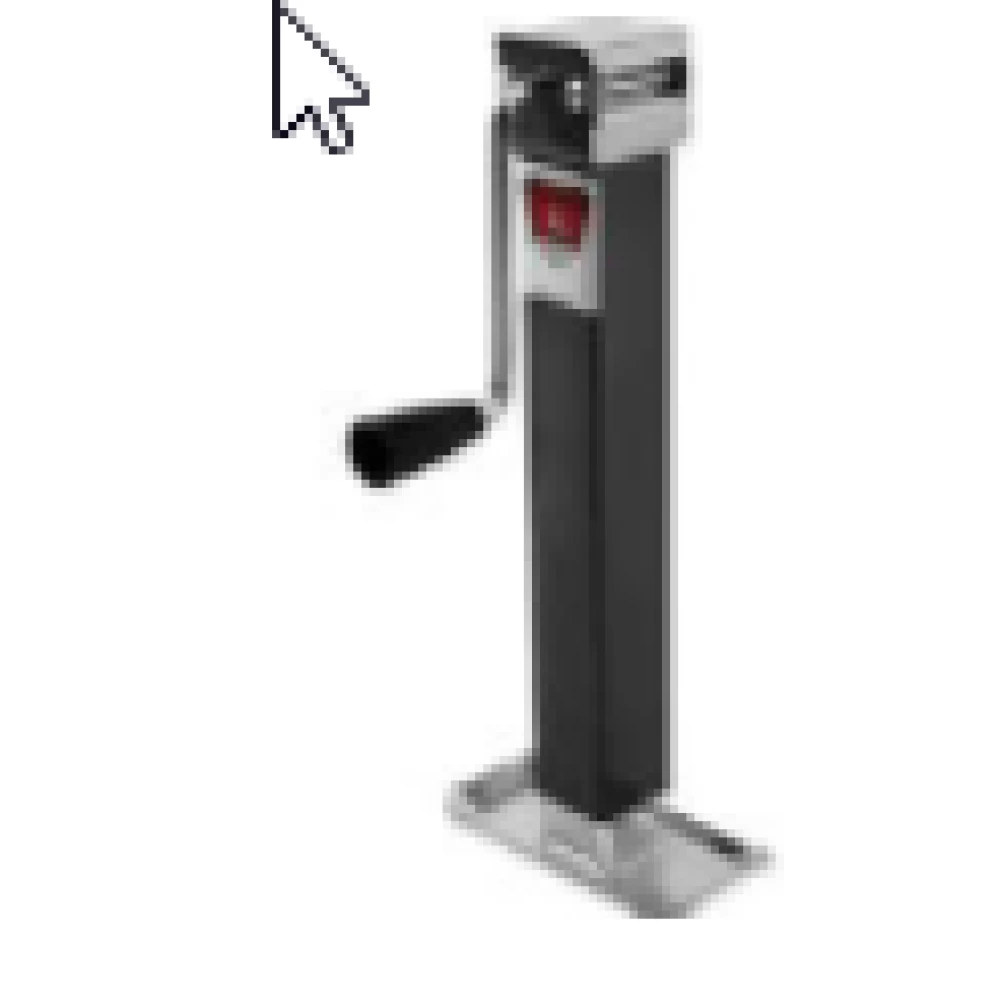

Bulldog 5,000 lbs. Square Trailer Jack Sidewind 10" Lift Fixed Leg w/ Footplate
Model: 195351SQUARE JACKS Square Up for Side Load Strength Compared to round jacks of similar capacities, BULLDOG’s 5,000 lbs. support capacity square jack dramatically improves side load strength while maintaining the economical benefits of lower capacity jacks. The extra side load capacity you need without the costs of increasing overall capacity.
-
12-gauge square tube is 70% stronger than 12-gauge round tube for more side load and support strength with the same lift capacity
-
4.62" outer tube overlap at full extension for additional side load strength
-
Weather-resistant materials and coatings. Painted outer tubes, clear zinc inner tubes
-
Proven, reliable mechanical elements provide dependable strength and long-lasting, durable performance
-
Outer inner tubes overlap which results in optimal side load performance
-
Use the painted outer tube as the final finish or primer
-
Limited 5-year warranty
-
ASABE ASABE compliant
Specifications:
-
Support Capacity: 5,000 lbs.
-
Lift Capacity: 3,000 lbs.
-
Retracted Bracket Height: 17.70"
-
Extended Bracket Height: 27.70"
-
Travel/Lift: 10"
-
This Jack is intended to be welded on directly onto your application
-
Fixed Leg w/ Footplate
-
Handle Radius: 6.5"
-
Sidewind model
-
2-1/4" Tubing width
$96 85 $106.73 9% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$106.73 $96 85
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $24.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 195351
- UPC: 016118096422
- Includes: Square Jack
Description
Get Expert Help
Bulldog 5,000 lbs. Square Trailer Jack Sidewind 10" Lift Fixed Leg w/ Footplate Install Notes
Installation Instructions for Tongue Jacks
Part Numbers:
- Not specified in the provided text.
Wiring Access Location:
- Not applicable.
Tools Required:
- Torque wrench (25 ft. lbs.)
Step-by-Step Instructions:
Bolt-On Rack Jack Instructions:
- Place the gear housing on the tongue and insert the supplied bolts into the holes corresponding to the tongue width.
- Place the mounting bracket below the tongue with the flat surface against the tongue.
- Secure with locknuts and torque to 25 ft. lbs.
Bolt-On Mounting Bracket Instructions:
- Align the mounting bracket with the correct hole pattern for your tongue size. Ensure the gap between the mounting bolts and tongue does not exceed 1/16".
- Position the jack against the tongue and align the holes in the mounting bracket with the mounting straps.
- Insert 4 bolts through the mounting bracket and straps. Ensure the bolts rest appropriately on the tongue.
- Secure with locknuts, and torque to 25 ft. lbs.
- Check for clearance of the handle, trailer light cables, and coupler.
Snap Ring/Bolt-Thru Instructions:
- For a snap ring model, place the jack bracket over the mount and seat the snap ring fully into the groove.
- For a bolt-thru model, position the jack bracket into the recessed opening on the mount, place the bushing, and tighten the locknut until minimal movement is detected.
"A" Plate Mounting Instructions (Bolt-On or Weld-On):
- All welding must be performed by an AWS-certified welder.
- Align the jack with the coupler before welding, using a 3/16" fillet weld.
- Attach the "A" plate to the coupler using 3/8-16 Grade 5 bolts, and torque to 15-20 ft. lbs.
- Weld the recommended support plate to the bottom of the trailer frame.
Direct-Mount Instructions:
- All welding must be performed by an AWS-certified welder.
- Place the jack at the desired location and weld 1" in two locations on both sides using a 3/16" fillet weld.
Hardware List:
- Bolts: 4 (provided, size not specified)
- Locknuts: 4 (provided)
Safety Notes:
- Fully retract and rotate the jack before towing.
- Remove the drop foot or caster before towing.
- Avoid side forces to prevent jack failure.
- Use only as designed; do not modify the product.
- Replace damaged or worn parts before use.
- Always secure the load, trailer, and vehicle to prevent rolling.
- Do not exceed the maximum rated capacity (refer to product markings).
Specifications:
- Torque specifications: 25 ft. lbs.
- Welding requirements: AWS-certified welder.
- Mounting clearances: Gap not exceeding 1/16".
Maintenance:
- Annually lubricate internal gearing and bushings with automotive grease.
- Apply lightweight oil to handle units and moving parts.
- In marine environments, flush with fresh water and reapply lubricants.
Installation Instructions for Tongue Jacks
Part Numbers:
- Not specified in the provided text.
Wiring Access Location:
- Not applicable.
Tools Required:
- Torque wrench (25 ft. lbs.)
Step-by-Step Instructions:
Bolt-On Rack Jack Instructions:
- Place the gear housing on the tongue and insert the supplied bolts into the holes corresponding to the tongue width.
- Place the mounting bracket below the tongue with the flat surface against the tongue.
- Secure with locknuts and torque to 25 ft. lbs.
Bolt-On Mounting Bracket Instructions:
- Align the mounting bracket with the correct hole pattern for your tongue size. Ensure the gap between the mounting bolts and tongue does not exceed 1/16".
- Position the jack against the tongue and align the holes in the mounting bracket with the mounting straps.
- Insert 4 bolts through the mounting bracket and straps. Ensure the bolts rest appropriately on the tongue.
- Secure with locknuts, and torque to 25 ft. lbs.
- Check for clearance of the handle, trailer light cables, and coupler.
Snap Ring/Bolt-Thru Instructions:
- For a snap ring model, place the jack bracket over the mount and seat the snap ring fully into the groove.
- For a bolt-thru model, position the jack bracket into the recessed opening on the mount, place the bushing, and tighten the locknut until minimal movement is detected.
"A" Plate Mounting Instructions (Bolt-On or Weld-On):
- All welding must be performed by an AWS-certified welder.
- Align the jack with the coupler before welding, using a 3/16" fillet weld.
- Attach the "A" plate to the coupler using 3/8-16 Grade 5 bolts, and torque to 15-20 ft. lbs.
- Weld the recommended support plate to the bottom of the trailer frame.
Direct-Mount Instructions:
- All welding must be performed by an AWS-certified welder.
- Place the jack at the desired location and weld 1" in two locations on both sides using a 3/16" fillet weld.
Hardware List:
- Bolts: 4 (provided, size not specified)
- Locknuts: 4 (provided)
Safety Notes:
- Fully retract and rotate the jack before towing.
- Remove the drop foot or caster before towing.
- Avoid side forces to prevent jack failure.
- Use only as designed; do not modify the product.
- Replace damaged or worn parts before use.
- Always secure the load, trailer, and vehicle to prevent rolling.
- Do not exceed the maximum rated capacity (refer to product markings).
Specifications:
- Torque specifications: 25 ft. lbs.
- Welding requirements: AWS-certified welder.
- Mounting clearances: Gap not exceeding 1/16".
Maintenance:
- Annually lubricate internal gearing and bushings with automotive grease.
- Apply lightweight oil to handle units and moving parts.
- In marine environments, flush with fresh water and reapply lubricants.
Contact Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Warranty Information:
For complete warranty instructions, please download the full installation PDF.
