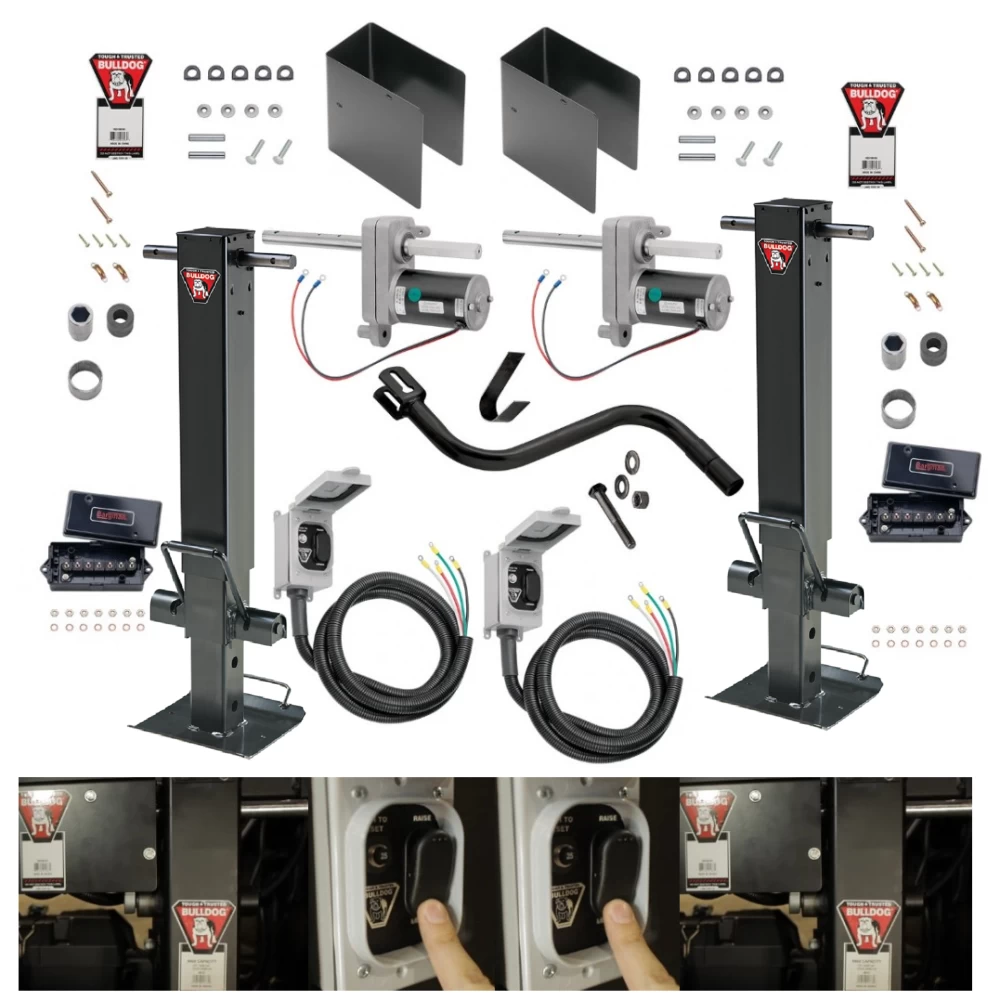

Bulldog 50K Electric Leveling Dual Motor Landing Gear Set Dual Single Speed Trailer Jacks Twin Cam Trailer Jacks Spring Return Drop Legs, Tandem Twin Bulldog Electric Powered‑Drive Motors, Manual Override Crank
Model: 182701X2 1824200100X2 1400920383Bulldog Landing Gear and Leveling Jacks 2-Pack Bundle - Your Ultimate Lifting Solution!

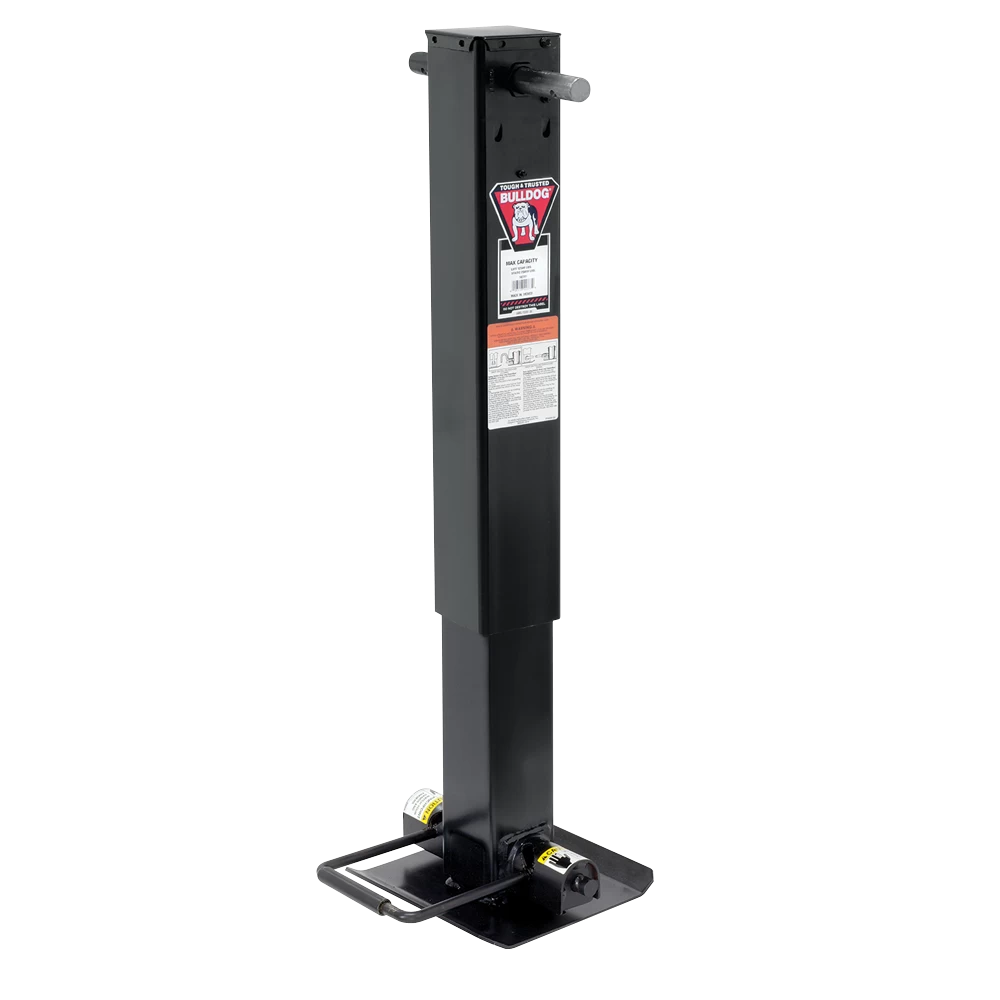

Introducing the Bulldog Twin Cam Landing Gear 2-Pack (182701), each featuring a Spring Return Drop Leg, paired with the Bulldog Electric Motor Powered-Drive Kit 2-Pack (1824200100). This bundle is designed to meet the varied needs of trailers such as gooseneck, car hauler, fifth-wheel, enclosed, utility, and horse trailers, enhancing your experience with added convenience and a Manual Override Crank.
Please Note: Each jack has a separate motor requiring individual switches for optimal operation, although both motors can be connected to the same battery.
Key Features:
- Twin Cam Drop Leg Mechanism for enhanced vertical static capacity.
- Enclosed Twin Cam to protect against dirt and debris.
- Manual Operation Option with override cranks for emergencies.
- Grease Fittings for easy maintenance.
- Screw Stop Technology to prevent damage and extend longevity.
- Serviceability with easy access to internal components.
- Adjustable drop legs with five positions for 13.5" of adjustment.
- Heavy-Duty Steel Footplates for stability.
- Durable Input Shafts with a robust 1" diameter.
- Spring Return Drop Legs for added convenience and adjustability.
Experience effortless drop leg retraction with Spring-Actuated Drop Legs, eliminating manual lifting.
ASABE S485 Compliant: Bulldog products adhere to high-quality standards for reliability.
Technical Specifications:
- Bracket Height: 27-1/2" (Retracted) to 53-1/2" (Extended)
- Total Lift: 26"
- Travel: 12-1/2"
- Drop Legs: 13-1/2"
- Manual Lift Capacity: 12,500 lbs per Jack, 25,000 lbs total
- Electric Lift Capacity: 7,500 lbs per Jack, 15,000 lbs total with Motor Kits
- Static Capacity: 25,000 lbs per Jack, 50,000 lbs total
- Footplate Dimensions: 10" x 10"
- Warranty: 5-year
Bulldog Electric Motor Powered-Drive Kit 2-Pack:
- Faster, easier lifting with Bulldog jacks.
- Suitable for Bulldog Single-Speed Landing Gears.
- Ideal for heavy-duty trailers.
- Compact, quiet, and efficient design.
- Maintenance-free with weatherproof construction.
- Manual operation option available for power outages.
Motor Kit Specifications:
- 12 volt DC motor power.
- Electric Lift Capacity: 7,500 lbs per motor, 15,000 lbs total.
- Designed for Bulldog Single-Speed Landing Gears.
- Dimensions: 16-1/2" long x 3-1/8" wide x 7-3/16" tall.
- 5-year limited warranty.
For an efficient, reliable lifting solution, upgrade today with our Bulldog Landing Gear and Leveling Jacks Bundle. Contact us at 877-869-6690 to order and achieve superior performance and peace of mind with your trailer operations.
$2,042 49 $2,906.71 30% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$2,906.71 $2,042 49
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $510.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 182701X2 1824200100X2 1400920383
- Includes: 50K 1-Speed Dual Leanding Gear Jacks + Dual Motors
Get Expert Help
Bulldog 50K Electric Leveling Dual Motor Landing Gear Set Dual Single Speed Trailer Jacks Twin Cam Trailer Jacks Spring Return Drop Legs, Tandem Twin Bulldog Electric Powered-Drive Motors, Manual Override Crank Install Notes
Installation Instructions for 25,000 lb Square Tube Jack
General Installation Notes:
- Follow these instructions carefully without modifications or alterations.
- Do not place any part of your body under the jack or the load being supported.
- Fully retract and/or rotate the jack before towing.
- Verify the drop leg pin is fully inserted before using the jack.
- Block wheels to prevent rolling during operation.
- Never exceed the maximum rated capacity as marked on the product.
- Avoid excessive side forces to prevent jack failure.
- Replace any bent, broken, or worn parts before use.
- Use only on flat surfaces. For tandem applications, align jacks to share the load equally.
- All welding must be performed by an AWS-certified welder.
- Before installation, check for interference in all positions, including handle swing (for both gears) and swivel positions.
- Verify there is no interference after installation is complete.
Tools Required:
- Torque wrench
- Welding equipment (if applicable)
Step-by-Step Instructions:
Direct Mount to Load-Bearing Member:
- All welding must be performed by an AWS-certified welder.
- Apply three 2-inch-long 1/4” fillet welds on both sides of the jack along the contacting surface. Space welds as far apart as possible for maximum load strength.
- For tandem applications, align jacks carefully to ensure they raise and lower together, sharing the load equally.
Weld-On Pivot Tube Mounting:
- Weld the non-beveled side of the pivot tube to the trailer tongue using a 1/4” fillet weld.
- Align the pivot mount holes vertically.
- Mate the jack to the pivot tube and secure it with the supplied pin.
Drop Leg Operation:
Spring Return Drop Leg:
- Ensure the jack is not under load.
- Place your foot on the footplate to control the drop leg's return.
- Rotate the drop leg pin handle to disengage, then carefully move the leg to the desired position.
- Rotate the pin handle to engage it into the adjustment holes and ensure it is fully seated.
- Check for no clearance between the pin handle and the cam slot. If not fully engaged, do not use the jack.
Non-Spring Return Drop Leg:
- Ensure the jack is not under load.
- Grasp the handle of the footplate to control the descent of the drop leg.
- Rotate the drop leg pin handle to disengage and move the leg to the desired position.
- Rotate the pin handle to engage it into the adjustment holes and ensure it is fully seated.
- Check for no clearance between the pin handle and the cam slot. If not fully engaged, do not use the jack.
Maintenance:
- Annually lubricate gears, bushings, and screws with automotive EP2 grease.
- For side-wind models, use a grease gun at lubrication points near the input shaft.
- Apply lightweight oil to the input shaft bushings and drop leg pin assembly.
- Keep the drop leg pin and twin cam mechanism clean and lubricated monthly.
Safety Notes:
- Fully retract and rotate the jack before towing.
- Keep clear of pinch points and moving components during operation.
- Do not adjust the drop leg while the jack is under load.
Limited Warranty:
- Coverage: 5 years against material defects under normal use.
- Exclusions: Normal wear and tear, misuse, overloading, improper installation, and unauthorized modifications.
- For complete warranty information, refer to the full installation guide.
Technical Support:
For technical support or assistance:
- Visit www.trailerjacks.com or call 877-869-6690.
WARNING: Failure to follow these instructions may result in property damage, serious injury, or death.
Installation Instructions for Powered Drive for Jacks
Tools Required:
- Welding equipment (performed by an AWS-certified welder)
- Standard tools for bolts, nuts, and wiring
Safety Instructions:
- Never position any part of the body under the jack or supported load.
- Fully retract and/or rotate the jack before towing.
- Ensure the drop leg pin is fully inserted before using the jack.
- Avoid excessive side forces to prevent jack failure.
- Disconnect the battery ground cable before installation to prevent electrical shock.
- Replace bent, broken, or worn parts before use.
Installation Instructions:
Step 1: Remove the Jack Cross Shaft
- If the jack has non-welded hex bushings, consult the manufacturer's service bulletin for instructions.
- For planetary two-speed jacks, refer to the manufacturer's guidelines or specific service bulletins.
Step 2: Install the Powered Drive
- Temporarily replace the jack cross shaft with the powered drive/shaft assembly.
- Install the shaft on the non-geared side of the jack, ensuring the motor is facing downward and within the jack's profile.
Step 3: Position the Torque Stop Tube
- With the powered drive temporarily installed, use it to locate the torque stop tube on the jack's outer tube.
- Mark the location of the torque stop tube and weld it to the jack's outer tube using AWS-certified welding procedures.
Step 4: Final Assembly
- Reinstall the powered drive/shaft and place the energy-absorbing rubber bumper into the torque stop tube to prevent motor rotation.
- Attach the powered drive cover using 1/4” x 1” bolts and rubber-bonded washers. Torque bolts to 6 ft-lbs.
- Optionally, apply thread lock to the bolts.
Step 5: Tandem Jack Systems
- Use the included hex coupling to connect tandem jacks.
- Weld the coupling to a 1” Schedule 40 pipe and cross-drill a 3/8” hole to secure the second jack's cross shaft with a bolt and locknut.
Wiring Instructions:
- Disconnect the battery ground cable.
- Attach the terminal box to the trailer for connection of powered drive and harness leads.
- Route and secure all leads using non-split tubing or loom.
- Mount the switch box at a convenient location on the trailer.
- Reconnect the battery ground cable and test the powered drive operation.
- Seal all terminal box entrances with sealant to protect the wiring.
Operation:
- Raising the Trailer: Extend the drop leg and fully engage the pin. Press the "RAISE" switch until the trailer is fully lifted.
- Lowering the Trailer: Press the "LOWER" switch until the trailer rests on the ball and the jack is no longer under load.
- In the event of power loss, reset the breaker or manually crank the jack using the powered drive assembly.
Maintenance:
- The powered drive is sealed and maintenance-free.
- Regularly maintain the jack and battery system. Ensure all connections are tight and free of corrosion.
- Fully charge the battery before use.
Limited Warranty:
- 5-Year Limited Warranty: Covers material and workmanship defects under normal use.
- Excludes normal wear, misuse, or improper installation.
Technical Support:
For technical support and assistance, visit www.trailerjacks.com or call 877-869-6690.
WARNING: Failure to follow instructions may result in property damage, serious injury, or death.
