Bulldog 5K A-Frame Trailer Jack Sidewind 15" Lift w/ 12.5K Cast Head Coupler for 2-5/16" Ball
Model: BTJC223Bulldog 5K Sidewind A-Frame Jack with 12.5K Cast-Head Coupler
Equip your trailer with Bulldog’s industry-standard 5,000 lb sidewind A-frame jack paired with a 12,500 lb cast-head coupler. Built for farm, cargo, and commercial applications, this bundle offers smooth operation, proven reliability, and the strength you need on the road.

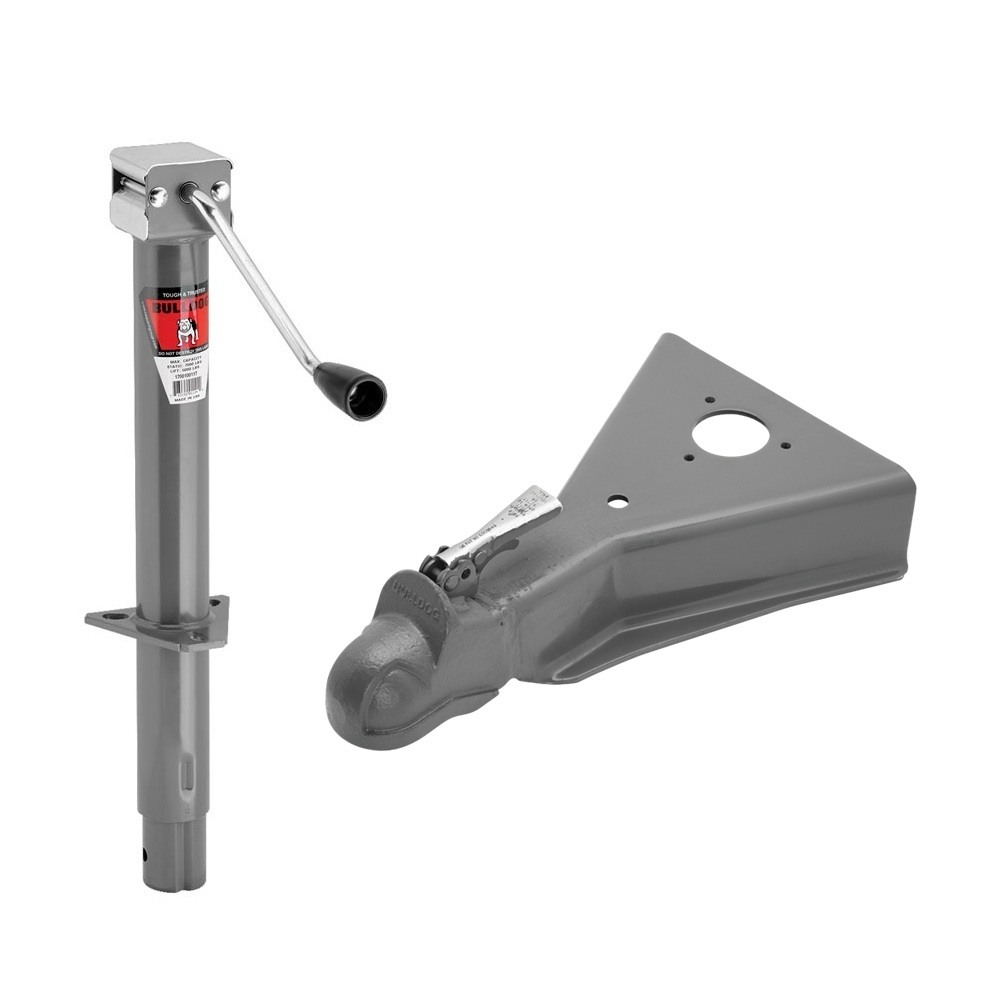

Bundle Contents:
- QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Sidewind
- 15″ travel via ergonomic sidewind crank
- Bolt-on A-frame mounting, 2.25″ outer tube
- Gray powdercoat finish for corrosion resistance
- Fixed leg, foot or wheel option for stability
- 2″ inner tube; 5000 lb static & lifting capacity
- QTY (1): A-Frame Coupler, 2-5/16″ Ball, 12,500 lbs.
- Patented cast-head “Wedge-Latch” design
- Quick engage/disengage; SAE J684 compliant
- Heavy-duty construction for long service life
- Ideal for utility, horse/livestock, cargo trailers
- Replaceable latching hardware for easy maintenance
Please verify original equipment fitment and perform regular maintenance—lubricate moving parts and inspect hardware before each trip.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Mount Style | A-Frame Triangular Center Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Travel Range | 15 Inch Lift |
| Finish | Gray Powdercoat |
| Static Load Capacity | 5000 LB |
| Coupler Capacity | 12500 LB |
| Ball Size | 2-5/16 Inch |
| Bracket-to-Bottom (Retracted) | 8.60 Inch |
| Bracket-to-Bottom (Extended) | 23.60 Inch |
| Bracket-to-Top Clearance | 12.75 Inch |
$243 99 $269.08 9% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$269.08 $243 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC223
- Includes: A-Frame Jack, Trailer Coupler
