Bulldog 5K A-Frame Trailer Jack Sidewind 15" Lift w/ 12.5K Collar-Lok Coupler for 2-5/16" Ball

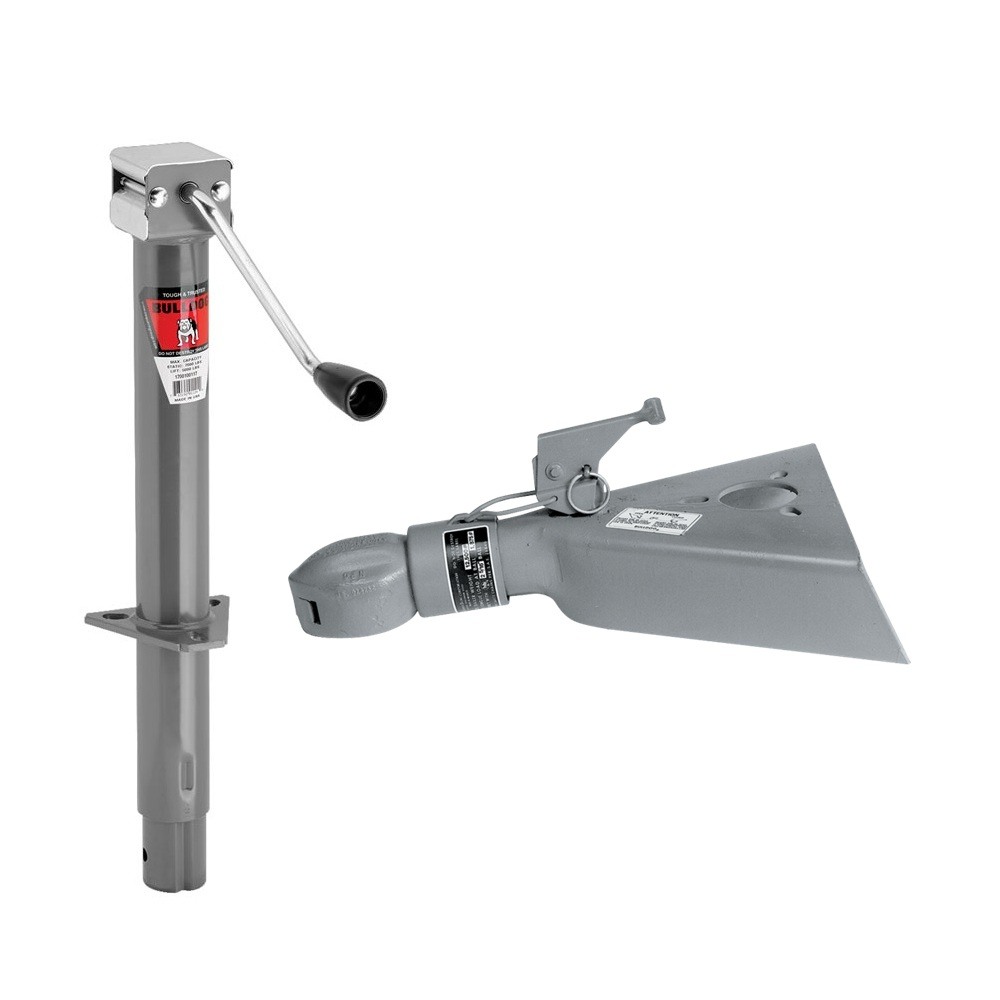

Model: BTJC214Bulldog 5,000 lb A-Frame Sidewind Jack & 12,500 lb Collar-Lok A-Frame Coupler Bundle
Upgrade your utility, horse, or cargo trailer with this heavy-duty Bulldog bundle. You get a smooth-operating 5,000 lb lift capacity A-Frame Sidewind jack plus a precision-engineered 12,500 lb Collar-Lok coupler, ensuring reliable hookup and stability under both static and dynamic loads.
Bundle Contents:

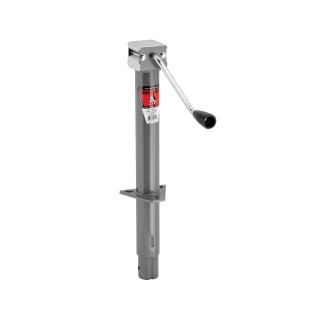

- QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Lift Capacity, Sidewind, Bolt-On, 15″ Travel
- Smooth, comfortable ergonomic sidewind handle crank
- Dependable vertical & side load capacity up to 5,000 lb
- Durable gray powder-coat finish on outer & inner tubes
- Precision-fitted parts for extra long-term stability
- Optional foot or wheel attachment for versatile use

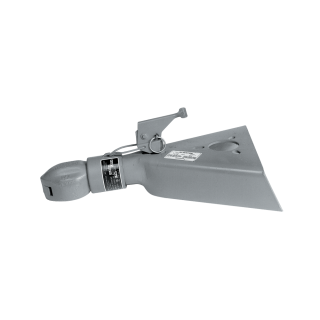

- QTY (1): Collar-Lok™ A-Frame Coupler, 2-5/16″ Ball Diameter, 12,500 lbs. Capacity
- Automatic, continuously tight ball fit for secure hookup
- Hinged ball socket for easy, one-handed connection
- Clear visual indication of proper latch closure
- Strong static & dynamic loading performance
- Adjustable to ensure level trailer operation
Please verify compatibility with your trailer’s original equipment and perform regular maintenance to ensure optimal performance.
| Specifications: | |
|---|---|
| Weight Capacity | 3,001–5,000 lbs |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15″ Lift |
| Static & Lift Capacity | 5,000 lb |
| Inner/Outer Tube Diameters | 2″ Inner, 2.25″ Outer |
| Bracket-to-Bottom Clearance | Retracted: 8.60″ / Extended: 23.60″ |
| Bracket-to-Top Clearance | 12.75″ |
| Coupler Ball Diameter | 2-5/16″ |
| Coupler Capacity | 12,500 lb |
| Finish | Gray Powdercoat |
