Bulldog 5K A-Frame Trailer Jack Sidewind 15" Lift w/ 15K Cast Head Coupler for 2-5/16" Ball
Model: BTJC224Bulldog 5K A-Frame Sidewind Trailer Jack with 15K Cast Head Coupler Bundle
This premium bundle combines Bulldog’s industry-standard 5,000 lb A-Frame sidewind jack with a heavy-duty 15,000 lb cast-head coupler. Perfect for horse, livestock, cargo, and construction trailers, it ensures reliable lifting and secure trailer connection in one convenient package.

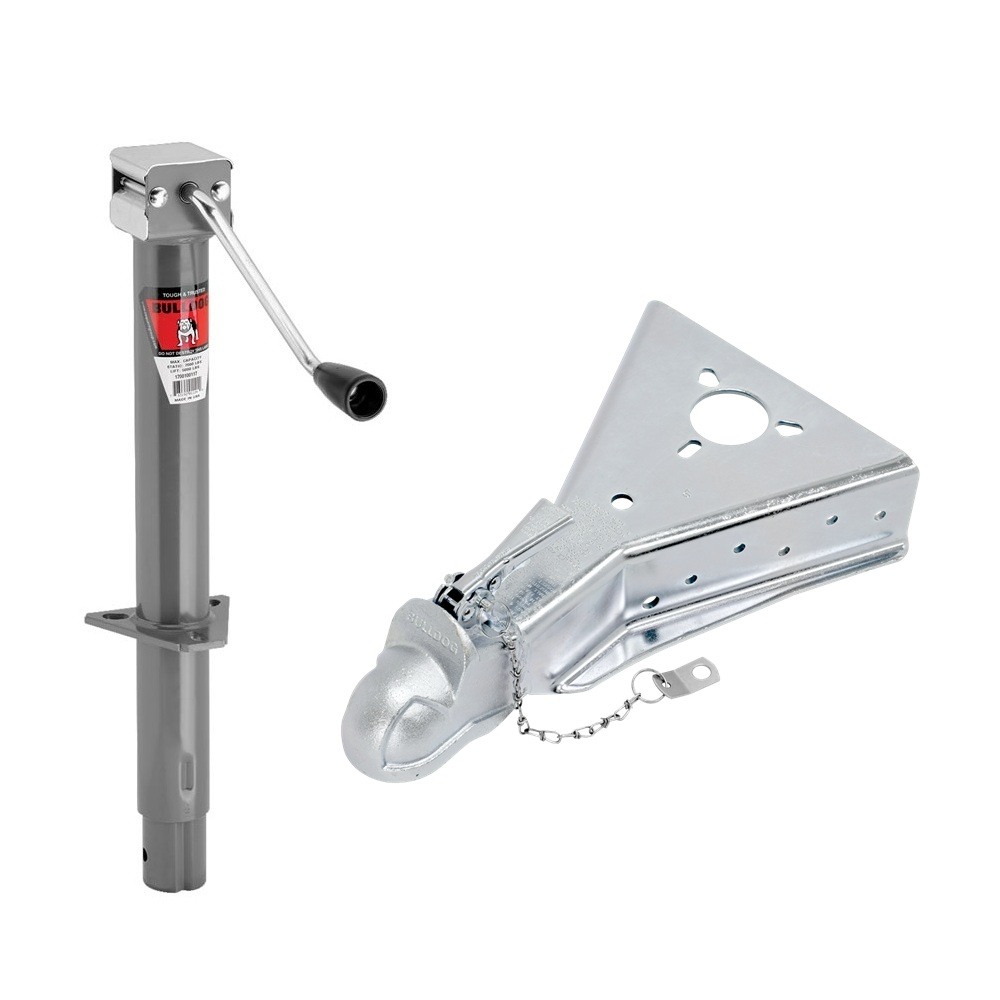

Bundle Contents:
- QTY (1): Round Trailer Jack, A-Frame, 5,000 lb Lift
- Sidewind handle crank for smooth operation
- Bolt-on, fixed-leg design with foot or wheel option
- Gray powder-coat finish for corrosion resistance
- 2.25″ outer tube, 2″ inner tube
- 15″ travel; 8.60″–23.60″ bracket-to-bottom clearance
- QTY (1): A-Frame Coupler, 2-5/16″ Diameter, 15,000 lb Capacity
- Patented “Wedge-Latch” cast-head design
- Quick-hook clamp engages easily and holds tight
- Replaceable latching hardware for extended service life
- Meets SAE J684 safety standards
- Ideal for utility, horse/livestock, and cargo trailers
Please verify compatibility with your original equipment and perform regular maintenance to ensure safe, trouble-free towing.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Style | A-Frame, Round |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 5000 LB |
| Lifting Load Capacity | 5000 LB |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.25 Inch |
| Inner Tubing Diameter | 2 Inch |
| Bracket-to-Bottom Clearance | 8.60″ (retracted) / 23.60″ (extended) |
| Bracket-to-Top Clearance | 12.75 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
$262 99 $295.18 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$295.18 $262 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC224
- Includes: A-Frame Jack, Trailer Coupler
