Bulldog 5K A-Frame Trailer Jack Sidewind 15" Lift w/ 15K Cast Head Coupler for 2-5/16" Ball
Model: BTJC225Bulldog 5K Sidewind A-Frame Trailer Jack & 15K Cast-Head Coupler
This premium bundle combines Bulldog’s industry-leading 5,000 lb sidewind A-Frame trailer jack with a heavy-duty 15,000 lb cast-head “Wedge-Latch” coupler, designed for 2-5/16″ hitch balls. Engineered for agricultural, commercial, livestock, and construction trailers, it offers smooth operation, superior load capacity, and unmatched reliability under the toughest conditions.

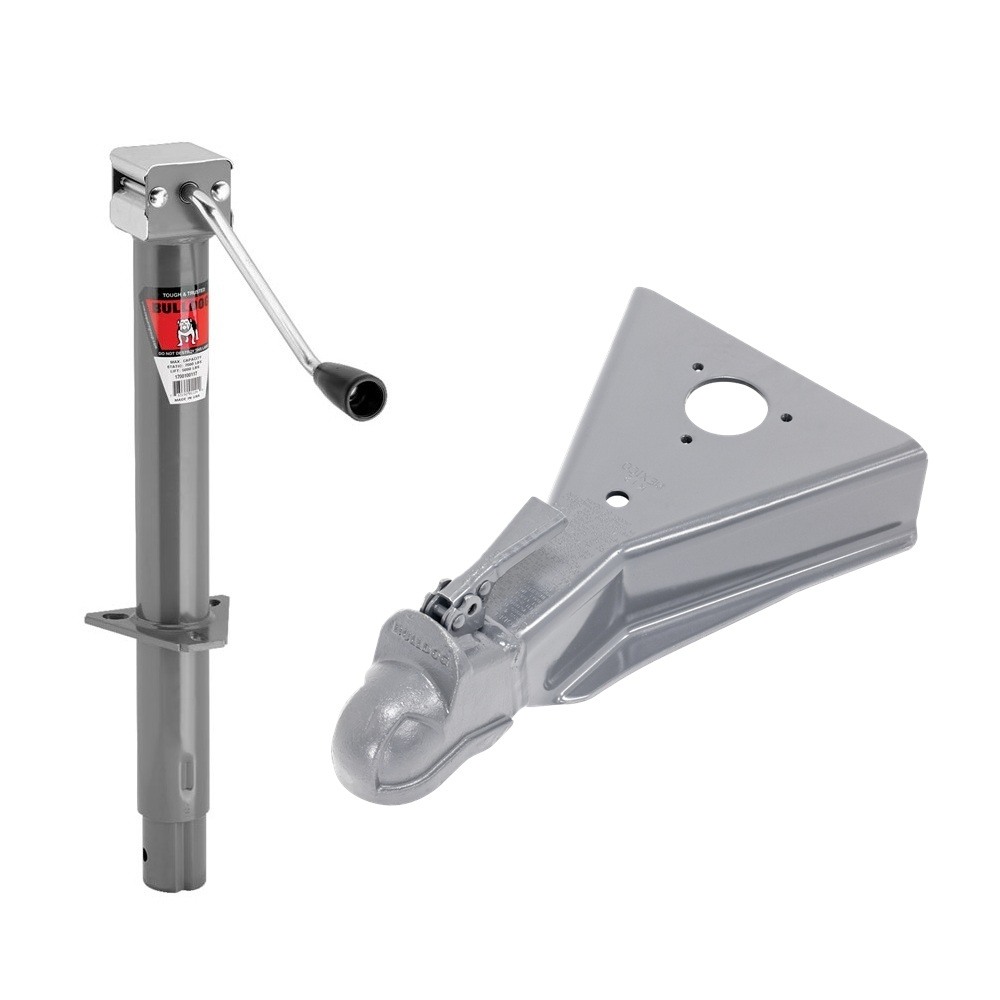

Bundle Contents:

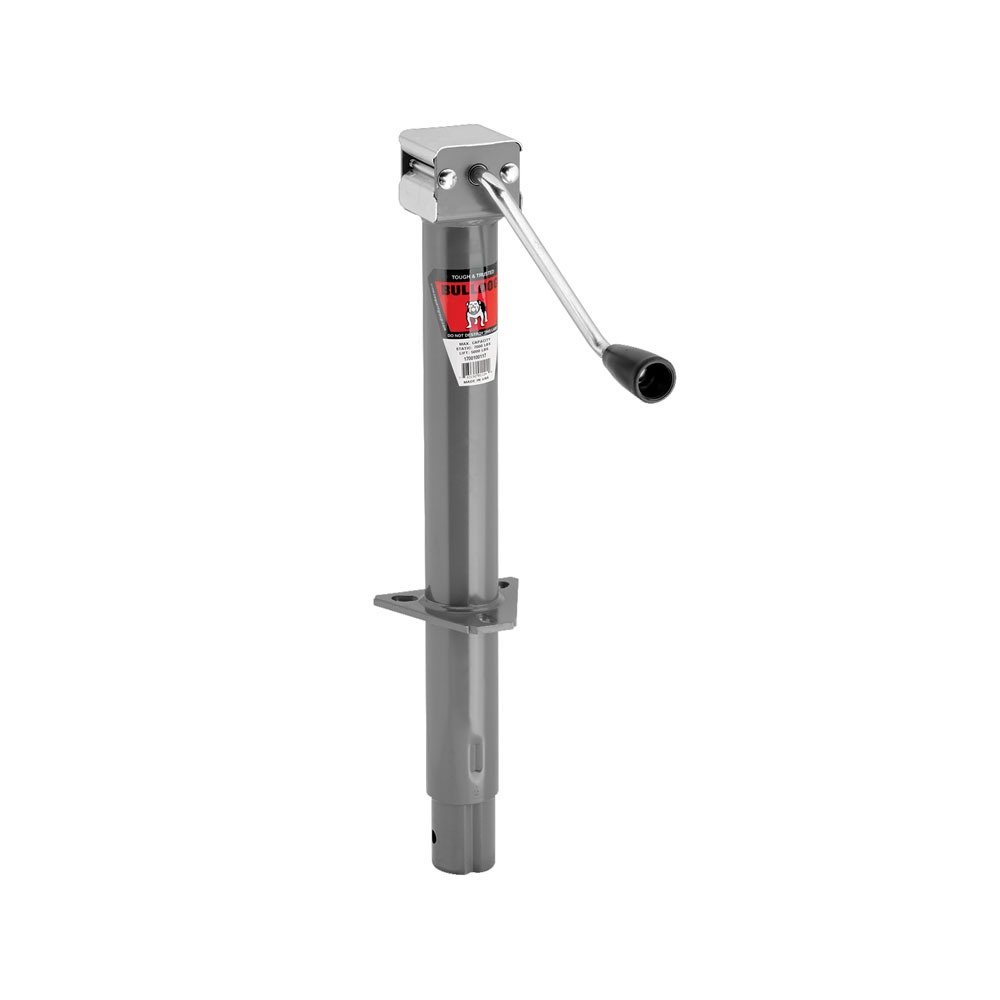

- QTY (1): Round Trailer Jack, A-Frame, 5,000 lb Lift Capacity, Sidewind, Bolt-On, 15″ Travel
- Smooth, comfortable ergonomic design
- Dependable vertical & side-load capacity
- Proven reliability at rated loads
- Precision-fitted parts for extra stability
- Gray powdercoat outer & clear zinc inner tubes
- Custom finishes available upon request
- QTY (1): A-Frame Cast-Head Coupler, 2-5/16″ Diameter, 15,000 lb Capacity
- Quick and easy to engage
- Strong, secure on the road
- Patented Wedge-Latch ball-clamp design
- Fast hook-up and disconnect
- Meets SAE J684 standard
We recommend verifying your trailer’s original equipment specifications and performing regular maintenance—lubricate moving parts, inspect hardware, and tighten all bolts to ensure years of trouble-free service.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 5000 lb Static Capacity |
| Lifting Load Capacity | 5000 lb Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25 Inch |
| Inner Tube Diameter | 2 Inch |
| Bracket-to-Bottom Clearance (Retracted) | 8.60 Inch |
| Bracket-to-Bottom Clearance (Extended) | 23.60 Inch |
| Bracket-to-Top Clearance | 12.75 Inch |
| Electric Lift | Non-Electric |
| Custom Bundle | No |
