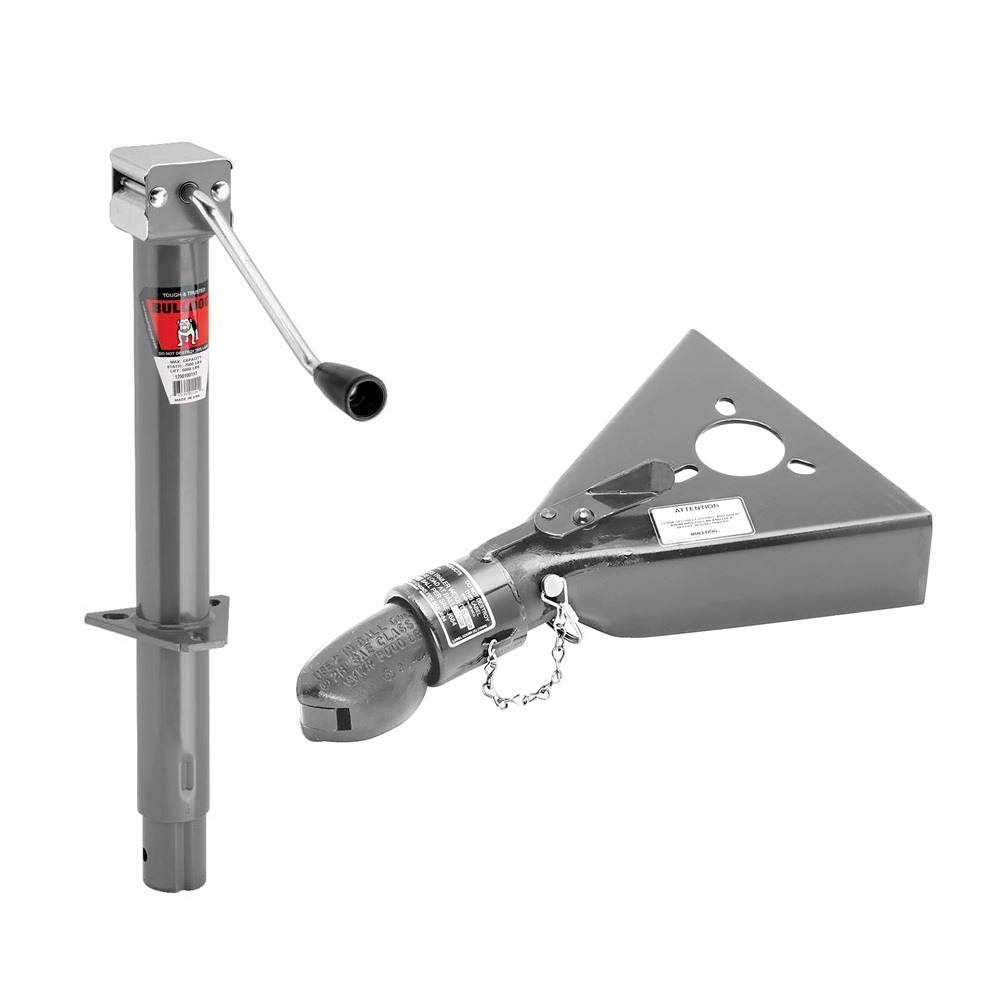

Bulldog 5K A-Frame Trailer Jack Sidewind 15" Lift w/ 5K Collar-Lok Coupler for 2" Ball
Model: BTJC215Bulldog 5,000 lb A-Frame Sidewind Trailer Jack & 5K Collar-Lok™ Coupler Bundle
Equip your trailer with this heavy-duty Bulldog bundle featuring a 5,000 lb A-Frame sidewind jack and matching 5K Collar-Lok™ coupler. Built for reliability, ergonomic operation, and long-term durability, this combo is ideal for utility, horse, livestock, cargo, and construction trailers.
Bundle Contents:
- QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Lift Capacity, Sidewind, Bolt-On, 15″ Travel
- Smooth, comfortable, ergonomic design
- Dependable vertical and side load capacity
- Proven reliability for long-term use at rated loads
- Precision-fitted parts for extra stability
- Grey painted outer & inner tubes on A-Frame models
- Custom finishes available upon request
- QTY (1): Collar-Lok™ A-Frame Coupler, 2″ Diameter, 5,000 lbs. Capacity
- Easiest to use with automatic, continuously tight ball fit
- Strong in both static and dynamic loading
- Hinged ball socket for quick hookup
- Clear visual indication of proper closure
Recommendation: Always verify your original equipment specifications and perform regular maintenance—lubricate moving parts and inspect for wear to ensure safe towing.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 lb |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15″ Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 5000 lb Static |
| Jack Lifting Load Capacity | 5000 lb Lift |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non-Swivel |
| Outer Tube Diameter | 2.25″ |
| Inner Tube Diameter | 2″ |
| Jack Shape | Round |
| Bracket-to-Bottom Clearance (Retracted) | 8.60″ |
| Bracket-to-Bottom Clearance (Extended) | 23.60″ |
| Bracket-to-Top Clearance | 12.75″ |
| Electric Lift | Non-Electric |
| Custom Bundle | No |
