Bulldog 5K Round A-Frame Trailer Jack Sidewind 15" Lift w/ 7K Collar-Lok Coupler for 2" Ball
Model: BTJC168Bulldog 5,000 lb Round A-Frame Trailer Jack (15" Lift) with 7,000 lb Collar-Lok Coupler for 2" Ball
Introducing our premium Bulldog A-Frame Jack & Coupler Combo, thoughtfully assembled to provide reliable lifting power and secure trailer coupling in one convenient bundle. This set features a robust 5,000 lb capacity Bulldog jack with 15" lift range, alongside a 7,000 lb Bulldog Collar-Lok coupler for a 2" trailer ball. Whether you're hauling livestock, cargo, or construction materials, this kit ensures smooth, stable support and dependable hitching performance.

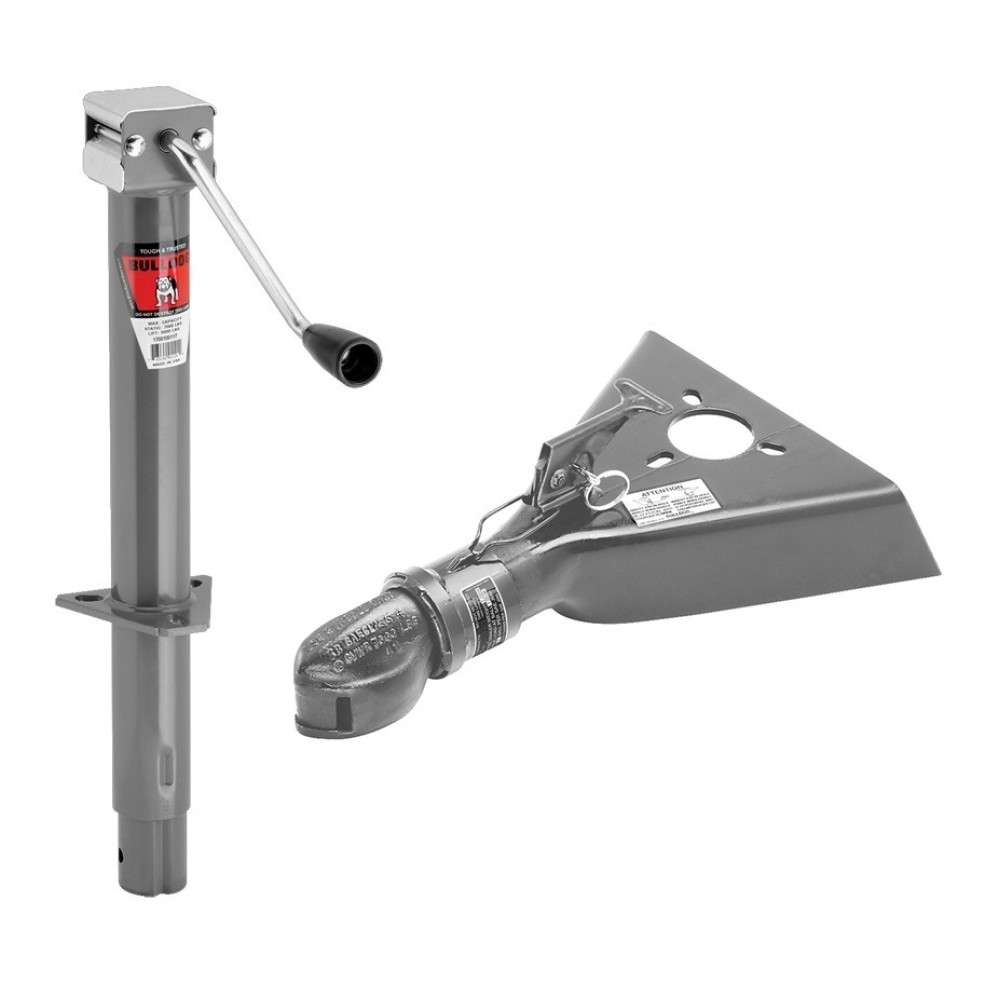

Bundle Contents:

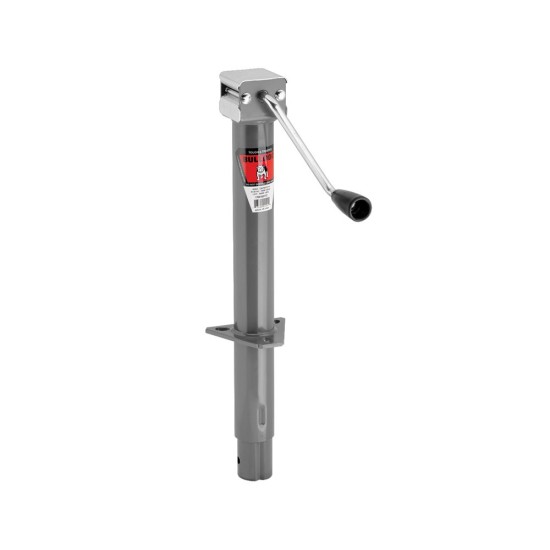

- QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Lift Capacity, Sidewind, Bolt-On, 15 Inch Travel
- BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers.
- For more than three quarters of a century, BULLDOG jacks have proven to be the most reliable, field-proven jacks on the market.
- Smooth, comfortable, ergonomic design
- Dependable vertical and side load capacity
- Precision fitted parts for extra stability
- A-Frame models have grey painted outer and inner tubes
- Custom finishes available upon request
- QTY (1): Collar-Lok™ A-Frame Coupler, 2 Inch Diameter, 7,000 lbs. Capacity
- Designed for utility, horse/livestock, cargo, and construction trailer applications
- The only automatic and continuously tight ball fit in the industry
- A variety of coupler styles, tongue mounts, and latches for nearly any trailer
- Adjustable couplers assure level operation with different tow vehicles
- Easy hinged ball socket hook-up with clear closure indication
Before installation, confirm the original equipment specifications for your trailer to ensure compatibility. Regular inspection and maintenance of your trailer's components will help preserve its overall performance and safety.
| Specifications: | |
|---|---|
| Kit Type | A-Frame Jack & Coupler Combo |
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Silver Zinc Plated |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 9 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 24 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 13 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 8.60 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 23.60 Inch |
| Exact Bracket-to-Top Clearance | 12.75 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
