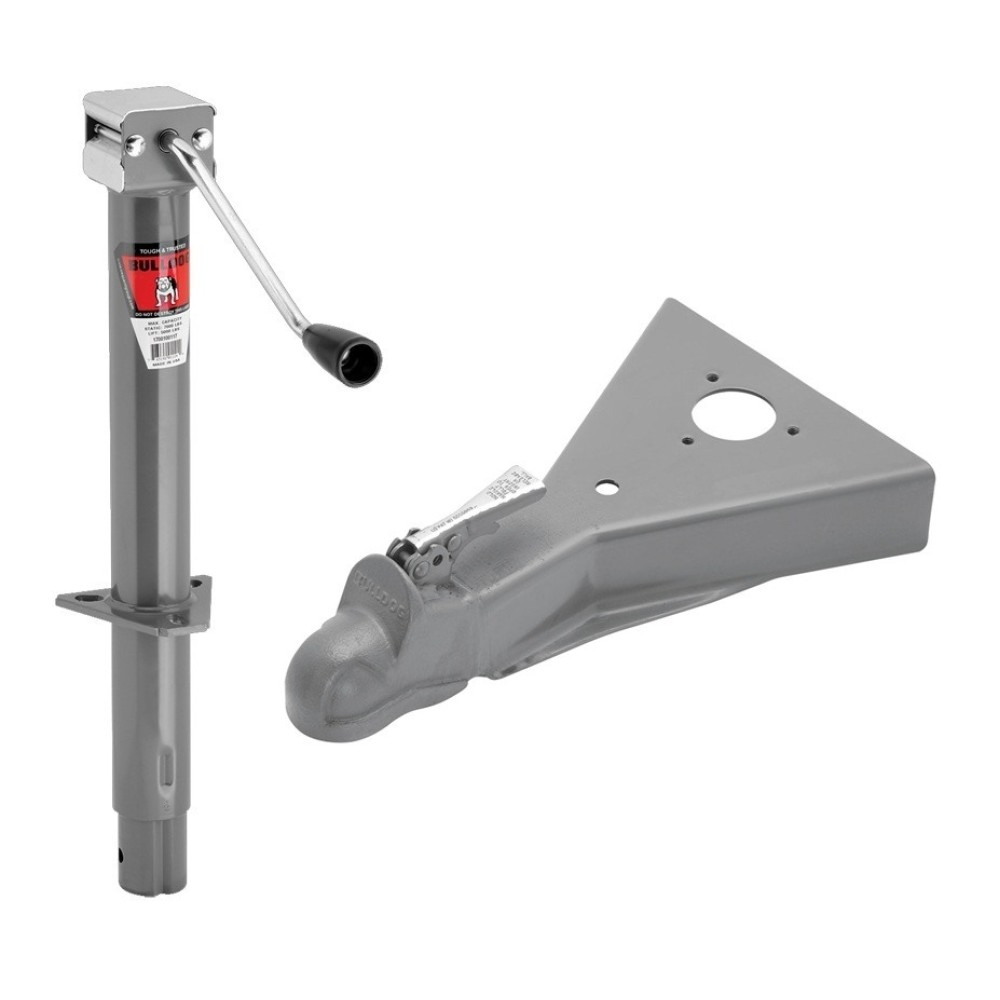

Bulldog 5K Round A-Frame Trailer Jack Sidewind 15" Lift w/ 8K Coupler for 2" Ball
Model: BTJC173BULLDOG 5,000 lb A-Frame Sidewind Jack (15" Lift) + 8,000 lb 2" Ball Coupler – Bundle
Keep your trailer secure and easy to manage with this convenient BULLDOG Jack and Coupler bundle. The heavy-duty, round A-frame sidewind jack provides reliable lifting power up to 5,000 lbs, while the 8,000 lb-rated coupler ensures a strong and secure connection for a 2" trailer ball. Perfect for a wide range of trailer types, this combo is designed for easy bolt-on installation, durability, and smooth operation.
Bundle Contents:
- QTY (1): Round Trailer Jack, A-Frame, 5,000 lbs. Lift Capacity, Sidewind, Bolt-On, 15 Inch Travel
- Smooth, comfortable, ergonomic design
- Dependable vertical and side load capacity
- Proven reliability for long-term use at rated loads
- Precision fitted parts for extra stability
- A-Frame models have grey painted outer and inner tubes
- Custom finishes available upon request
- QTY (1): A-Frame Coupler, 2 Inch Diameter, 8,000 lbs. Capacity
- Quick and easy to engage
- Strong and secure on the road
- Patented Wedge-Ledge ball clamp design
- Quick to hook up and disconnect
- In compliance with SAE standard J684
For best performance, confirm compatibility with your trailer’s frame and towing setup. Always follow recommended maintenance schedules to ensure safe operation and longer service life.
| Specifications: | |
|---|---|
| Bundle Type | A-Frame Jack & Coupler |
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Silver Zinc Plated |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 9 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 24 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 13 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 8.60 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 23.60 Inch |
| Exact Bracket-to-Top Clearance | 12.75 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
