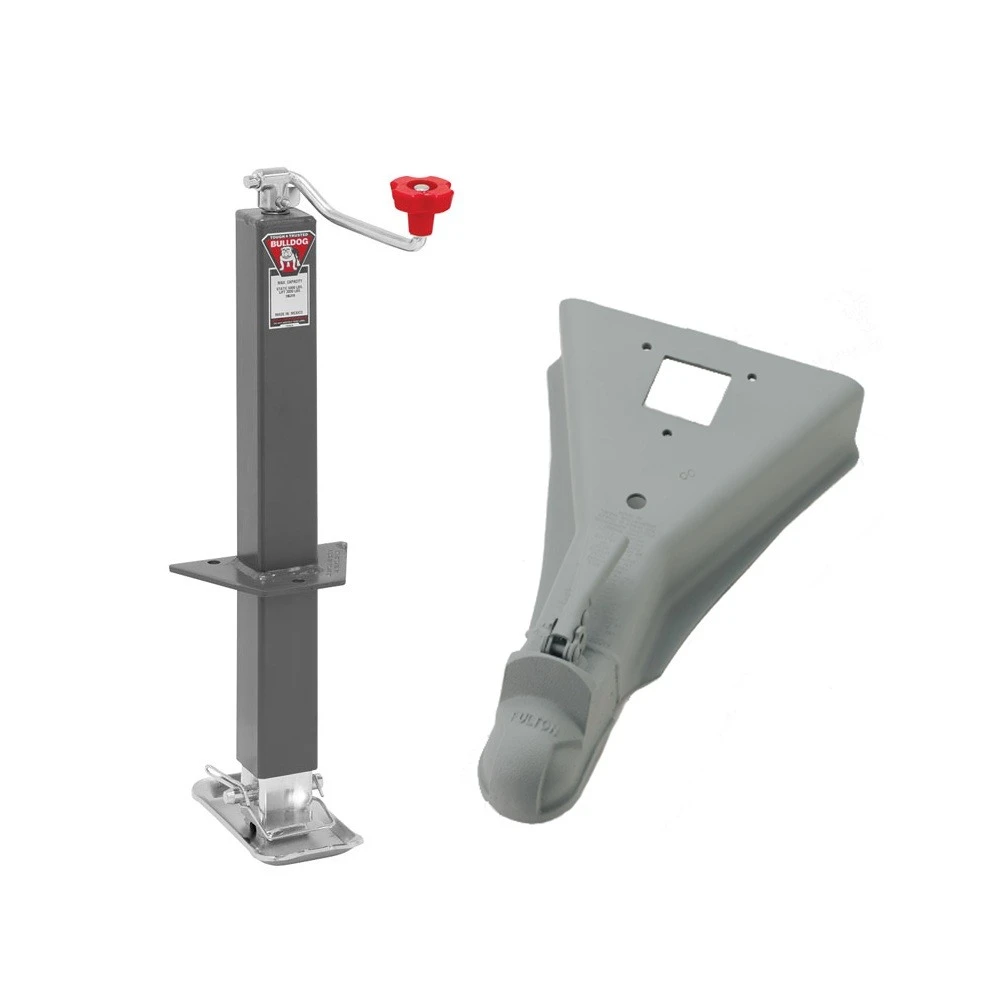

Bulldog 5K Square A-Frame Trailer Jack Topwind Handle 15" Lift w/ 15K Cast Head Coupler for 2-5/16" Ball
Model: BTJC226BULLDOG 5,000 lb Square A-Frame Topwind Jack with 15,000 lb Cast Head Coupler
This bundle pairs a heavy-duty BULLDOG square A-frame jack—rated for 5,000 lb support capacity and featuring a smooth topwind handle with 15″ lift—with a rugged 15,000 lb cast-head “Wedge-Latch” coupler for 2-5/16″ trailer balls. Together, they deliver superior side-load strength, reliable engagement, and long-lasting performance for utility, livestock, cargo, and construction trailers.
Bundle Contents:

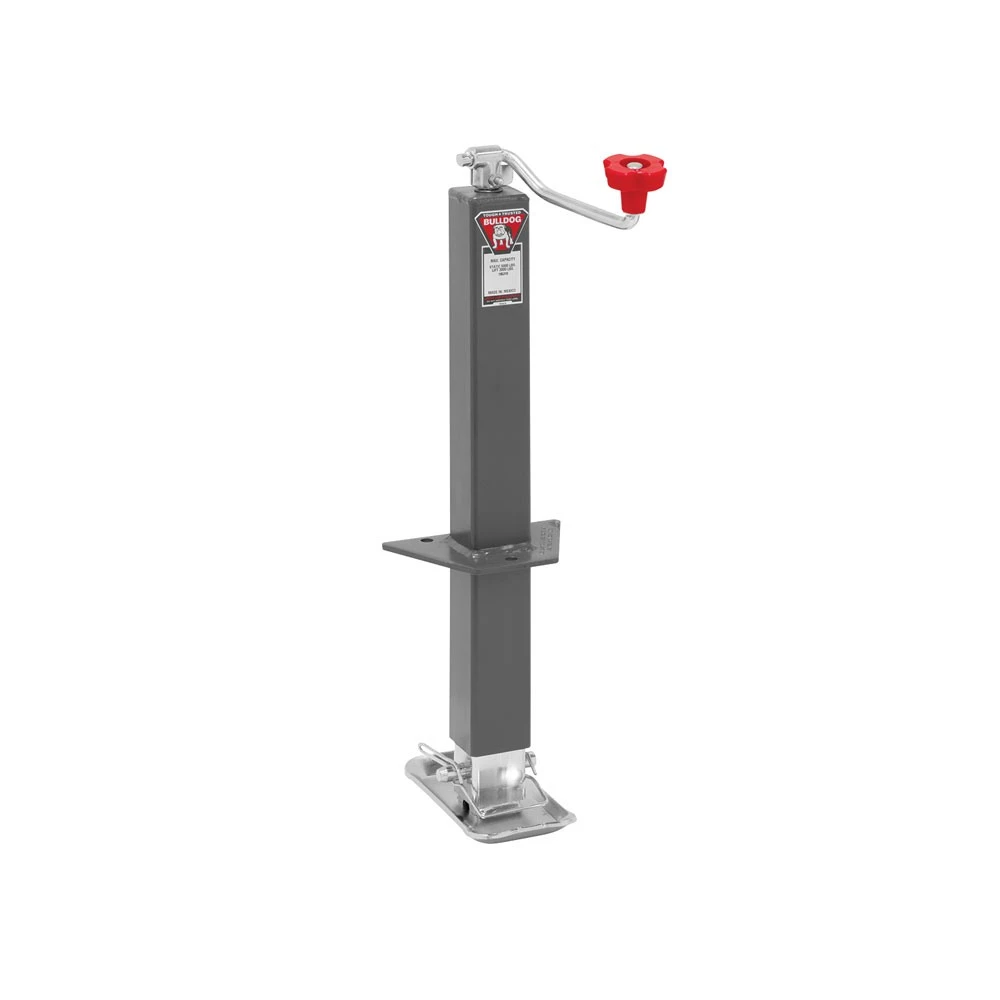

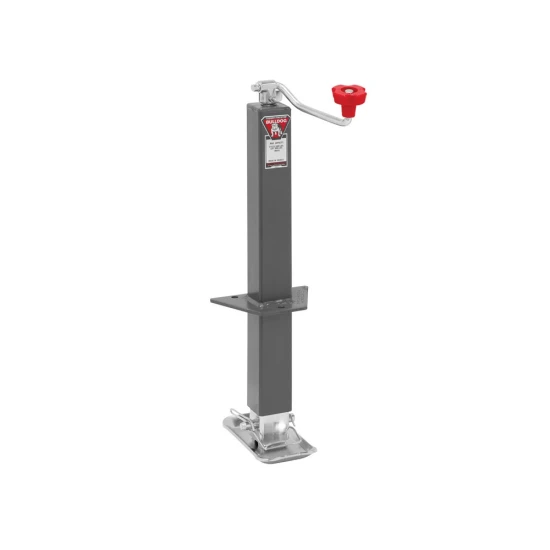

- QTY (1): Square Trailer Jack, A-Frame, 5,000 lbs. Support Capacity
- Topwind bolt-on handle with 15″ travel
- 12-gauge square tube for 70% more side-load strength
- 4.62″ outer-tube overlap at full extension
- Painted outer tubes & clear-zinc inner tubes for corrosion resistance
- Includes mounting brackets
- QTY (1): A-Frame Coupler, 2-5/16″ Diameter, 15,000 lbs. Capacity
- Patented cast-head “Wedge-Latch” ball clamp design
- Quick engagement and secure hold on the road
- Replaceable latching hardware for extended service life
- Complies with SAE standard J684
We recommend verifying your trailer’s original equipment specifications and performing regular maintenance to ensure optimal safety and performance.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Style | Pipe Mount |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15″ Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 5000 lb |
| Lifting Load Capacity | 3000 lb |
| Foot Type | Footplate |
| Leg Style | Drop Leg, Non-Spring Return |
| Swivel Type | Swivel |
| Outer Tube Diameter | 2.25″ |
| Jack Shape | Square |
| Retracted Clearance | 7.90″ |
| Extended Clearance | 36.50″ |
| Electric Lift | Non-Electric |
$259 99 $292.58 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$292.58 $259 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC226
- Includes: A-Frame Jack, Trailer Coupler
