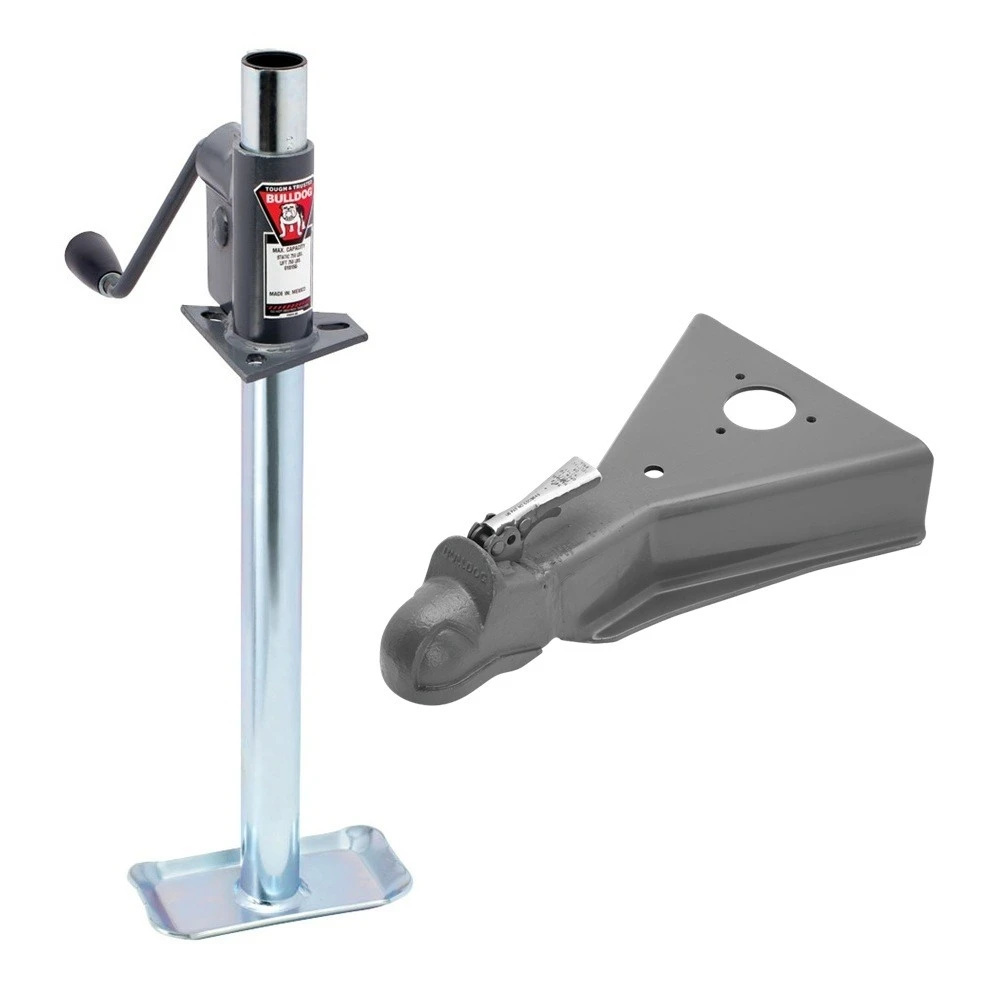

Bulldog 750 lb A-Frame Trailer Jack w/ Bracket and Foot w/ 12.5K Cast Head Coupler for 2-5/16" Ball
Model: BTJC302Bulldog 750 lb A-Frame Jack & 12.5K Cast Head Coupler Bundle
Get everything you need for a secure, heavy-duty towing setup in one package. This bundle pairs a 750 lb capacity A-frame trailer jack—complete with welded bracket, disc foot, and sidewind crank—with Bulldog’s rugged 12.5K cast head coupler designed for 2-5/16″ balls.
Bundle Contents:
- QTY (1): Bulldog 750 lb A-Frame Trailer Jack with Bracket & Disc Foot
- Lift Capacity: 750 lb static & lift
- Travel Range: 16″ via sidewind handle crank
- Measurements: Retracted 3.5″, Extended 19.5″, Clearance 20.2″
- Includes Gear Box: 0181550317 & Rack Post: 0185200301
- Finish: Silver zinc plated; Weight: 11.1 lb
- QTY (1): Bulldog 12.5K Cast Head Coupler for 2-5/16″ Ball
- Patented “Wedge-Latch” cast head design
- Quick and easy engagement; strong on the road
- Adjustable height for A-frame trailers
- Replaceable latching hardware for longer service life
- Complies with SAE Standard J684
Please verify compatibility with your original equipment and perform regular maintenance to ensure optimal performance and safety.
| Specifications: | |
|---|---|
| Kit Type | Complete A-Frame Jack & Coupler Bundle |
| Weight Capacity | 0–1000 lb |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Style | A-Frame Rack/Gear Jack |
| Lift Mechanism | Sidewind Handle Crank |
| Travel Range | 16 in |
| Finish | Silver Zinc Plated |
| Static & Lift Capacity | 750 lb |
| Coupler Capacity | 12,500 lb |
| Coupler Design | Cast Head “Wedge-Latch” |
| Standard Compliance | SAE J684 |
| Foot Type | Disc Footplate |
$287 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$287 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC302
- Includes: A-Frame Jack, Trailer Coupler
