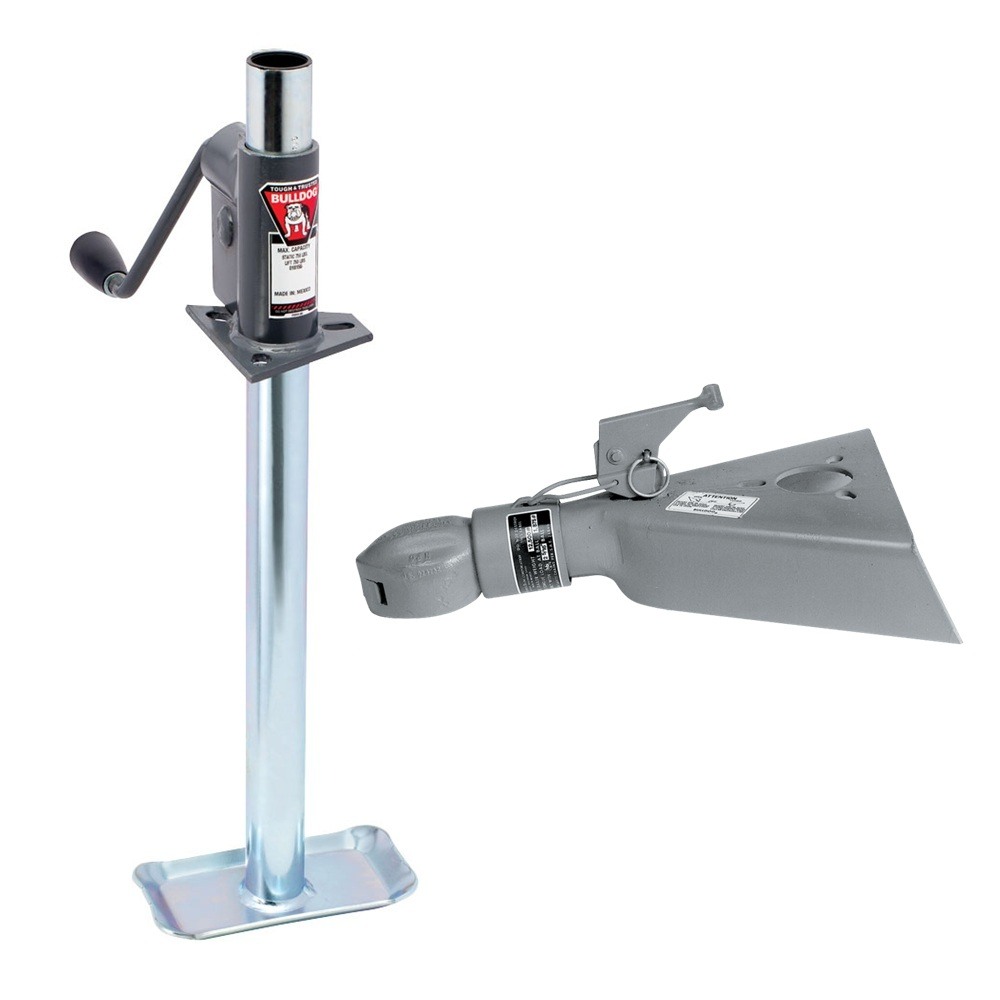

Bulldog 750 lb A-Frame Trailer Jack w/ Bracket and Foot w/ 12.5K Collar-Lok Coupler for 2-5/16" Ball
Model: BTJC293Bulldog 750 lb A-Frame Jack w/ Bracket & Disc Foot + 12.5K Collar-Lok™ Coupler
Equip your trailer with this all-in-one Bulldog bundle. Includes a heavy-duty 750 lb side-wind jack pre-assembled to an A-Frame weld-on/bolt-on bracket with disc foot, plus the industry-leading 12,500 lb Collar-Lok™ coupler for unmatched strength and ease of use.
Bundle Contents:

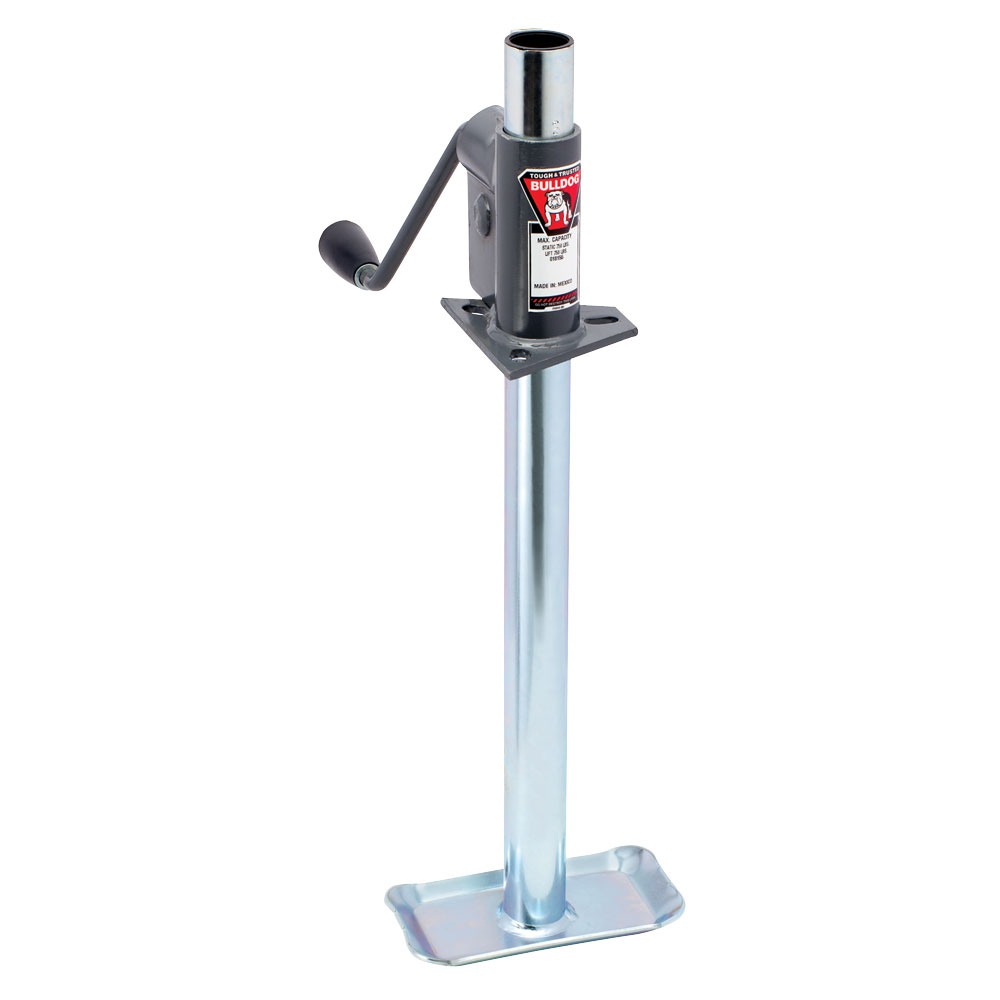

- QTY (1): Bulldog A-Frame Trailer Jack Assembly (750 lb) w/ Bracket & Disc Foot
- 750 lb static & lift capacity (side-wind handle crank)
- 16″ travel: 3.5″ retracted → 19.5″ extended
- Silver zinc-plated outer & inner tubes for corrosion resistance
- Includes gear box 0181550317 & rack post 0185200301; unit weight 11.1 lb
- QTY (1): Collar-Lok™ A-Frame Coupler, 2-5/16″ Diameter, 12,500 lb Capacity
- Automatic, continuously tight ball fit
- Hinged socket for easy hookup
- Clear visual indicator when fully closed
- Designed for utility, livestock, cargo & construction trailers
Always verify fit with your trailer’s original equipment and perform routine maintenance for safe, reliable operation.
| Specifications: | |
|---|---|
| Kit Type | A-Frame Jack & Coupler Bundle |
| Static & Lift Capacity | 750 lb |
| Coupler Capacity | 12,500 lb |
| Travel Range | 16″ (3.5″–19.5″) |
| Mounting Style | A-Frame Triangular Center |
| Finish | Silver Zinc Plated |
| Foot Type | Disc Footplate |
| Electric Lift | No |
