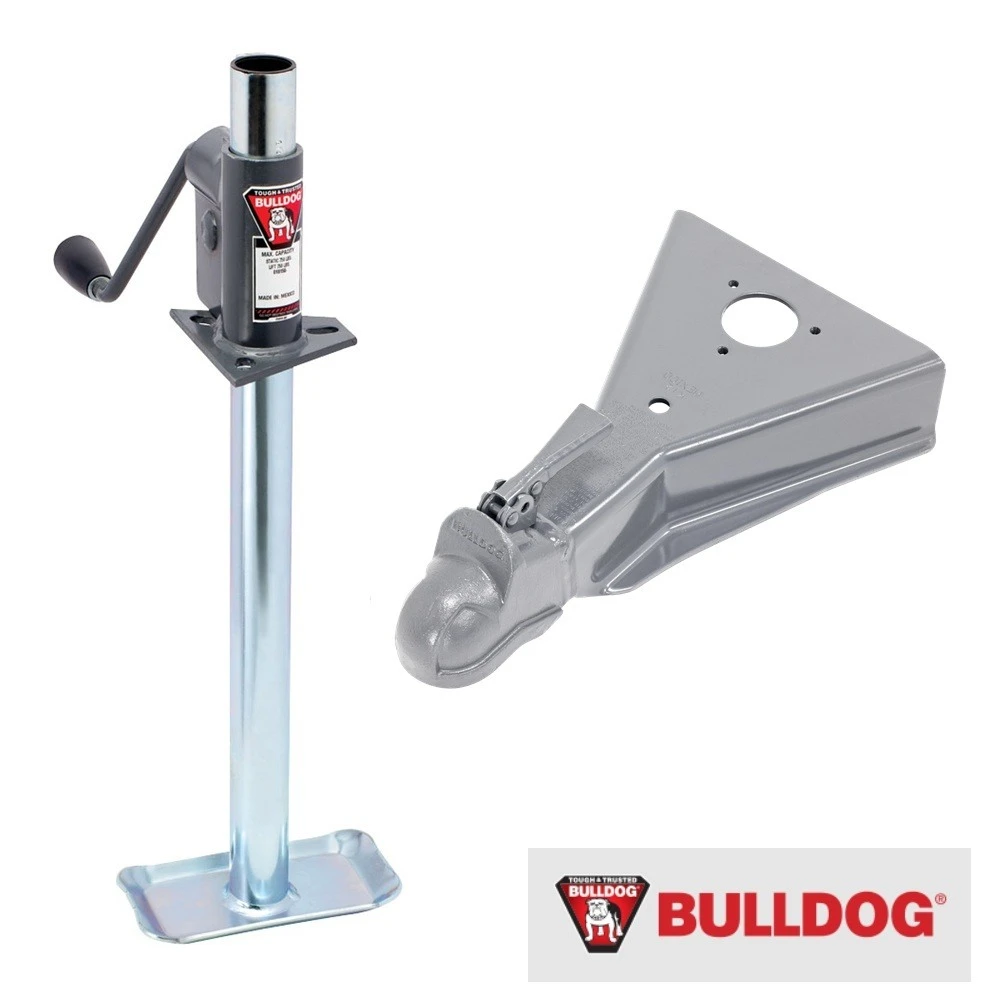

Bulldog 750 lb A-Frame Trailer Jack w/ Bracket and Foot w/ 15K Cast Head Coupler for 2-5/16" Ball
Model: BTJC304Bulldog 750 lb A-Frame Jack Kit with Bracket & 15K Cast Head Coupler
Get everything you need for reliable towing in one kit: a heavy-duty 750 lb capacity A-frame jack, a weld-on/bolt-on bracket with disc foot, and a patented 15 000 lb cast-head “Wedge-Latch” coupler for 2-5/16″ balls. Built to SAE J684 standards with replaceable latching hardware, this kit delivers long service life, easy hookup, and unmatched road security.
Bundle Contents:
- QTY (1): Bulldog 750 lb A-Frame Trailer Jack
- 750 lb lift capacity
- 16″ travel range
- Silver zinc–plated finish for corrosion resistance
- QTY (1): Weld-On/Bolt-On A-Frame Bracket with Disc Foot
- Fits triangular A-frame trailers
- Disc-style foot for stability on soft ground
- Easy weld-on or bolt-on installation
- QTY (1): 15K Cast Head Wedge-Latch™ Coupler for 2-5/16″ Ball
- Patented Wedge-Latch design for secure clamping
- Quick hookup and release
- Replaceable latching hardware for extended service life
- Complies with SAE J684
Always verify compatibility with your original equipment and perform routine maintenance to ensure safe towing performance.
| Specifications: | |
|---|---|
| Kit Type | A-Frame Jack & Coupler Kit |
| Weight Capacity | 0–1000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 16 Inch Lift |
| Finish | Silver Zinc Plated |
| Static Load Capacity | 750 LB Static Capacity |
| Lifting Load Capacity | 750 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non-Swivel |
| Outer Tube Type | Ratcheting Type |
| Jack Shape | Rack / Gear Jack |
| Bracket-to-Bottom Clearance (Retracted) | 3.5 Inch |
| Bracket-to-Bottom Clearance (Extended) | 19.5 Inch |
| Bracket-to-Top Clearance | 20.2 Inch |
| Electric Lift | Non Electric |
$289 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$289 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BTJC304
- Includes: A-Frame Jack, Trailer Coupler
