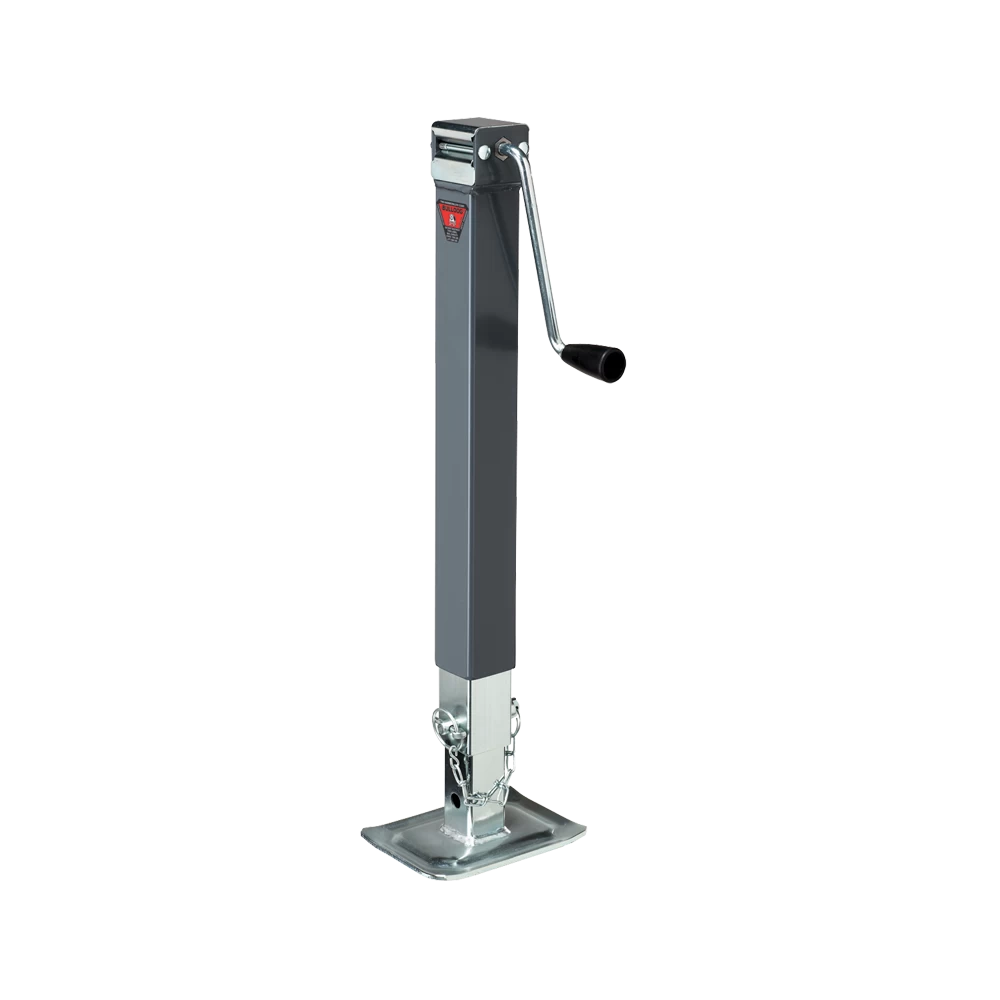

Bulldog 8K Square Drop Leg Trailer Jack Sidewind 15" Lift 13.5" Drop Leg w/ Footplate 1:1.33 gear ratio
Model: 1907540176BULLDOG 8,000 lbs. Square Jack
The BULLDOG 8,000 lbs. Square Jack is engineered to meet the needs of the agricultural, industrial, construction, horse/livestock trailer, and utility/cargo trailer markets. Its compact design is perfect for applications where space is at a premium, offering a robust support capacity in a more manageable size compared to traditional 3" and 4" square tube jacks.
Features:
- Painted outer tube serves as a final finish or primer, providing versatility in application.
- Zinc-plated inner tube and drop leg for corrosion resistance and durability.
- 4.7" outer/inner tube overlap ensures optimal side load performance.
- 5/8" screw stem offers additional security against twisting off.
- Patented screw nut stop prevents screw and/or nut damage when the jack is fully extended.
- Topwind models feature a bushing in top cap and eagle claw grip for easy handling.
- Sidewind models include a 1/4" cross pin that connects the gear train to the screw stem, guarding against shearing, and offer a 1:1.33 gear ratio for efficient operation.
Specifications:
- Jack Style: Direct Weld HD
- Static Capacity: 8,000 lbs; Lift Capacity: 5,000 lbs
- Lift Style: Sidewind
- Travel: 15" with a retracted height of 25.06" and an extended height of 53.56"
- Finish: Gray, providing a sleek and protective coating.
- Tubing Width: 2.5" for a sturdy and reliable support base.
- Leg: Drop Leg with 13.50" additional adjustment for versatile use.
- Foot: Heavy-duty footplate for stable support.
- Jack Shape: Square, optimized for high load performance.
For inquiries or to order, enhance your trailer's functionality with this durable and compact square jack by calling us now at 877-869-6690.
$170 99 $200.14 15% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$200.14 $170 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: 1907540176
- Includes: 8K Drop Leg Jack
