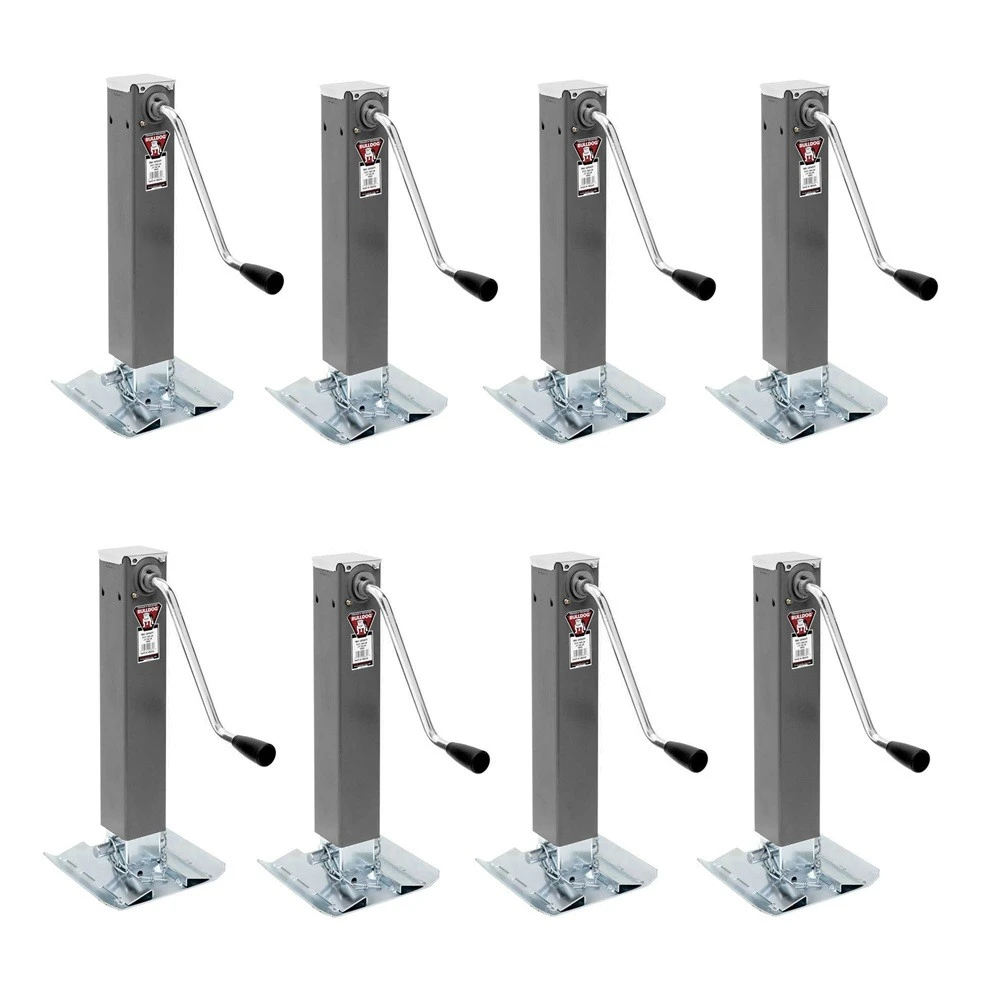

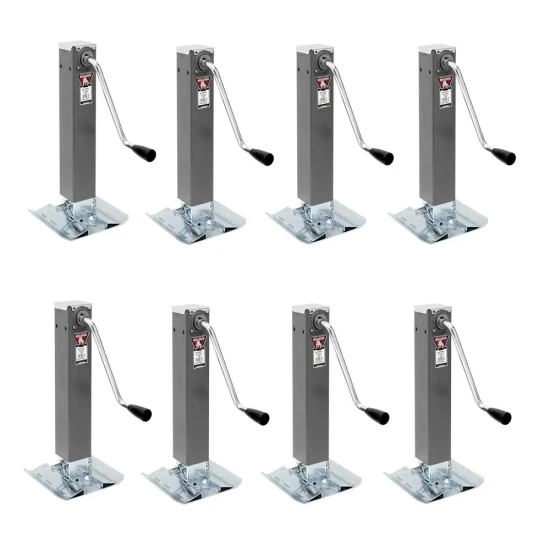

Bulldog 8x 10K Square Trailer Jack w/ 10" Lift Sidewind and Footplate
Model: BDTJ135Bulldog 8-Pack 10,000 lb Sidewind Square Trailer Jack with Footplate & 10″ Lift
This bundle delivers eight heavy-duty Bulldog square trailer jacks rated at 10,000 lb static capacity, featuring a smooth sidewind crank and robust footplate for stable support. With 10″ of travel and direct-weld construction, these jacks perfectly bridge the gap between 8K and 12K models—offering an ideal balance of strength, speed, and ease of use for your trailer.
Bundle Contents:
- QTY (8): Square Trailer Jack, No Mount, 10,000 lbs. Support Capacity, Sidewind, Weld-On, 10″ Travel
- Heavy-gauge 3″ square tubing for direct weld mounting without burn-through
- Durable gray powdercoat outer tube—prime or finish coat as needed
- Zinc-plated inner tube and drop leg for corrosion resistance
- Reinforcement ribs eliminate water retention
- Precision-manufactured for smooth, long-term reliability
- Grease zerk and oil-impregnated bushing for extended gear life
- 1:1.86 sidewind gear ratio for effortless cranking
Always verify compatibility with your trailer’s mounting bracket and perform routine lubrication and inspections to maintain peak performance and extend service life.
| Specifications: | |
|---|---|
| Weight Capacity | 8001–10000 lb |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 10″ Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 10000 lb |
| Lifting Load Capacity | 7200 lb |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non-Spring Return |
| Jack Swivel Type | Non-Swivel |
| Outer Tube Diameter | 3″ |
| Jack Shape | Square |
| Retracted Clearance | 19.93″ |
| Extended Clearance | 40.05″ |
| Electric Lift | Non-Electric |
