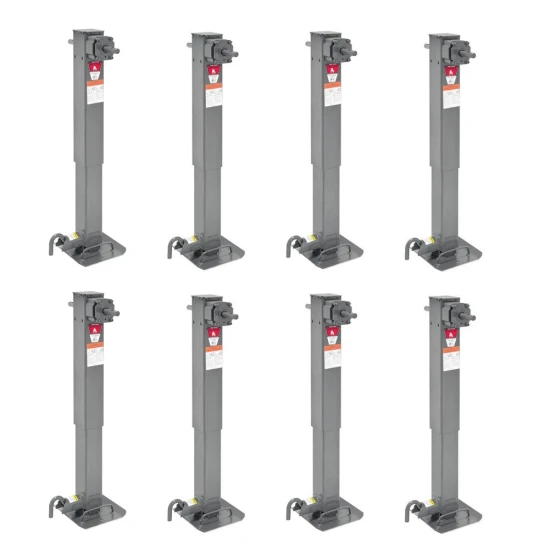

Bulldog 8x 12K 2-Speed Square Trailer Jack w/ Planetary Gearbox 26" Lift Non Spring Return
Model: BDTJ75Bulldog 8x 12K 2-Speed Square Trailer Jacks with Planetary Gearbox – 26" Lift
Upgrade your trailer setup with this powerful 8-pack of Bulldog 12K 2-speed square jacks. Engineered for heavy-duty agricultural, industrial, and construction trailers, these jacks feature a state-of-the-art planetary gearbox, delivering unmatched performance whether under heavy load or during faster no-load cranking. Built for strength, reliability, and ease of use, this bundle offers a complete jack solution with long-lasting durability and efficient operation.
Bundle Contents:
- QTY (8): Bulldog 12K Two-Speed Square Trailer Jack with Drop Leg (Non Spring Return)
- 12,000 lbs. support capacity
- Sidewind operation with 12.5" travel and 26" lift range
- 2-speed gearbox with high and low gear for optimized lifting
- Planetary gear design allows faster and smoother cranking
- Gray powder coat finish for corrosion resistance
- Non spring-return drop leg with footplate included
- Outer tube fits standard 4" square jack mounts
- Ideal for direct weld applications
Please verify compatibility with your trailer's frame and weight requirements. Regular inspection and maintenance are recommended to ensure long-term performance and safety.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB |
| Jack Lifting Load Capacity | 10000 LB |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 30 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 56 Inch |
| Exact Bracket-to-Bottom Clearance (Retracted) | 29.5 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 55.6 Inch |
| Approx Bracket-to-Top Clearance | User-Configurable |
| Exact Bracket-to-Top Clearance | User-Configurable |
| Electric Lift | Non Electric |
| Custom Bundle | No |
$2,802 99 $3,500.00 20% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$3,500.00 $2,802 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ75
- Includes: 2-Speed 12K Jack
