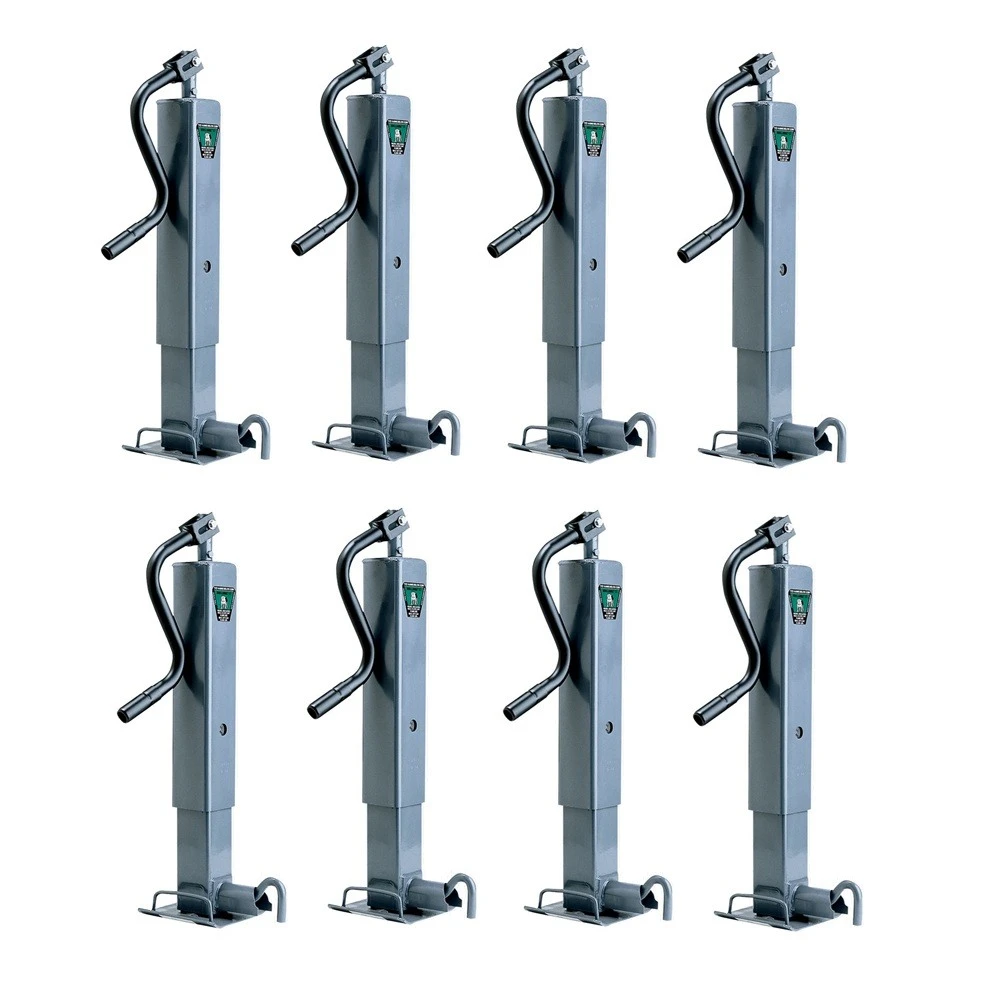

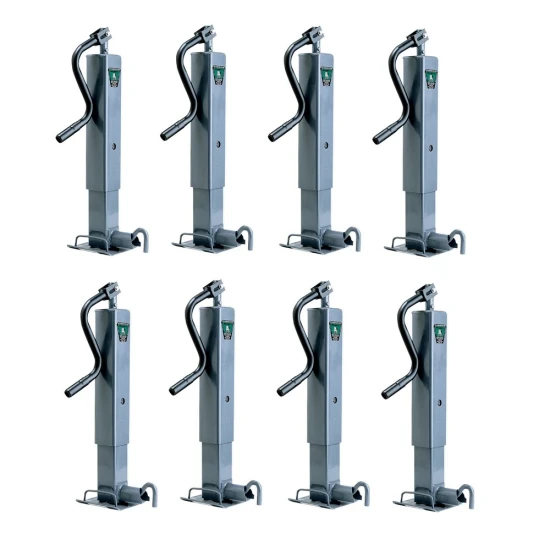

Bulldog 8x 12K Square Trailer Jack w/ 26" Lift Topwind Non Spring Return and Crank
Model: BDTJ83Bulldog 8-Pack 12K Topwind Square Trailer Jacks with 26" Lift
Upgrade your heavy-duty trailer setup with this bundle of eight Bulldog 12,000 lb topwind square jacks. Each jack features a 12.5" screw travel (with an additional 13.5" of adjustment via drop leg), superior 4" 7-gauge alloy steel construction, and non-spring return design—perfect for agricultural, construction, and utility trailers that demand reliable support and smooth operation.
Bundle Contents:
- QTY (8): HD Square Trailer Jack, 12,000 lbs Support Capacity, Topwind, 12-1/2" Travel
- 4" square tubing, 7-gauge superior alloy steel
- Painted outer tube and drop leg
- Drop leg with 5 positioning holes
- Easy-access gearbox with grease fitting for routine maintenance
- Non-spring return drop leg
- 12.5" screw travel, plus 13.5" additional adjustment with drop leg
- Choice of front-facing or side-facing drop leg plunger pin
- Painted (with or without labels) or powder-coated finish
- Topwind handle crank with 1:1.5 gear ratio
Be sure to verify compatibility with your trailer’s bracket and maintain your jacks with regular lubrication to ensure long-lasting reliability.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 23 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 49 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 23.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 49.4 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
$1,868 99 $2,100.00 11% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$2,100.00 $1,868 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ83
- Includes: 12K Drop Leg Jack
