Bulldog 8x 12K Square Trailer Jack w/ Sidewind 26" Lift Drop Leg Non Spring Return
Model: BDTJ55Bulldog 8-Pack 12K Square Sidewind Drop Leg Trailer Jacks
Equip your heavy-duty trailer or equipment fleet with this set of eight robust Bulldog 12,000 lb square trailer jacks. Featuring a sidewind handle and drop leg non-spring return design, these jacks deliver reliable support and effortless adjustment. Built for agricultural, construction, and utility trailers, this bundle offers exceptional strength, durability, and versatility.

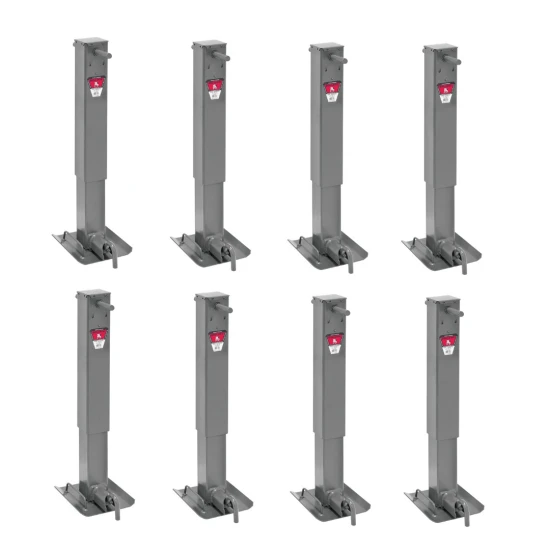

Bundle Contents:
- QTY (8): HD Square Trailer Jack
- 12,000 lbs. support capacity, 10,000 lbs. lift capacity
- 4" square tubing, 7-gauge superior alloy steel
- Painted outer tube and drop leg
- Drop leg option with 5 positioning holes
- Easy-access gearbox with grease fitting for routine maintenance
- Spring return drop leg or non-spring return drop leg
- 12.5" screw travel, 13.5" of additional adjustment with drop leg
- Front-facing or side-facing drop leg plunger pin
- Painted (with or without labels) or powdercoat finish options
- Sidewind handle crank with 1:1.5 gear ratio
Please verify compatibility with your trailer’s mounting system and perform routine maintenance to ensure safety and optimal performance.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 27 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 53 Inch |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 27.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 53.3 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
