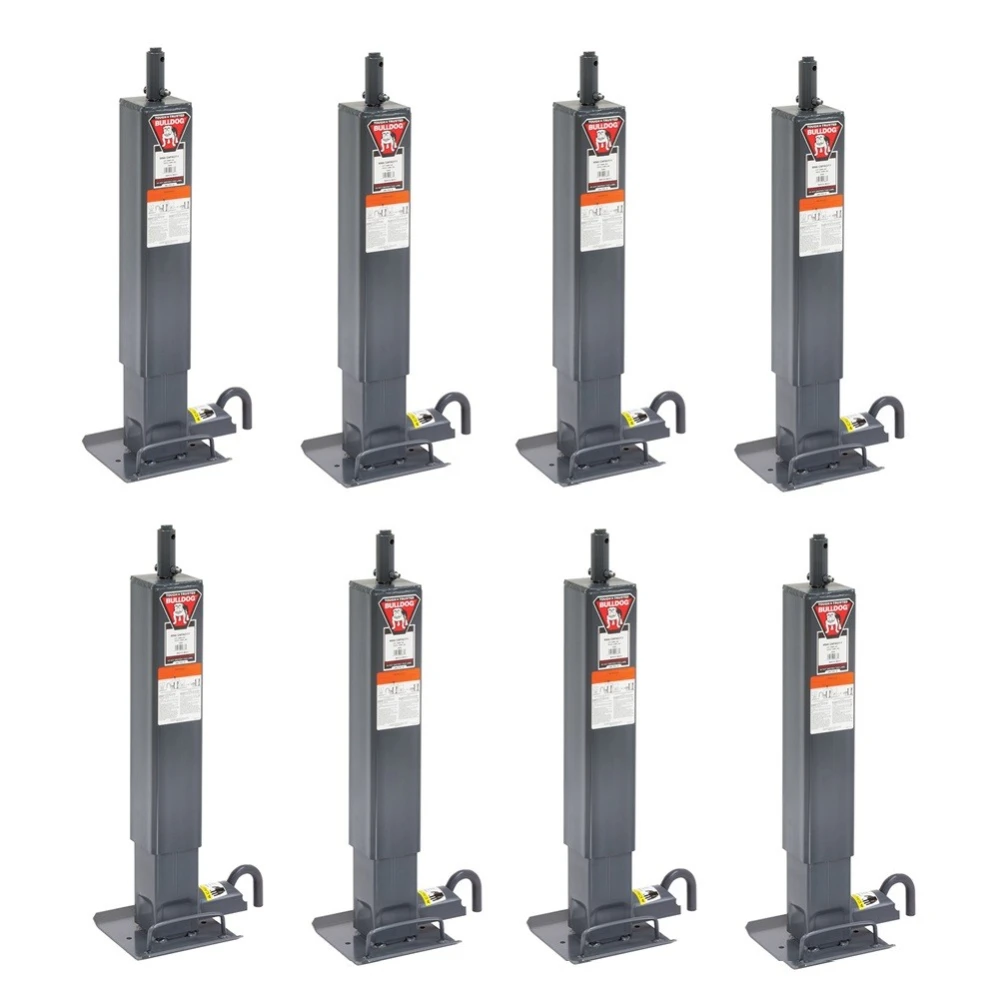

Bulldog 8x 12K Square Trailer Jack w/ Topwind 26" Lift Non Spring Return
Model: BDTJ87Bulldog 8-Pack 12,000 lb Square Trailer Jack with 26" Topwind Lift, Non-Spring Return
This heavy-duty bundle includes eight Bulldog 12,000 lb square trailer jacks equipped with a 26" Topwind lift and non-spring return drop legs. Perfect for agricultural, construction, and utility trailers, these durable jacks provide superior support and easy operation, making them an essential upgrade for demanding towing applications.
Bundle Contents:
- QTY (8): HD Square Trailer Jack, 12,000 lbs. Support Capacity, Topwind, 12-1/2 Inch Travel, No Handle
- Strong, durable, and sturdy, the BULLDOG 12,000 lbs. support capacity square jack has been the industry standard since 1923 for agricultural, construction, heavy-duty utility, and horse/livestock trailers.
- 4" square tubing constructed from 7-gauge superior alloy steel
- Painted outer tube and drop leg for corrosion resistance
- Drop leg option with 5 positioning holes for precise height adjustment
- Easy-access gearbox with grease fitting for routine maintenance
- Non-spring return drop leg for reliable engagement
- 12.5" screw travel plus 13.5" of additional adjustment with drop leg
- Choice of front-facing or side-facing drop leg plunger pin
- Available painted (with or without labels) or optional powder coat finish
- Sidewind handle models feature a 1:1.5 gear ratio for smooth operation
Always verify compatibility with your trailer’s existing mounting brackets and follow manufacturer guidelines for installation and maintenance. Regularly grease moving parts and inspect load-bearing components to ensure safe, long-lasting performance.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 12.5 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 23 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 49 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 23.4 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 49.4 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
