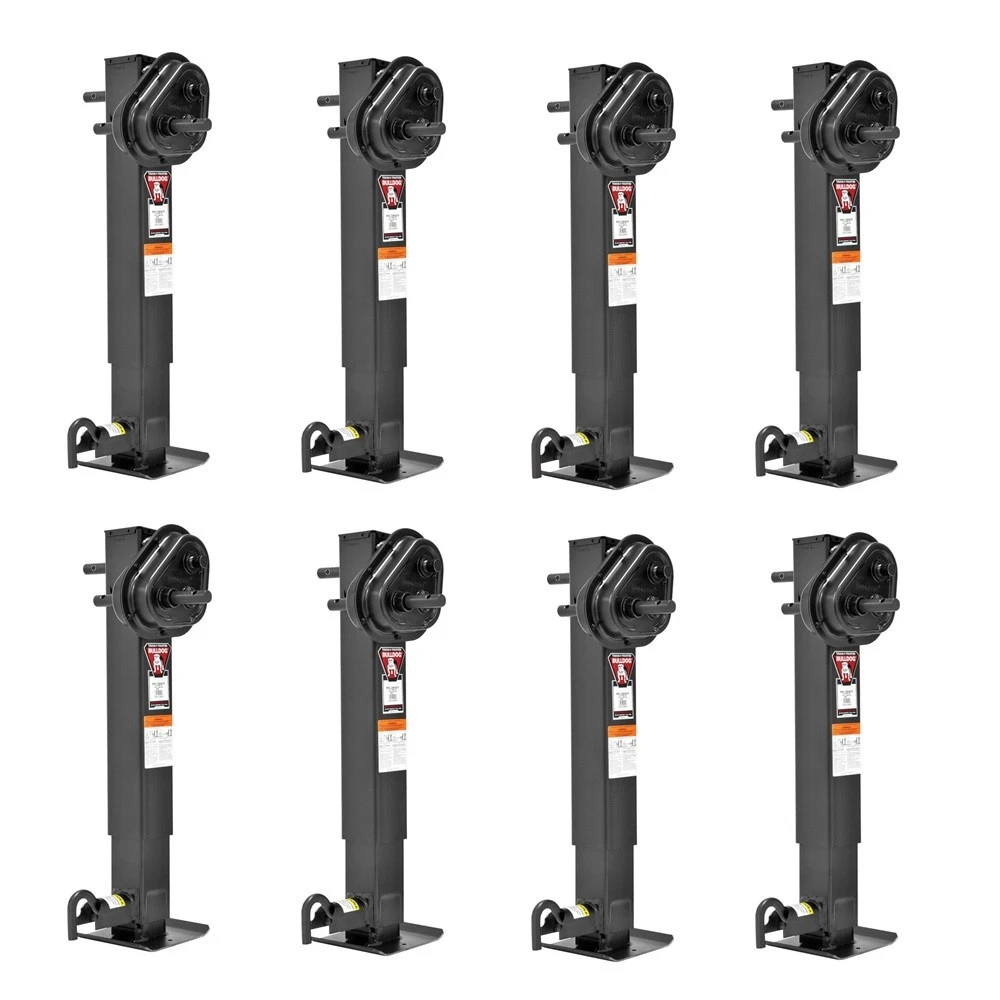

Bulldog 8x 2-Speed 12K Square Trailer Jack w/ Traditional Gearbox 26" Lift
Model: BDTJ918-Pack Bulldog 2-Speed 12,000 lb Square Sidewind Trailer Jacks – Traditional Gearbox, 26" Lift
Upgrade your heavy-duty trailer setup with this 8-pack of Bulldog two-speed square trailer jacks. Each jack features a robust traditional gearbox designed for smooth cranking under full loads and rapid lifting when unloaded. Rated for 12,000 lb static capacity and 10,000 lb lift capacity, these jacks deliver reliable performance for agricultural, construction, and industrial trailers.
Bundle Contents:
- QTY (8): Two-Speed Square Trailer Jack, 12,000 lbs. Lift Capacity, Sidewind, 12-1/2" Travel
- The first 2-speed gearbox designed with a drop leg jack in mind. Bulldog’s 2-speed 12,000 lb support capacity square jack makes cranking easier when fully loaded and faster when unloaded.
- In low gear, the ratio delivers full lifting power at a super-smooth, easy-lifting 27 turns per 1" (planetary) and 29 turns per 1" (traditional) of travel.
- In high gear, the cranking ratio is a speedy 9 turns per 1" of travel—the fastest in its weight class.
- State-of-the-art 2-speed gearbox with power and speed for the most effective and efficient jack at all loads
- Designed for today’s standard agricultural, construction, and industrial trailer applications
- User-friendly design makes operation smooth and easy
- Engineered alloys for enhanced strength, stability, and sideload capability
- Planetary gearbox fits within the width profile of the jack’s outer tube, eliminating the need for spacers
For optimal performance, always verify compatibility with your original equipment manufacturer’s specifications, perform regular lubrication, and inspect the drop leg mechanism before each use.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 12000 LB Static Capacity |
| Jack Lifting Load Capacity | 10000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 30 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 56 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 29.5 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 55.6 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
