Bulldog 8x 25K 2-Speed Square Trailer Jack w/ Twin Cam Gearbox & Drop Leg for Heavy-Duty

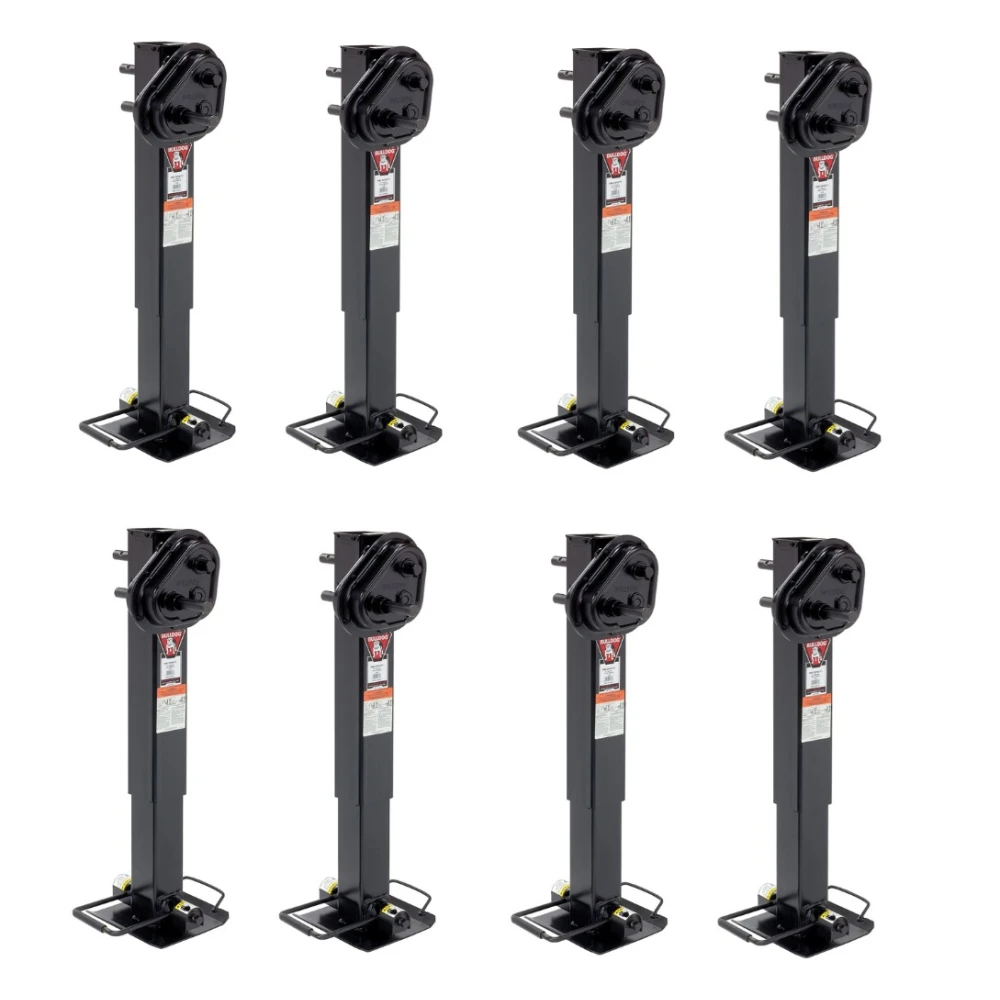

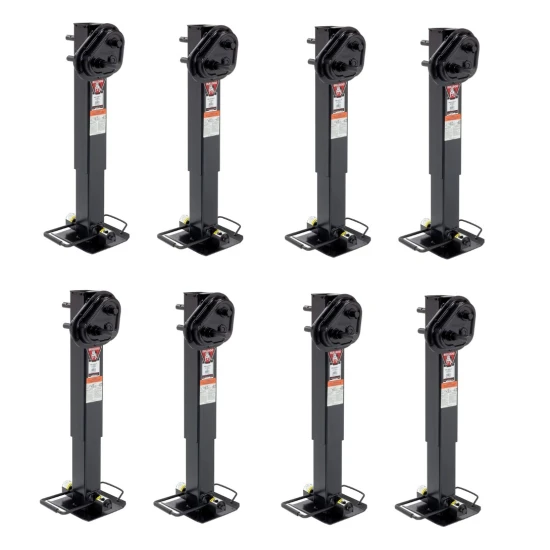

Model: BDTJ798-Pack Bulldog 25,000 lb Twin Cam™ 2-Speed Square Trailer Jack w/ Drop Leg
Get eight of the industry's strongest Twin Cam™ 2-speed square trailer jacks, each featuring a heavy-duty drop leg design. Ideal for heavy-duty trailers, this bundle provides reliable 25,000 lb support capacity, easy cranking with a two-speed gearbox, and enhanced durability with greaseable internals. Perfect for fleet owners, pro contractors, or anyone needing multiple high-capacity jacks.
Bundle Contents:
- QTY (8): Twin Cam™ 2-Speed Square Trailer Jack w/ Drop Leg, 25,000 lbs Support Capacity
- Two-speed gearbox: 9 turns per inch (high speed) & 29.5 turns per inch (low speed)
- Sidewind operation with 26″ lift using heavy-duty steel screw
- Grease fittings for easy lubrication of gears & screw/nut
- Patented screw stop prevents over-extension damage
- Twin Cam™ drop leg mechanism with enclosed pin design
- Increases static capacity by transferring force via dual ¾″ pins
- Full engagement control without relying on spring pressure
- 5-position adjustment with 13.5″ range
- 10″ × 10″ heavy-gauge steel footplate for stability
- Heavy-duty 1″ diameter steel input shaft
- Spring return and non-spring return drop legs available
- Optional accessory: Compatible with BULLDOG Powered Drive electric motor (reduces lift to 7,500 lbs)
We recommend verifying your trailer’s original equipment specifications and performing regular maintenance—greasing moving parts and inspecting drop leg pins—to ensure long-lasting performance.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 26 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 25000 LB Static Capacity |
| Jack Lifting Load Capacity | 25000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Drop Leg Non Spring Return |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 29 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 55 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 28.5 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 54.5 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
