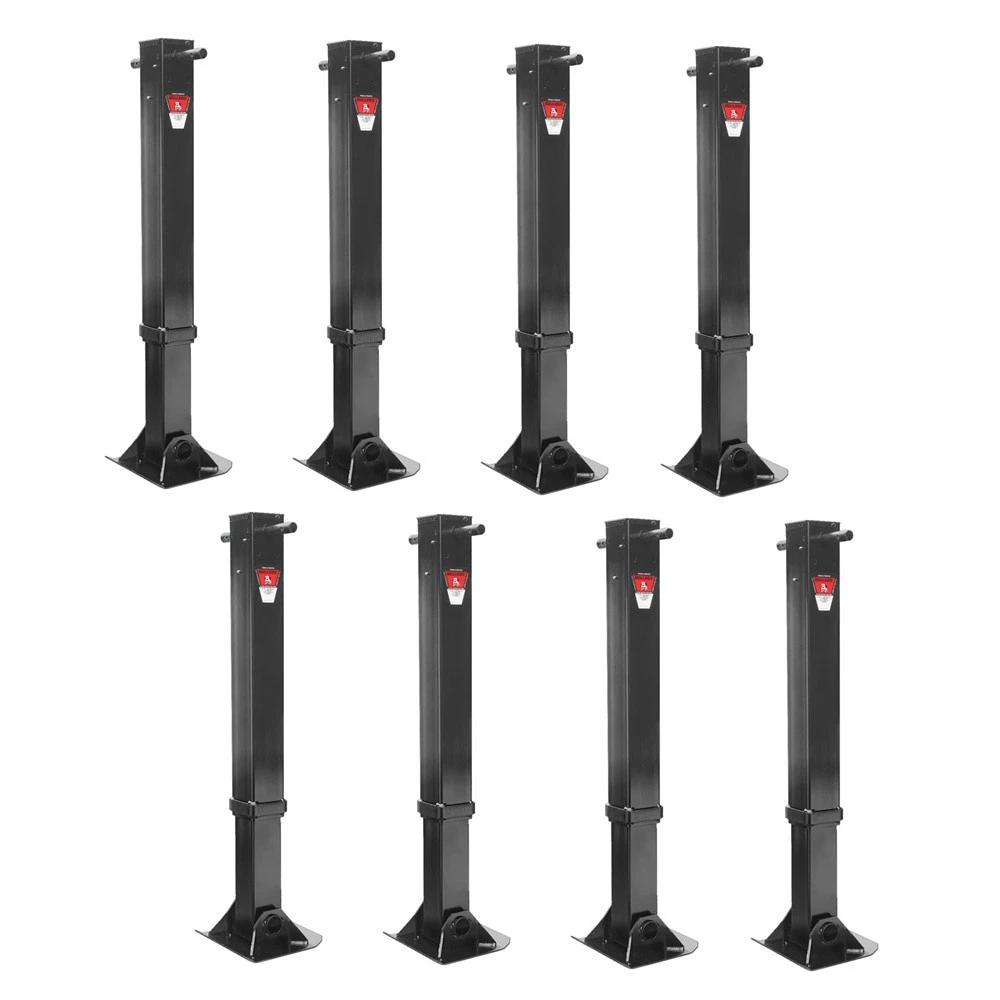

Bulldog 8x 45K Trailer Jack Weld-On w/ 17" Lift Fixed Leg
Model: BDTJ59Bulldog 45K Heavy Duty Direct Weld Trailer Jack Bundle (8 Pack)
Upgrade your trailer with this bundle of eight Bulldog 45,000 lb capacity direct weld jacks. Each jack features a 17" travel, sidewind handle crank, and fixed leg design, providing reliable support and effortless operation for heavy-duty trailers. Ideal for agricultural, construction, and utility trailers, this bundle ensures uniform performance across all mounting points.
Bundle Contents:
- QTY (8): Trailer Jack Accessory, Heavy Duty Jack, Single Speed, Direct Weld Mount
- AAR & TTMA rated: 45,000 lbs lifting capacity (@ 100 ft-lbs input torque); 90,000 lbs static capacity
- 17" of travel with high-efficiency double lead screw and self-leveling screw
- Competitive cranking ratios: Low-speed gear 27.3 turns/in; High-speed gear 4.5 turns/in
- Black painted finish resists corrosion and wear
- Crank included; cross shaft sold separately
- Industry-leading 5-year warranty
For optimal performance, always verify compatibility with your trailer’s mounting brackets and perform regular lubrication and inspection of gears and bearings.
| Specifications: | |
|---|---|
| Weight Capacity | 10001 Pounds or Greater |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Direct Weld HD |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 17 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 45,000 LB Static Capacity |
| Jack Lifting Load Capacity | 22,500 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 4 Inch Outer Tube |
| Jack Shape | Square Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 32 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 49 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | User-Configurable Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 31.7 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 48.7 Inch |
| Exact Bracket-to-Top Clearance | User-Configurable Clearance |
