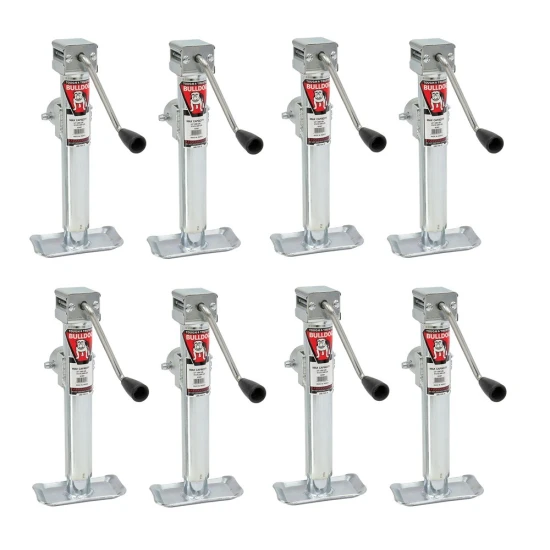

Bulldog 8x 5K Pipe Mount Swivel Trailer Jack w/ 15" Lift and Sidewind Handle
Model: BDTJ316Bulldog 8x 5K Pipe Mount Swivel Trailer Jack w/ 15" Lift and Sidewind Handle
This convenient 8-pack bundle of Bulldog 5,000 lb pipe mount swivel trailer jacks is ideal for medium-duty utility trailers. Built for durability and smooth operation, these jacks are trusted by commercial, agricultural, and livestock trailer manufacturers. With a 15" lift range, sidewind handle, and zinc-plated finish, these reliable jacks provide stable lifting and long-term performance in any environment.
Bundle Contents:
- QTY (8): Bulldog 5K Pipe Mount Swivel Trailer Jack
- 5,000 lb lift and static capacity
- Pipe mount swivel with secure weld-on installation
- Sidewind handle for ergonomic, smooth operation
- 15" travel range, fixed leg, footplate base
- Grey painted outer tube, zinc-plated inner tube
- Round tube design, 2.25" outer, 2" inner diameter
Always verify fitment with your trailer’s original equipment. Regular maintenance and inspection of trailer jacks ensure safety and performance during every use.
| Specifications: | |
|---|---|
| Weight Capacity | 3001–5000 Pounds |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Medium Duty Trailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Silver Zinc Plated |
| Static Load Capacity | 5000 LB |
| Lifting Load Capacity | 5000 LB |
| Foot Type | Footplate |
| Leg Style | Fixed Leg |
| Swivel Type | Swivel |
| Outer Tube Diameter | 2.25 Inch |
| Jack Shape | Round |
| Bracket-to-Bottom (Retracted) | 15.5 Inch |
| Bracket-to-Bottom (Extended) | 30.5 Inch |
| Bracket-to-Top Clearance | 6.2 Inch |
| Inner Tubing Diameter | 2 Inch |
| Electric Lift | Non Electric |
$725 99 $970.64 25% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$970.64 $725 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ316
- Includes: Pipe-Mount Swivel Jack
