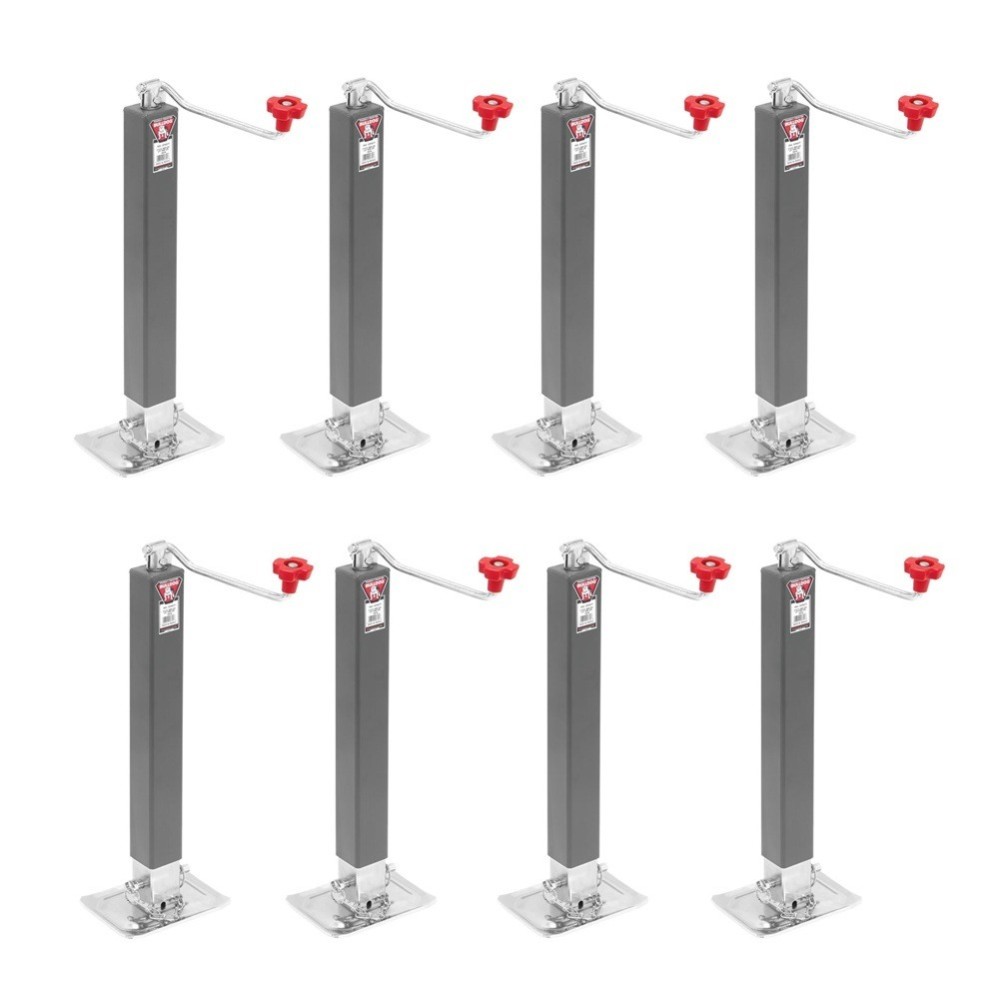

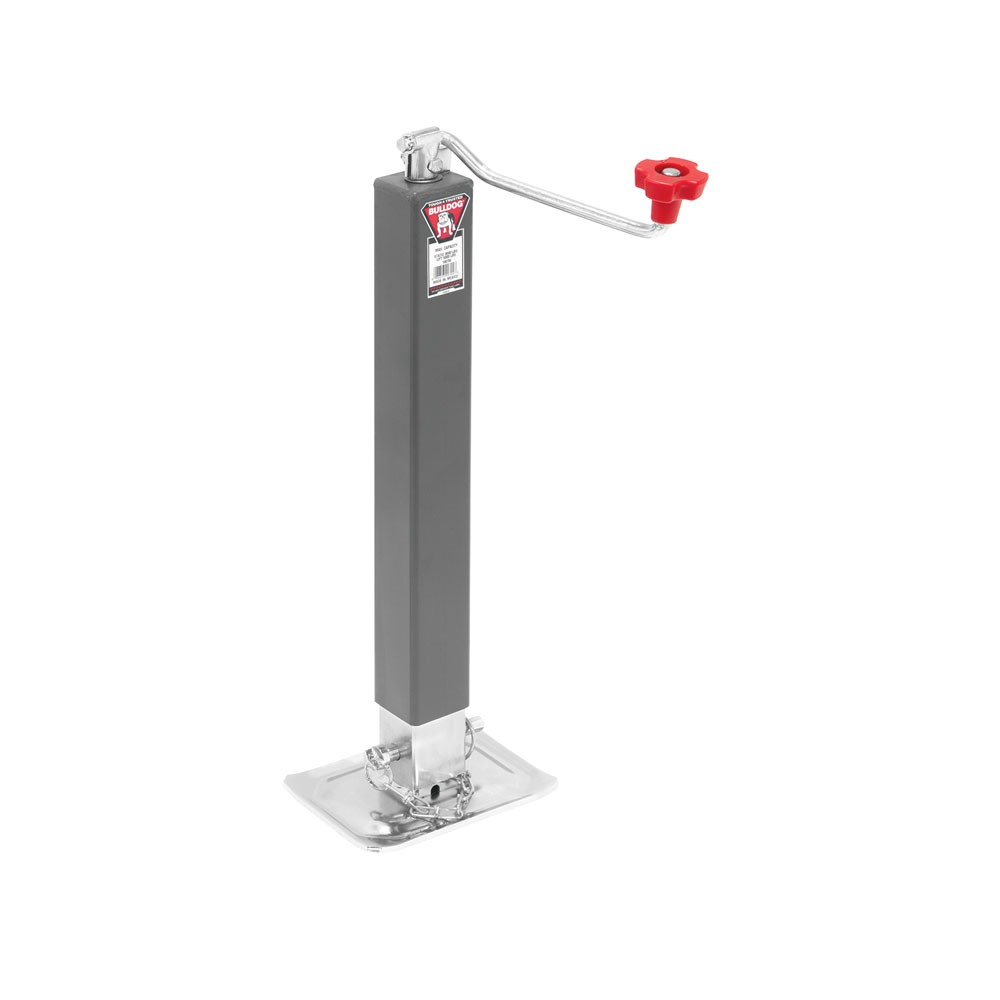

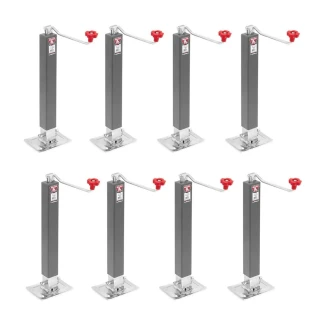

Bulldog 8x 8K Square Trailer Jack w/ 15" Lift Topwind Handle and Footplate
Model: BDTJ1478-Pack Bulldog 8,000 lb Topwind Square Trailer Jacks w/ Footplate
Equip your fleet or trailer with this bundle of eight heavy-duty Bulldog square jacks. Each jack delivers a robust 8,000 lb static capacity and 5,000 lb lift capacity, featuring a 15″ travel range and durable gray powdercoat finish. Perfect for agricultural, industrial, construction, horse/livestock, and utility/cargo trailers where space is tight and reliability is critical.
Bundle Contents:
- QTY (8): Square Trailer Jack, No Mount
- 8,000 lb static capacity; 5,000 lb lift capacity
- Compact 2.5″ square tube fits tight applications
- Painted outer tube serves as final finish or primer
- Zinc-plated inner tube and drop leg resist corrosion
- 4.7″ outer/inner tube overlap for optimal side-load support
- 5/8″ screw stem to prevent twisting under load
- Patented screw-nut stop prevents damage at full extension
- Topwind handle with bushing in top cap and eagle-claw grip
Please verify compatibility with your original equipment and perform regular maintenance to ensure peak performance and longevity.
| Specifications: | |
|---|---|
| Weight Capacity | 7001–8000 Pounds |
| Jack Mounting Style | Direct Weld HD Jack |
| Jack Groups | Heavy Duty Trailers |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 LB Static Capacity |
| Lift Capacity | 5000 LB Lift Capacity |
| Foot Type | Footplate |
| Leg Style | Drop Leg Non Spring Return |
| Swivel Type | Non Swivel |
| Outer Tube Diameter | 2.5 Inch Outer Tube |
| Shape | Square Jack |
| Bracket-to-Bottom Clearance (Retracted) | 23 Inch |
| Bracket-to-Bottom Clearance (Extended) | 51 Inch |
| Bracket-to-Top Clearance | User-Configurable Clearance |
| Exact Retracted Clearance | 22.66 Inch |
| Exact Extended Clearance | 51.41 Inch |
| Electric Lift | Non Electric |
$818 99 $1,070.00 23% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Backorder (2-5 Weeks)
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$1,070.00 $818 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Don't Miss the Next Restock!
We are working hard to bring this back. Join our VIP list to get an instant alert the second it is available.
Product Details
- Brand: Bulldog
- Model: BDTJ147
- Includes: 8K Drop Leg Jack
