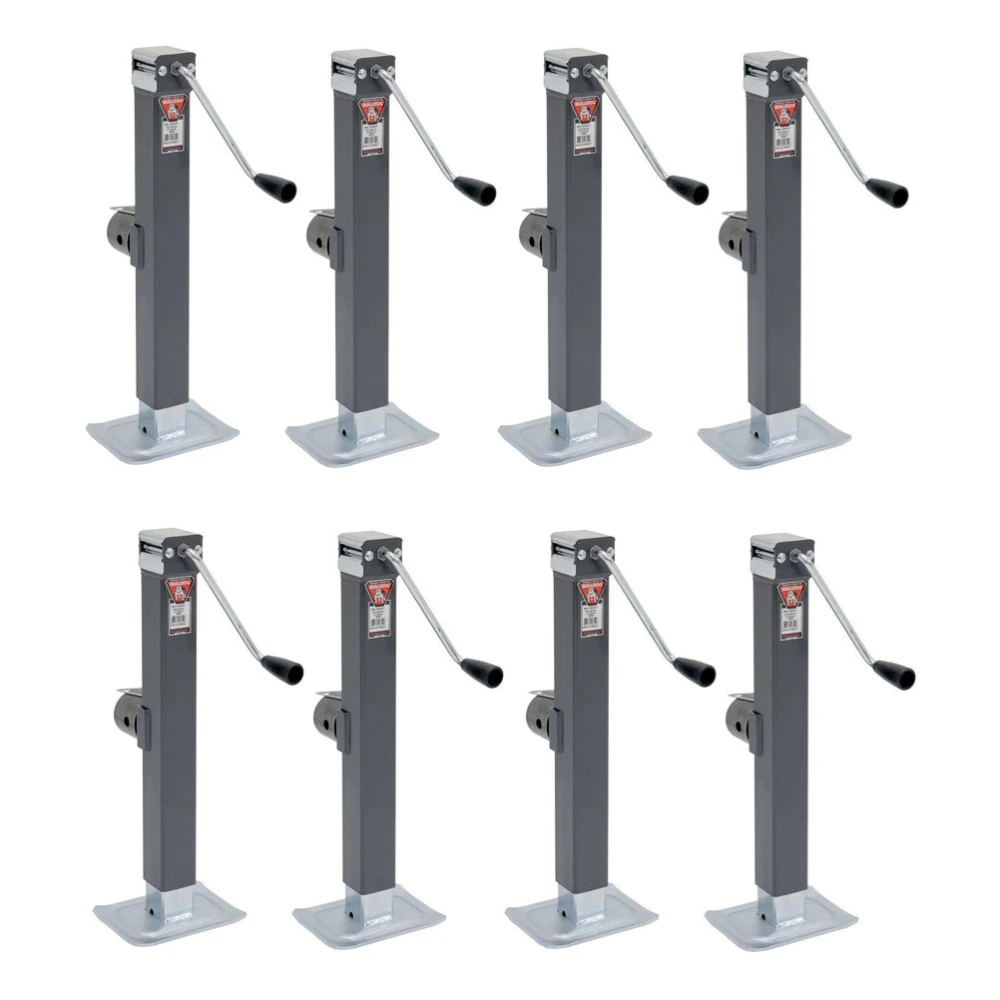

Bulldog 8x 8K Square Trailer Jack w/ Tubular Swivel Mount and 15" Lift
Model: BDTJ1118-Pack Bulldog 8K lb Square Sidewind Swivel Trailer Jacks – 15″ Lift
Equip your heavy-duty agricultural, industrial, or utility trailers with this 8-pack of Bulldog 8,000 lb support capacity square jacks. Their compact 2.5″ outer tube design fits tight-space applications where larger jacks won’t work, while the tubular swivel mount ensures quick, reliable positioning.
Bundle Contents:
- QTY (8): Square Trailer Jack, Side Mount, 8,000 lbs. Support Capacity, Sidewind, Weld-On, 15″ Travel
- Painted outer tube (final finish or primer)
- Zinc-plated inner tube and drop leg
- 4.7″ outer/inner tube overlap for optimal side-load performance
- 5/8″ screw stem resists stem twisting
- Patented screw-nut stop prevents damage when fully extended
- Topwind models include top-cap bushing and Eagle Claw grip
- Sidewind models feature 1/4″ cross-pin shear-guard and 1:1.33 gear ratio
We recommend verifying your original equipment specifications before installation and performing regular lubrication to maintain smooth operation.
| Specifications: | |
|---|---|
| Weight Capacity | 7001–8000 lb |
| Jack Mounting Style | Pipe Mount Swivel Jack |
| Jack Groups | Heavy Duty Trailers |
| Jack Style | Pipe Mount |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 15″ Lift |
| Jack Finish | Gray Powdercoat |
| Static Load Capacity | 8000 lb |
| Lifting Load Capacity | 5000 lb |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Outer Tube Diameter | 2.5″ |
| Jack Shape | Square |
| Bracket-to-Bottom Clearance (Retracted) | 12″ (12.16″ exact) |
| Bracket-to-Bottom Clearance (Extended) | 27″ (27.16″ exact) |
| Bracket-to-Top Clearance | 12″ (12.40″ exact) |
| Electric Lift | Non-Electric |
| Custom Bundle | No |
