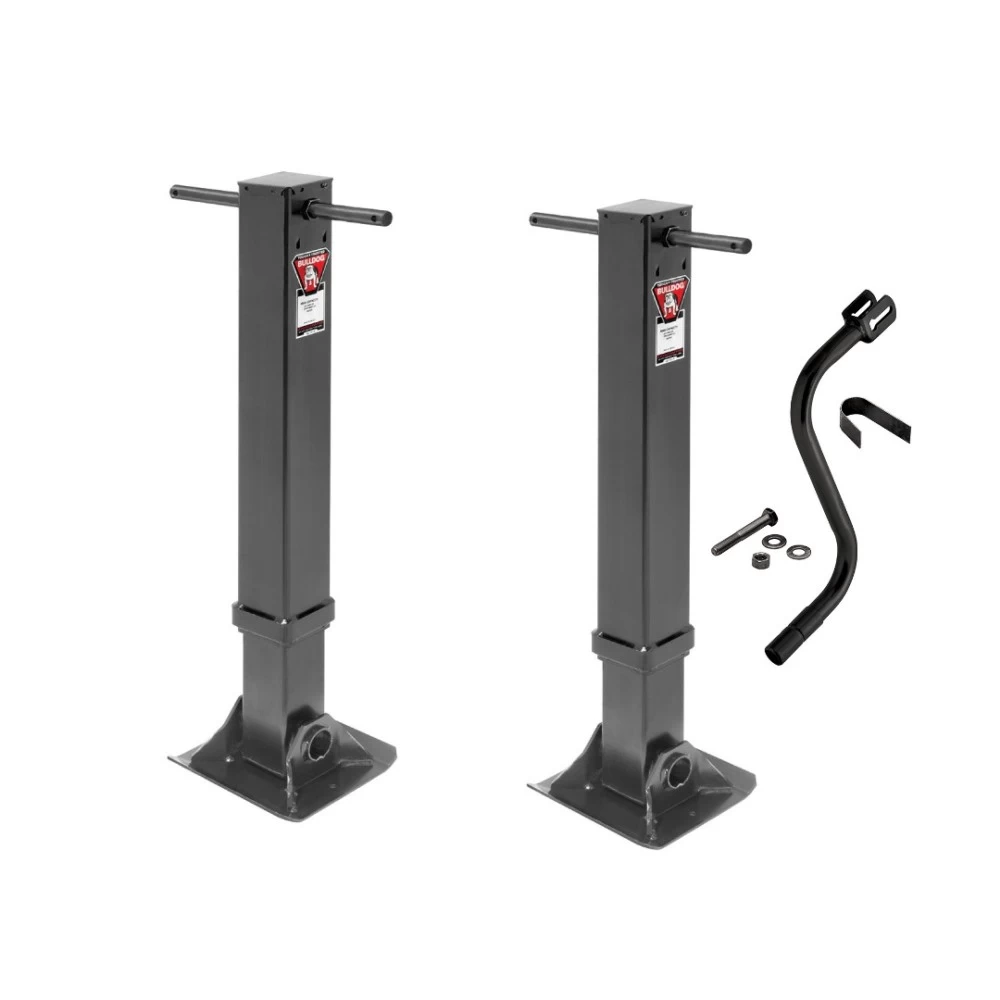

Bulldog 90,000 lbs. Tandem Landing Gear Trailer Jacks 17" Lift Fixed Leg AAR & TTMA rated Weld‑On w/ Crank
Model: 1823050383x2 1400920383x1Bulldog HEAVY DUTY SQUARE TRAILER JACK LANDING GEAR is Ideal for horse, livestock and heavy duty trailers.
Direct Weld Trailer Jack
Features
-
Easy-access grease fittings
-
Heavy duty leg band for added strength. Sand shoe designed to maximize connection strength
Specifications:
-
AAR & TTMA rated (all values per pair):
-
45,000 lbs. lifting capacity (@ 100 ft. lbs input torque)
-
90,000 lbs. static capacity
-
-
Competitive Cranking ratios:
-
17" of Travel
-
Retracted Height: 31.7"
-
Extended Height: 48.7
-
High efficiency, double lead screw
-
Heavy duty, self-leveling screw
-
Black painted finish
-
Industry leading 5-year warranty
$740 99 $981.25 24% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$981.25 $740 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $185.00 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Bulldog
- Model: 1823050383x2 1400920383x1
- Includes: 90000 lbs Tandem Landing Gear Jacks
Get Expert Help
Bulldog 90,000 lbs. Tandem Landing Gear Trailer Jacks 17" Lift Fixed Leg AAR & TTMA rated Weld-On w/ Crank Install Notes
Installation Instructions for Tandem 2-Speed Landing Gear
General Installation Notes:
- Confirm no interference from the tow vehicle, tongue, ground, or other mounted accessories while stationary or in motion.
- Ensure the jack is fully retracted before towing.
- Verify the drop leg pin is fully inserted before use.
- Avoid positioning any part of the body under the product or load being supported.
- Always block wheels to prevent movement when operating the jack or coupling the trailer.
- Do not exceed the maximum rated capacity as marked on the product.
- These jacks are designed for vertical loading only; avoid excessive side forces.
- Ensure adequate bracing and gusseting are provided during installation.
- All welding must be performed by an AWS-certified welder.
Tools Required:
- Torque wrench
- Ratchet set
- 5/8”-11 grade 5 fasteners (for bolt-on applications)
Step-by-Step Instructions:
Direct Mount to Load-Bearing Member:
- All welding must be performed by an AWS-certified welder.
- Place three 2-inch-long 1/4” fillet welds on both sides of the jack along the contacting surface.
- Ensure the welds are as far apart as possible to maximize load strength.
- For tandem applications, align the jacks to raise and lower together while sharing the load equally.
Bolt-On Installation:
- Use the provided mounting bracket with eight (8) 5/8”-11 grade 5 fasteners (not included).
- Torque the fasteners to 150 ft-lbs.
Drop Leg Operation:
Spring Return Drop Leg:
- Ensure the jack is not supporting any load.
- If extended, place your foot on the footplate to control the drop leg's return.
- Rotate the drop leg pin to disengage and carefully move the leg to the desired position.
- Rotate the pin back into the engaged position and ensure it is fully seated.
Non-Spring Return Drop Leg:
- Ensure the jack is not supporting any load.
- Grasp the handle of the footplate to control the drop leg as it descends.
- Rotate the drop leg pin to disengage and carefully position the leg.
- Rotate the pin back to the engaged position and ensure it is fully seated.
Maintenance:
- Lubricate the gears, bushings, and screw annually with automotive grease.
- For side-wind models, use a grease gun at the lubrication points near the input shaft.
- Apply lightweight oil to the input shaft bushings and the drop leg pin assembly.
- Keep the drop leg pin and spring clean and lubricated.
Safety Notes:
- Replace any bent, broken, or worn parts before use.
- Do not adjust the drop leg under load.
- Keep clear of pinch points during operation.
Limited Warranty:
- Coverage: 5 years against material defects in workmanship under normal use.
- Exclusions: Wear and tear, misuse, overloading, improper installation, and unauthorized modifications.
- For complete warranty instructions, please download the full installation PDF.
Additional Information:
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
