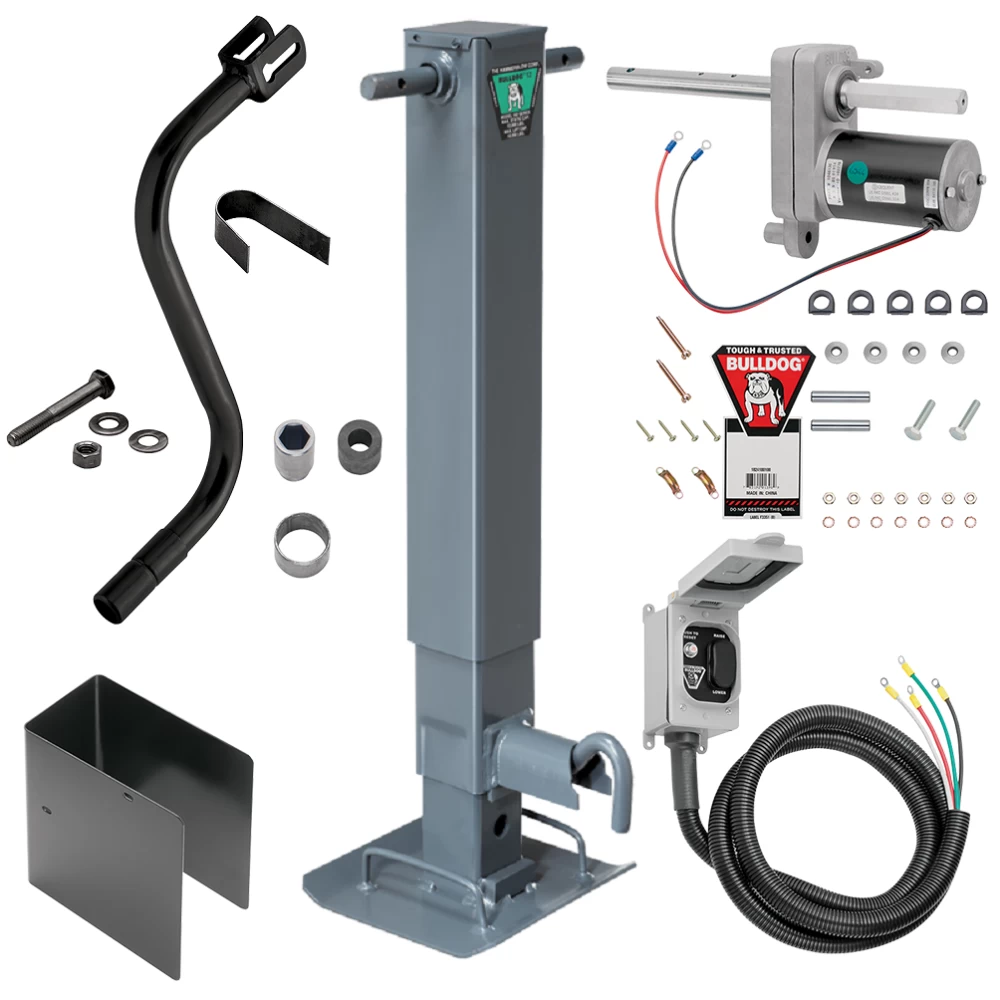

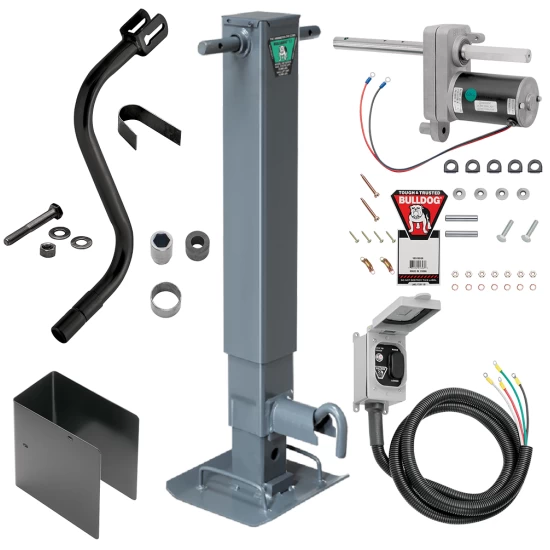

Bulldog Single Speed 12K Trailer Jack Non Spring Return Drop Leg Front Plunger Pin, Bulldog Electric Motor Powered-Drive Kit, Manual Override Crank
Model: 182415 1824200100 1400920383Introducing the Bulldog Trailer Jack and Electric Motor Bundle - Your Ultimate Lifting Solution!
Enhance your trailer experience with the Bulldog 12,000 lbs Trailer Jack - 182415, now equipped with a Non-Spring Return Drop Leg, and seamlessly pair it with the Bulldog Electric Motor Powered-Drive Kit - Part Number 1824200100. This bundle is designed to meet the needs of a variety of trailers, including gooseneck, car hauler, fifth-wheel, enclosed, utility, and horse trailers, offering unmatched convenience and performance. A Manual Override Crank is included for added convenience.
Bulldog Trailer Jack - 182415 with Non-Spring Return Drop Leg:
This robust 7-gauge alloy steel jack, featuring a weather-resistant finish, is your dependable companion for heavy-duty lifting and support.
Key Features:
- Sturdy 4" Square Tubing: Crafted from 7-gauge alloy steel for maximum durability.
- Painted for Protection: A weather-resistant coat on both the outer tube and drop leg ensures longevity.
- Adjustable Drop Leg: Offers five positioning holes for versatile use and easy setup.
- Easy-Access Gear Box: Simplifies maintenance with a conveniently accessible gear box and grease fitting.
- Springless Drop Leg: Allows for quick adjustment without manual effort.
- Front-Facing Plunger Pin: Enhances user convenience with a front-facing positioning.
- Powder Coat Finish: Provides long-lasting protection against the elements.
- Sidewind Model: A 1:1.5 gear ratio ensures smooth and efficient operation.
Technical Specifications:
- Total Travel: 26"
- Screw Travel: 12-1/2"
- Drop Leg Travel: 13-1/2"
- Manual Lift Capacity: 10,000 lbs
- Electric Capacity: 7,500 lbs (with Bulldog Electric Motor Powered-Drive Kit)
- Static Support Capacity: 12,000 lbs
- Overall Height: Retracted: 27-3/8", Extended: 39-7/8"
- Outer Tube Width: 4"
- Warranty: 5-year warranty
Bulldog Electric Motor Powered-Drive Kit:
Boost your jack's lifting power with this efficient, quiet motor drive, specifically designed for heavy-duty applications.
Features:
- Faster and Easier Lifting
- Compatible with Bulldog Single-Speed Jacks
- Ideal for Heavy-Duty Trailers
- Compact and Quiet Design
- Maintenance-Free and Weatherproof
- Manual Operation Option for emergencies
Specifications:
- Motor Power: 12 volt DC
- Electric Lift Capacity: 7,500 lbs
- Dimensions: 16-1/2" long x 3-1/8" wide x 7-3/16" tall
- Warranty: Limited 5-year warranty
For the ultimate in trailer lifting efficiency and convenience, choose the Bulldog Trailer Jack and Electric Motor Bundle. Call us now at 877-869-6690 to enhance your trailer's capabilities with this top-tier solution.
