Class 5 Trailer Tow Hitch For 01‑10 Chevy Silverado GMC Sierra 2500 3500 w/ 1‑7/8" 2" 2‑5/16" Tri‑Tow‑Ball Mount and Towing Lock
Model: 45517 45325 63252Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount
Dogbone Style Towing Lock
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2001 - 2002 Chevrolet, Silverado 2500 HD, All Styles
2003 - 2007 Chevrolet, Silverado 2500 HD, (Classic)
2007 - 2010 Chevrolet, Silverado 2500 HD, All Styles
2001 - 2002 Chevrolet, Silverado 3500, All Styles
2003 - 2007 Chevrolet, Silverado 3500, (Classic)
2007 - 2010 Chevrolet, Silverado 3500 HD, All Styles
2001 - 2002 GMC, Sierra 2500 HD, All Styles
2003 - 2007 GMC, Sierra 2500 HD, (Classic)
2007 - 2010 GMC, Sierra 2500 HD, All Styles
2001 - 2002 GMC, Sierra 3500, All Styles
2003 - 2007 GMC, Sierra 3500, (Classic)
2007 - 2010 GMC, Sierra 3500 HD, All Styles
Trailer Hitch Specs:
| Part Number | 45517 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 13,000 lbs |
| Max GTW w/ weight distribution | 17,000 lbs |
| Max Tongue Weight | 1,300/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 45325 |
| Brand | Reese |
| Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8-3/4" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 10,000 Lb. capacity |
| 2 5/16 In. ball | 14,000 Lb. capacity |
| Warranty | Lifetime |
Dogbone Style Towing Lock Specs:
| Part Number | 63252 |
| Fits | 2-1/2" Receivers, 3-1/2" Span |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
$405 81 $648.44 37% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$648.44 $405 81
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $101.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 45517 45325 63252

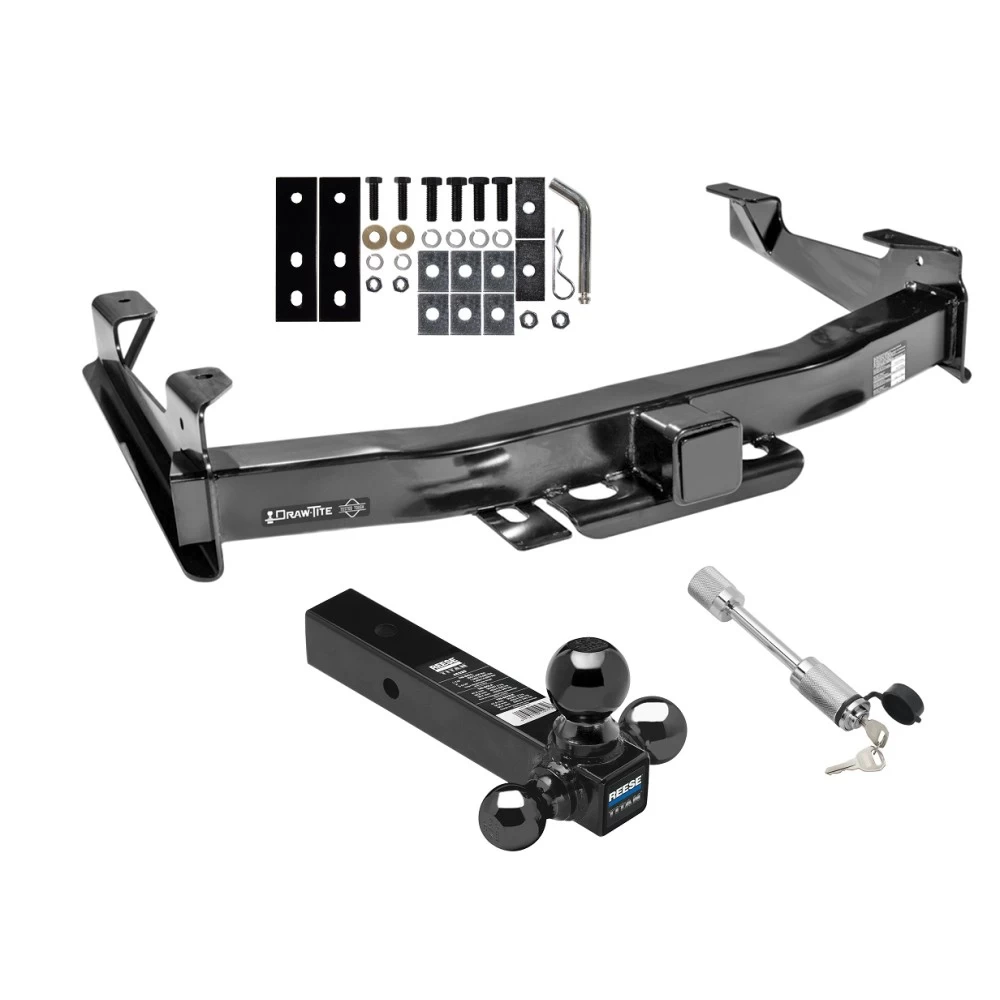

- Includes: Titan Class 5 Trailer Tow Hitch, Titan Tri-Ball Trailer Tow Hitch Ball Mount, Trailer Tow Hitch Lock
Compatibility Chart
Description
Custom Fit Trailer Hitch
Tri-Ball Trailer Hitch Ball Mount
Dogbone Style Towing Lock
Installation Hardware
Installation Instructions
This Hitch Fits The Following Vehicles:
2001 - 2002 Chevrolet, Silverado 2500 HD, All Styles
2003 - 2007 Chevrolet, Silverado 2500 HD, (Classic)
2007 - 2010 Chevrolet, Silverado 2500 HD, All Styles
2001 - 2002 Chevrolet, Silverado 3500, All Styles
2003 - 2007 Chevrolet, Silverado 3500, (Classic)
2007 - 2010 Chevrolet, Silverado 3500 HD, All Styles
2001 - 2002 GMC, Sierra 2500 HD, All Styles
2003 - 2007 GMC, Sierra 2500 HD, (Classic)
2007 - 2010 GMC, Sierra 2500 HD, All Styles
2001 - 2002 GMC, Sierra 3500, All Styles
2003 - 2007 GMC, Sierra 3500, (Classic)
2007 - 2010 GMC, Sierra 3500 HD, All Styles
Trailer Hitch Specs:
| Part Number | 45517 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 13,000 lbs |
| Max GTW w/ weight distribution | 17,000 lbs |
| Max Tongue Weight | 1,300/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Tri-Ball Trailer Hitch Ball Mount Specs:
| Part Number | 45325 |
| Brand | Reese |
| Fits | 2-1/2" x 2-1/2" Trailer Hitch Receiver |
| Finish | Black Powdercoat Balls and hook are chromed |
| Length | 8-3/4" From Center of Pin Hole to Center of Ball Hole |
| 1 7/8 In. ball | 2,000 Lb. capacity |
| 2 In. ball | 10,000 Lb. capacity |
| 2 5/16 In. ball | 14,000 Lb. capacity |
| Warranty | Lifetime |
Dogbone Style Towing Lock Specs:
| Part Number | 63252 |
| Fits | 2-1/2" Receivers, 3-1/2" Span |
| Brand | Draw-Tite |
| Prevents Theft Use in place of standard pin and clip Easy Access Models Feature Side Key Entry, Sliding Dust Cap, Lock Housing Rotates 360 degrees Includes Dust Cap |
|
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 01 02 03 04 05 06 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Get Expert Help
Class 5 Trailer Tow Hitch For 01-10 Chevy Silverado GMC Sierra 2500 3500 w/ 1-7/8" 2" 2-5/16" Tri-Tow-Ball Mount and Towing Lock Install Notes
Installation Instructions for Chevrolet/GMC 2500HD/3500 (2001–2010)
Part Numbers:
- 45517
- 45717
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18mm, 21mm
Installation Time:
- Approximately 25 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire (Optional):
- Lower the spare tire to simplify installation. This step is not mandatory but recommended.
-
Remove Existing Bolts:
- Remove the bottom M14 bolts from the frame, which help attach the bumper brackets.
- Remove the side M12 nuts and bolt plates from the frame. Retain these for reinstallation.
-
Adjust Bumper Braces (2001–2007 Models Only):
- Loosen the nuts at the bumper end of the bumper brace to allow it to swing away from the frame.
-
Position Hitch:
- Raise the hitch into position and loosely install M14 coarse-thread fasteners (Items 6, 4, and 7) into the weld nut in the bumper bracket.
-
Install Attachment Bar:
- Place the attachment bar as shown in Figure 1 and loosely bolt it to the hitch.
-
Reinstall Bumper Braces (if applicable):
- Swing the bumper braces back into position and reinstall the bolt plates removed earlier.
-
Tighten Fasteners:
- Tighten all fasteners as shown in Figure 1. Ensure they are torqued correctly:
- M14 x 2.0 bolts: 115 lb-ft (156 N*m)
- M14 x 1.5 bolts: 145 lb-ft (201 N*m)
- M12 x 1.75 bolts: 92 lb-ft (125 N*m)
- Tighten all fasteners as shown in Figure 1. Ensure they are torqued correctly:
-
Raise Spare Tire:
- If the spare tire was lowered, raise it back into position.
Torque Specifications:
- M14 x 2.0 bolts: 115 lb-ft (156 N*m)
- M14 x 1.5 bolts: 145 lb-ft (201 N*m)
- M12 x 1.75 bolts: 92 lb-ft (125 N*m)
Hardware List:
- (2) Hex Bolts, M14 x 1.50 x 45mm CL10.9
- (2) Hex Bolts, M14 x 2.00 x 45mm CL10.9
- (2) Hex Nuts, M14 x 1.50 CL10
- (2) Hex Nuts, M12 x 1.75 CL10
- (2) Hex Bolts, M12 x 1.75 x 45mm CL10.9
- (4) Lock Washers, 9/16"
- (2) Lock Washers, 1/2"
- (2) Conical Washers, 1/2"
- (2) Blocks, 3/8" x 1.50" x 3.00"
- (4) Blocks, 1/4" x 1.50" x 2.00"
- (2) Attachment Bars
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are secure.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the vehicle's body if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 13,000 lb (5,902 kg)
- Max Tongue Weight: 1,300 lb (590 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 17,000 lb (7,718 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- For photo instructions, scan the QR code provided or visit the manufacturer's website.
Installation Instructions for Gooseneck Mounting Kit
Part Numbers:
- 45517
- 45717
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18mm, 21mm
Installation Time:
- Approximately 25 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire (Optional):
- Lower the spare tire to simplify installation. This step is not mandatory but recommended.
-
Remove Existing Bolts:
- Remove the bottom M14 bolts from the frame, which help attach the bumper brackets.
- Remove the side M12 nuts and bolt plates from the frame. Retain these for reinstallation.
-
Adjust Bumper Braces (2001–2007 Models Only):
- Loosen the nuts at the bumper end of the bumper brace to allow it to swing away from the frame.
-
Position Hitch:
- Raise the hitch into position and loosely install M14 coarse-thread fasteners (Items 6, 4, and 7) into the weld nut in the bumper bracket.
-
Install Attachment Bar:
- Place the attachment bar as shown in Figure 1 and loosely bolt it to the hitch.
-
Reinstall Bumper Braces (if applicable):
- Swing the bumper braces back into position and reinstall the bolt plates removed earlier.
-
Tighten Fasteners:
- Tighten all fasteners as shown in Figure 1. Ensure they are torqued correctly:
- M14 x 2.0 bolts: 115 lb-ft (156 N*m)
- M14 x 1.5 bolts: 145 lb-ft (201 N*m)
- M12 x 1.75 bolts: 92 lb-ft (125 N*m)
- Tighten all fasteners as shown in Figure 1. Ensure they are torqued correctly:
-
Raise Spare Tire:
- If the spare tire was lowered, raise it back into position.
Torque Specifications:
- M14 x 2.0 bolts: 115 lb-ft (156 N*m)
- M14 x 1.5 bolts: 145 lb-ft (201 N*m)
- M12 x 1.75 bolts: 92 lb-ft (125 N*m)
Hardware List:
- (2) Hex Bolts, M14 x 1.50 x 45mm CL10.9
- (2) Hex Bolts, M14 x 2.00 x 45mm CL10.9
- (2) Hex Nuts, M14 x 1.50 CL10
- (2) Hex Nuts, M12 x 1.75 CL10
- (2) Hex Bolts, M12 x 1.75 x 45mm CL10.9
- (4) Lock Washers, 9/16"
- (2) Lock Washers, 1/2"
- (2) Conical Washers, 1/2"
- (2) Blocks, 3/8" x 1.50" x 3.00"
- (4) Blocks, 1/4" x 1.50" x 2.00"
- (2) Attachment Bars
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are secure.
- Replace any damaged hitch or ball immediately.
- Plug all holes in the vehicle's body if the hitch is removed to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 13,000 lb (5,902 kg)
- Max Tongue Weight: 1,300 lb (590 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 17,000 lb (7,718 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- For photo instructions, scan the QR code provided or visit the manufacturer's website.
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
