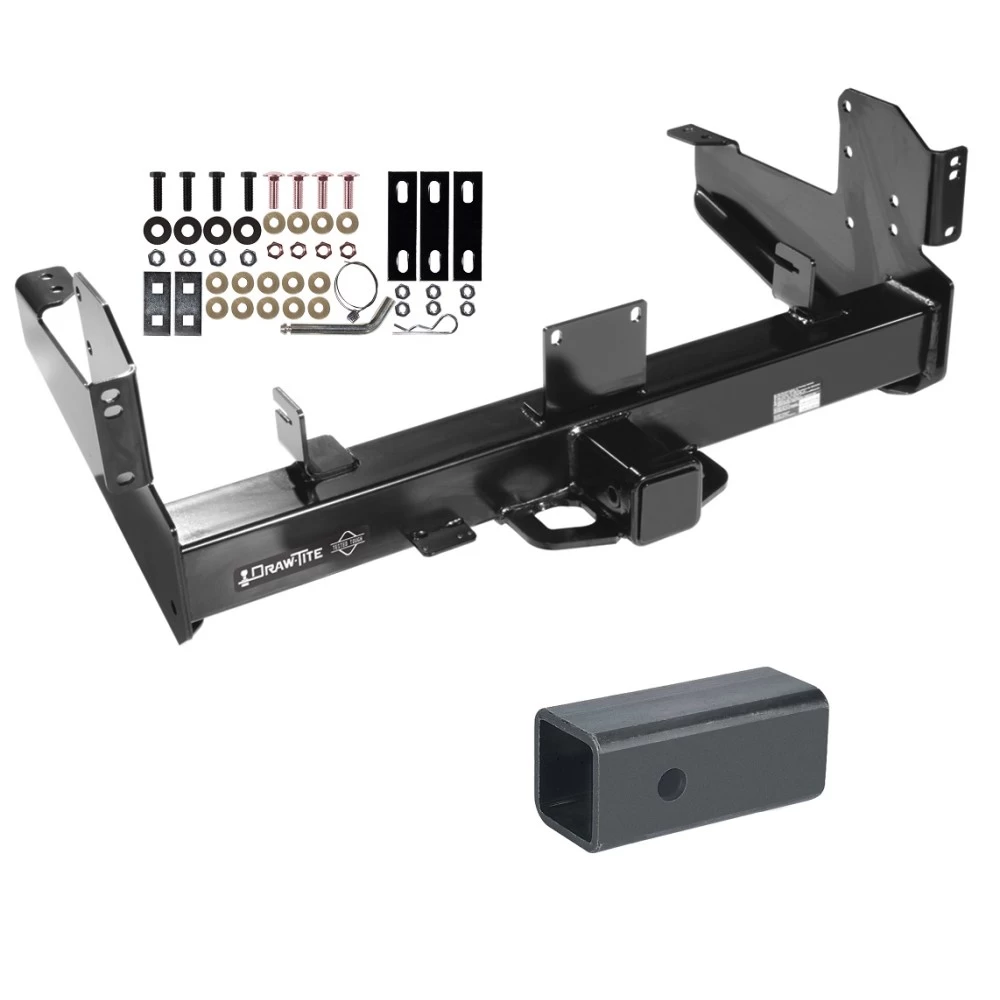

Class 5 Trailer Tow Hitch For 03‑10 Dodge Ram 11‑24 RAM 2500 3500 w/ 2‑1/2" to 2" Ball Receiver Opening Reducer
Model: 45509 58102Custom Fit Trailer Hitch
2-1/2" to 2" Reducer Bushing
Installation Hardware
Installation Instructions
2003 - 2010 Dodge, Ram 2500, All Styles, w/Factory Hitch
2003 - 2010 Dodge, Ram 3500, All Styles,w/Factory Hitch
2011 - 2024 RAM, 2500, All Styles, w/Factory Hitch
2011 - 2024 RAM, 3500, All Styles, w/Factory Hitch

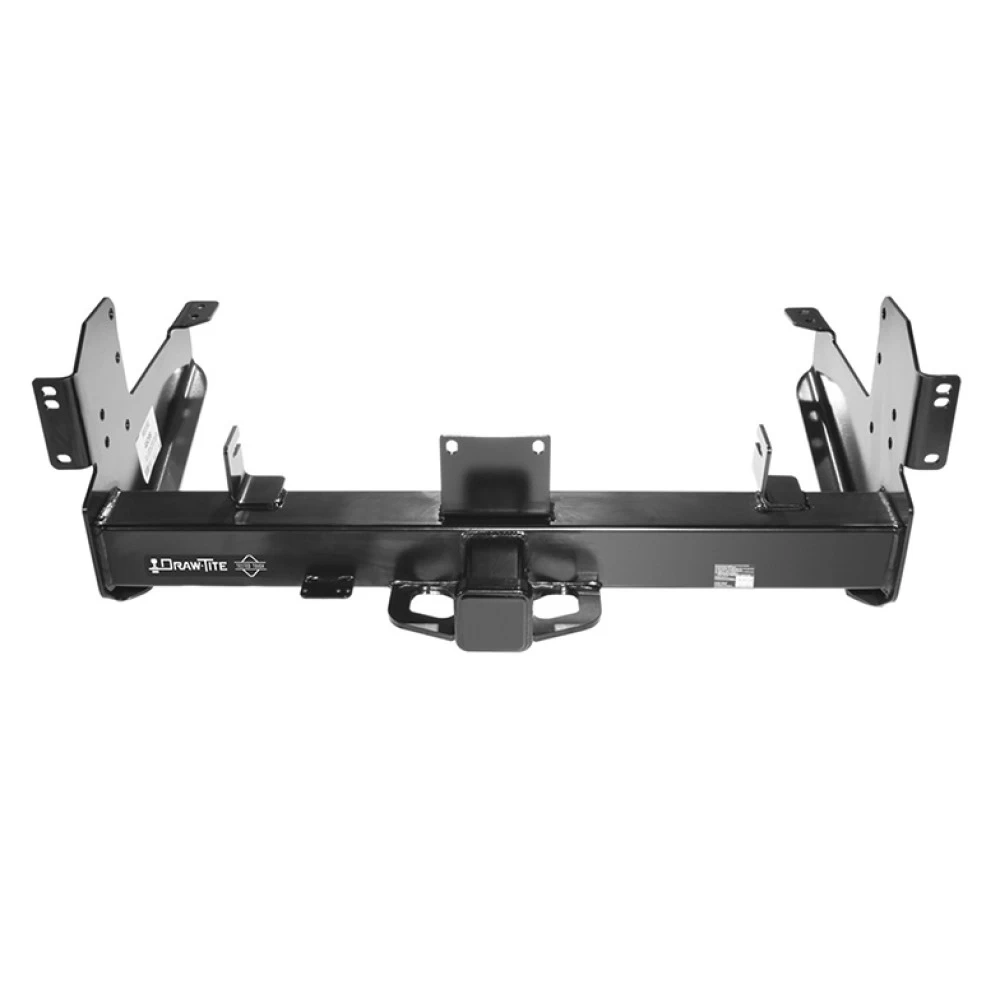

Trailer Hitch Specs:
| Part Number | 45509 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 18,000 lbs |
| Max GTW w/ weight distribution | 18,000 lbs |
| Max Tongue Weight | 2,000/2,500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |

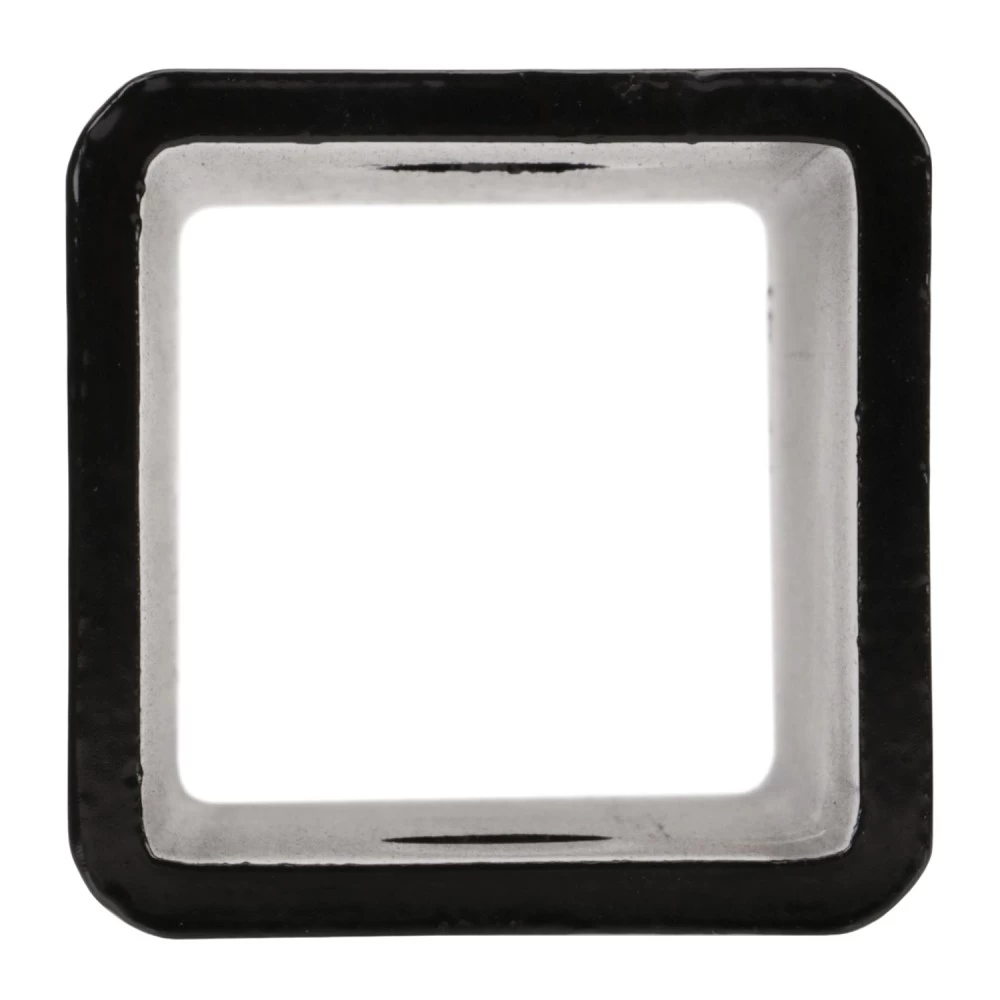

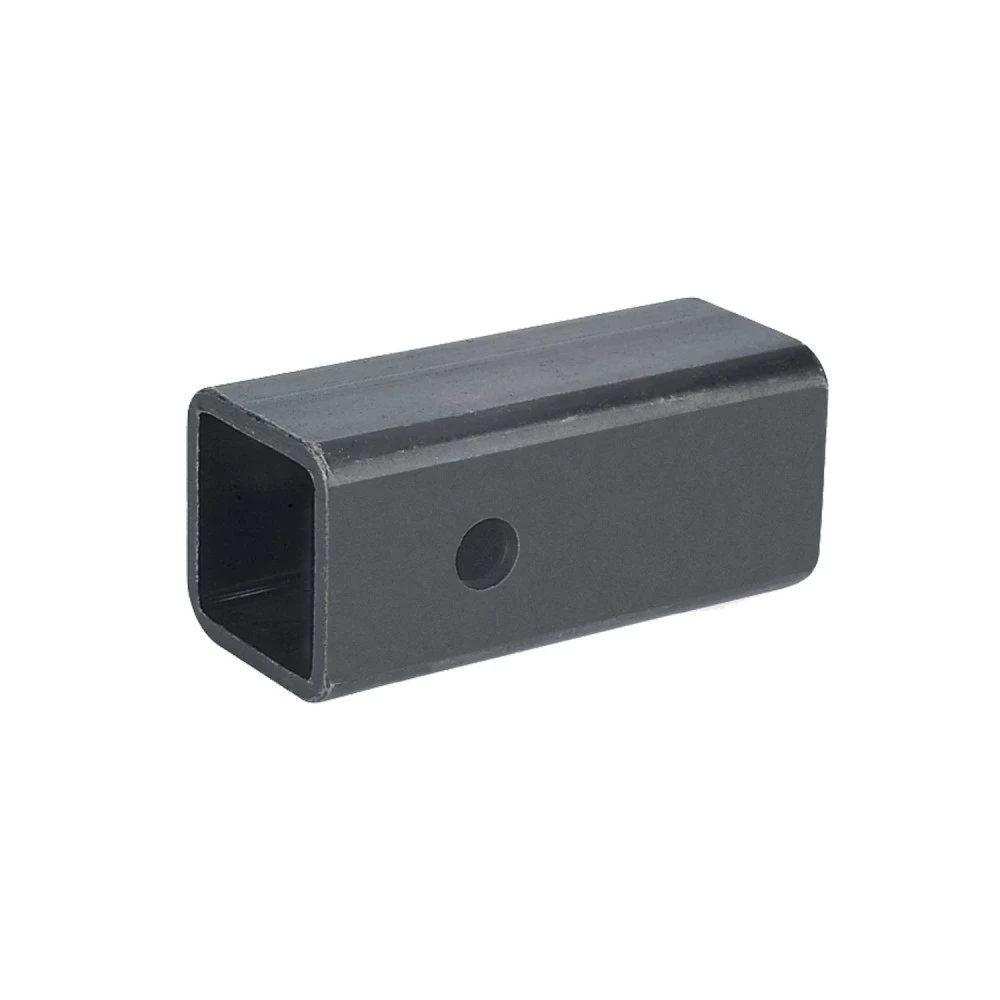

Reduces 2-1/2" Titan receiver opening to 2"
Allows hitch mounted accessories to be used with Titan receivers
| Part Number | 58102 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | Reduces 2-1/2" to 2" |
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$405 18 $636.90 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- Pre-Order
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$636.90 $405 18
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $101.25 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 45509 58102
- Includes: Titan Class 5 Trailer Tow Hitch, Trailer Tow Hitch Adapter
Compatibility Chart
Custom Fit Trailer Hitch
2-1/2" to 2" Reducer Bushing
Installation Hardware
Installation Instructions
2003 - 2010 Dodge, Ram 2500, All Styles, w/Factory Hitch
2003 - 2010 Dodge, Ram 3500, All Styles,w/Factory Hitch
2011 - 2024 RAM, 2500, All Styles, w/Factory Hitch
2011 - 2024 RAM, 3500, All Styles, w/Factory Hitch
Trailer Hitch Specs:
| Part Number | 45509 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 18,000 lbs |
| Max GTW w/ weight distribution | 18,000 lbs |
| Max Tongue Weight | 2,000/2,500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
Reduces 2-1/2" Titan receiver opening to 2"
Allows hitch mounted accessories to be used with Titan receivers
| Part Number | 58102 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Receiver size opening | Reduces 2-1/2" to 2" |
| Warranty | 1 Year |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Class 5 Trailer Tow Hitch For 03-10 Dodge Ram 11-24 RAM 2500 3500 w/ 2-1/2" to 2" Ball Receiver Opening Reducer Install Notes
Installation Instructions for Dodge Ram 2500 and 3500 (2003–2016)
Part Numbers:
- 45509
- 45709
- CQT45509
Wiring Access Location:
- Not specified
Tools Required:
- Wrenches: 16mm, 18mm, 21mm
- Drill Bit: 9/16"
- Torque Wrench
- Safety Glasses
- Ratchet with a 6" Socket Extension
- Wooden Block (2" thick)
- Die Grinder (if necessary)
Installation Time:
- Approximately 95 minutes for professional installers
Step-by-Step Instructions:
-
Lower Spare Tire:
- Lower the spare tire for easier access.
- For vehicles with an 18" spare tire, remove the spare tire locator bracket. A 20" spare tire must be relocated from under the bed.
-
Remove Rear Bed Bolts:
- Remove the six rearmost bed attachment bolts through the large holes in the frame or suspension mounts.
- Leave the two forward-most bed bolts tightened.
-
Raise Bed:
- Lift the rear of the bed and insert a 2" wooden block between the frame and the #3 bed attachment point.
-
Remove License Plate and Bumper:
- Remove the license plate to access bolts.
- Detach the bumper by removing 6 to 12 bolts depending on the model year:
- 2003–2009 Models: Remove two M12 bolts and one M14 bolt per side from the inner bumper corner brace to the hitch attachment.
- 2010 Models: Remove two M12 bolts per side from the frame rail bumper attachment to the bumper.
- All years: Remove two M12 bolts in the license plate area.
-
Remove OEM Hitch Structure:
- For 2003–2009 models, remove the last two M14 bolts from the frame rail.
- For 2010 models, remove three M14 bolts from the frame rail.
- Rotate and pull the OEM structure to clear boss and tab/slot engagements.
-
Install Hitch:
- Lower the bed and reinstall the bed bolts.
- Raise the hitch into position and use the forward-most M14 bolts to hold it in place temporarily.
-
Mark and Drill Holes:
- Use the hitch as a template to mark and drill 9/16" holes in the bottom of the frame.
-
Fishwire Fasteners:
- Insert 1/2" carriage bolts and blocks into position through the end of the frame using the supplied pull wires.
- Attach 1/2" conical washers and nuts finger-tight.
-
Reinstall Bumper:
- Reattach the bumper using bolts removed earlier. Loosen bolts on corner braces (2003–2009 models) to ease installation.
- Adjust the gap between the bumper and tailgate for even spacing before tightening.
-
Reinstall Spare Tire:
- Raise the spare tire back into position.
-
Final Tightening:
- Torque all fasteners to the specified values:
- M12 fasteners: 75 lb-ft (102 N*m)
- M14 and 1/2" fasteners: 100 lb-ft (136 N*m)
- Bed fasteners: 85 lb-ft (115 N*m)
- Torque all fasteners to the specified values:
Torque Specifications:
- M12 fasteners: 75 lb-ft (102 N*m)
- M14 fasteners: 100 lb-ft (136 N*m)
- 1/2" fasteners: 100 lb-ft (136 N*m)

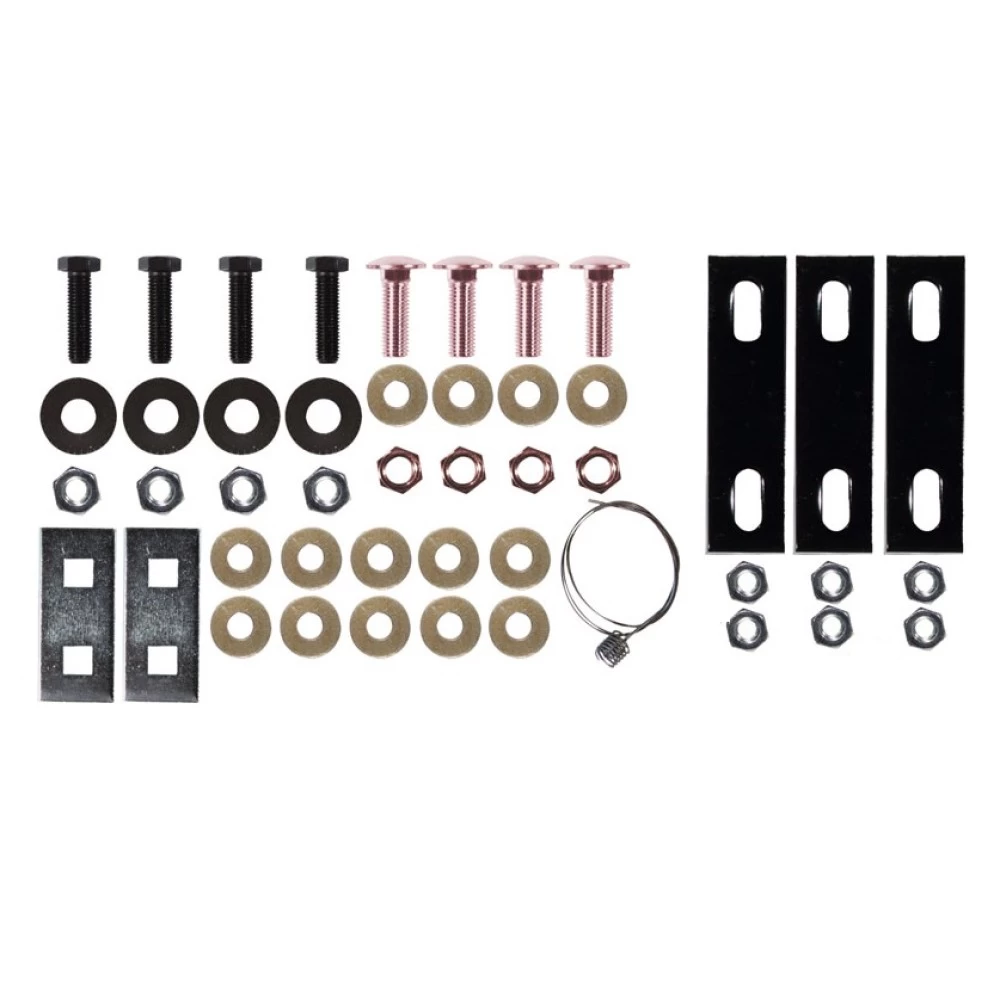

Hardware List:
- (4) Hex Nuts, M14 x 2.00
- (6) Hex Nuts, M12 x 1.75
- (14) Conic
Installation Instructions for Gooseneck Mounting Kit
Part Numbers:
- 45509
- 45709
- CQT45509
Wiring Access Location:
- Not specified
Tools Required:
- Wrenches: 16mm, 18mm, 21mm
- Drill Bit: 9/16"
- Torque Wrench
- Safety Glasses
- Ratchet with a 6" Socket Extension
- Wooden Block (2" thick)
- Die Grinder (if necessary)
Installation Time:
- Approximately 95 minutes for professional installers
Step-by-Step Instructions:
-
Lower Spare Tire:
- Lower the spare tire for easier access.
- For vehicles with an 18" spare tire, remove the spare tire locator bracket. A 20" spare tire must be relocated from under the bed.
-
Remove Rear Bed Bolts:
- Remove the six rearmost bed attachment bolts through the large holes in the frame or suspension mounts.
- Leave the two forward-most bed bolts tightened.
-
Raise Bed:
- Lift the rear of the bed and insert a 2" wooden block between the frame and the #3 bed attachment point.
-
Remove License Plate and Bumper:
- Remove the license plate to access bolts.
- Detach the bumper by removing 6 to 12 bolts depending on the model year:
- 2003–2009 Models: Remove two M12 bolts and one M14 bolt per side from the inner bumper corner brace to the hitch attachment.
- 2010 Models: Remove two M12 bolts per side from the frame rail bumper attachment to the bumper.
- All years: Remove two M12 bolts in the license plate area.
-
Remove OEM Hitch Structure:
- For 2003–2009 models, remove the last two M14 bolts from the frame rail.
- For 2010 models, remove three M14 bolts from the frame rail.
- Rotate and pull the OEM structure to clear boss and tab/slot engagements.
-
Install Hitch:
- Lower the bed and reinstall the bed bolts.
- Raise the hitch into position and use the forward-most M14 bolts to hold it in place temporarily.
-
Mark and Drill Holes:
- Use the hitch as a template to mark and drill 9/16" holes in the bottom of the frame.
-
Fishwire Fasteners:
- Insert 1/2" carriage bolts and blocks into position through the end of the frame using the supplied pull wires.
- Attach 1/2" conical washers and nuts finger-tight.
-
Reinstall Bumper:
- Reattach the bumper using bolts removed earlier. Loosen bolts on corner braces (2003–2009 models) to ease installation.
- Adjust the gap between the bumper and tailgate for even spacing before tightening.
-
Reinstall Spare Tire:
- Raise the spare tire back into position.
-
Final Tightening:
- Torque all fasteners to the specified values:
- M12 fasteners: 75 lb-ft (102 N*m)
- M14 and 1/2" fasteners: 100 lb-ft (136 N*m)
- Bed fasteners: 85 lb-ft (115 N*m)
- Torque all fasteners to the specified values:
Torque Specifications:
- M12 fasteners: 75 lb-ft (102 N*m)
- M14 fasteners: 100 lb-ft (136 N*m)
- 1/2" fasteners: 100 lb-ft (136 N*m)
Hardware List:
- (4) Hex Nuts, M14 x 2.00
- (6) Hex Nuts, M12 x 1.75
- (14) Conical Washers, 1/2"
- (8) Lock Washers, 1/2"
- (8) Hex Nuts, 1/2"-13 GR5
- (4) Spacer Blocks, 0.250" x 1" x 2"
- (4) Spacer Blocks, 0.250" x 1.5" x 3"
- (2) Flat Washers, 1/2"
- (2) 1/2" Carriage Bolts
- (2) Pull Wires (provided)
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 14,000 lb (6,356 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- Not recommended for use on 1/2-ton vehicles.
- Scan the QR code provided on the manual for step-by-step photo instructions.
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
