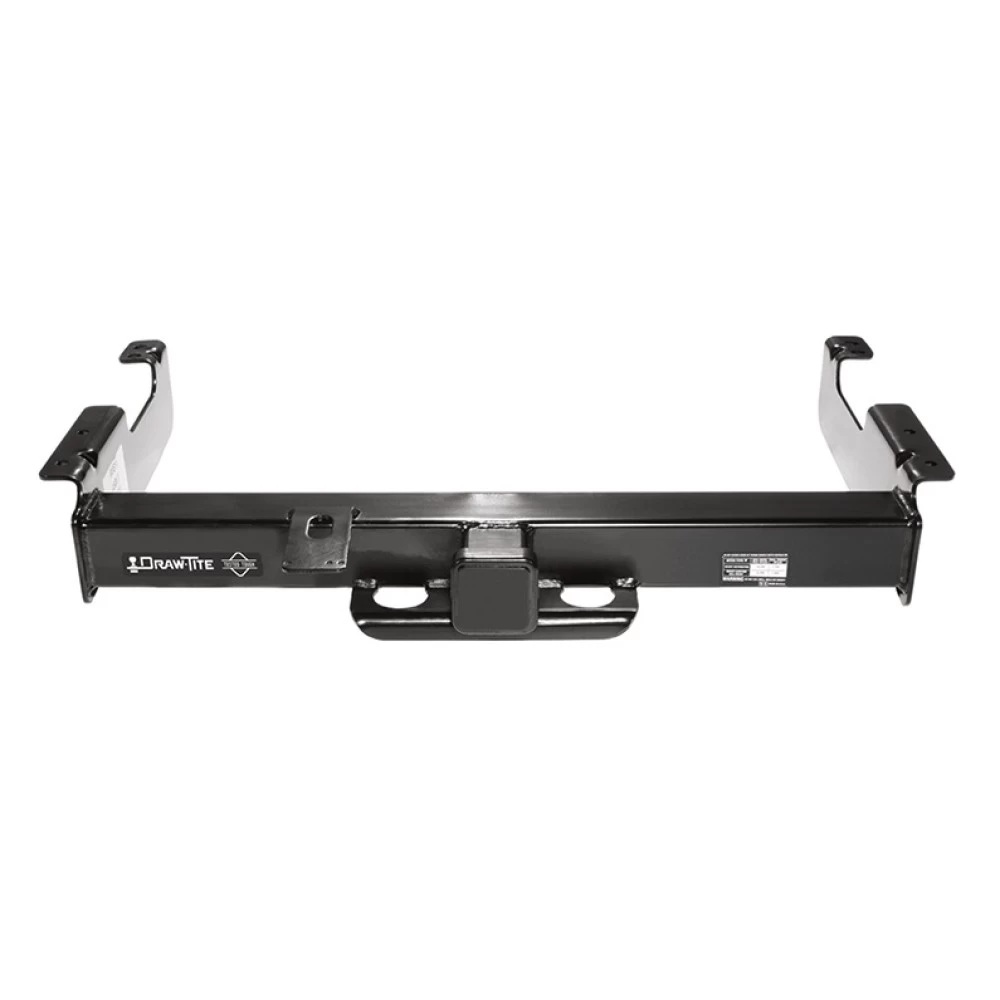

Class 5 Trailer Tow Hitch For 03‑24 Chevy Express GMC Savana 1500 2500 3500 w/ Wiring Harness Kit
Model: 45507 118392Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
2003 - 2014 Chevrolet, Express 1500, All Styles
2003 - 2024 Chevrolet, Express 2500, All Styles
2003 - 2024 Chevrolet, Express 3500, All Styles
2003 - 2014 GMC, Savana 1500, All Styles
2003 - 2024 GMC, Savana 2500, All Styles
2003 - 2024 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 45507 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 118392 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
$326 97 $508.39 36% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$508.39 $326 97
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $81.50 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 45507 118392

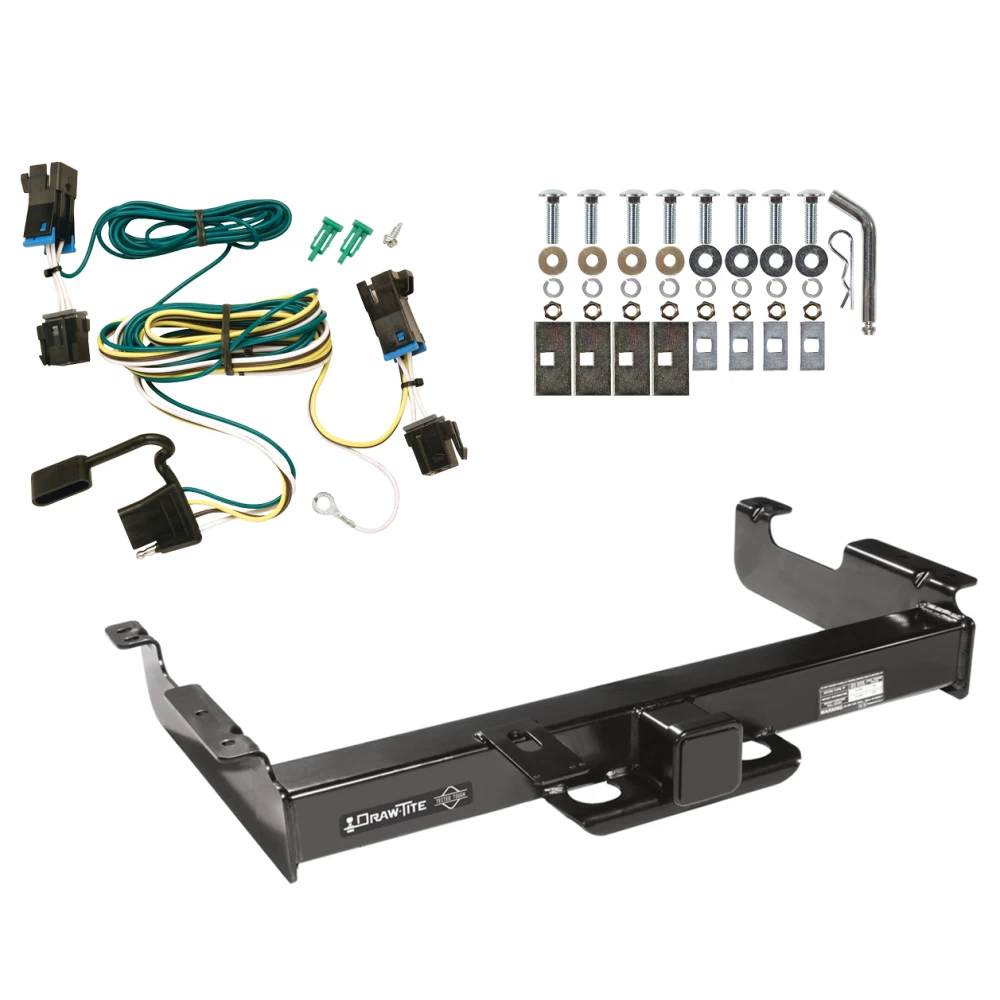

- Includes: Titan Class 5 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
2003 - 2014 Chevrolet, Express 1500, All Styles
2003 - 2024 Chevrolet, Express 2500, All Styles
2003 - 2024 Chevrolet, Express 3500, All Styles
2003 - 2014 GMC, Savana 1500, All Styles
2003 - 2024 GMC, Savana 2500, All Styles
2003 - 2024 GMC, Savana 3500, All Styles
Trailer Hitch Specs:
| Part Number | 45507 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 12,000 lbs |
| Max GTW w/ weight distribution | 14,000 lbs |
| Max Tongue Weight | 1,200/1,700 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Part Number | 118392 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023 2024
Get Expert Help
Class 5 Trailer Tow Hitch For 03-24 Chevy Express GMC Savana 1500 2500 3500 w/ Wiring Harness Kit Install Notes
Installation Instructions for Chevrolet Express and GMC Savana Vans
Part Numbers:
- 45507
- 45707
- CQT45507
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4"
Installation Time:
- Approximately 45 minutes (for professional installers)
Step-by-Step Instructions:
-
Prepare Carriage Bolts:
- Place two (2) 1/2" carriage bolts with large bolt plates through the two rear holes on each side of the frame.
-
Position Hitch:
- Raise the hitch to the frame, with the bolts extending down through the rear holes in the brackets.
-
Install Rear Fasteners:
- Install 1/2" flat washers, lock washers, and nuts on the bolts.
-
Install Front Fasteners:
- Place 1/2" carriage bolts with small bolt plates down through the front mounting locations.
- Ensure the bolt plates are turned sideways, laying flat on the bottom of the frame.
-
Secure Fasteners:
- Install conical washers (teeth side against the hitch), lock washers, and nuts on the front bolts.
-
Tighten All Fasteners:
- Torque all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
Hardware List:
- (8) Carriage Bolts, 1/2"-13 x 2.00" GR5
- (4) Spacers, 0.250" x 1" x 2"
- (4) Conical Washers, 1/2"
- (8) Lock Washers, 1/2"
- (8) Hex Nuts, 1/2"-13 GR5
- (4) Spacers, 0.250" x 1.5" x 3"
- (4) Flat Washers, 1/2"
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 14,000 lb (6,356 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- Not recommended for use on 1/2-ton vehicles.
- Scan the QR code provided on the manual for step-by-step photo instructions.
Installation Instructions for Gooseneck Mounting Kit
Part Numbers:
- 45507
- 45707
- CQT45507
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 3/4"
Installation Time:
- Approximately 45 minutes (for professional installers)
Step-by-Step Instructions:
-
Prepare Carriage Bolts:
- Place two (2) 1/2" carriage bolts with large bolt plates through the two rear holes on each side of the frame.
-
Position Hitch:
- Raise the hitch to the frame, with the bolts extending down through the rear holes in the brackets.
-
Install Rear Fasteners:
- Install 1/2" flat washers, lock washers, and nuts on the bolts.
-
Install Front Fasteners:
- Place 1/2" carriage bolts with small bolt plates down through the front mounting locations.
- Ensure the bolt plates are turned sideways, laying flat on the bottom of the frame.
-
Secure Fasteners:
- Install conical washers (teeth side against the hitch), lock washers, and nuts on the front bolts.
-
Tighten All Fasteners:
- Torque all 1/2"-13 Grade 5 fasteners to 75 lb-ft (102 N*m) using a torque wrench.
Torque Specifications:
- 1/2"-13 GR5 bolts: 75 lb-ft (102 N*m)
Hardware List:
- (8) Carriage Bolts, 1/2"-13 x 2.00" GR5
- (4) Spacers, 0.250" x 1" x 2"
- (4) Conical Washers, 1/2"
- (8) Lock Washers, 1/2"
- (8) Hex Nuts, 1/2"-13 GR5
- (4) Spacers, 0.250" x 1.5" x 3"
- (4) Flat Washers, 1/2"
Safety Notes:
- Regularly check the hitch to ensure all fasteners and the ball are securely tightened.
- If the hitch is removed, plug all holes in the frame or body panels to prevent water or exhaust fumes from entering.
- Replace any damaged hitch or ball immediately.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 12,000 lb (5,448 kg)
- Max Tongue Weight: 1,200 lb (545 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 14,000 lb (6,356 kg)
- Max Tongue Weight: 1,700 lb (771 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- Not recommended for use on 1/2-ton vehicles.
- Scan the QR code provided on the manual for step-by-step photo instructions.
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118392
Wiring Access Location:
- Rear taillight wiring harness behind the interior trim panels near the doors.
Tools Required:
- Drill with a 3/32" drill bit.
- Philips head screwdriver.
Step-by-Step Instructions:
-
Access the Taillight Wiring Harness:
- Remove the rear interior trim panels located near the doors to expose the vehicle’s taillight wiring harness.
- The harness will have a connection point on both sides matching the T-Connector adapter.
-
Driver’s Side Connection:
- Disconnect the vehicle’s wiring harness connectors on the driver’s side, being careful not to damage the locking tabs.
- Plug the T-Connector end with the yellow wire between the mating plugs on the driver’s side taillight socket and the vehicle’s wiring harness. Ensure the connectors are fully inserted and locked using the existing and provided locking tabs.
-
Ground Connection:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.
- Caution: Do not drill into the vehicle floor or any exposed surfaces. Verify what is behind any surface prior to drilling to avoid damage or injury.
- Clean the area of dirt and rustproofing, drill a 3/32" hole, and secure the white wire using the provided eyelet and screw.
-
Passenger’s Side Connection:
- Repeat steps 2 and 3 on the passenger’s side using the T-Connector end with the green wire.
-
Securing the Harness:
- Tuck the green wire under the floor trim (threshold) panel and secure the wiring with cable ties as needed.
-
Reassembly:
- Replace all removed trim panels and secure the rear interior of the vehicle.
-
Testing the Installation:
- Test the installation with a test light or trailer to verify proper functionality. All connections must be complete for the T-Connector to function correctly.
Specifications:
- Max. stop/turn light: 1 per side (7.5 amps).
- Max. tail lights: (7.5 amps).
Hardware List:
- T-Connector adapter.
- Eyelet and screw.
- Cable ties.
Safety Notes:
- Overloading the circuit can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Test the installation thoroughly after completing all connections.
Manufacturer Notes:
- Follow all warnings and installation instructions provided.
- Use a test light or trailer to confirm proper installation.
- Refer to the vehicle owner’s manual for additional information.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118392
Wiring Access Location:
- Rear taillight wiring harness behind the interior trim panels near the doors.
Tools Required:
- Drill with a 3/32" drill bit
- Philips head screwdriver
Step-by-Step Instructions:
-
Access the Taillight Wiring Harness:
- Remove the rear interior trim panels located near the doors to expose the vehicle’s taillight wiring harness.
- The harness will have a connection point on both sides matching the T-Connector adapter.
-
Driver’s Side Connection:
- Disconnect the vehicle’s wiring harness connectors on the driver’s side, being careful not to damage the locking tabs.
- Plug the T-Connector end with the yellow wire between the mating plugs on the driver’s side taillight socket and the vehicle’s wiring harness.
- Ensure the connectors are fully inserted and locked using the existing and provided locking tabs.
-
Ground Connection:
- Locate a suitable grounding point near the connector, such as the vehicle’s frame or cross member.
- Caution: Do not drill into the vehicle floor or any exposed surfaces. Verify what is behind any surface prior to drilling to avoid damage or injury.
- Clean the area of dirt and rustproofing, drill a 3/32" hole, and secure the white wire using the provided eyelet and screw.
-
Passenger’s Side Connection:
- Repeat steps 2 and 3 on the passenger’s side using the T-Connector end with the green wire.
-
Securing the Harness:
- Tuck the green wire under the floor trim (threshold) panel and secure the wiring with cable ties as needed.
-
Reassembly:
- Replace all removed trim panels and secure the rear interior of the vehicle.
-
Testing the Installation:
- Test the installation with a test light or trailer to verify proper functionality.
- All connections must be complete for the T-Connector to function correctly.
Specifications:
- Max Stop/Turn Light: 7.5 amps per side
- Max Tail Lights: 7.5 amps
Hardware List:
- T-Connector adapter
- Eyelet and screw
- Cable ties
Safety Notes:
- Overloading the circuit can cause fires. Do not exceed the towing manufacturer’s rating or the unit specifications.
- Test the installation thoroughly after completing all connections.
Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Technical Support:
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
People Also Bought
