Class 5 Trailer Tow Hitch For 07‑10 Chevy Silverado GMC Sierra 2500 3500 8ft Bed w/ Wiring Harness Kit

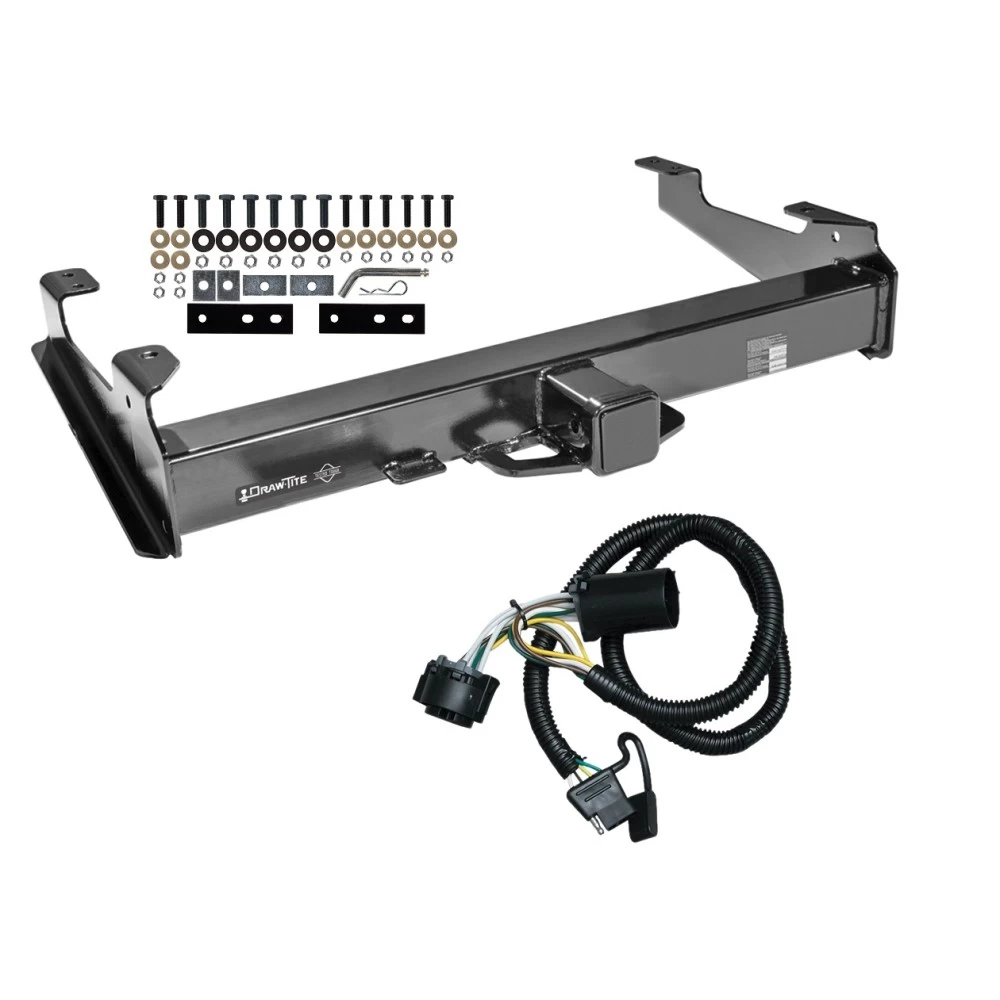

Model: 45519 118384Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2010 Chevrolet, Silverado 2500 HD, 8 ft. Bed
2007 - 2010 Chevrolet, Silverado 3500 HD, All Styles
2007 - 2010 GMC, Sierra 2500 HD, 8 ft. Bed
2007 - 2010 GMC, Sierra 3500 HD, All Styles
Trailer Hitch Specs:
| Part Number | 45519 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 18,000 lbs |
| Max GTW w/ weight distribution | 18,000 lbs |
| Max Tongue Weight | 2,500/2,500 lbs |
| Warranty | Lifetime |
| Installation Instructions |  |
| Part Number | 118384 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
$383 80 $580.34 34% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$580.34 $383 80
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $95.75 every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Draw-Tite
- Model: 45519 118384
- Includes: Titan Class 5 Trailer Tow Hitch, T-One T-Connector Custom Harness
Compatibility Chart
Description
Custom Fit Trailer Hitch
Wiring Harness (Plug & Play)
Installation Hardware
Installation Instructions
Fits The Following Vehicles
2007 - 2010 Chevrolet, Silverado 2500 HD, 8 ft. Bed
2007 - 2010 Chevrolet, Silverado 3500 HD, All Styles
2007 - 2010 GMC, Sierra 2500 HD, 8 ft. Bed
2007 - 2010 GMC, Sierra 3500 HD, All Styles
Trailer Hitch Specs:
| Part Number | 45519 |
| Brand | Draw-Tite |
| Finish | Black Powdercoat |
| Class | 5 |
| Receiver size opening | 2-1/2" |
| Max gross trailer weight | 18,000 lbs |
| Max GTW w/ weight distribution | 18,000 lbs |
| Max Tongue Weight | 2,500/2,500 lbs |
| Warranty | Lifetime |
| Installation Instructions | |
| Part Number | 118384 |
| Brand | Tekonsha |
| Warranty | 1 Year |
| Installation Instructions | |
Thank you for choosing Draw Tite the most powerful name in towing industry bar none. Manufactured by the same people that brought you Reese and Hidden Hitch all of our products come with standard lifetime warranty and support. Our custom hitches mount easily on your Car Truck Van SUV and RV. Most applications simply bolt on without any need for drilling or modifying your bumper. Please review installation instructions manual pdf file above for exact step by step instructions. Chose Class 1 or 2 for light duty towing, chose Class 3 4 and 5 for heavy duty towing. Pair your hitch with accessories like a ball mount that is available in several drop and rise configurations. Choose a 2 inch ball to haul most standard trailers. Choose a 1-7/8" ball to tow small and u tility trailers. Our hitches come with generous tongue weight ratings for use with cargo racks and other accessories. All parts in our store are sold at a discount. If you have any questions please do not hesitate to give us a call at 702-374-8999
Partial list of fitment years: 07 08 09 10 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010
Get Expert Help
Class 5 Trailer Tow Hitch For 07-10 Chevy Silverado GMC Sierra 2500 3500 8ft Bed w/ Wiring Harness Kit Install Notes
Installation Instructions for Chevy/GMC 2500HD/3500HD (2001–2010)
Part Numbers:
- 45519
- 45719
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18mm, 21mm
- Pull Wire (if needed)
Installation Time:
- Approximately 25 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire (Optional):
- Lower the spare tire to allow easier access to the frame. This is not mandatory but recommended.
-
Remove Existing Bolts:
- Remove the M14 bolts at the bottom of the frame that attach the bumper brackets.
- Remove the M12 nuts and bolt plates from the sides of the frame. Retain these for reinstallation later.
-
Adjust Bumper Braces (2001–2007 Models Only):
- Loosen the nuts at the bumper brace to allow it to swing away from the frame.
-
Position Hitch:
- Raise the hitch into position and loosely install the M14 coarse-thread bolts and conical washers into the weld nuts on the bumper brackets.
-
Install Attachment Bars:
- Place the attachment bars as shown in the provided diagrams and loosely bolt them to the hitch.
-
Reinstall Bumper Braces (if applicable):
- For models equipped with bumper braces, swing them back into position and reinstall the bolt plates removed in step 2.
-
Install Additional Fasteners:
- Install all remaining fasteners as shown in the diagrams. Note that not all fasteners may be used depending on your vehicle configuration.
- For vehicles without a bumper, additional blocks and bolts are included in the kit for proper installation.
-
Tighten Fasteners:
- Torque the fasteners as follows:
- M14 x 1.5 bolts: 145 lb-ft (201 N*m)
- M14 x 2.0 bolts: 115 lb-ft (156 N*m)
- M12 x 1.75 bolts: 92 lb-ft (125 N*m)
- Torque the fasteners as follows:
-
Reinstall Spare Tire:
- If the spare tire was removed, raise it back into position.
Torque Specifications:
- M14 x 1.5: 145 lb-ft (201 N*m)
- M14 x 2.0: 115 lb-ft (156 N*m)
- M12 x 1.75: 92 lb-ft (125 N*m)
Hardware List:
- (6) Hex Bolts, M14 x 1.50 x 45mm CL10.9
- (2) Blocks, 3/8" x 1.50" x 3.00"
- (6) Conical Washers, 5/8"
- (6) Hex Nuts, M14 x 1.50 CL10
- (2) Hex Bolts, M14 x 2.00 x 45mm CL10.9
- (6) Hex Bolts, M12 x 1.75 x 45mm CL10.9
- (10) Conical Washers, 1/2"
- (10) Hex Nuts, M12 x 1.75 CL10
- (2) Blocks, 1/4" x 1.50" x 2.00"
- (2) Attachment Bars (not in fastener kit)
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are secure.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 18,000 lb (8,172 kg)
- Max Tongue Weight: 2,000 lb (908 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 18,000 lb (8,172 kg)
- Max Tongue Weight: 2,500 lb (1,135 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- For photo instructions, scan the QR code provided in the documentation or visit the manufacturer's website.
Installation Instructions for Gooseneck Mounting Kit
Part Numbers:
- 45519
- 45719
Wiring Access Location:
- Not specified
Tools Required:
- Ratchet
- Torque Wrench
- Safety Glasses
- Sockets: 18mm, 21mm
- Pull Wire (if needed)
Installation Time:
- Approximately 25 minutes (for professional installers)
Step-by-Step Instructions:
-
Lower Spare Tire (Optional):
- Lower the spare tire to allow easier access to the frame. This is not mandatory but recommended.
-
Remove Existing Bolts:
- Remove the M14 bolts at the bottom of the frame that attach the bumper brackets.
- Remove the M12 nuts and bolt plates from the sides of the frame. Retain these for reinstallation later.
-
Adjust Bumper Braces (2001–2007 Models Only):
- Loosen the nuts at the bumper brace to allow it to swing away from the frame.
-
Position Hitch:
- Raise the hitch into position and loosely install the M14 coarse-thread bolts and conical washers into the weld nuts on the bumper brackets.
-
Install Attachment Bars:
- Place the attachment bars as shown in the provided diagrams and loosely bolt them to the hitch.
-
Reinstall Bumper Braces (if applicable):
- For models equipped with bumper braces, swing them back into position and reinstall the bolt plates removed in step 2.
-
Install Additional Fasteners:
- Install all remaining fasteners as shown in the diagrams. Note that not all fasteners may be used depending on your vehicle configuration.
- For vehicles without a bumper, additional blocks and bolts are included in the kit for proper installation.
-
Tighten Fasteners:
- Torque the fasteners as follows:
- M14 x 1.5 bolts: 145 lb-ft (201 N*m)
- M14 x 2.0 bolts: 115 lb-ft (156 N*m)
- M12 x 1.75 bolts: 92 lb-ft (125 N*m)
- Torque the fasteners as follows:
-
Reinstall Spare Tire:
- If the spare tire was removed, raise it back into position.
Torque Specifications:
- M14 x 1.5: 145 lb-ft (201 N*m)
- M14 x 2.0: 115 lb-ft (156 N*m)
- M12 x 1.75: 92 lb-ft (125 N*m)
Hardware List:
- (6) Hex Bolts, M14 x 1.50 x 45mm CL10.9
- (2) Blocks, 3/8" x 1.50" x 3.00"
- (6) Conical Washers, 5/8"
- (6) Hex Nuts, M14 x 1.50 CL10
- (2) Hex Bolts, M14 x 2.00 x 45mm CL10.9
- (6) Hex Bolts, M12 x 1.75 x 45mm CL10.9
- (10) Conical Washers, 1/2"
- (10) Hex Nuts, M12 x 1.75 CL10
- (2) Blocks, 1/4" x 1.50" x 2.00"
- (2) Attachment Bars (not in fastener kit)
Safety Notes:
- Regularly inspect the hitch to ensure all fasteners and the ball are secure.
- Replace any damaged hitch or ball immediately.
- If the hitch is removed, plug all holes in the frame to prevent water or exhaust fumes from entering.
- Always wear safety glasses and observe safety precautions when working beneath the vehicle.
- Do not cut access or attachment holes with a torch.
Specifications:
- Weight Carrying (Ball Mount):
- Max Gross Trailer Weight: 18,000 lb (8,172 kg)
- Max Tongue Weight: 2,000 lb (908 kg)
- Weight Distributing:
- Max Gross Trailer Weight: 18,000 lb (8,172 kg)
- Max Tongue Weight: 2,500 lb (1,135 kg)
Additional Notes:
- This product complies with V.E.S.C. Regulation V-5 and SAE J684 safety standards.
- For photo instructions, scan the QR code provided in the documentation or visit the manufacturer's website.
For complete warranty instructions, please download the full installation PDF.
For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Attention:
This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118384
Wiring Access Location:
For Vehicles Without a Factory 7-Way:
- Behind the bumper on the driver’s side of the vehicle.
For Vehicles With a Factory 7-Way:
- Attached to the hitch on the driver’s side of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Locate the tow vehicle’s trailer harness connector (A).
- This is located under the vehicle, behind the bumper, on the driver’s side.
-
Remove the protective cap (C) from connector (A).
- Save the cap for later use.
- Ensure the mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector adapter end (B) to the vehicle’s connector (A).
- Ensure the T-Connector is fully inserted with locking tabs in place.
-
Place the protective cap (C) on the remaining plug end.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way attached to the hitch on the driver’s side.
-
Separate the factory socket (A) and the 7-Way (C).
-
Plug the T-Connector adapter (B) between the factory socket and the 7-Way.
Final Steps for All Vehicles:
-
Test the installation with a test light or trailer.
- Specifications:
- This unit is rated for 7.5 amps per circuit.
- Specifications:
Hardware List:
- T-Connector adapter.
- Protective cap.
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Manufacturer Notes:
- Follow all warnings and instructions provided with the product.
- Use a test light or trailer to confirm proper installation.
Installation Instructions for T-Connector Adapter
Part Numbers:
- 118384
Wiring Access Location:
For Vehicles Without a Factory 7-Way:
- Behind the bumper on the driver’s side of the vehicle.
For Vehicles With a Factory 7-Way:
- Attached to the hitch on the driver’s side of the vehicle.
Tools Required:
- None specified.
Step-by-Step Instructions:
For Vehicles Without a Factory 7-Way:
-
Locate the Trailer Harness Connector:
- Find the vehicle’s trailer harness connector (A) under the vehicle, behind the bumper, on the driver’s side.
-
Remove Protective Cap:
- Remove the protective cap (C) from connector (A).
- Save the cap for later use.
- Ensure all mating surfaces of the connectors are clean. Clean if necessary.
-
Connect the T-Connector:
- Attach the T-Connector adapter end (B) to the vehicle’s connector (A).
- Make sure the T-Connector is fully inserted with locking tabs secured.
-
Replace the Protective Cap:
- Place the protective cap (C) on the remaining plug end.
For Vehicles With a Factory 7-Way:
-
Locate the Factory 7-Way:
- The Factory 7-Way is attached to the hitch on the driver’s side.
-
Separate the Factory Socket and 7-Way:
- Disconnect the factory socket (A) from the 7-Way (C).
-
Install the T-Connector:
- Plug the T-Connector adapter (B) between the factory socket and the 7-Way.
Final Steps for All Vehicles:
- Test the Installation:
- Use a test light or trailer to verify the functionality of the installed T-Connector.
Specifications:
- Maximum Current Rating: 7.5 amps per circuit
Hardware List:
- T-Connector adapter
- Protective cap
Safety Notes:
- Handle all connectors with care to avoid damage.
- Ensure all connections are clean and securely fastened.
- Test the installation after completing all steps to verify functionality.
Additional Notes:
- Attention: This is a summary of the installation procedure. For complete installation instructions, including diagrams and detailed information from the manufacturer, please download the full installation PDF.
- Technical Support: For technical support and assistance, our team of experts is available to help. You can reach our tech support by visiting www.trailerjacks.com or calling 877-869-6690.
Related Products
