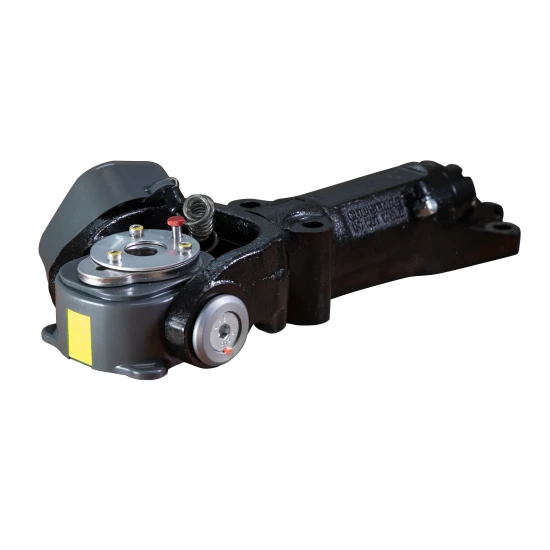

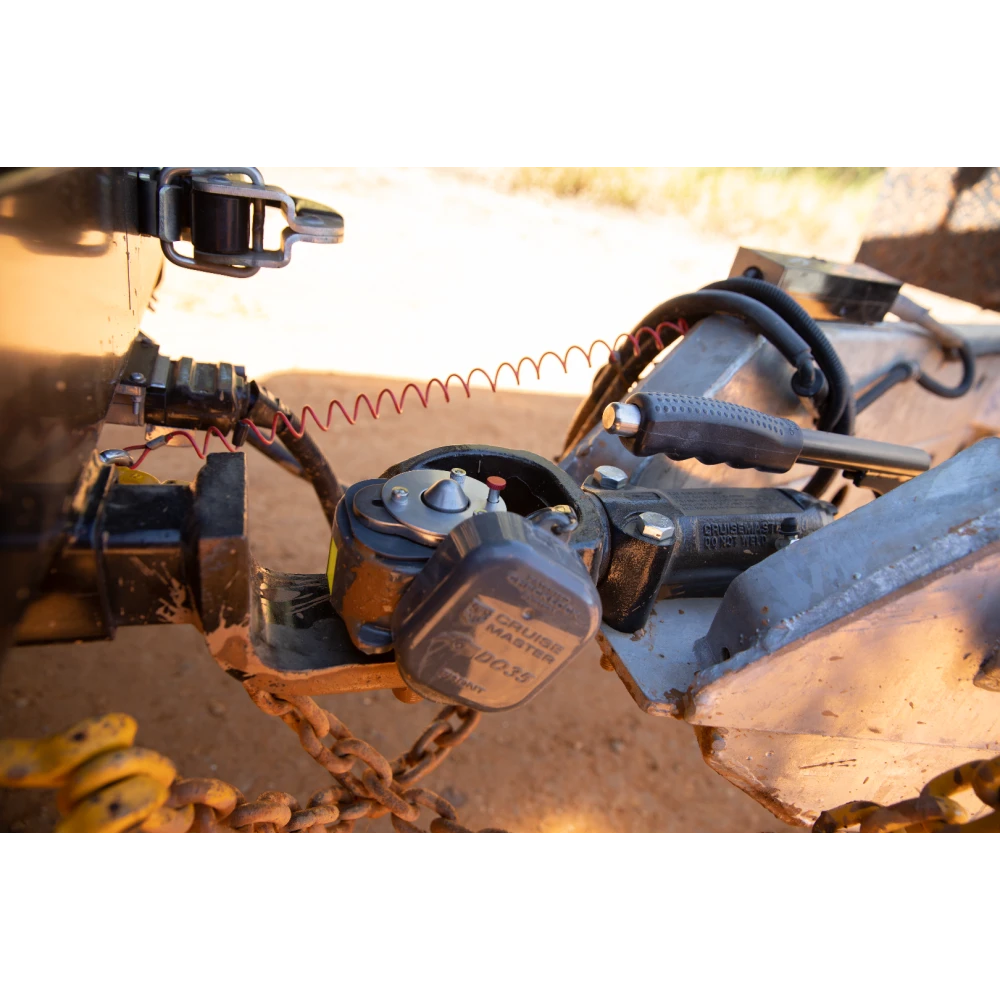

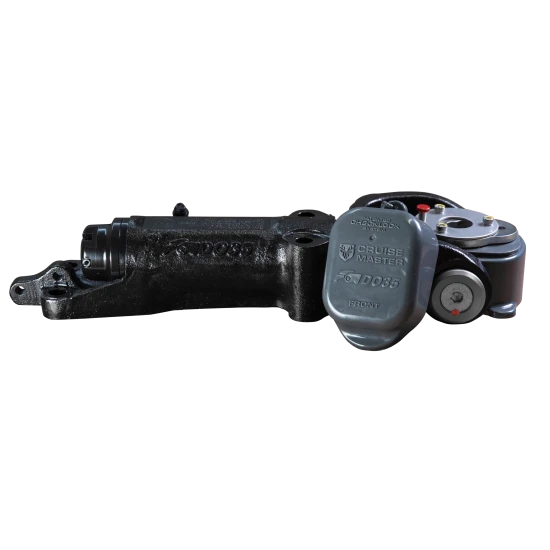

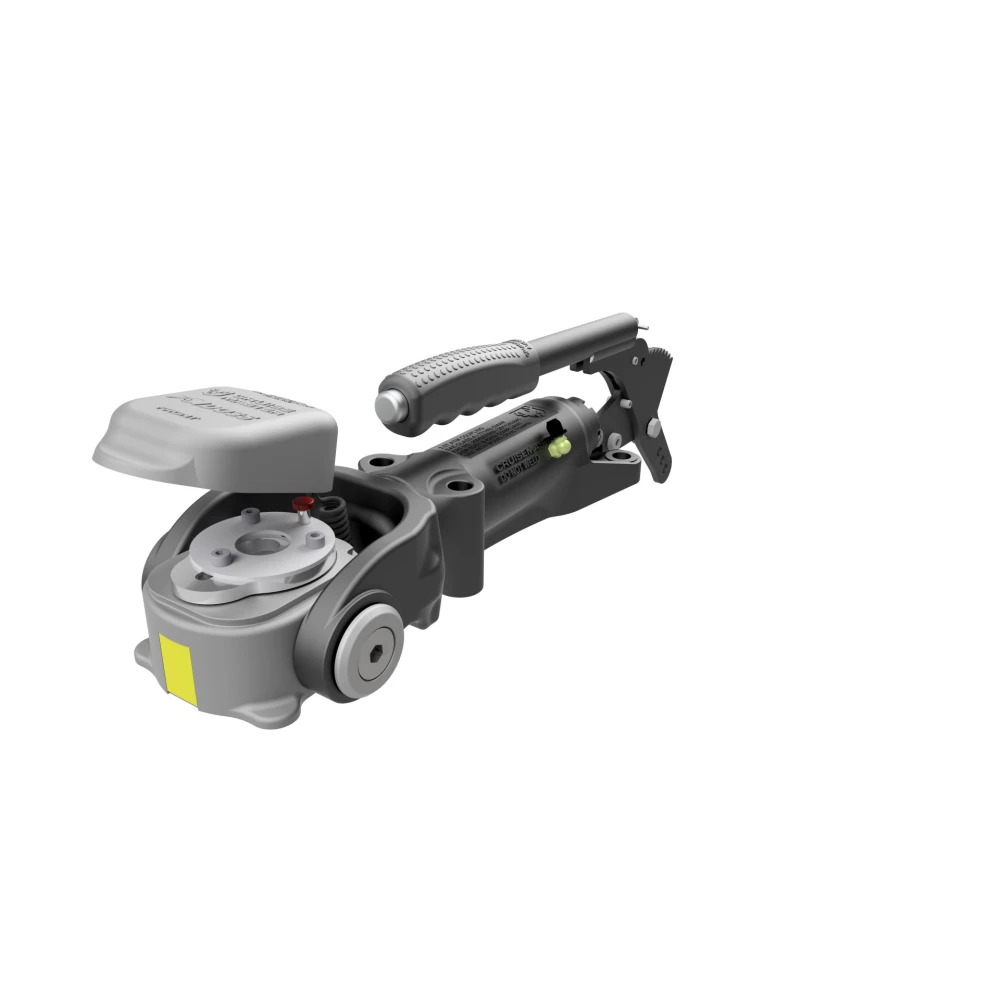

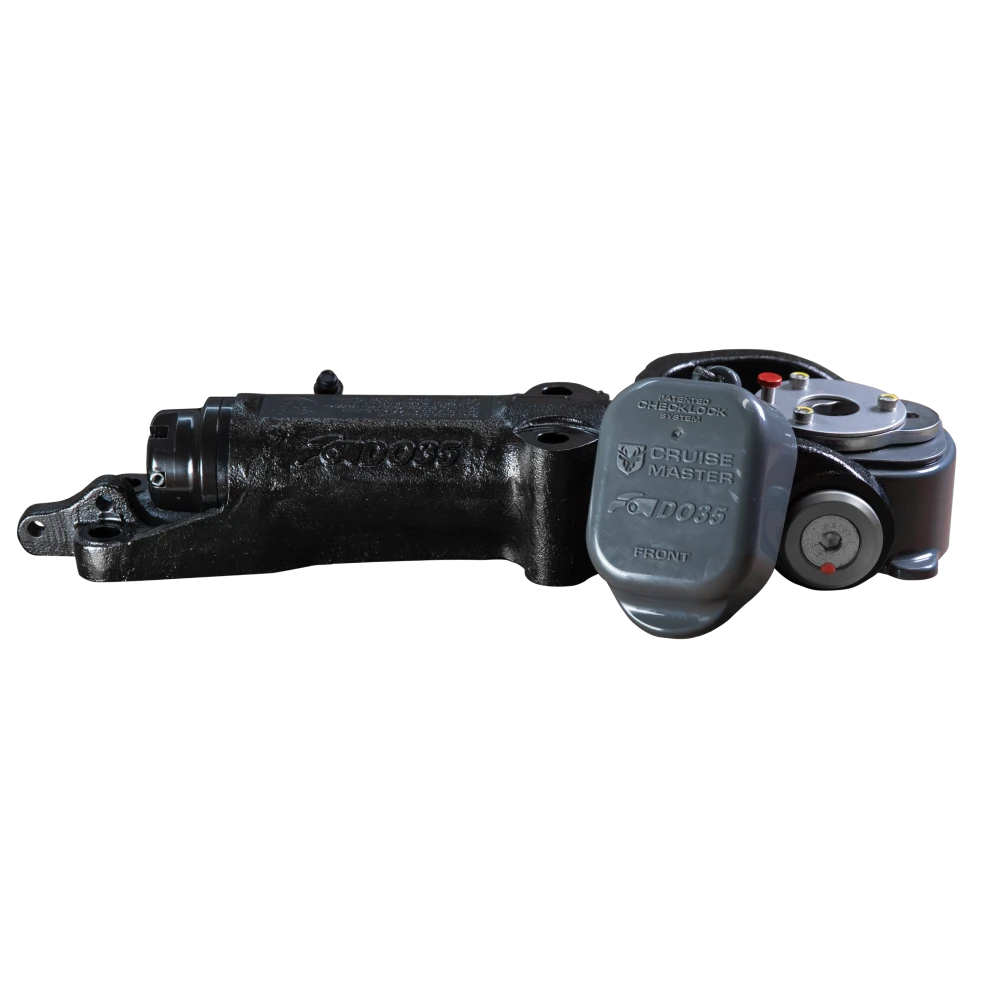

Cruisemaster DO35 V3Plus 3.5T Articulating Off-Road Trailer Hitch Coupler with Handbrake
Model: CMDO35WHBCruisemaster DO35 V3Plus 3.5T Articulating Off-Road Trailer Hitch Coupler with Handbrake
The Cruisemaster DO35 V3Plus is a premium articulating off-road trailer hitch coupler built for overland campers, expedition trailers, rough-road towing, and all-terrain trailer setups. Unlike a traditional trailer ball coupler, the DO35 uses a drop-on pin coupling design that allows 360-degree roll articulation and strong pitch movement for better handling on uneven terrain.
This U.S.-spec version includes the integrated handbrake and 1-inch tow pin kit, giving you a complete Class 4-rated trailer hitch coupler package for trailers using a flat 4-bolt drawbar mounting pattern.
Store SKU: CMDO35WHB
Manufacturer Part Number: 18D-DO35-V3PLUS-I-ONE-IN
Quantity Included: 1 complete coupler kit

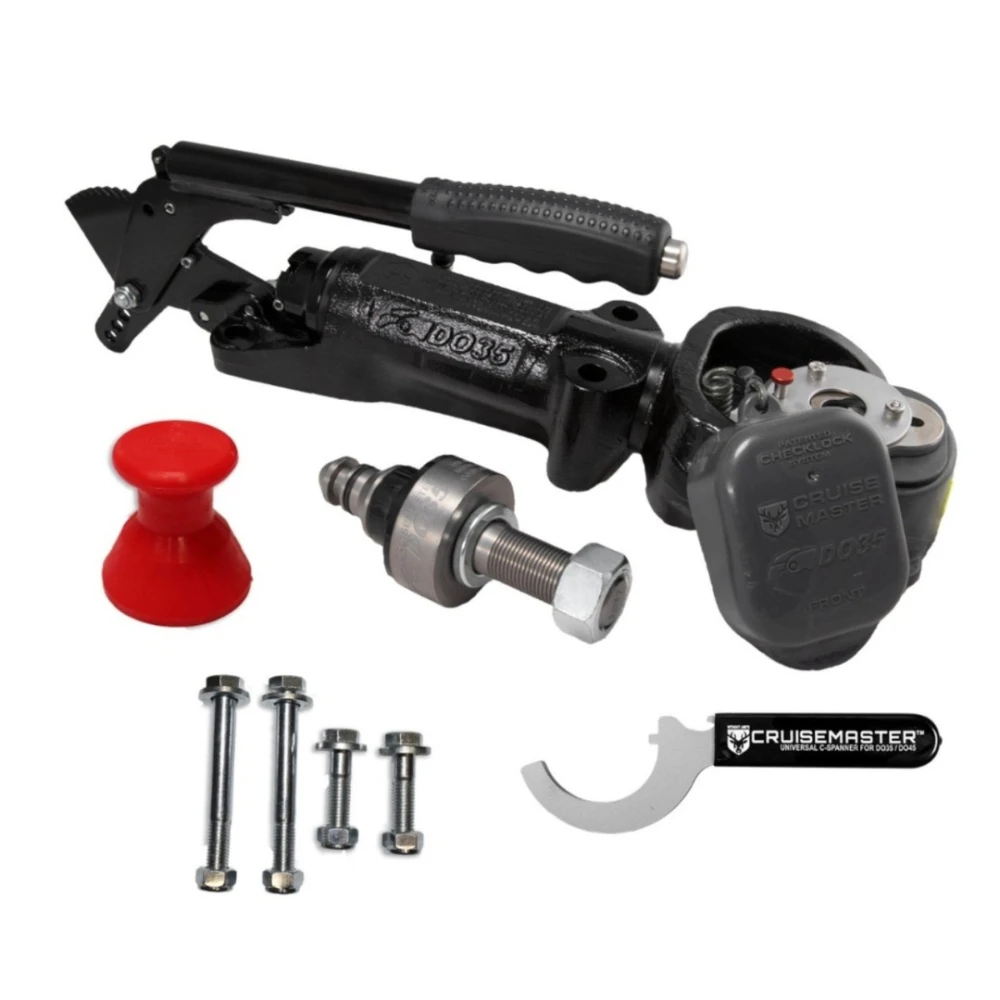

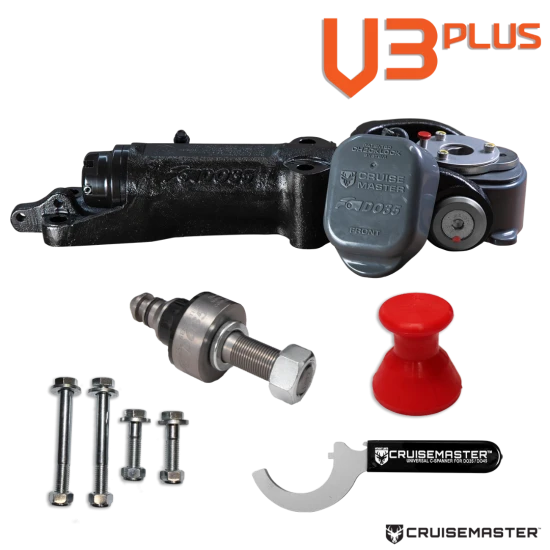

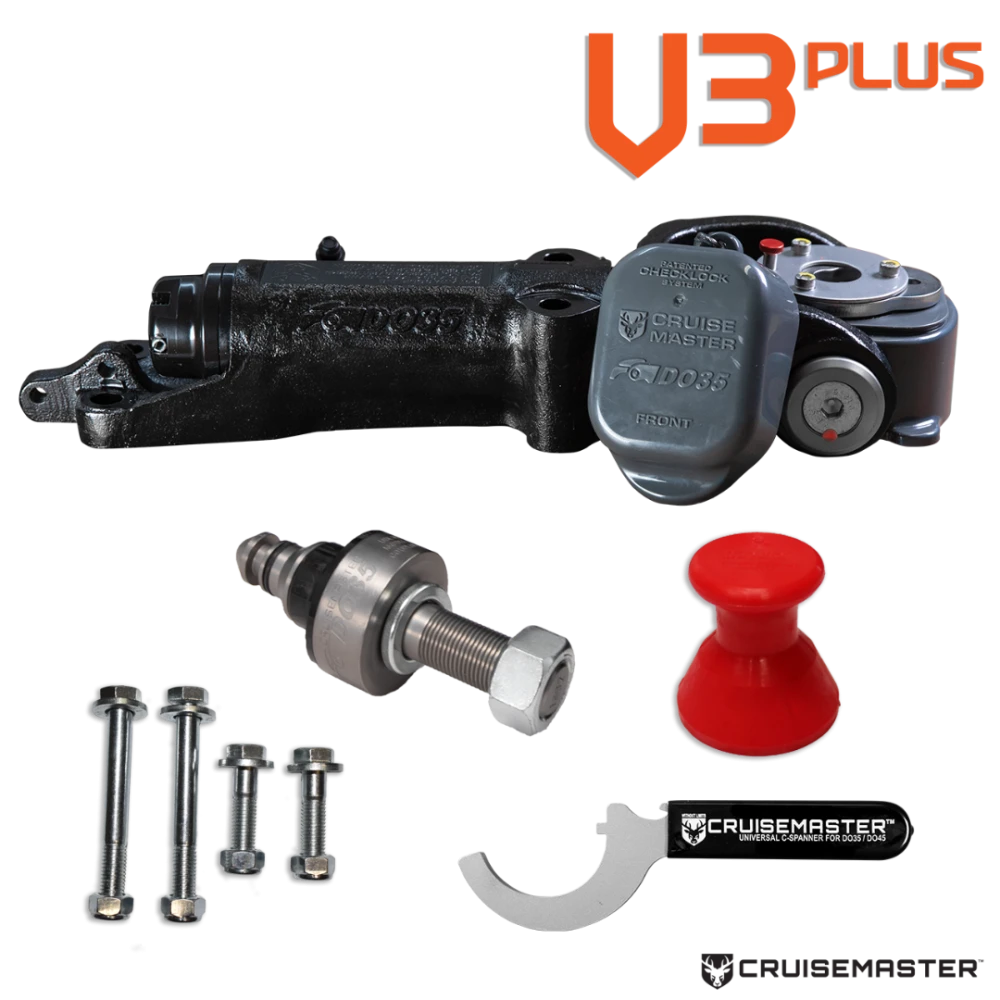

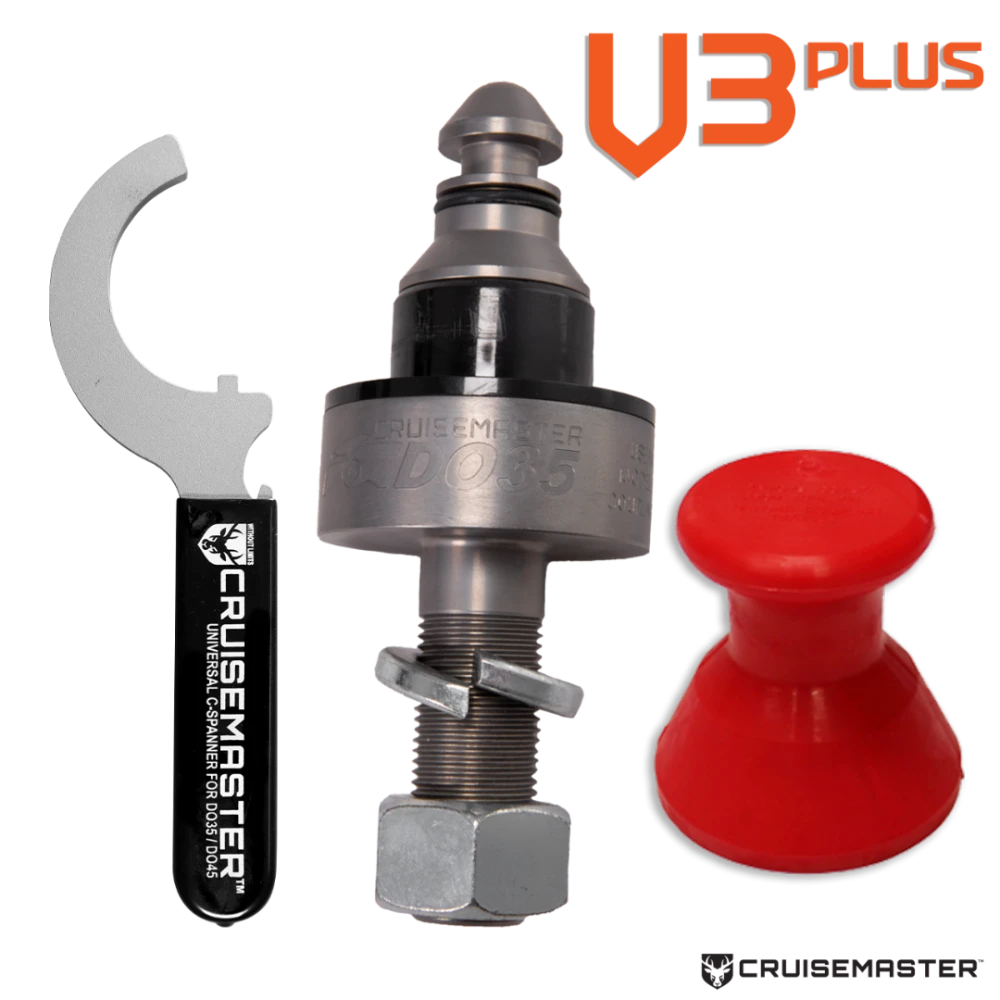

Product Contents
- DO35 V3Plus 3.5T articulating off-road trailer hitch coupler with integrated handbrake

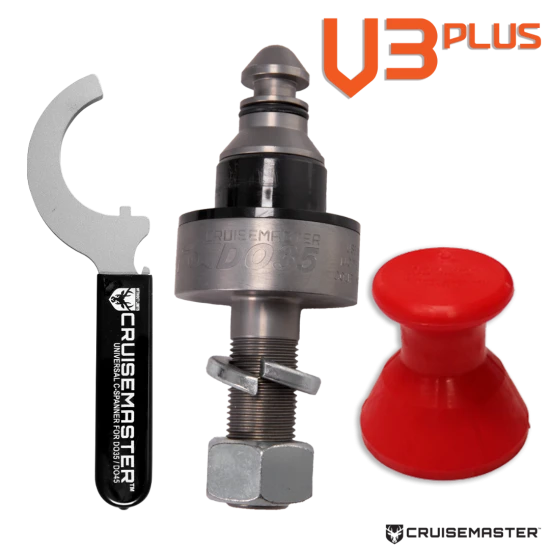

- 1-inch U.S. tow pin
- Tow pin cover
- Universal C-spanner
- Fitment bolts
- User guide
Why We Recommend It
This is the complete DO35 V3Plus setup for customers who want a high-articulation trailer hitch coupler with an integrated handbrake. It is an excellent choice for overland trailers, off-road campers, expedition trailers, and custom trailer builds that need smoother articulation, strong locking security, and a proven drop-on hitch design.

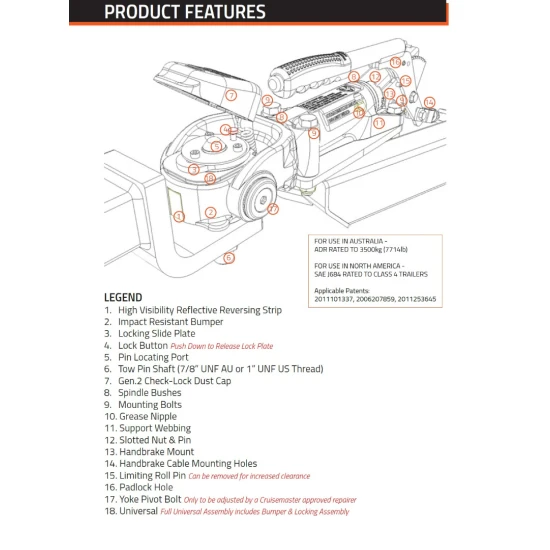

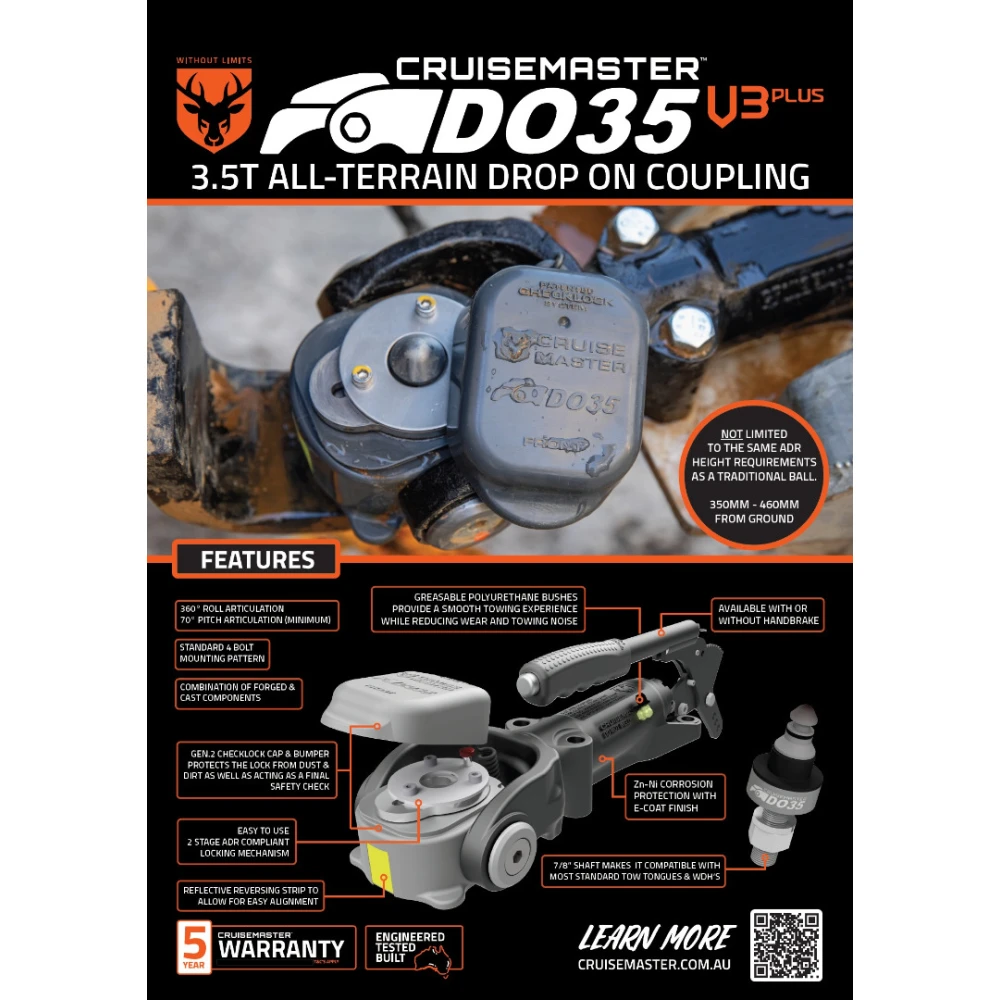

Key Features
- 3.5 tonne / 7,714 lb all-terrain articulating trailer hitch coupler

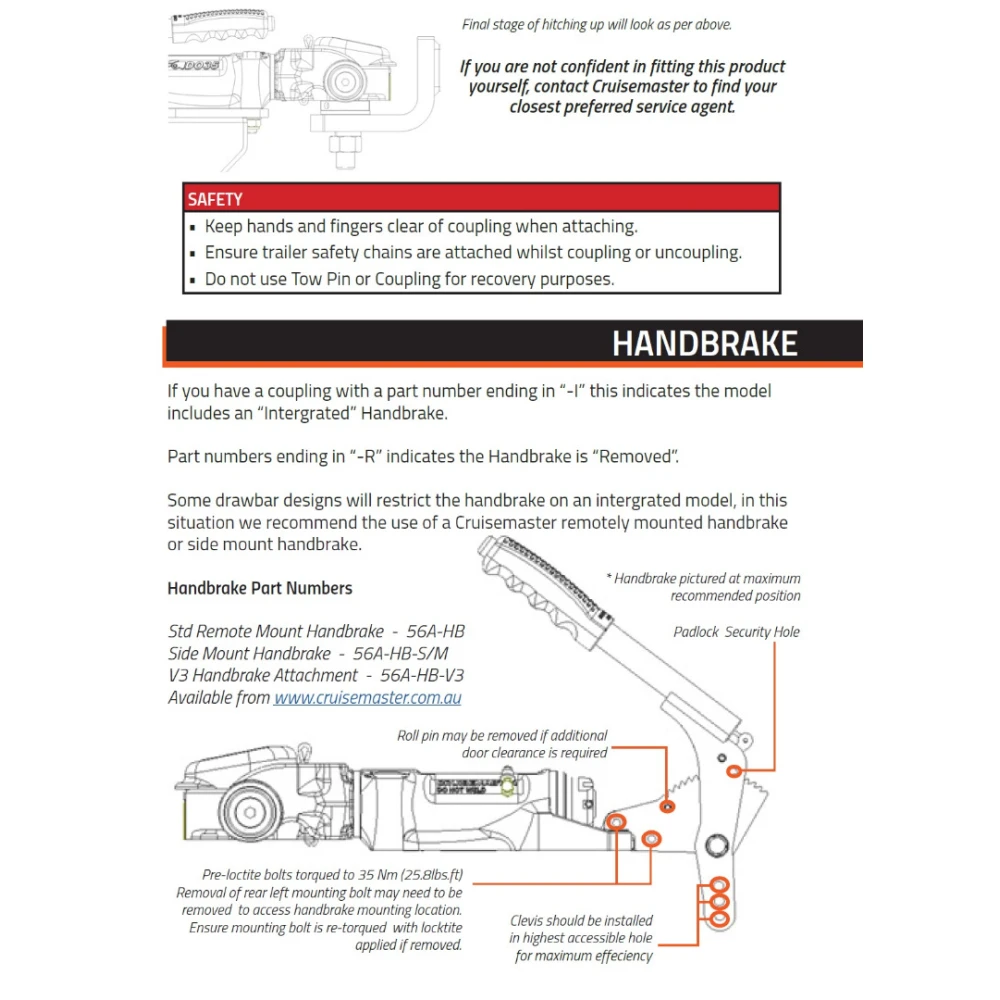

- Integrated handbrake model for compatible cable-operated trailer handbrake systems
- U.S. version includes 1-inch tow pin, tow pin cover, C-spanner, fitment bolts, and user guide
- SAE J684 rated for North American Class 4 trailer use
- 360-degree roll articulation with minimum 70-degree pitch articulation
- Patented Gen.2 Checklock cap helps protect the lock from dust and provides a visual safety check
- Two-stage positive locking mechanism with visible pin locating port
- Greasable polyurethane bushes help reduce wear, noise, and harshness
- Zinc-nickel corrosion protection with black E-coat finish
- Standard flat 4-bolt drawbar mounting pattern
- Compatible with weight distribution hitches when movement and clearances are not obstructed

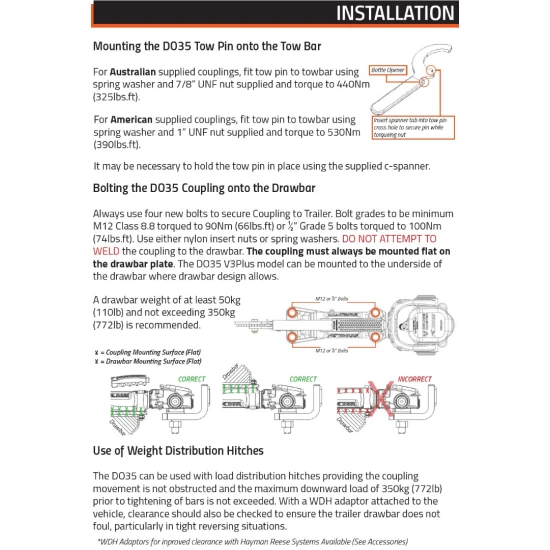

- Do not weld to the trailer drawbar; always bolt to a flat mounting surface
Specifications
| Brand | Cruisemaster |
| Store SKU | CMDO35WHB |
| Manufacturer Part Number | 18D-DO35-V3PLUS-I-ONE-IN |
| Series | DO35 V3Plus |
| Product Type | Articulating off-road trailer hitch coupler |
| Capacity | 3.5 tonne / 7,714 lb GTW |
| North America Rating | SAE J684 Class 4 |
| Application | Bolt-on |
| Coupler Action | Drop-on pin coupling |
| Tow Pin Size | 1-inch UNF U.S. shaft |
| Handbrake | Integrated handbrake |
| Articulation | 360-degree roll; minimum 70-degree pitch |
| Latch Mechanism | Two-stage positive lock |
| Mounting Pattern | 4 bolts, 185 mm x 54 mm |
| Finish | Zinc-nickel with black E-coat |
| Maintenance | Greasable bushes |
| Warranty | 3-year limited warranty; up to 5 years with product registration |
