CURT 2000 Pound A-Frame Trailer Jack Top Handle 15 Inch Travel Black Powdercoat Fixed Leg 28202
Model: 28202CURT A-frame Trailer Jack - Dependable and Versatile
In our quest to be your ultimate source for towing solutions, the CURT line of trailer jacks is crafted with meticulous attention to detail and manufactured with pride. Designed to extend the life and optimal function of your trailer, CURT jacks come in a range of styles, catering to your unique needs—be it for a boat landing, a campsite, a racetrack, or a field. The CURT A-frame trailer jack is a perfect fit for A-frame trailers, providing stability and strength wherever your travels take you.

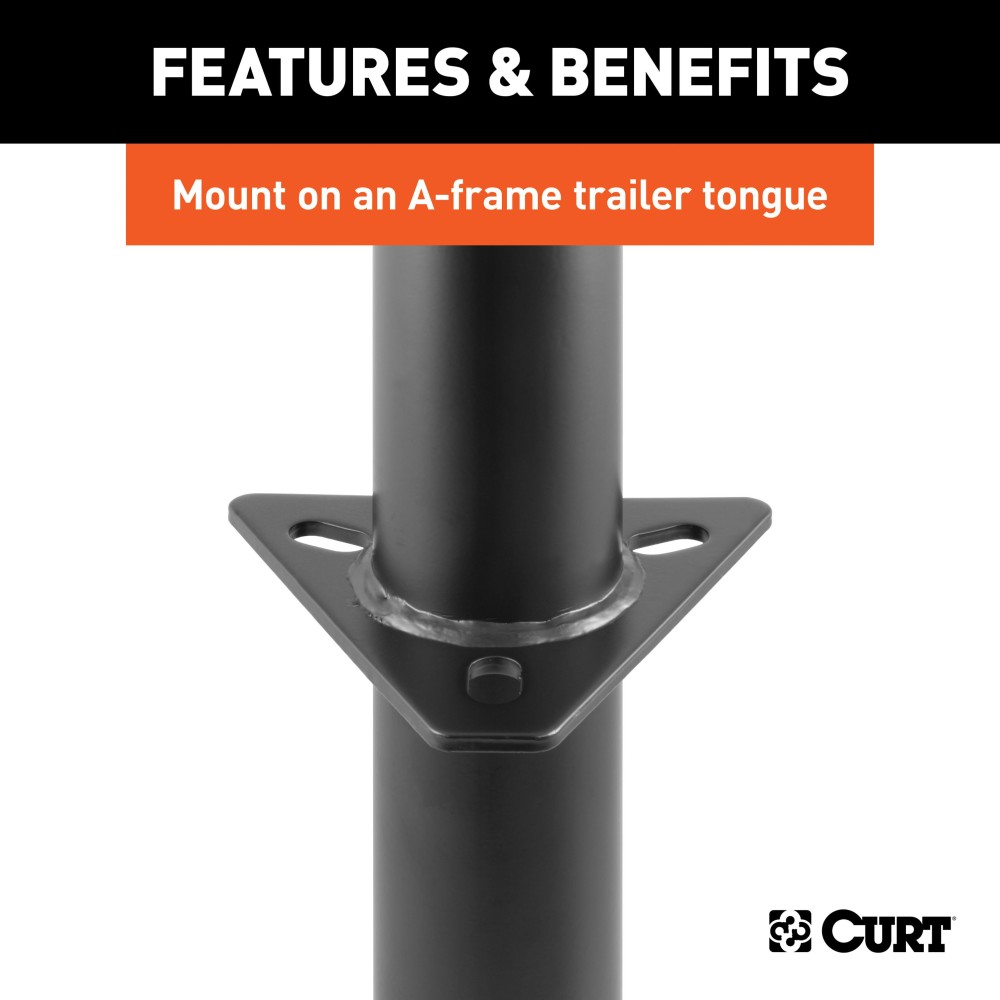

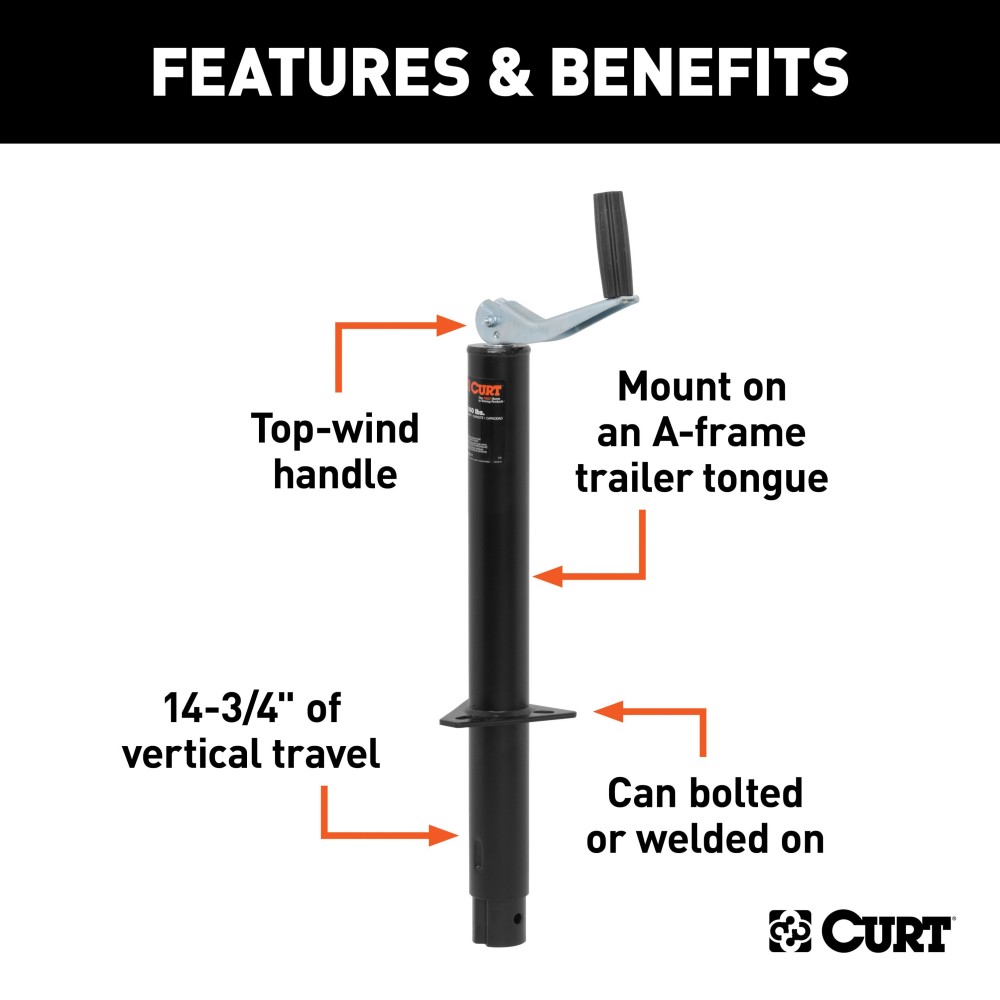

- Mounting Design: Specifically designed for A-frame trailer tongues, ensuring a seamless installation.
- Weight Capacities: Supports up to 3,000 lbs. and lifts up to 2,000 lbs., making it ideal for various trailer types, from utility trailers to livestock haulers.

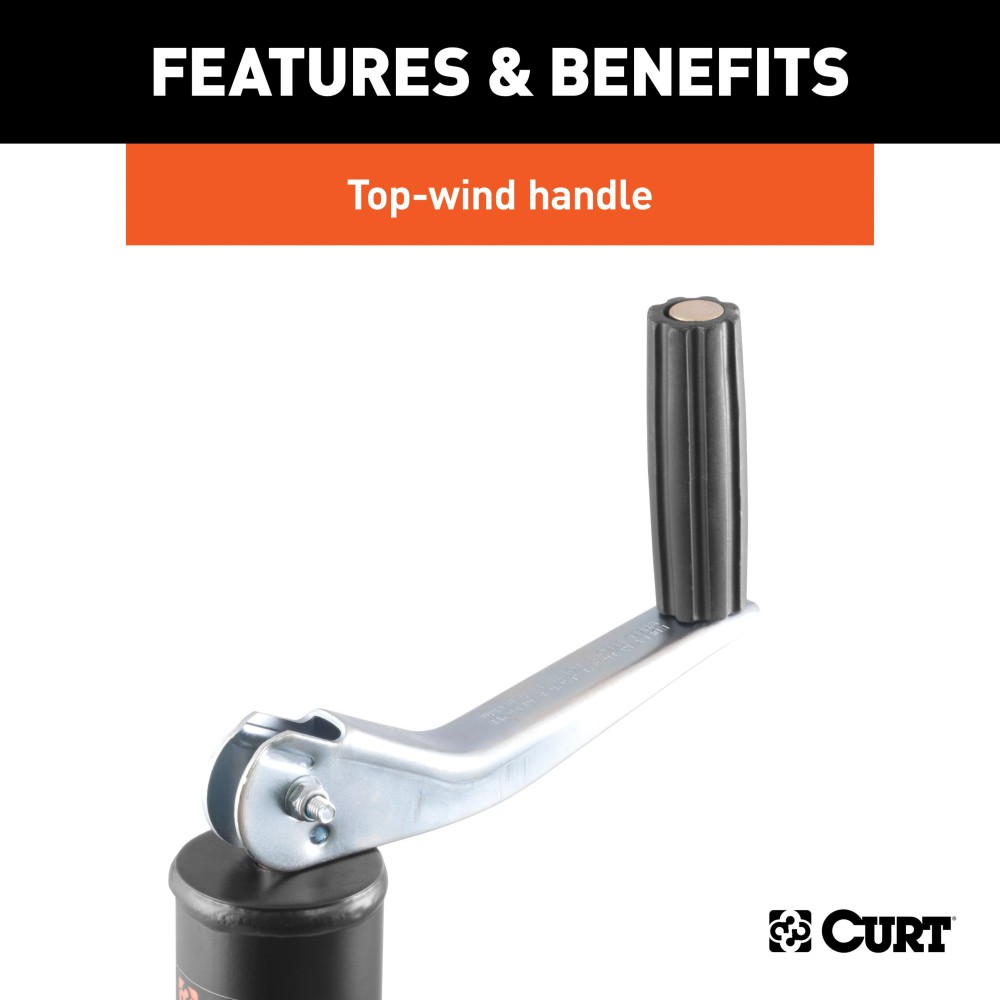

- Handle Operation: Features a top-wind handle that allows for easy raising or lowering of the trailer coupler, offering convenience in every use.
- Vertical Travel: Provides 15" of vertical travel to accommodate different ball heights.
- Mounting Options: Can be bolted or welded directly onto the trailer frame (hardware not included).
- Warranty: Backed by a limited lifetime warranty, with one-year coverage on the finish and parts.
Whether you're towing a boat trailer, a utility trailer, a livestock hauler, or an RV trailer, trust CURT to supply a trailer jack that complements your trailer’s function. The CURT A-frame trailer jack is engineered for those who demand reliability and performance.
Note: For maintaining optimum functionality, consider the replacement handle bulk #28921, available separately.
| Specifications: | |
|---|---|
| Weight Capacity | 1001-2000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 2000 LB Static Capacity |
| Jack Lifting Load Capacity | 2000 LB Lift Capacity |
| Jack Foot Type | Foot and Wheel |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |
| Approx Bracket-to-Bottom Clearance (Retracted) | 9 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 24 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 12 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |

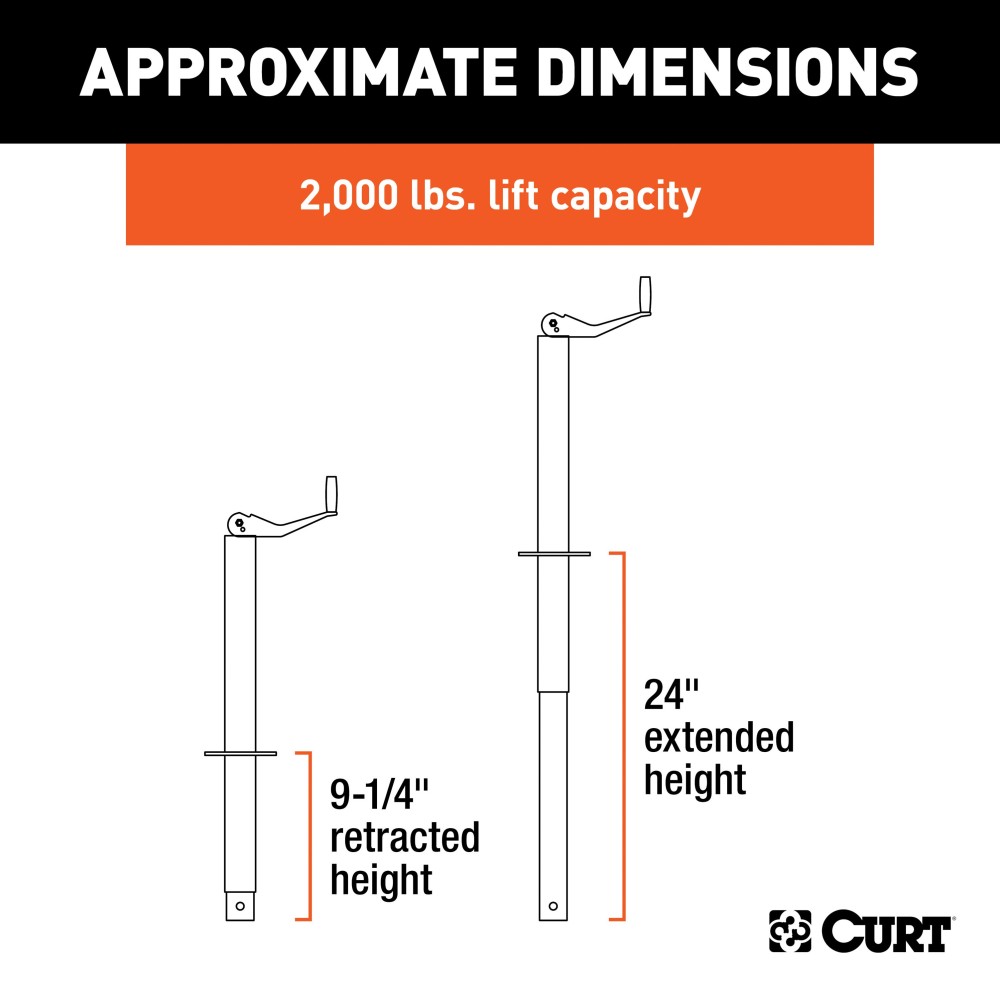

| Exact Bracket-to-Bottom Clearance (Retracted) | 9.25 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 24 Inch |
| Exact Bracket-to-Top Clearance | 12.4 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$59 99
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$59 99
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 28202
- UPC: 612314006212
- Includes: A-Frame Jack
