CURT 2K A-Frame Trailer Jack Top-Wind Handle 15" Travel w/ Footplate
Model: CTJFP2CURT A-Frame Trailer Jack Bundle - 2,000 lb Lift, 15" Travel, Top-Wind Handle
Upgrade your trailer setup with this complete CURT A-Frame jack and footplate bundle. Designed for dependable lifting power, easy operation, and added stability, this kit is ideal for anyone needing a reliable jack assembly. Whether you’re towing boats, utility trailers, or RVs, this combination provides effortless coupling and uncoupling every time.

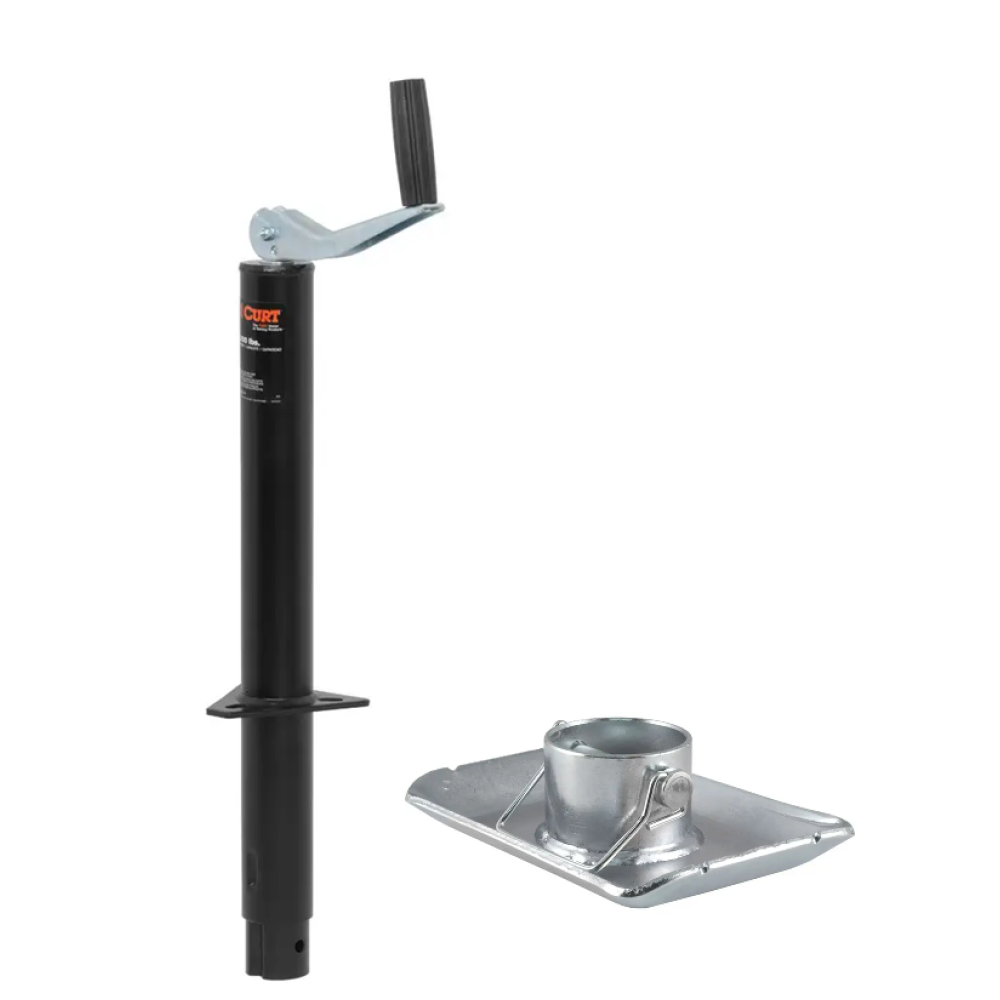

Bundle Contents:

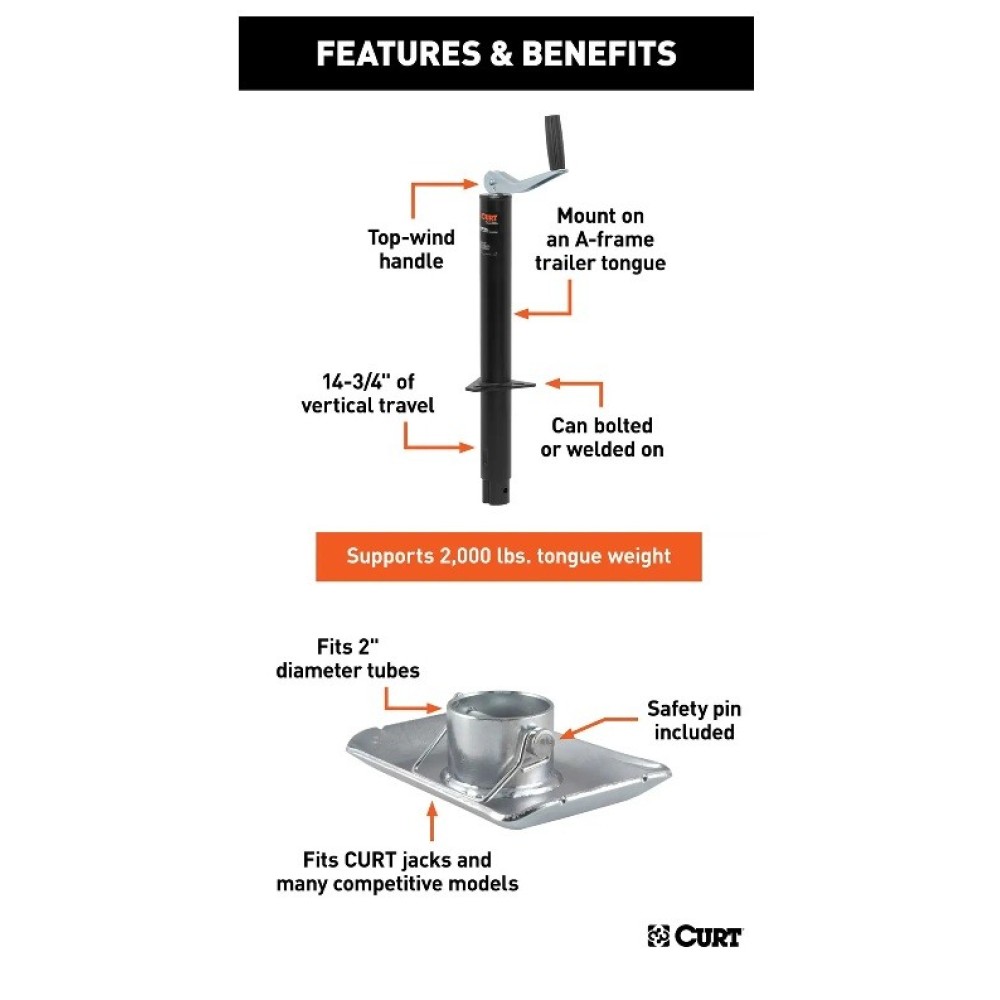

- QTY (1): A-Frame Jack with Top Handle (2,000 lbs, 15" Travel)
- 3,000 lb support capacity / 2,000 lb lift capacity
- 15" of vertical travel to match different ball heights
- Top-wind handle for easy raising and lowering
- Can be bolted or welded onto A-frame trailers
- Black powdercoat finish for corrosion resistance
- QTY (1): Pin-On Jack Foot (Fits 2" Tube, 2,000 lbs, 1-11/16" Height)
- Safety pin system ensures a secure attachment
- Provides added stability when parked or storing your trailer
- Fits CURT jacks and many competitive models
- Black powdercoat finish for long-lasting use
For best results, confirm your trailer’s mounting configuration and load requirements before installation. Perform regular checks of all components and lubricate moving parts to ensure a longer service life.
| Specifications: | |
|---|---|
| Weight Capacity | 1001-2000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 15 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 2000 LB Static Capacity |
| Jack Lifting Load Capacity | 2000 LB Lift Capacity |
| Jack Foot Type | Foot and Wheel |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |

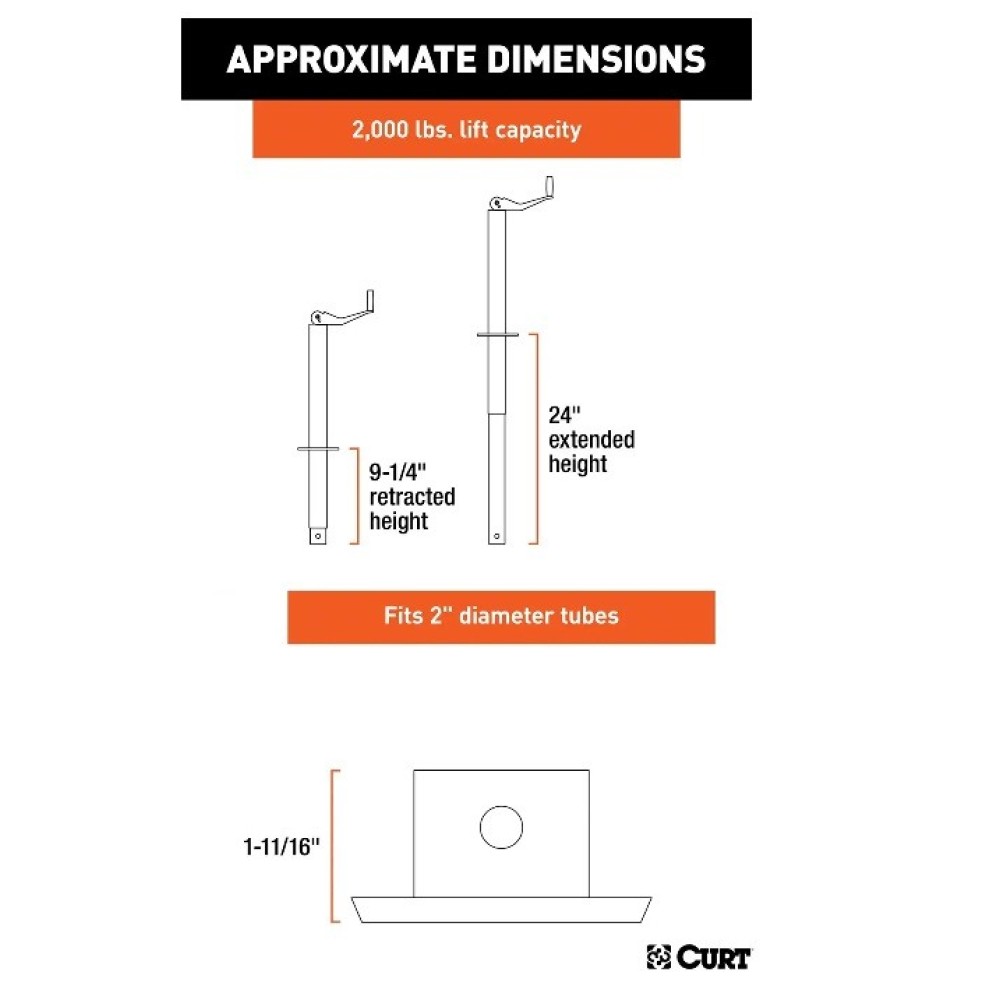

| Approx Bracket-to-Bottom Clearance (Retracted) | 9 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 24 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 12 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 9.25 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 24 Inch |
| Exact Bracket-to-Top Clearance | 12.4 Inch |
