CURT 5K A-Frame Trailer Jack 14" Travel Top-Wind Handle w/ 6" Caster Wheel

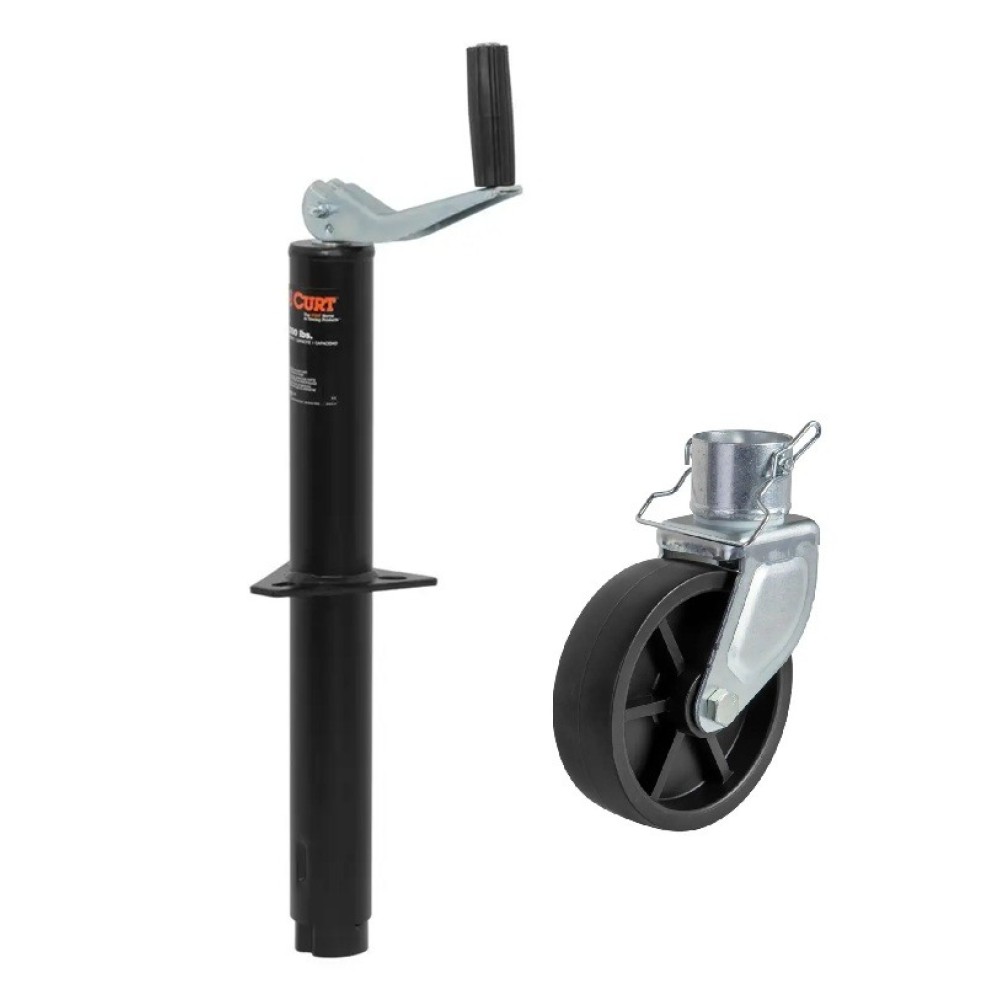

Model: CTJJW4CURT 5,000 Pound A-Frame Trailer Jack with 14" Travel and 6" Caster Wheel
This complete kit provides the essential components you need for secure and reliable trailer support. The CURT A-frame trailer jack offers a 5,000 lb support capacity (3,000 lb lift) and 14 inches of travel to accommodate various ball heights, while the 6" caster ensures smooth mobility when positioning or coupling your trailer. Whether you're hauling a boat, utility trailer, or RV, this package is designed for durability and convenience on the road.

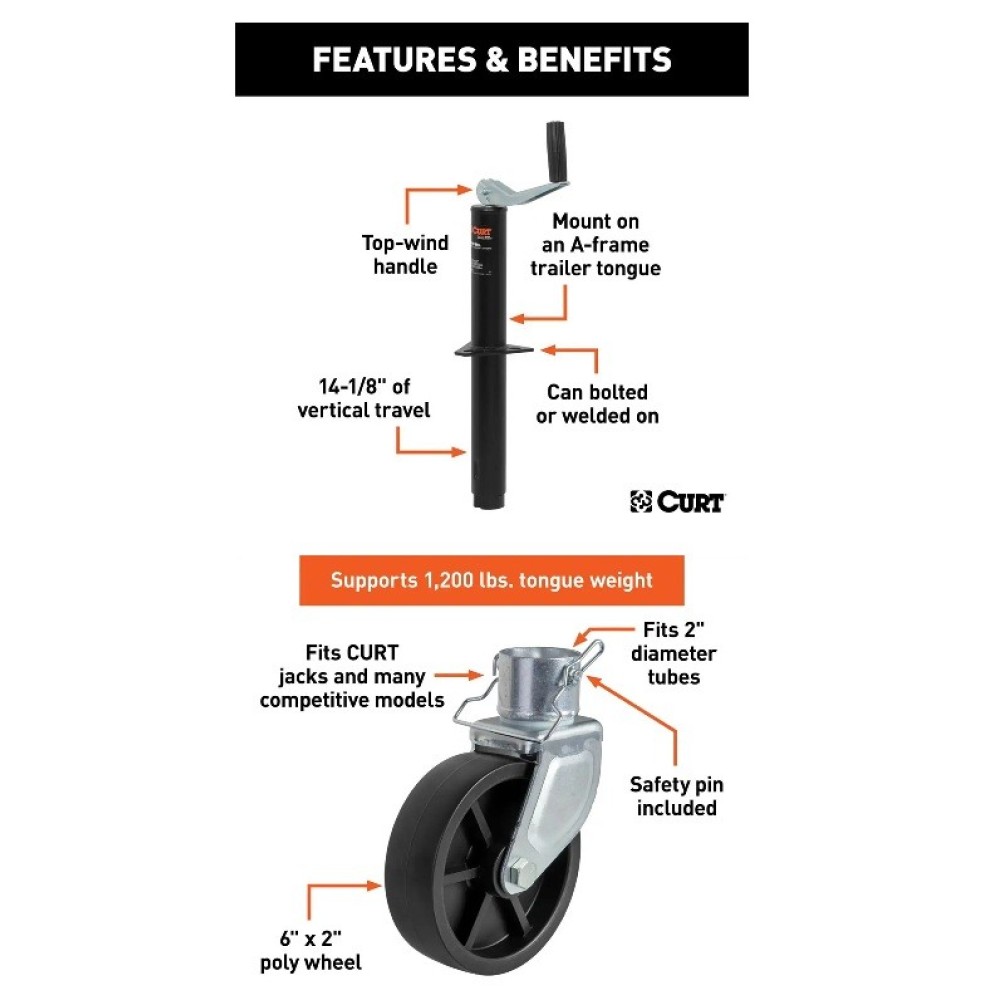

Bundle Contents:
- QTY (1): A-Frame Jack with Top Handle (5,000 lbs, 14" Travel)
- Designed for A-frame trailer tongues
- 5,000 lb support capacity / 3,000 lb lift capacity
- Top-wind handle for easy raising and lowering
- 14" of vertical travel
- Can be bolted or welded on (hardware not included)
- Limited lifetime warranty
- QTY (1): 6" Jack Caster (Fits 2" Tube, 1,200 lbs, Packaged)
- Fits CURT jacks and many competitive models
- Supports up to 1,200 lb tongue weight
- Fits 2" diameter jack tubes
- Quick-attach safety pin for secure mounting
- 6" x 2" poly wheel for easy mobility
Always confirm the jack’s mounting style, capacity, and travel range for your specific trailer. Regular maintenance and proper installation will help extend product life and ensure safe towing.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 14 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |

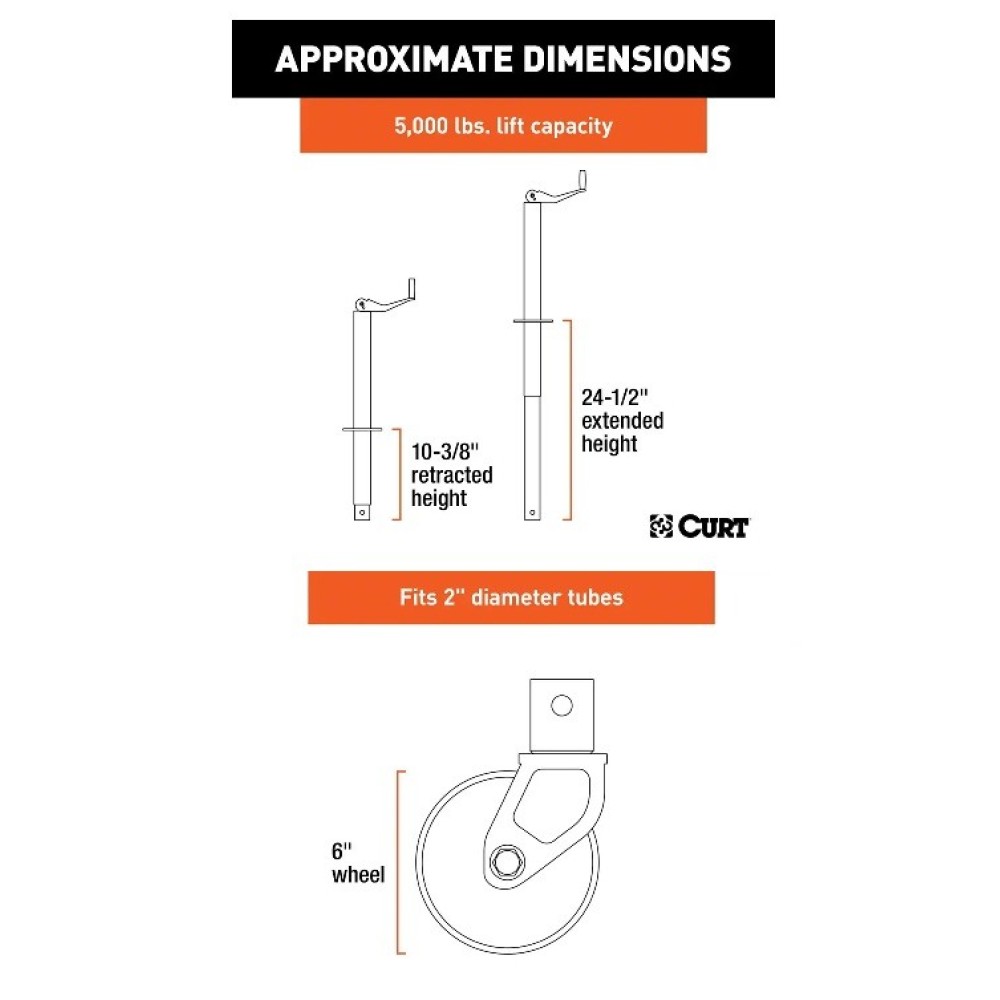

| Approx Bracket-to-Bottom Clearance (Retracted) | 10 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 25 Inch |
| Approx Bracket-to-Top Clearance | 13 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 10.40 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 24.5 Inch |
| Exact Bracket-to-Top Clearance | 13 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
