CURT 5K A-Frame Trailer Jack Top Handle 15" Travel w/ Footplate
Model: CTJFP3CURT A-Frame Trailer Jack 5000 lb Kit with Top Handle and Footplate – 15" Travel
Upgrade your trailer setup with this complete CURT A-frame trailer jack kit, featuring a 5,000 lb top-wind jack and a sturdy footplate. This bundle is perfect for providing reliable lifting and stability, whether you’re towing a boat, utility trailer, or recreational vehicle.

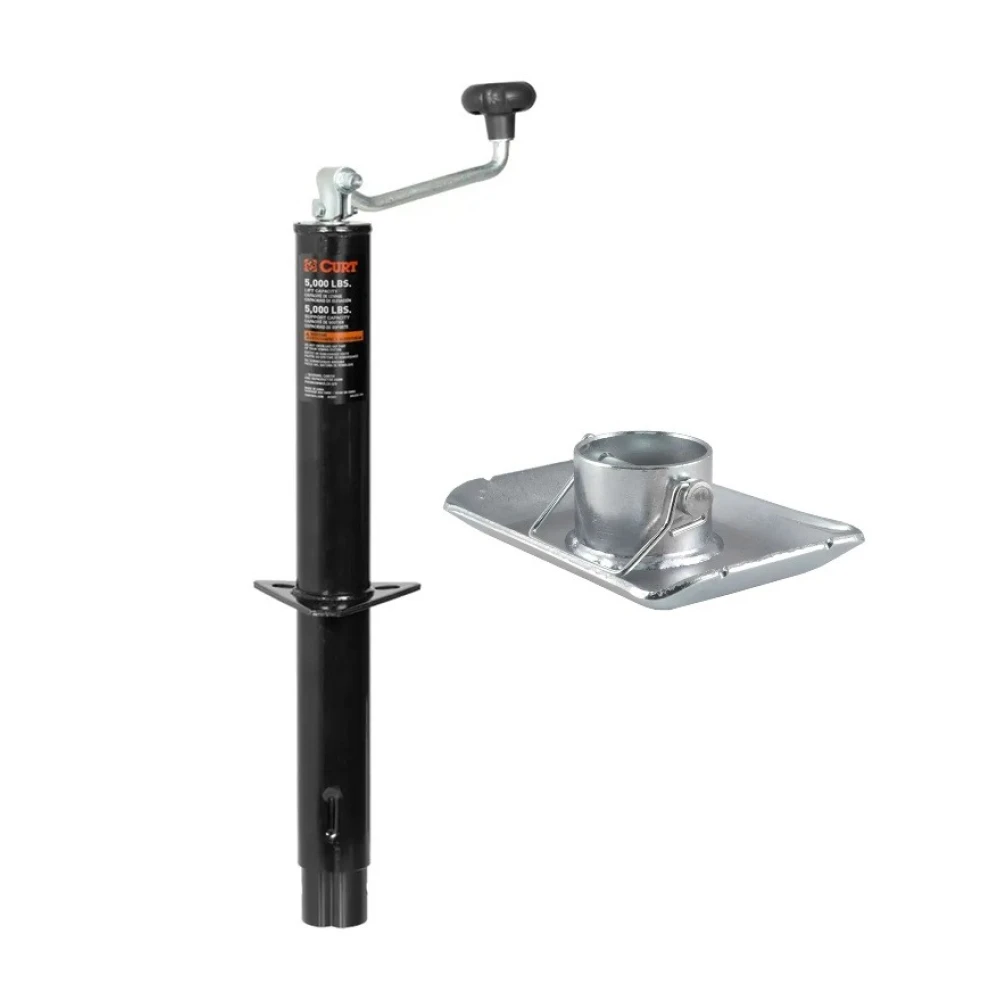

Bundle Contents:
- QTY (1): A-Frame Trailer Jack with Top Handle (5,000 lbs, 15" Travel)
- Designed to be mounted on an A-frame trailer tongue
- Rated for 5,000 lbs. support capacity and 5,000 lbs. lift capacity
- Top-wind claw handle easily raises or lowers trailer coupler
- 15" of vertical travel accommodates multiple ball heights
- Can be bolted or welded on (hardware not included)
- Limited lifetime warranty (one-year finish, one-year parts)
- QTY (1): Pin-On Jack Foot (Fits 2" Tube, 2,000 lbs, 1-11/16" Height)
- Designed to fit CURT jacks and many competitive models
- Supports up to 2,000 lbs. trailer tongue weight
- Fits 2" diameter tubes
- Included safety pin allows for quick, secure attachment
Always ensure proper installation and regular maintenance of your trailer components. Checking your equipment before each trip helps maintain safety and performance.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 10 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Foot or Wheel Option |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |

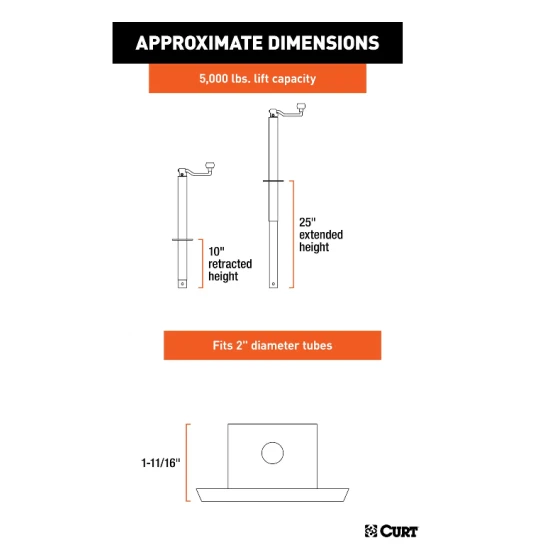

| Approx Bracket-to-Bottom Clearance (Retracted) | 10 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 25 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 15 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 10 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 25 Inch |
| Exact Bracket-to-Top Clearance | 14.55 Inch |
