Curt 5K A-Frame Trailer Jack Topwind Handle 14" Travel w/ Footplate
Model: CTJFP4CURT 5000 lb A-Frame Trailer Jack with 14" Travel & Footplate
This convenient bundle pairs a CURT 5000 lb A-frame trailer jack with topwind handle and a pin-on footplate for added stability. Ideal for utility, boat, livestock, or recreational trailers, this kit ensures smooth operation, easy height adjustments, and secure trailer support wherever you go.

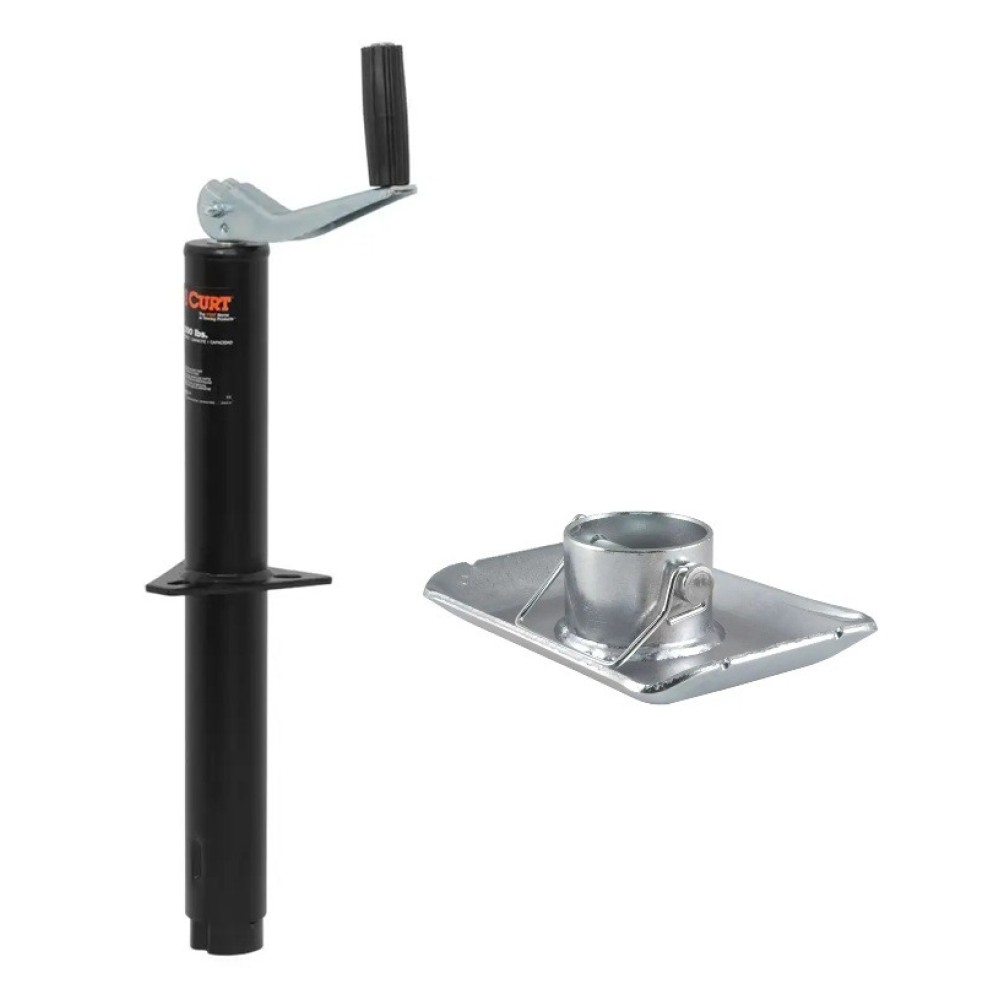

Bundle Contents:
- QTY (1): A-Frame Jack with Top Handle (5,000 lbs, 14" Travel)
- Mounts on A-frame trailer tongue (bolt-on or weld-on)
- 5,000 lbs. support capacity / 3,000 lbs. lift capacity
- Topwind handle for easy raising or lowering
- 14" vertical travel for multiple ball heights
- Durable black powdercoat finish
- Limited lifetime warranty
- QTY (1): Pin-On Jack Foot (Fits 2" Tube, 2,000 lbs, 1-11/16" Height)
- Supports up to 2,000 lbs. trailer tongue weight
- High-strength steel construction
- Fits 2" diameter jack tubes
- Quick, secure safety pin attachment
Always verify your trailer’s weight requirements, perform routine maintenance, and ensure proper mounting before use. A well-chosen trailer jack and footplate set is key to safe towing and parking.
| Specifications: | |
|---|---|
| Weight Capacity | 3001-5000 Pounds |
| Jack Mounting Style | A-Frame Triangular Center Mount |
| Jack Groups | A-Frame Style Trailers |
| Jack Style | A-Frame |
| Lift Mechanism | Topwind Handle Crank |
| Jack Travel Range | 14 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 5000 LB Static Capacity |
| Jack Lifting Load Capacity | 5000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Non Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |

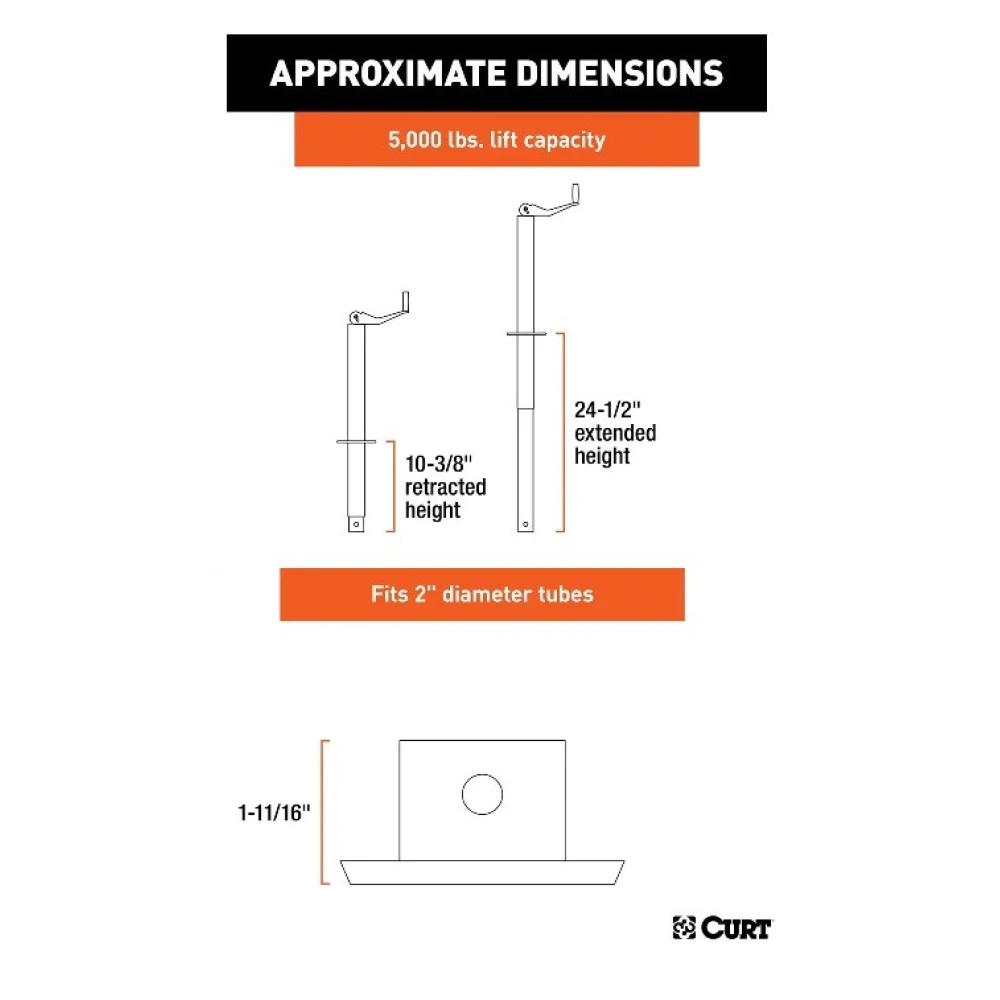

| Approx Bracket-to-Bottom Clearance (Retracted) | 10 Inch |
| Approx Bracket-to-Bottom Clearance (Extended) | 25 Inch |
| Approx Bracket-to-Top Clearance | 13 Inch |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 10.40 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 24.5 Inch |
| Exact Bracket-to-Top Clearance | 13 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
