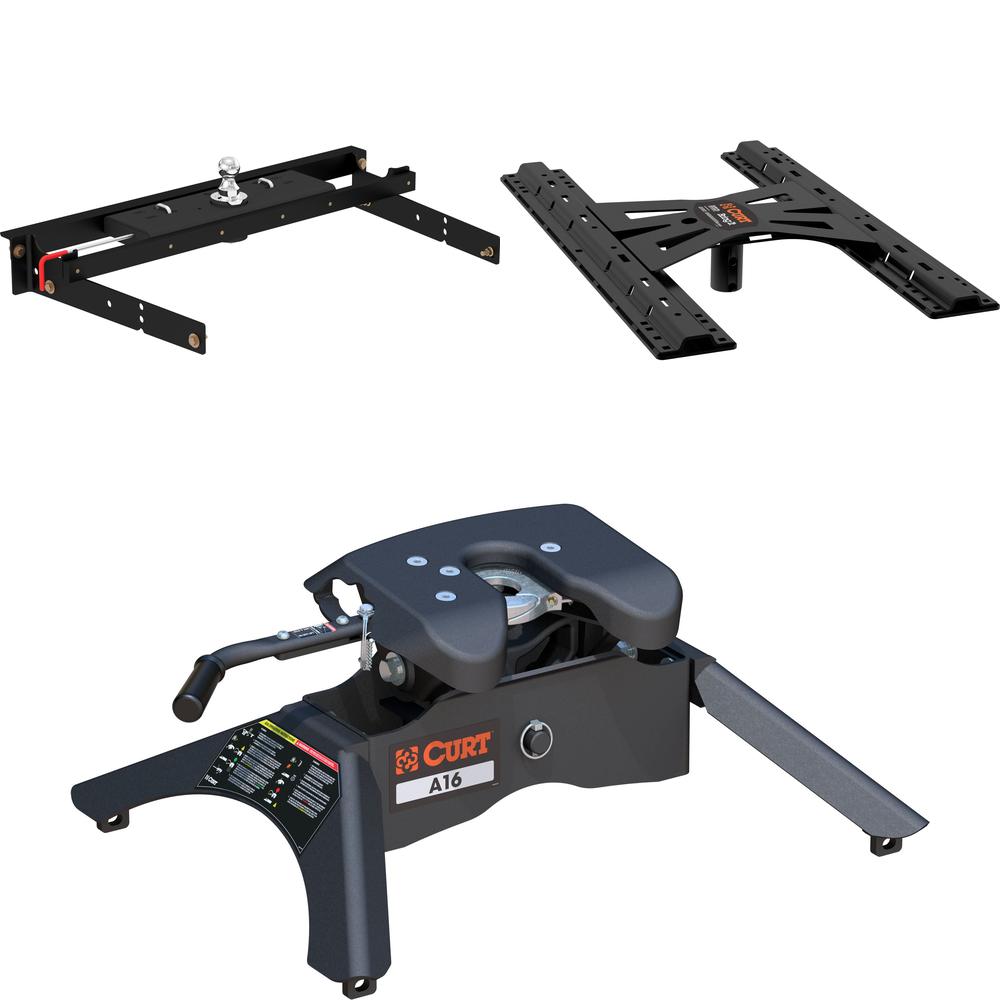

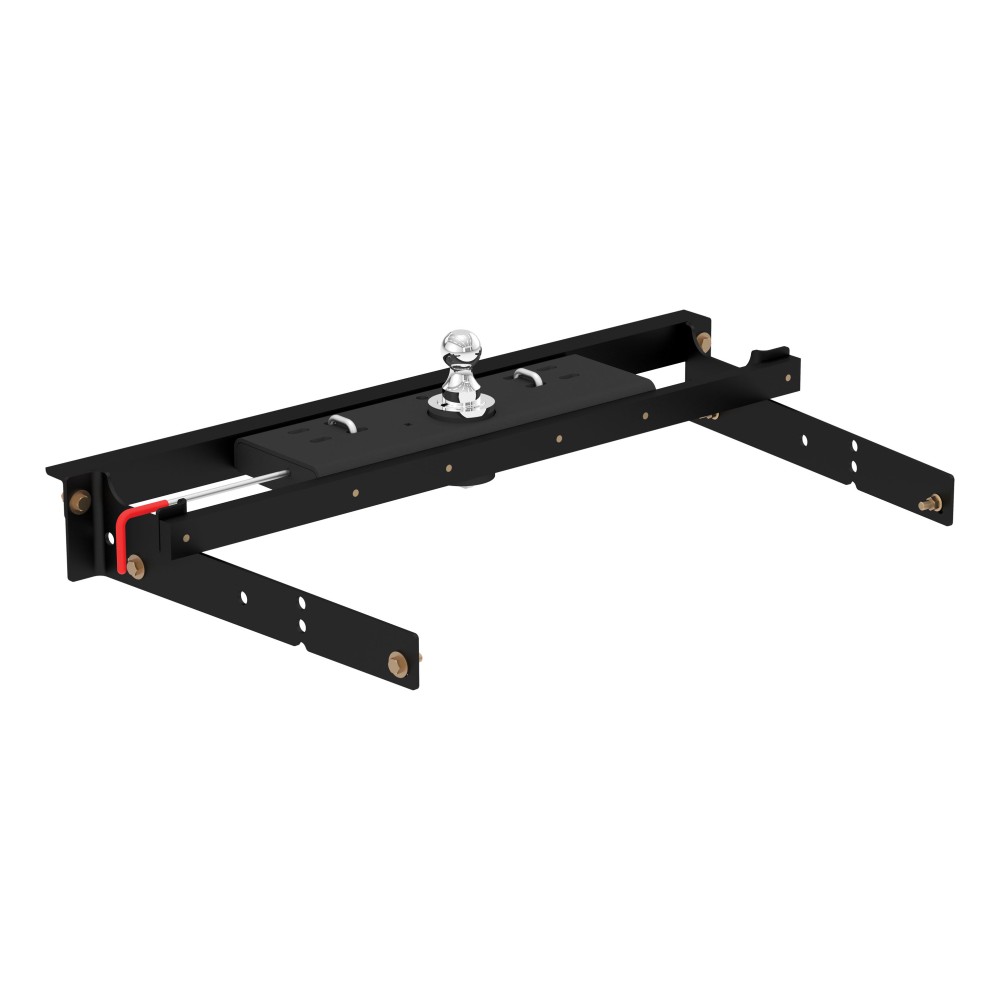

CURT 60713 Double Lock Gooseneck Hitch, 2-5/16-Inch Flip-Over Ball 30K (QTY 1)

Manufactured by: Curt

A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4x4 into the workhorse it was designed to be That is why CURT offers gooseneck hitch kits that include both the hitch and the installation brackets, making it simpler and easier to get your truck towing-ready This kit includes the CURT Double Lock gooseneck hitch and installation brackets to match.

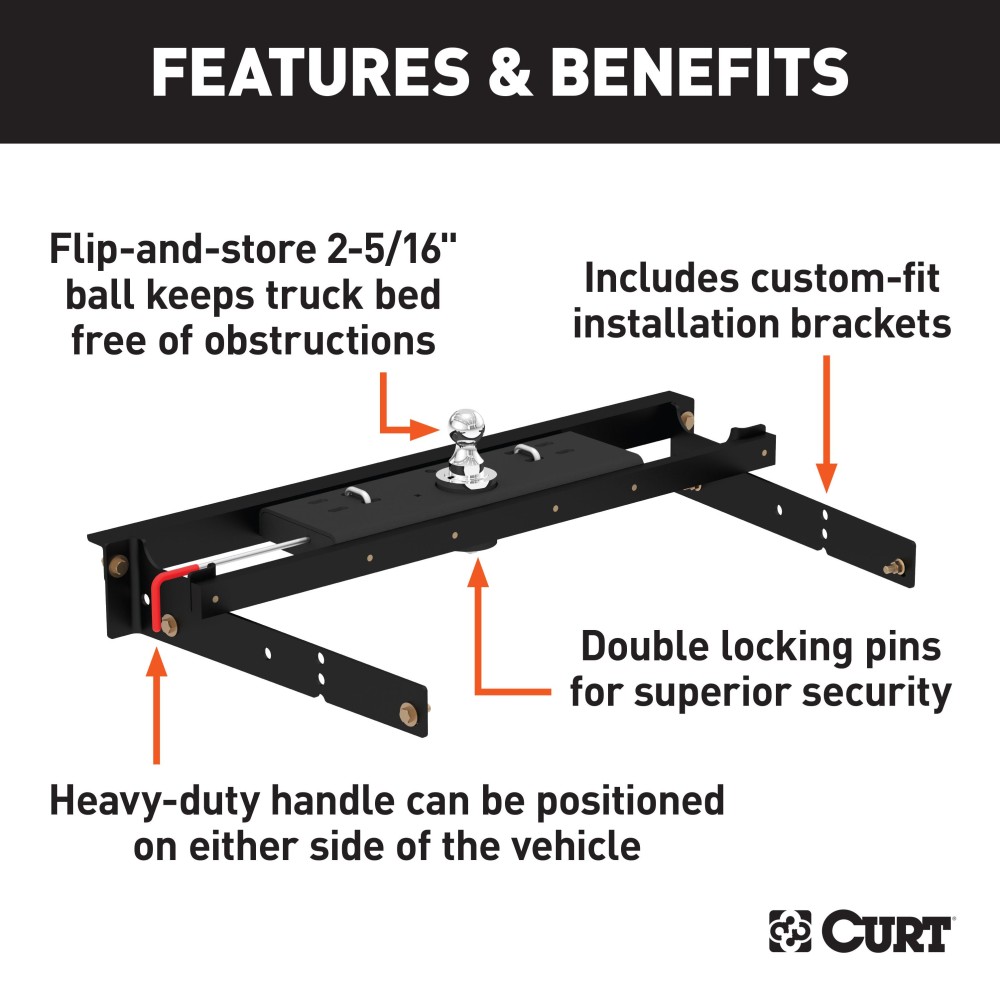

The under-bed Double Lock gooseneck hitch gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers The Double Lock mounts underneath your truck bed, using the included brackets, and provides a removable 2-5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs and a tongue weight capacity of 7,500 lbs.

Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed The Double Lock comes with solid safety chain hookups, an attractive chrome trim ring, a durable A-coat finish and a limited lifetime warranty This particular Double Lock gooseneck hitch kit is design to be a custom fit for certain years of the Chevrolet 2500 or 3500 with old body style, Chevrolet full-size pickup (excluding 34" frame), GMC 2500 or 3500 with old body style or GMC full-size pickup (excluding 34" frame) (for a complete listing of vehicle and installation bracket compatibility, see application info)..

Features:

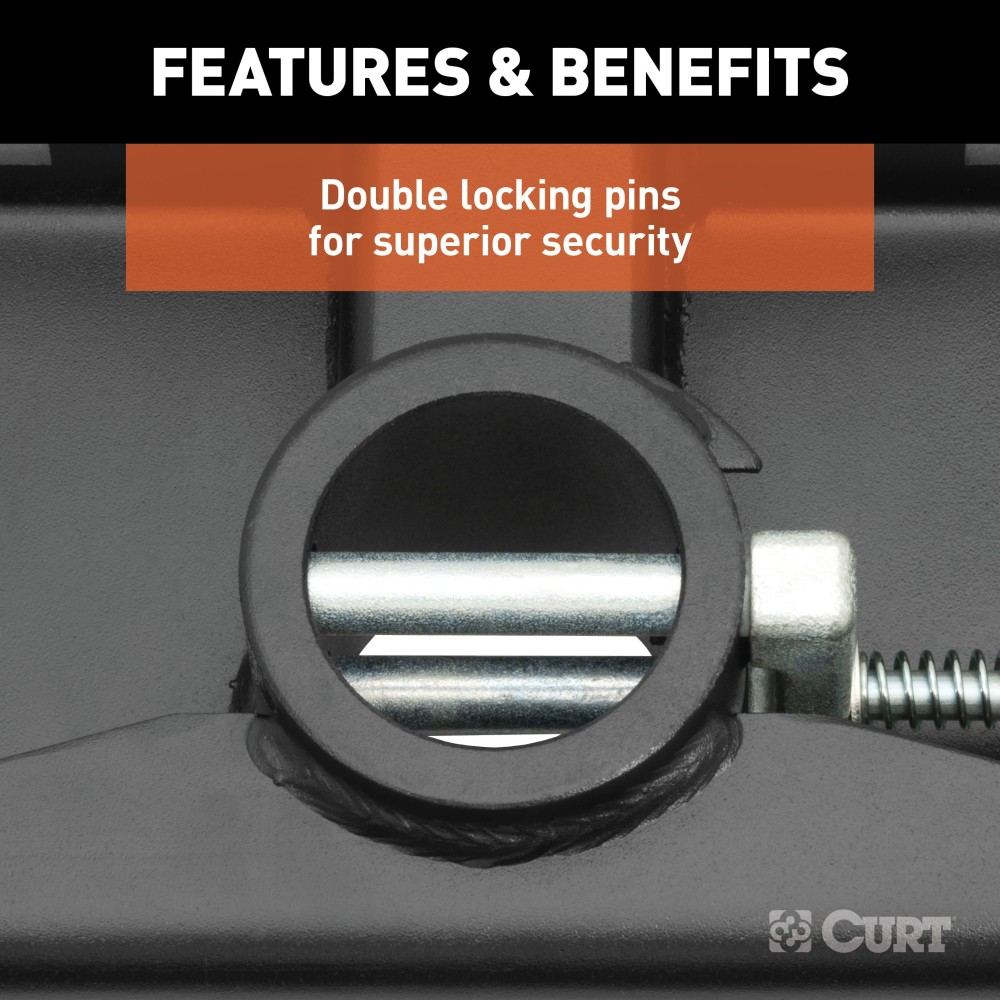

• Double locking pins for superior trailer and trailer ball security

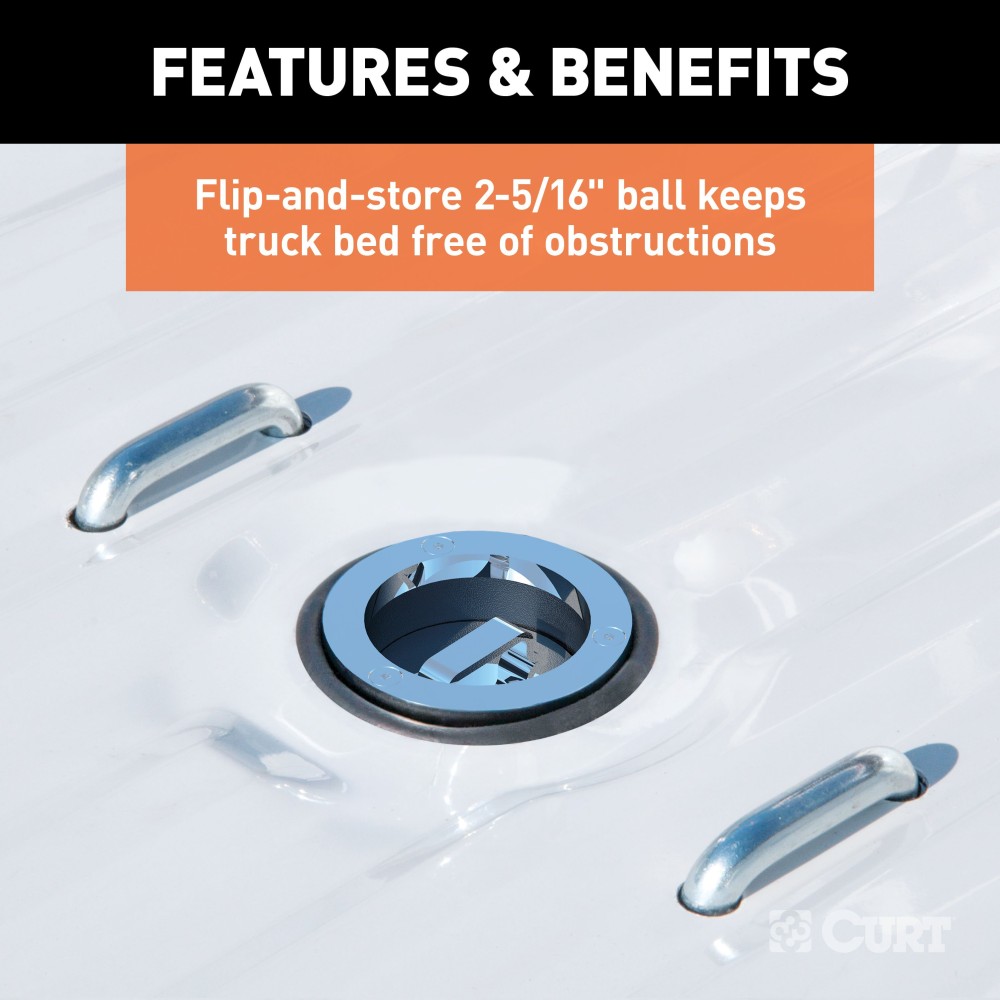

• Flip-and-store ball keeps truck bed free of obstructions
• Vehicle-specific design optimizes strength and installation time
• Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers
• Installation requires no welding or truck bed removal

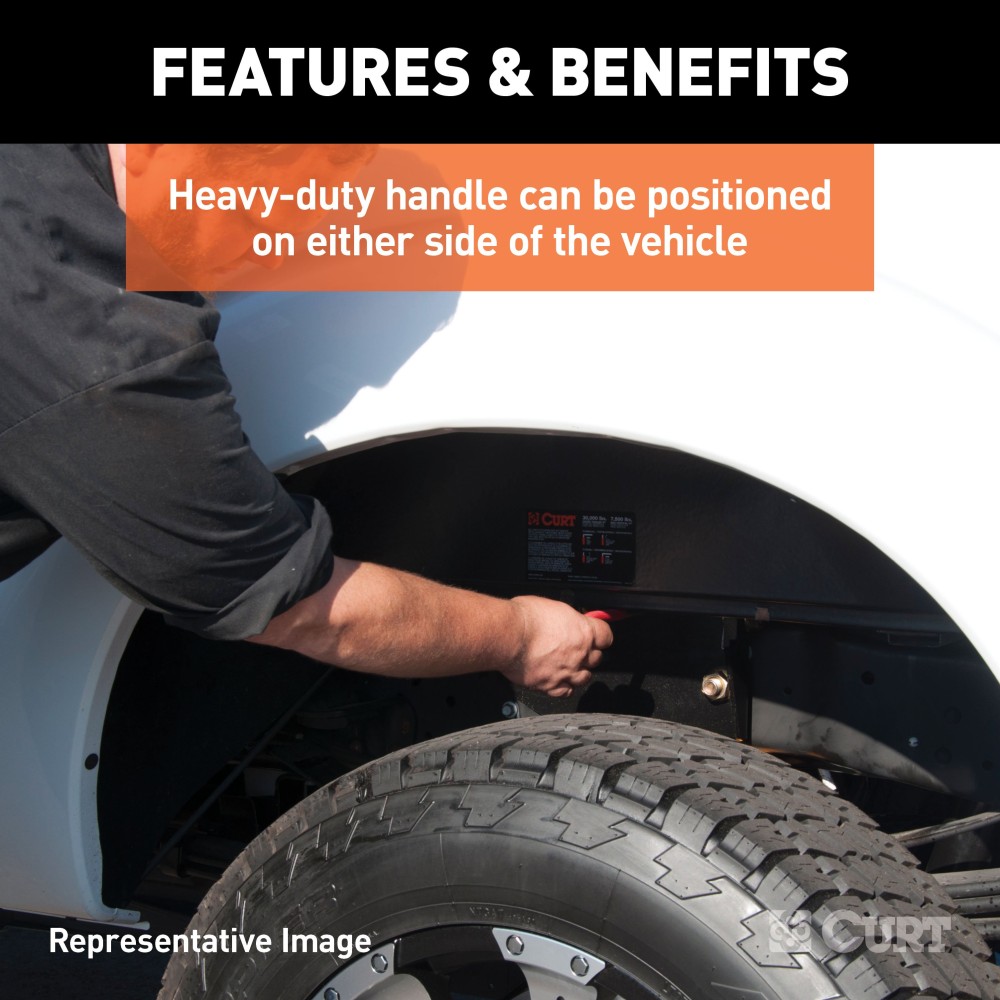

• Heavy-duty handle can be positioned on either side of the vehicle
• Chrome-plated trim ring provides a finished look
• Rubber hole cover helps prevent corrosion in trailer ball hole
• Includes spring-loaded safety chain loops and grade-8 hardware
• Protected by a durable A-coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16210 X5 Gooseneck to 5th Wheel Adapter for Double Lock Hitches, Industry-Standard Base Rails, 20,000 lbs (QTY 1)

Manufactured by: Curt

CURT 5th wheel adapter plates are a fast, dependable way to convert your gooseneck trailer hitch into a set of 5th wheel rails to accept a 5th wheel hitch and switch back again With gooseneck installation brackets and a gooseneck hitch already mounted, the adapter plate post simply mounts into the gooseneck trailer ball hole using a solid shank and is secured with the locking mechanism provided by the gooseneck hitch One of the most attractive features about CURT 5th wheel adapter plates is that they are practically instantaneous: insert the shank, apply the locking mechanism and just like that you have a sturdy pair of 5th wheel rails.

This CURT 5th wheel adapter plate features a round shank and is compatible with CURT Double Lock gooseneck hitches It features a gross trailer weight capacity of 20,000 lbs., allowing it to adapt and accept a number of 5th wheel hitches up to 20K This 5th wheel adapter plate offers a simple pin-and-clip conversion for gooseneck hitches and has multiple mounting points to accept either 5th wheel legs or a 5th wheel roller..

Features:

• Converts CURT Double Lock gooseneck hitches to 5th wheel rails
• For use with CURT and competitive 5th wheels up to 20,000 lbs.
• Industry-standard base rails accept 5th wheel hitches and rollers
• Protected by a highly durable carbide powder coat finish
• No assembly or tools required – just drop it in, lock it and go
• Co-cured in a rust-resistant liquid A-coat
• Limited lifetime warranty (one-year finish, one-year parts)

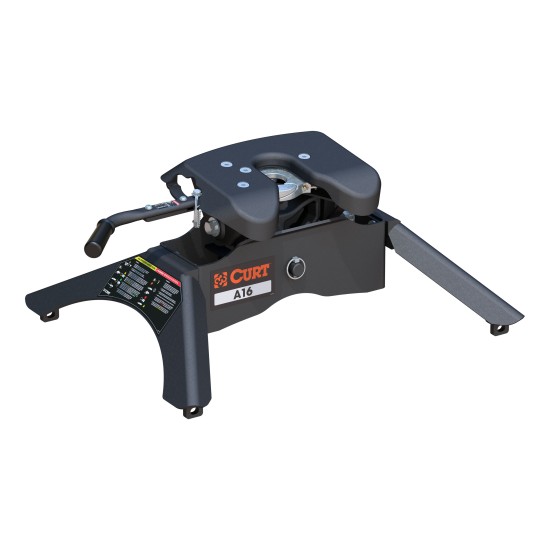

CURT 16120 A16 5th Wheel Hitch, 16,000 lbs (QTY 1)

Manufactured by: Curt

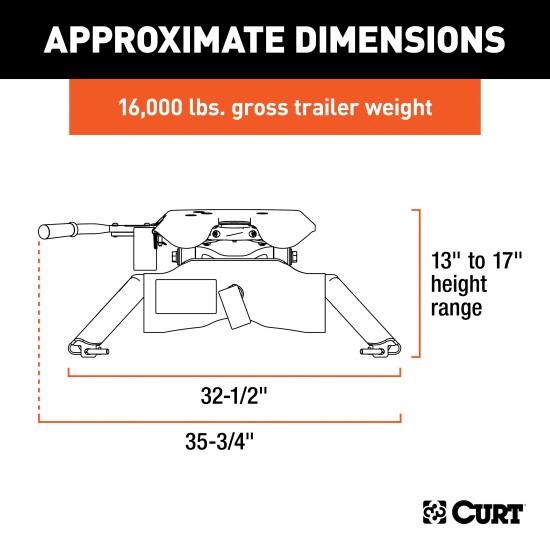

The CURT A16 is designed to provide a surprisingly quiet ride while maintain superior towing power It has a gross trailer weight capacity of 16,000 lbs and can handle a vertical load up to 4,000 lbs.

It comes with a three-position coupling indicator visible from your pickup truck cab, an extra wide head for easier coupling and high-strength interlocking die-cast jaws for a secure hold on your 5th wheel trailer This 16K 5th wheel hitch excels in quiet 5th wheel towing It uses a fully articulating torsion head, a cast yoke with poly-torsion inserts and interlocking jaws to create stability for your trailer and tow vehicle.

These components also allow the A16 to suppress shock and vibrations and reduce any additional noise coming from your trailer Like the other CURT A-Series hitches, the A16 is coated with a durable carbide powder coat finish It is tested in accordance with SAE J2638 for safety and includes a limited lifetime warranty to make this the best hitch ever to be mounted in the back of your pickup.

This A16 5th wheel hitch comes with a set of industry-standard 5th wheel legs that are ready to mount into your truck bed with a pair 5th wheel rails and brackets (base rails and brackets sold separately)..

Features:

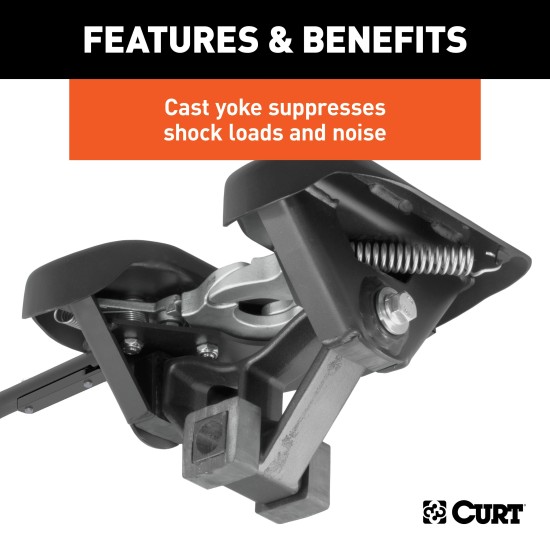

• Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise

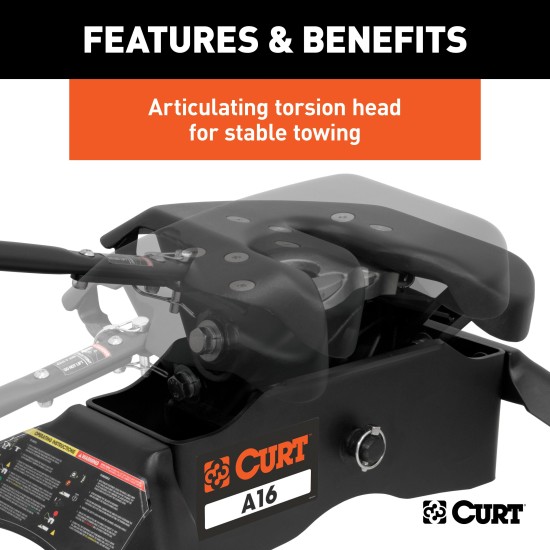

• Fully articulating torsion head for controlled coupling and stable towing

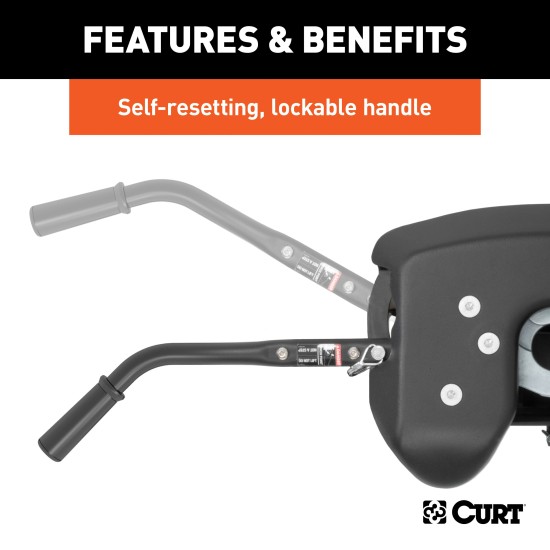

• Lockable handle self-resets to the ready-to-couple position after uncoupling

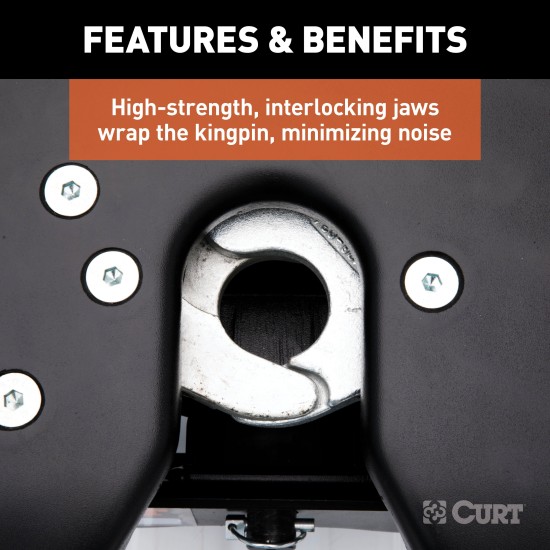

• High-strength, interlocking jaws fully wrap the kingpin to minimize noise

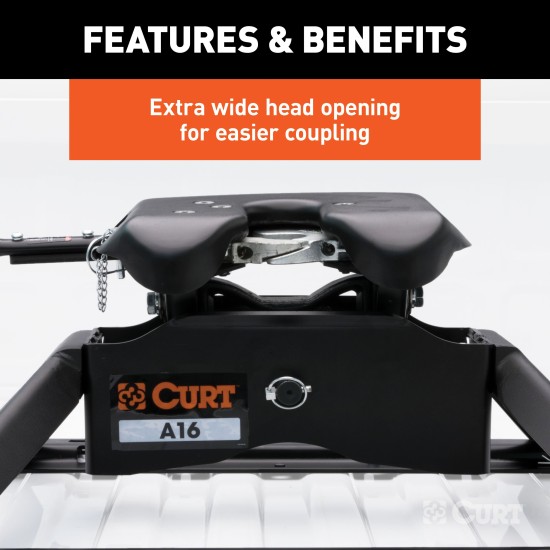

• Extra wide head opening for easier coupling

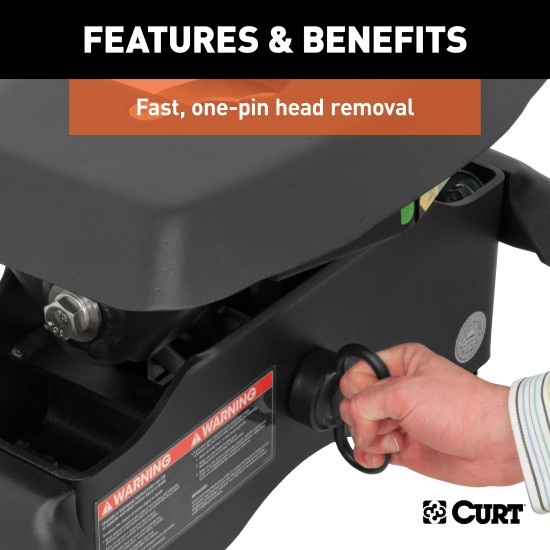

• Fast, one-pin head removal makes moving easy with smaller, lighter pieces

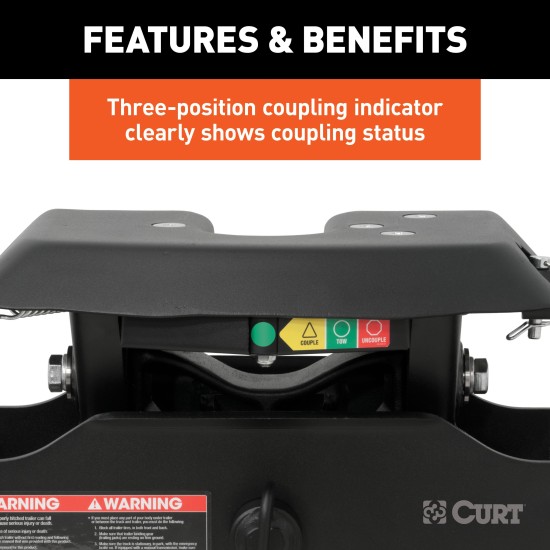

• Three-position coupling indicator clearly shows coupling status
• Compatible with kingpin extension boxes, including common pivoting pin boxes

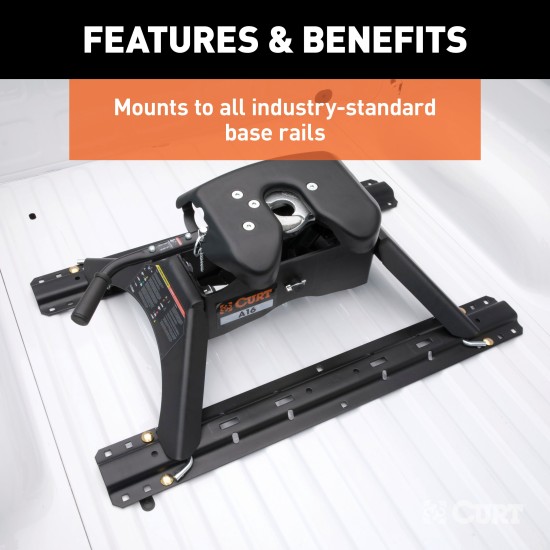

• Mounts to all industry-standard base rails
• Offers three height adjustment positions to adapt to each unique truck bed

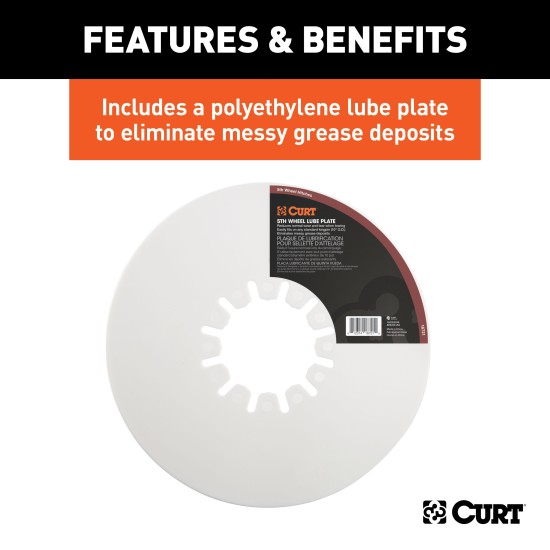

• Includes a polyethylene lube plate to eliminate messy grease deposits
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)
• Patent# 8,827,298
