Curt A20 Dual Jaw Sliding 5th Wheel Trailer Hitch for 2016-2019 Chevy Silverado GMC Sierra 2500HD 3500HD with 6-1/2' Bed - For Short Beds (20K Towing Capacity)
Model: CU84KAInstallation Hardware (if required)
Installation Instructions (if required)
Installation Schematics & Diagrams (if required)
This 5th Wheel and Gooseneck Hitch Fits The Following Vehicles:
| Start Year | End Year | Vehicle |
|---|---|---|
| 2016 | 2019 | Chevrolet Silverado 2500 HD 6-1/2 Foot Bed with OEM Prep Pkg |
| 2016 | 2019 | Chevrolet Silverado 3500 HD 6-1/2 Foot Bed with OEM Prep Pkg |
| 2016 | 2019 | GMC Sierra 2500 HD 6-1/2 Foot Bed with OEM Prep Pkg |
| 2016 | 2019 | GMC Sierra 3500 HD 6-1/2 Foot Bed with OEM Prep Pkg |
CURT 16698 A20 5th Wheel Slider Hitch, 20,000 lbs (QTY 1)
Manufactured by: Curt

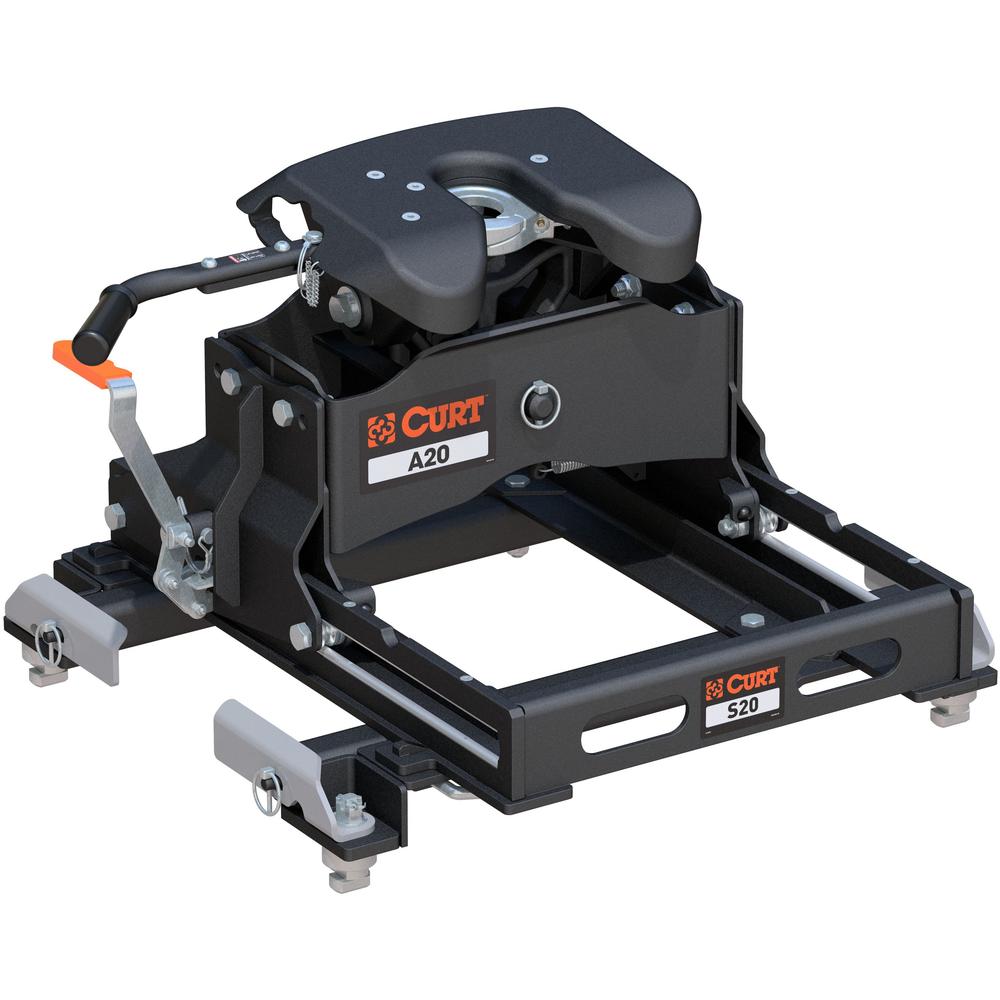

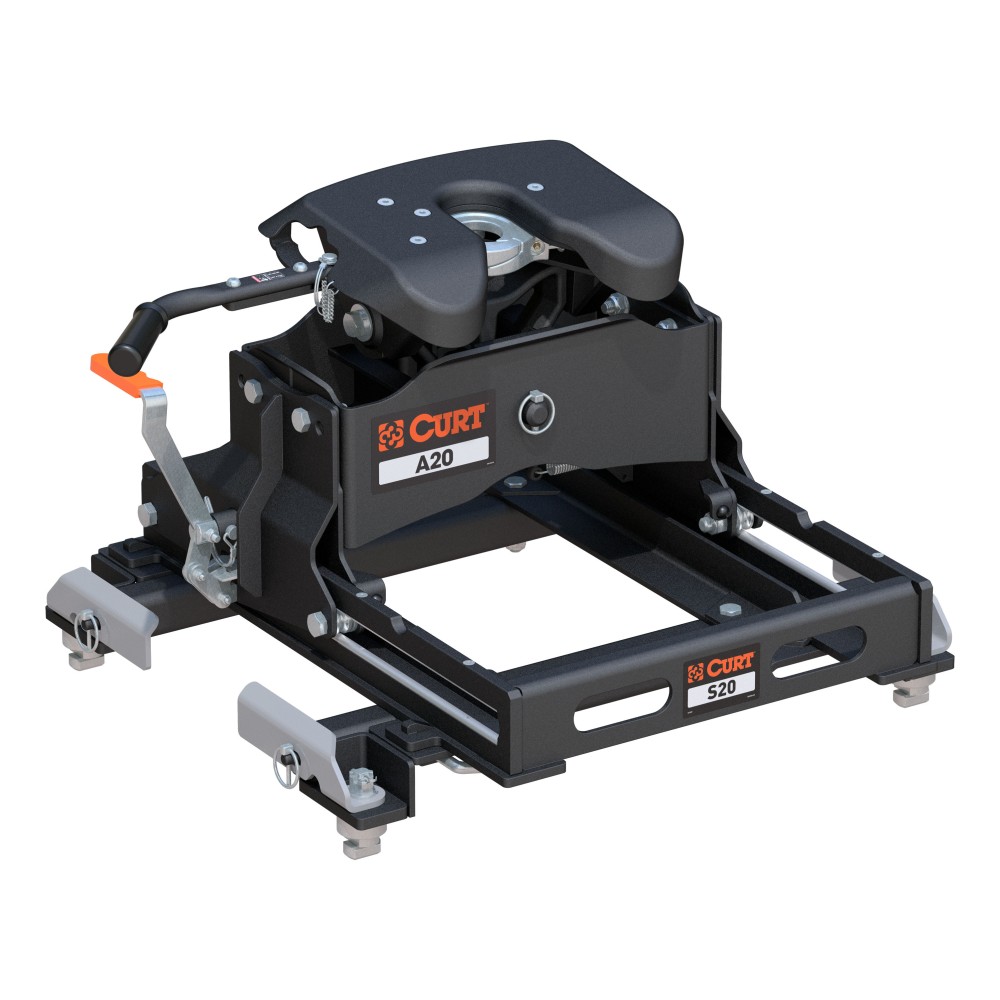

The CURT A20 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed The A20 is also fast and simple to operate.
It has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling, and it is equipped with a coupling indicator that shows the coupling status This 20K 5th wheel hitch comes with the CURT S20 slider and the CURT OEM puck system 5th wheel slider adapter It is designed to be mounted on select Chevrolet or GMC short-bed pickup trucks with the truck bed puck system (year range specific).
Using a set of quarter-turn anchors, the adapter quickly and easily drop into the pucks, instantly mounting the A20 hitch and slider and equipping the truck for 5th wheel towing Once installed, the S20 slider can safely move the coupling point 12" toward the rear, allowing your short-bed truck to make turns without obstruction The slider is comfortable and easy to operate, featuring a lift-style lever that is easily accessible over the side of the truck wall.
The lever moves in a more user-friendly, ergonomic motion compared to traditional, pull-out-style levers Best of all, the slider automatically latches into place in both directions, meaning you only have to get out of the truck once to complete the operation This A20 hitch with puck system slider is only intended to fit select Chevrolet or GMC trucks with a year-specific puck system and cannot be installed without it..
Features:
- Quarter-turn anchoring system provides quick installation and removal
- Adjustable anchors to eliminate chucking between the legs and puck system
- S20 5th wheel slider #16564 provides 12" of travel in the truck bed
- Lockable handle self-resets to the ready-to-couple position after uncoupling
- Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise
- Fully articulating torsion head for controlled coupling and stable towing
- High-strength, interlocking jaws fully wrap the kingpin to minimize noise
- Extra-wide head opening for easier coupling
- Fast, one-pin head removal makes moving the hitch easy
- Three-position coupling indicator is clearly visible from the truck cab
- Compatible with kingpin extension boxes, including common pivoting pin boxes
- Includes a polyethylene lube plate to eliminate messy grease deposits
- Tested for safety in accordance with SAE J2638
- Patent# 8,827,298
- Limited lifetime warranty (one-year finish, one-year parts)
List of Fitment Years:
2019, 2018, 2017, 2016$1,611 95 $2,352.95 31% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
Verify Fitment
$2,352.95 $1,611 95
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: CU84KA
- Includes: Puck 5th Wheel Roller Adapter, A20 5th Wheel Hitch Head, S20 5th Wheel Slider 20K
Compatibility Chart
| Year Range | Make | Model | Style |
|---|
