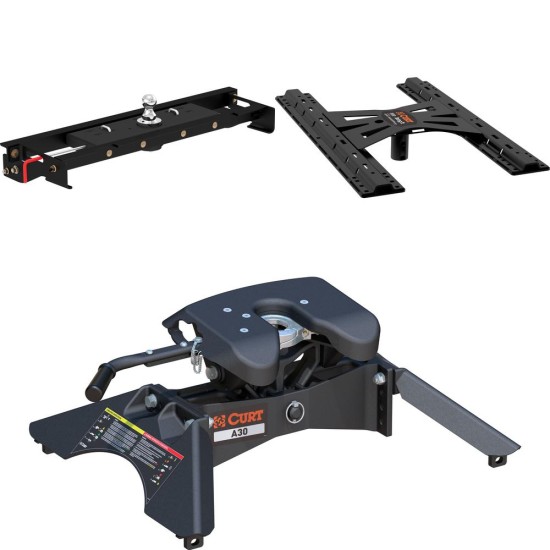

CURT 60721 Double Lock Gooseneck Hitch, 2-5/16-Inch Flip-Over Ball 30K (QTY 1)

Manufactured by: Curt

A CURT gooseneck hitch is more than a necessary tool for towing; it is an integrated extension of your truck that allows you turn your 4x4 into the workhorse it was designed to be That is why CURT offers gooseneck hitch kits that include both the hitch and the installation brackets, making it simpler and easier to get your truck towing-ready This kit includes the CURT Double Lock gooseneck hitch and installation brackets to match.

The under-bed Double Lock gooseneck hitch gets its name from the two locking pins that engage the trailer ball and hold it in place, giving you twice the security when towing especially heavy trailers The Double Lock mounts underneath your truck bed, using the included brackets, and provides a removable 2-5/16" gooseneck trailer ball with a gross trailer weight capacity up to 30,000 lbs and a tongue weight capacity of 7,500 lbs.

Using the heavy-duty operating handle, the trailer ball can be unlocked and flipped over whenever necessary to allow full use of the truck bed The Double Lock comes with solid safety chain hookups, an attractive chrome trim ring, a durable A-coat finish and a limited lifetime warranty This particular Double Lock gooseneck hitch kit is design to be a custom fit for certain years of the Ford F150 (for a complete listing of vehicle and installation bracket compatibility, see application info)..

Features:

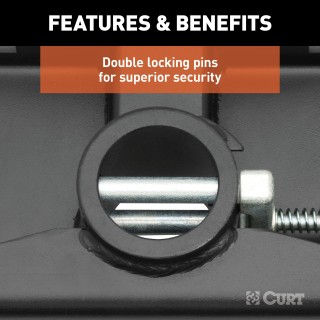

• Double locking pins for superior trailer and trailer ball security

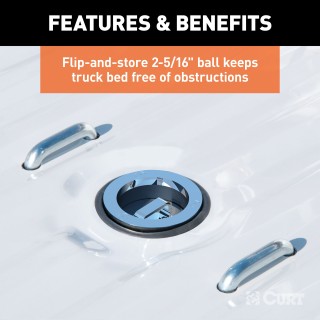

• Flip-and-store ball keeps truck bed free of obstructions
• Vehicle-specific design optimizes strength and installation time
• Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers
• Installation requires no welding or truck bed removal
• Heavy-duty handle can be positioned on either side of the vehicle
• Chrome-plated trim ring provides a finished look
• Rubber hole cover helps prevent corrosion in trailer ball hole
• Includes spring-loaded safety chain loops and grade-8 hardware
• Protected by a durable A-coat finish
• Limited lifetime warranty (one-year finish, one-year parts)

CURT 16210 X5 Gooseneck to 5th Wheel Adapter for Double Lock Hitches, Industry-Standard Base Rails, 20,000 lbs (QTY 1)

Manufactured by: Curt

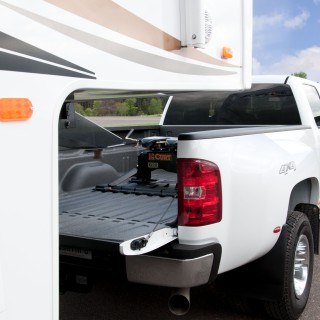

CURT 5th wheel adapter plates are a fast, dependable way to convert your gooseneck trailer hitch into a set of 5th wheel rails to accept a 5th wheel hitch and switch back again With gooseneck installation brackets and a gooseneck hitch already mounted, the adapter plate post simply mounts into the gooseneck trailer ball hole using a solid shank and is secured with the locking mechanism provided by the gooseneck hitch One of the most attractive features about CURT 5th wheel adapter plates is that they are practically instantaneous: insert the shank, apply the locking mechanism and just like that you have a sturdy pair of 5th wheel rails.

This CURT 5th wheel adapter plate features a round shank and is compatible with CURT Double Lock gooseneck hitches It features a gross trailer weight capacity of 20,000 lbs., allowing it to adapt and accept a number of 5th wheel hitches up to 20K This 5th wheel adapter plate offers a simple pin-and-clip conversion for gooseneck hitches and has multiple mounting points to accept either 5th wheel legs or a 5th wheel roller..

Features:

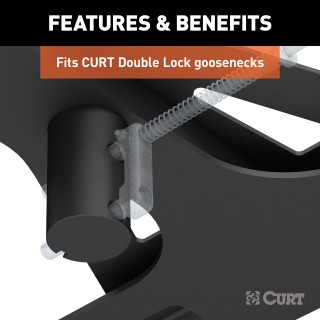

• Converts CURT Double Lock gooseneck hitches to 5th wheel rails
• For use with CURT and competitive 5th wheels up to 20,000 lbs.

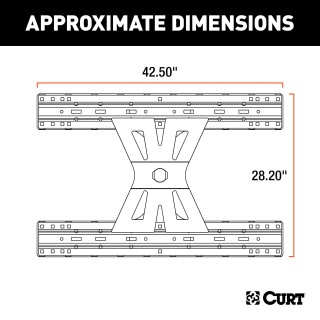

• Industry-standard base rails accept 5th wheel hitches and rollers
• Protected by a highly durable carbide powder coat finish
• No assembly or tools required – just drop it in, lock it and go
• Co-cured in a rust-resistant liquid A-coat
• Limited lifetime warranty (one-year finish, one-year parts)

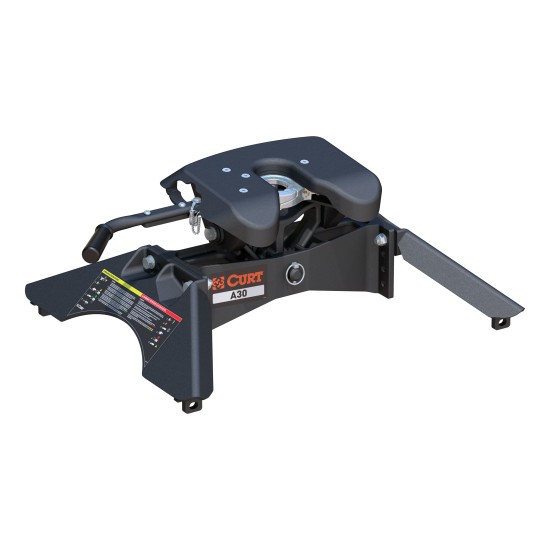

CURT 16190 A30 5th Wheel Hitch, 30,000 lbs (QTY 1)

Manufactured by: Curt

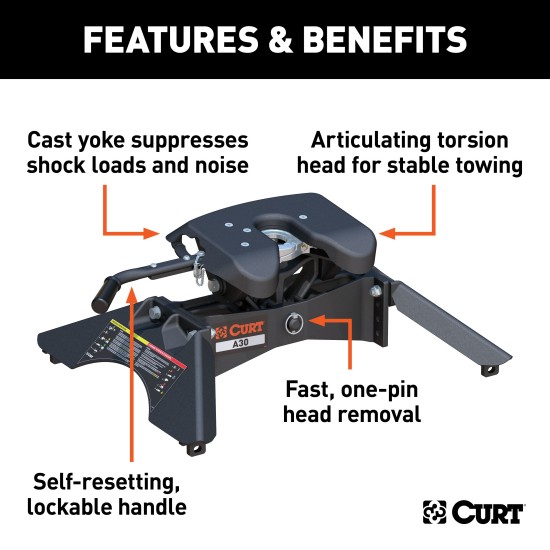

The CURT A30 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 30K 5th wheel hitch Like our other A-series hitches, this 30K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed.

The A30 5th wheel hitch is also engineered for easier installation The legs are equipped with two pins to properly align with the mounting holes, and they have easy-access mounting bolts for ergonomic tightening The 5th wheel head also has a fast, one-pin removal system to make installation and removal from the truck bed easier.

This 30K 5th wheel mounts to any industry-standard 5th wheel rails, using the included 5th wheel legs Once installed, the A30 is fast and simple to operate It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling.

To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling To protect the A30 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a black carbide powder coat finish.

We also test the A30 for safety in accordance with SAE J2638 to ensure reliability for the road ahead..

Features:

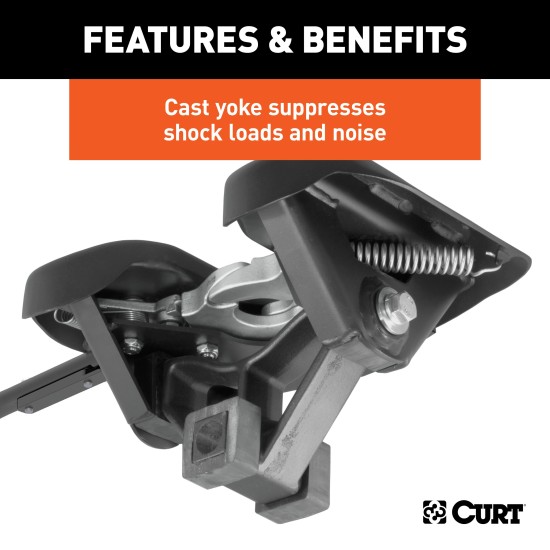

• Cast yoke with poly-torsion inserts to suppress shock loads and reduce noise

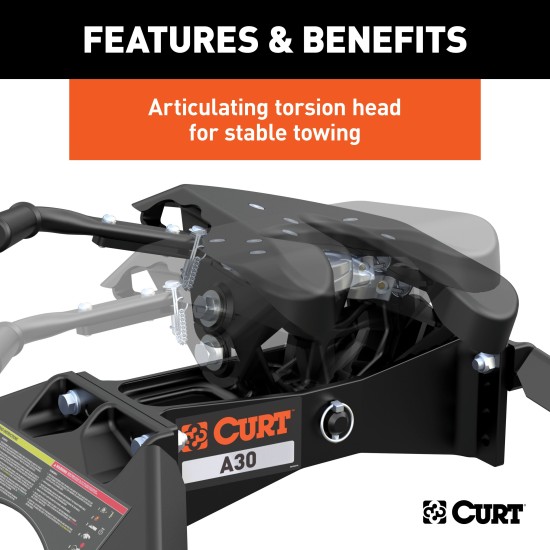

• Fully articulating torsion head for controlled coupling and stable towing

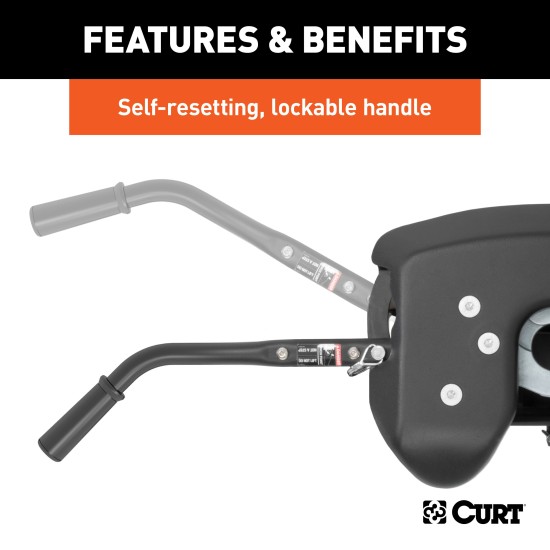

• Lockable handle self-resets to the ready-to-couple position after uncoupling
• Constructed with a cast steel main body for a more precise build

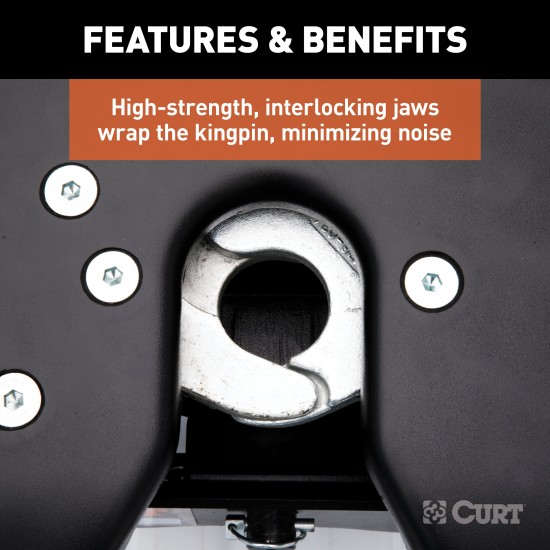

• High-strength, interlocking cast jaws fully wrap the kingpin to minimize noise

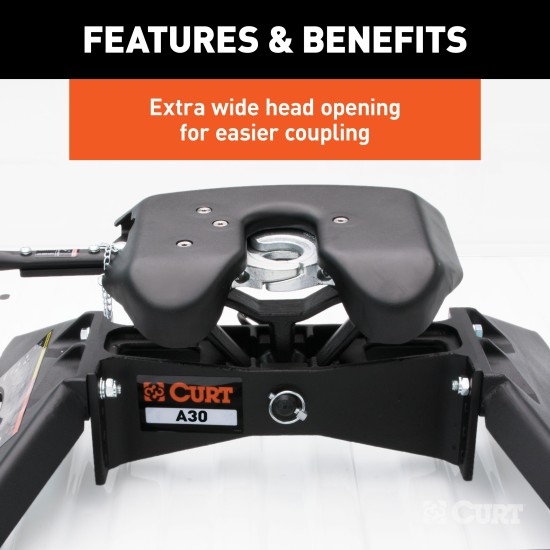

• Extra wide head opening for easier coupling

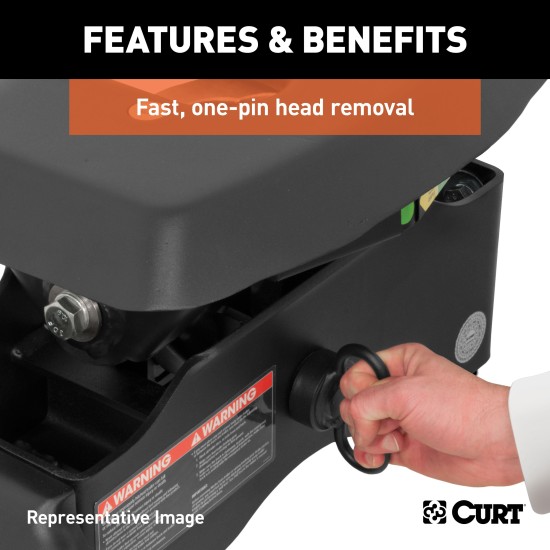

• Fast, one-pin head removal makes moving easy with smaller, lighter pieces

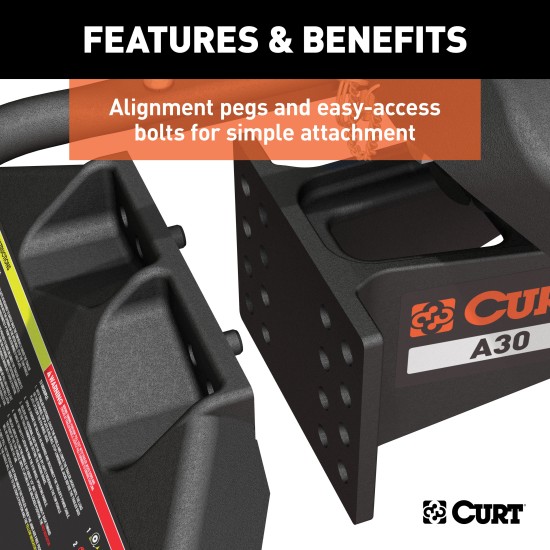

• Alignment pegs and easy-access bolts for simple leg-to-body attachment

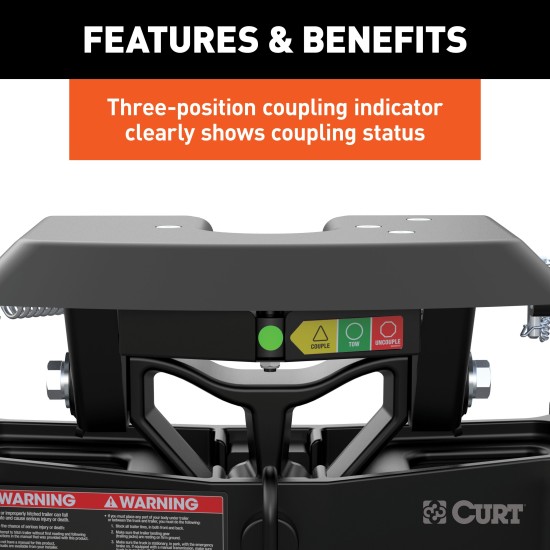

• Three-position coupling indicator clearly shows coupling status
• Compatible with kingpin extension boxes, including common pivoting pin boxes

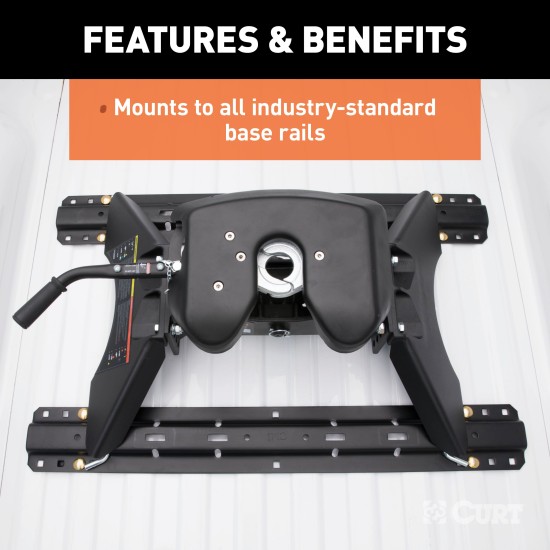

• Mounts to all industry-standard base rails

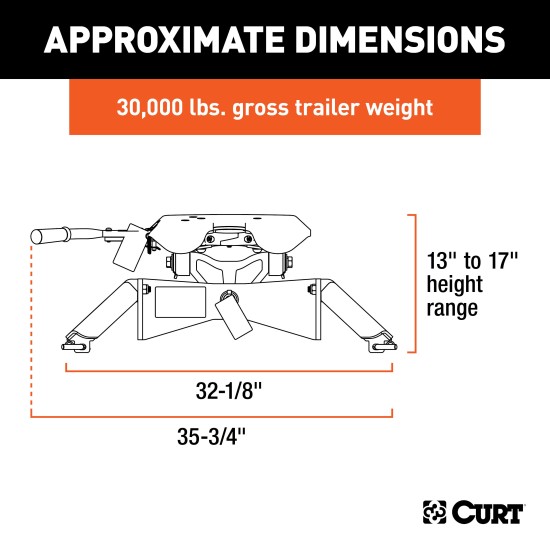

• Offers three height adjustment positions to adapt to each unique truck bed

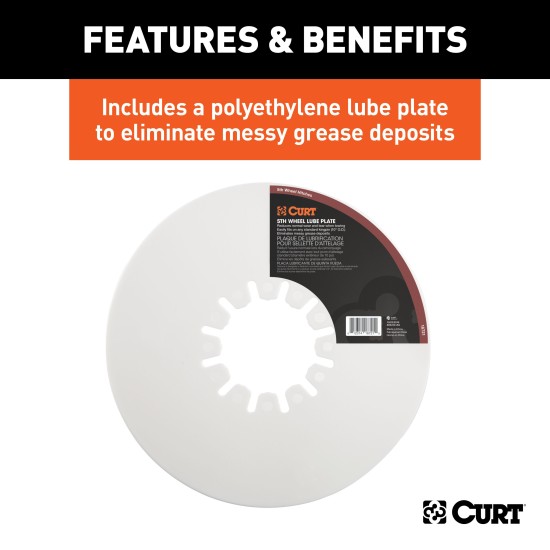

• Includes a polyethylene lube plate to eliminate messy grease deposits
• Tested for safety in accordance with SAE J2638
• Protected by a highly durable carbide powder coat finish
• Limited lifetime warranty (one-year finish, one-year parts)
