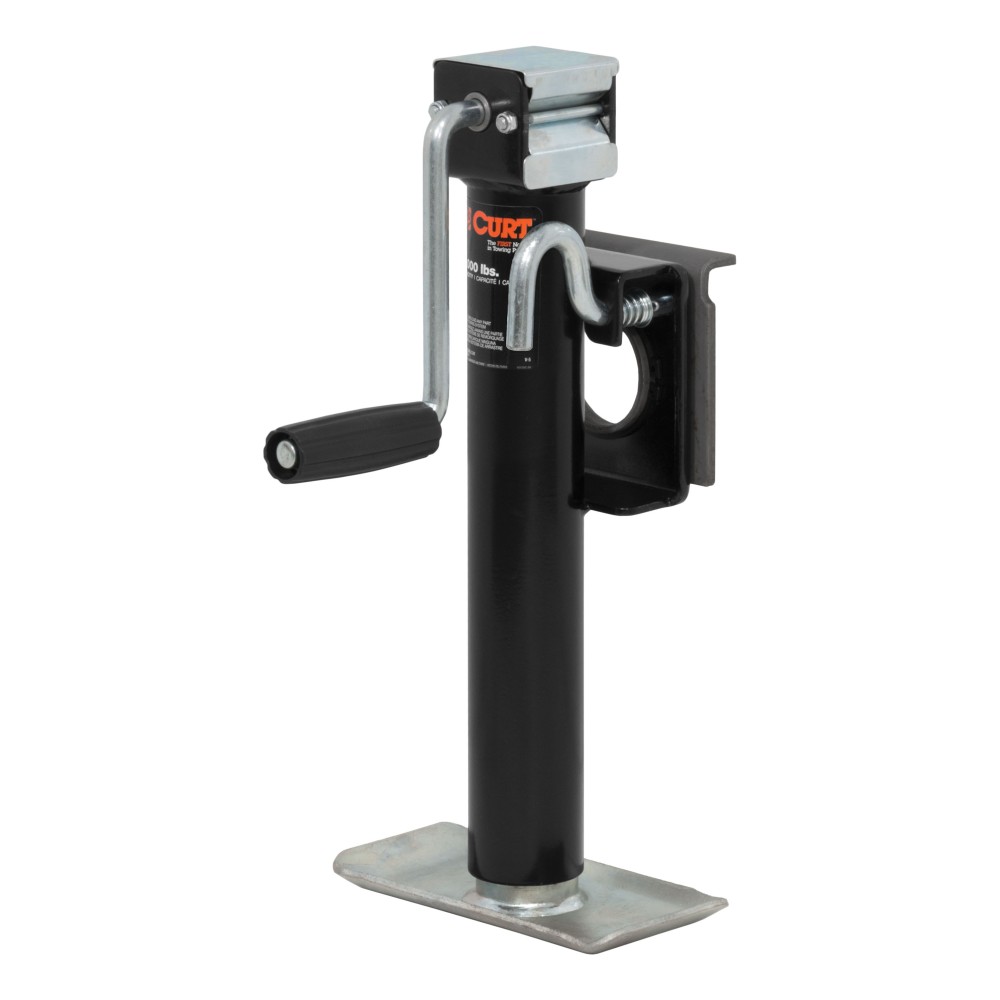

CURT Bracket-Mount Swivel Jack with Side Handle 2000 lbs 10 Inch Travel 28302
Model: 28302CURT Bracket Mount Swivel Trailer Jack
Explore the ultimate in convenience and reliability with the CURT Bracket Mount Swivel Trailer Jack. Crafted with precision and designed for longevity, this swivel jack is the perfect addition to any receiver-style trailer, whether it's a boat trailer, utility trailer, livestock hauler, or an RV trailer.
Featuring a support capacity of 3,000 lbs. and a lift capacity of 2,000 lbs., this jack ensures robust performance across various landscapes. The handy side-wind handle allows effortless raising and lowering of your trailer coupler, making hitching an easy task.

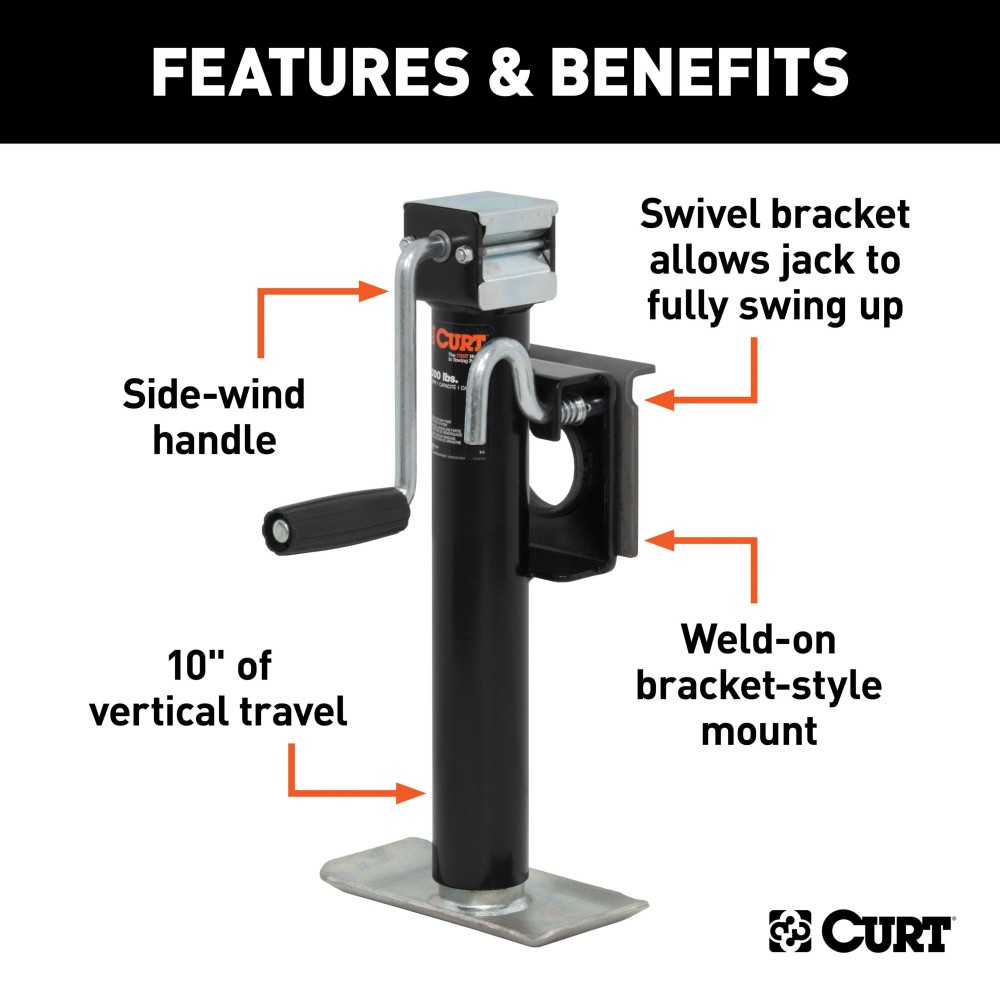

- Rated for 3,000 lbs. support capacity and 2,000 lbs. lift capacity

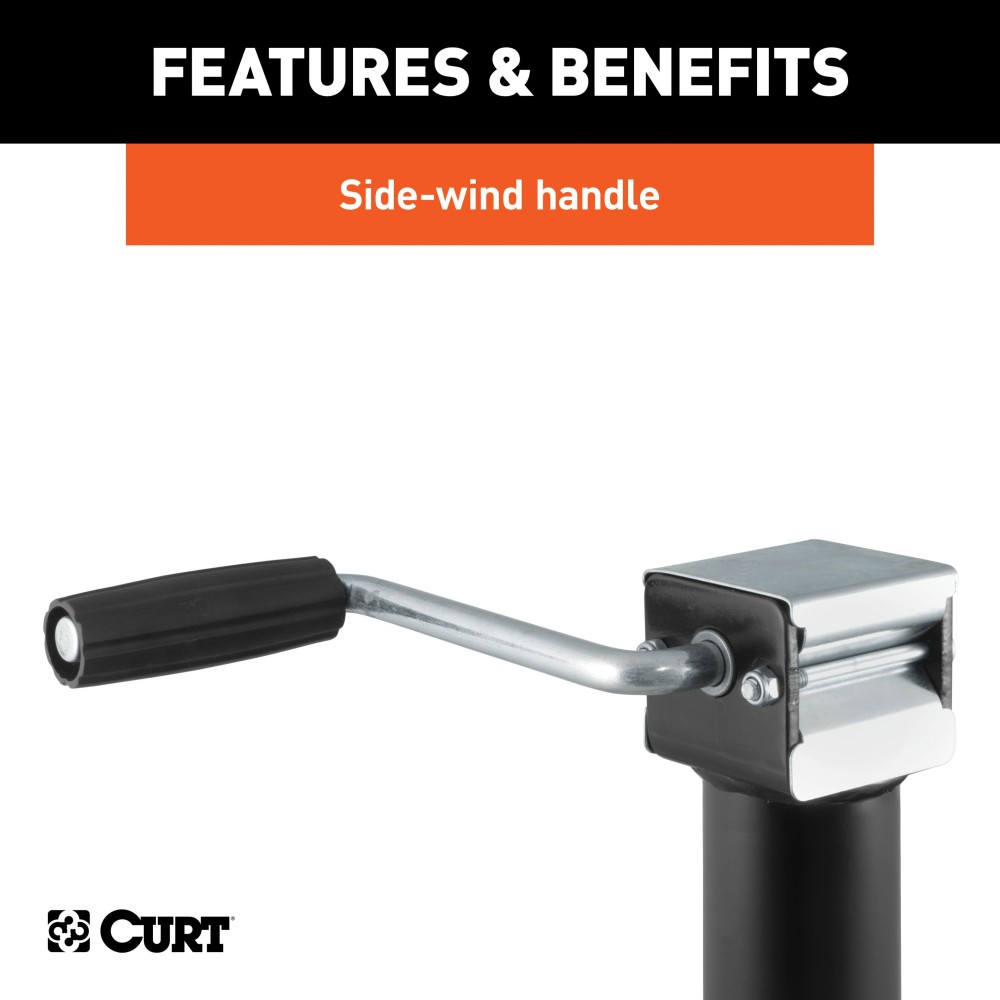

- Side-wind handle easily raises or lowers trailer coupler
- Weld-on bracket-style mount for secure installation

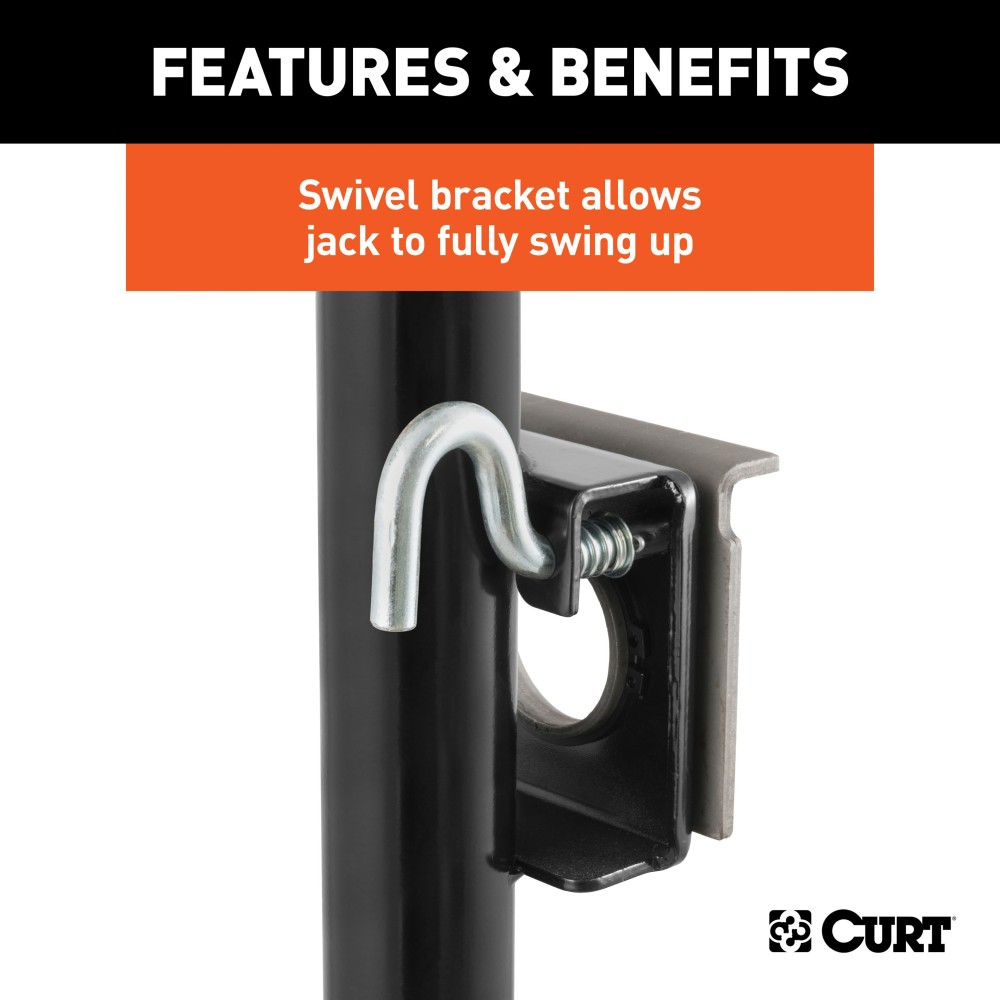

- Swivel bracket allows jack to fully swing up and out of the way for travel
- Pull-pin keeps jack securely locked in place
- 10" of vertical travel accommodates multiple ball heights
- Limited lifetime warranty (one-year finish, one-year parts)
This swivel jack includes a weldable bracket for ultimate stability and mounting security. Its innovative swivel design, featuring a convenient pull-pin, ensures the jack stays in place during travel. With 10 inches of vertical travel, it easily matches various ball heights for unparalleled versatility.
Invest in the strength and dependability of CURT, where every journey is supported by quality engineering. Backed by a limited lifetime warranty, focus on your adventures knowing your trailer is in good hands.
| Specifications: | |
|---|---|
| Weight Capacity | 1001-2000 Pounds |
| Jack Mounting Style | Bolt-On Jack Side Mount |
| Jack Groups | Boat and Utility Trailers |
| Jack Style | Snap Ring |
| Lift Mechanism | Sidewind Handle Crank |
| Jack Travel Range | 10.5 Inch Lift |
| Jack Finish | Black Powdercoat |
| Jack Static Load Capacity | 2000 LB Static Capacity |
| Jack Lifting Load Capacity | 2000 LB Lift Capacity |
| Jack Foot Type | Footplate |
| Jack Leg Style | Fixed Leg |
| Jack Swivel Type | Swivel |
| Jack Outer Tube Diameter | 2.25 Inch Outer Tube |
| Jack Shape | Round Jack |

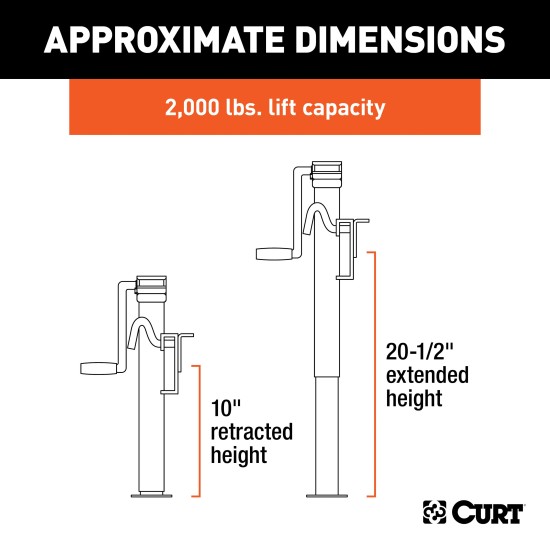

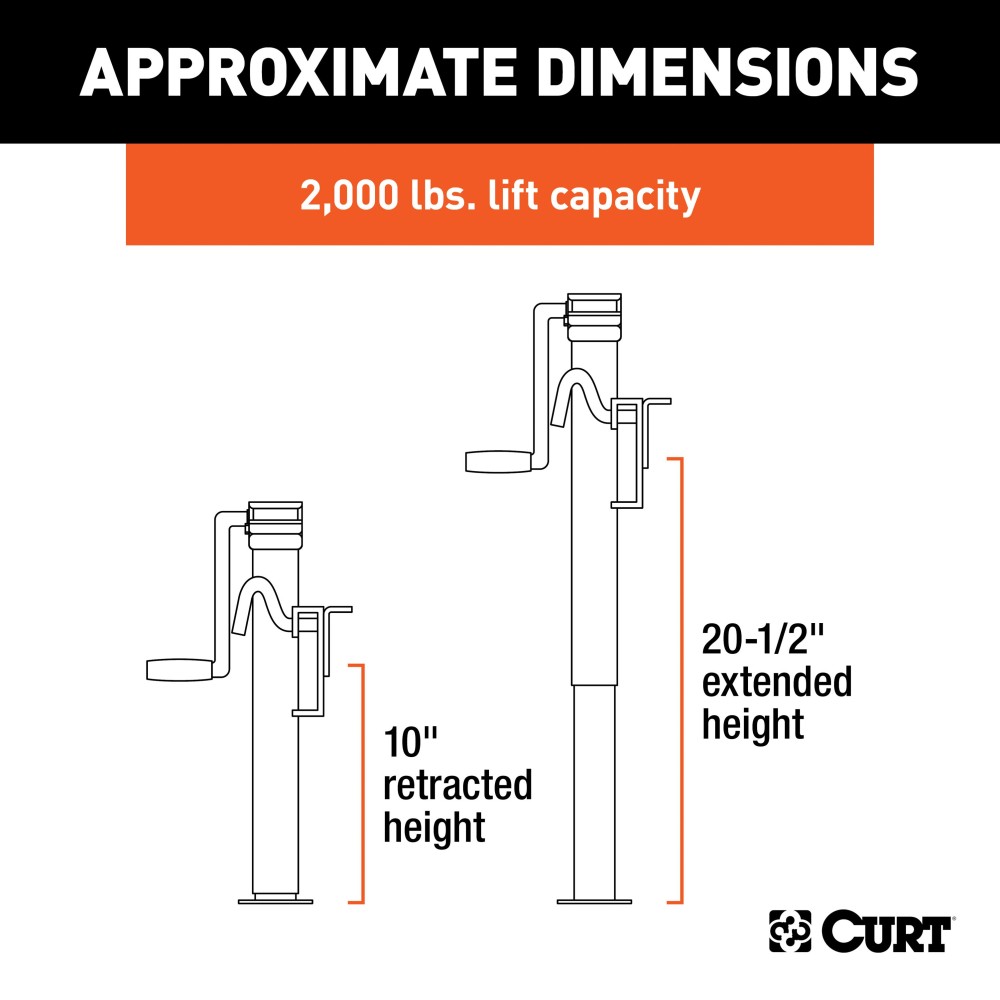

| Approx Bracket-to-Bottom Clearance (Retracted) | 10 Inch Bracket-to-Bottom Retracted |
| Approx Bracket-to-Bottom Clearance (Extended) | 21 Inch Bracket-to-Bottom Extended |
| Approx Bracket-to-Top Clearance | 5 Inch Bracket-to-Top Clearance |
| Electric Lift | Non Electric |
| Custom Bundle | No |
| Exact Bracket-to-Bottom Clearance (Retracted) | 10 Inch |
| Exact Bracket-to-Bottom Clearance (Extended) | 20.5 Inch |
| Exact Bracket-to-Top Clearance | 4.5 Inch |
| Inner Tubing Diameter | 2 Inch Inner Tube |
$78 94 $85.95 8% OFF
- Best Price on Web Guarantee
- Fastest Shipping
- FREE Shipping
- In Stock
We match lower prices from major authorized retailers for brand-new products in original packaging, provided the item is in stock. The competing seller must be an authorized, professional retail business; offers from
individuals, auctions, peer-to-peer sites, or unauthorized sellers don’t qualify. Used, refurbished, or open-box items are excluded.
Please see our full terms for details.
$85.95 $78 94
Learn more
Questions? Call our Auto Experts at (877) 869-6690
Get it now, pay later
Select installments at checkout to split your purchase into 4 interest-free payments of $ every 2 weeks.
- No fees, ever.
- No impact on your credit score.
Payment options are offered by Affirm and are subject to an eligibility check and might not be available in all states. CA Residents: Loans by Affirm Loan Services, LLC are made or arranged pursuant to a California Finance Lender license.
Installments in partnership with
.
Affirm and its offerings are supported in English only. Translations are not provided by Affirm.
Product Details
- Brand: Curt
- Model: 28302
- UPC: 612314006496
- Includes: Bracket-Mount Swivel Jack
